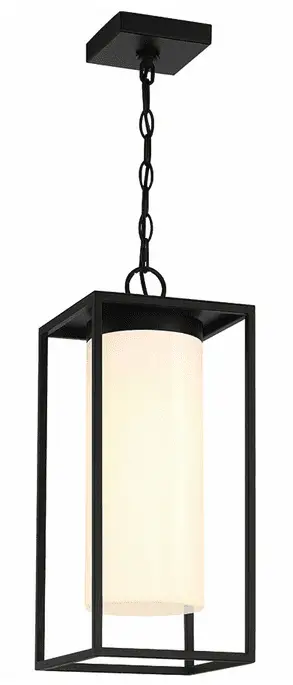

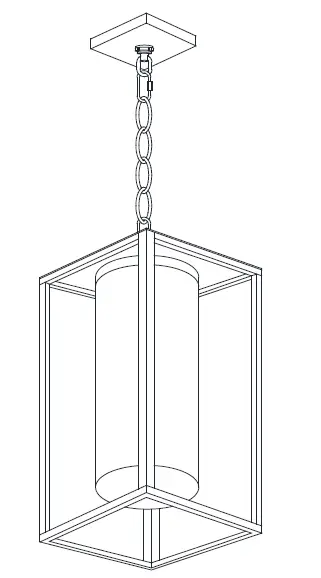

EUROfase 41964-019 Ren Modern Satin Black Outdoor Hanging Light Instruction
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE
- Follow the assembly instructions by reading the numerical order.
- Use a qualified electrician for installation of this lighting fixture.
- Before installing fixture, disconnect power by turning off the circuit breaker
- or by removing the fuse at the fuse box.
- All electrical connections must be in accordance with local and National Electrical Code or Canadian Electrical Code standards.
- Use CSA or UL certified wire connectors suitable for the gauge, type and number of conductors.
- Attach junction box grounding wire (green or bare copper) and the bare copper wire from the fixture together. If junction box has no ground wire,
- attach the bare copper fixture wire to the green ground screw on the crossbar.
Estimated Assembly Time: 25 minutes
Tools Required For Assembly (not included): Flathead screwdriver, Phillips screwdriver, Pliers, Electrical tape and Wire cutters. Helpful Tools (not included): Wire strippers, Ladder

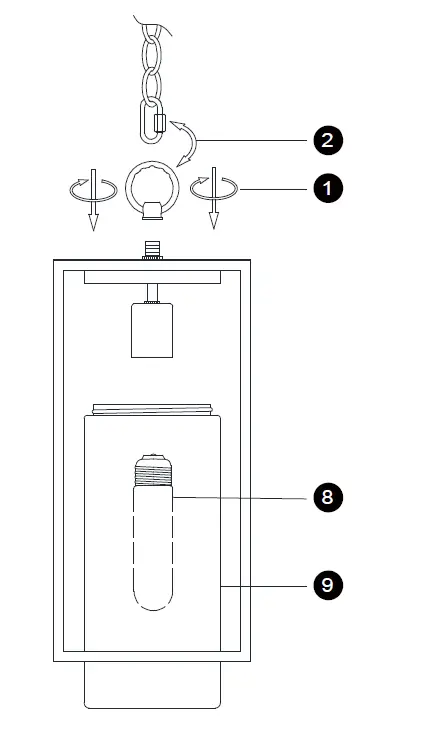

1 x 60W MAX, T10, 120V 60Hz (Bulb not included)
- Note:Apply the Silicone gel (not included) around the fixture body where it comes into contact with the wall.

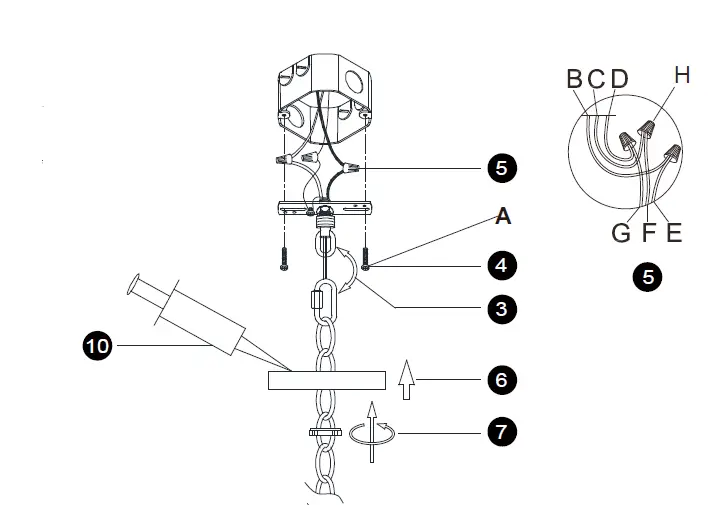

- A-Outlet Box screw x 2
- B-Black wire(L) from junction box
- C-White wire(N) from junction box
- D-Green wire/Bare copper (G) from junction box
- E-Black wire (L) from fixture
- F-White wire (N) from fixture
- G-Green wire/Bare copper from fixture
- H-Wire connector x 3
