14471 LED Panel
Instruction Manual
14471 LED Panel
 | 28 W 2.800 lm |
 | 28 W 1.960 lm |
| t | 20.000 h |
| Tk | 4.000 K |
 | 15.000 x |
 | <0,5 s |
| 996307 | |
| 230V / 50Hz~ | |
 | 1x LED-Board 74V DC / 28W |
Additional function: Switch on continuous light
Switch the light via the wall switch on, then 2x off and on again.
The light flashes once and the continuous light function is activated.
For deactivating the continuous light function, switch the light off and on again via a light switch.
 |  |  | ||||

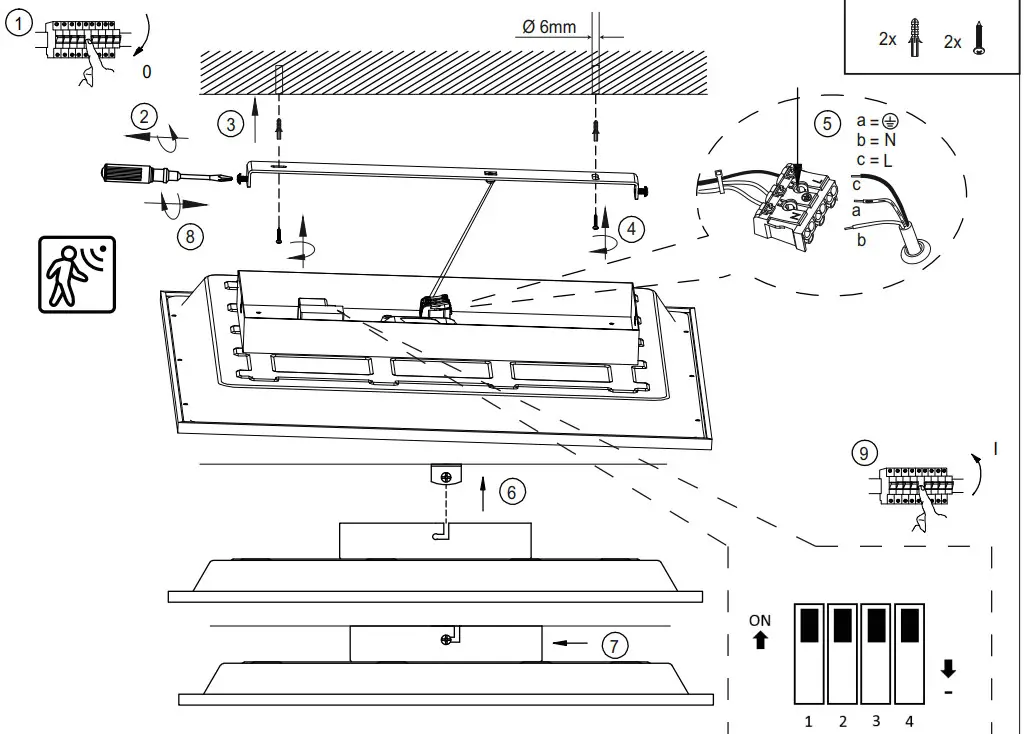

| 1 | 2 | 3 | 4 | |||
| ON | 7m | ON | ON | 5s | ||
| ON | 1 min | ON | ||||
| 3 5m , | ON | 3min | ||||
| 10min | ||||||
The light source of this luminaire should only be replaced by the manufacturer, a service technician commissioned by the manufacturer, or a person with comparable qualifications.
LeuchtenDirekt GmbH
Olakenweg 36 • 59457 Werl
Germany
