Aroeira Desk
We recommend that a professional furniture assembler assemble the product by using a cordless screwdriver.
NOTICE: The company is not responsible for the misuse. assembly, and wall fixation. as well as the damages and falls that the products, electronics, and belongings therein might suffer. It is mportant to use surtable drills and tools to assemble the product.
Tip: to avoid damages, use the product packaging as a base during the assembly.
HARDWARE LIST

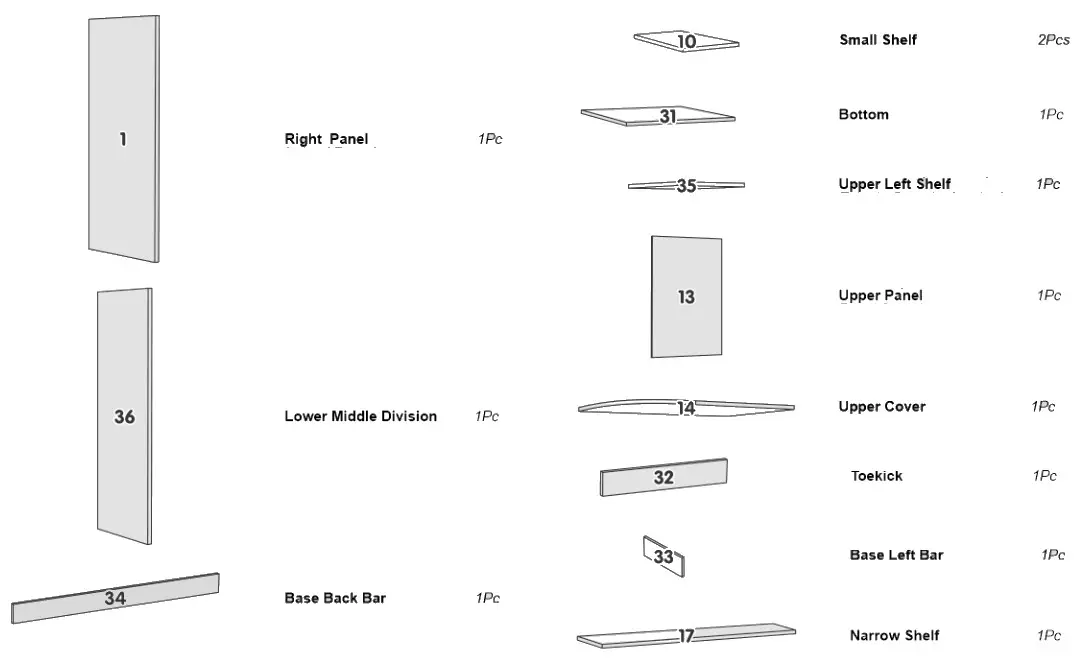

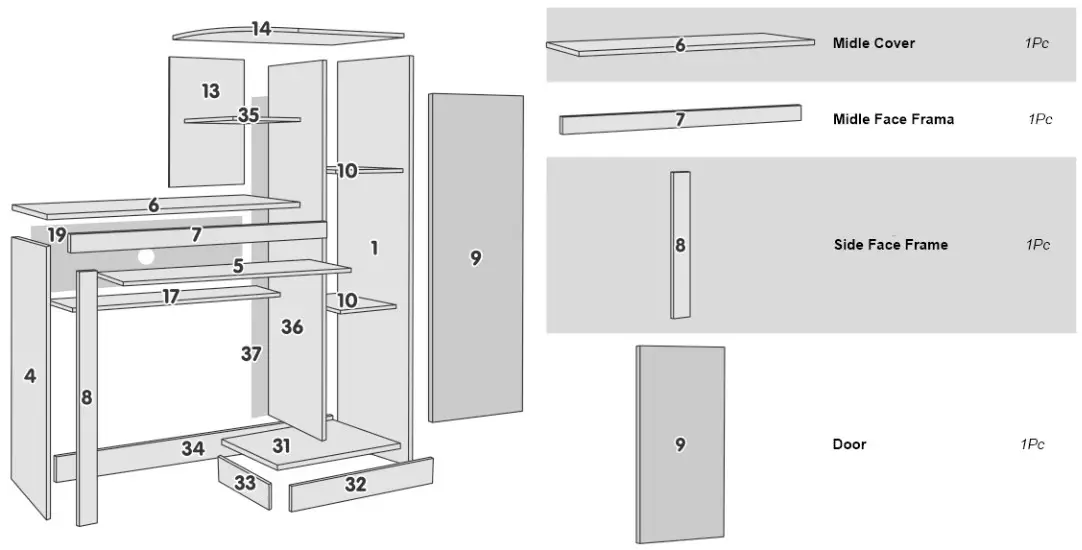

PARTS LIST

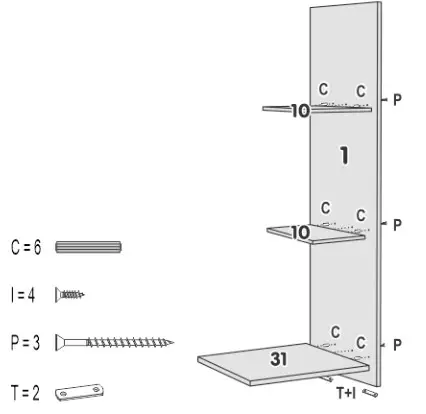

STEP 01 START ASSEMBLING FROM PART 1. SCREW PARTS 10 AND 31, INTO PART 1 WITH 5×40 SCREW(P):

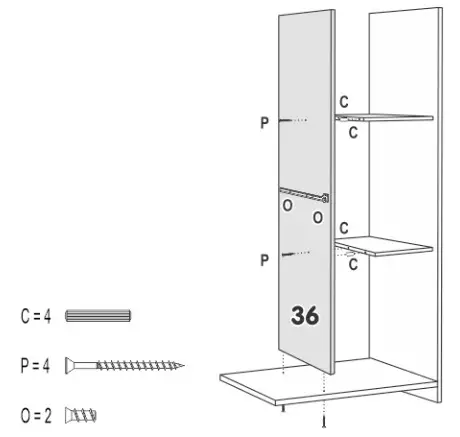

STEP 02 SCREW PART 36, ALREADY WITH THE SLIDE, INTO PARTS 31 AND 10, WITH 5×40 SCREW(P):

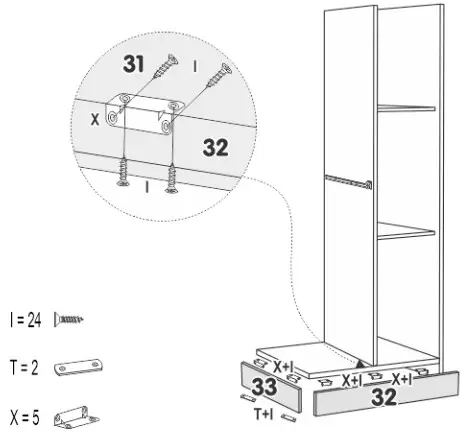

STEP 03 SCREW PARTS 32 AND 33, ALREADY WITH THE FEET(T+0. INTO PART 31 BY 4-HOLE ANGLE BRACKET(X+1};

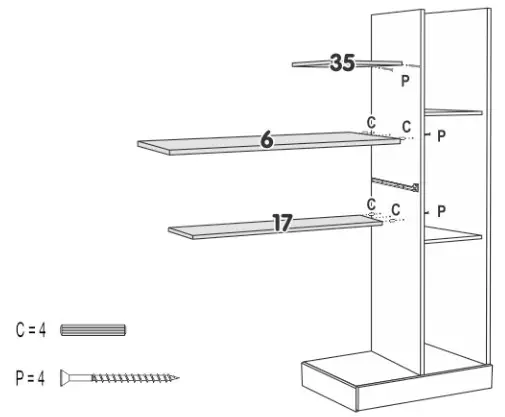

STEP 04 SCREW PARTS 365, 6 AND 17 INTO PART 2, WITH DOWEL(C) AND 5×40 SCREW(P);

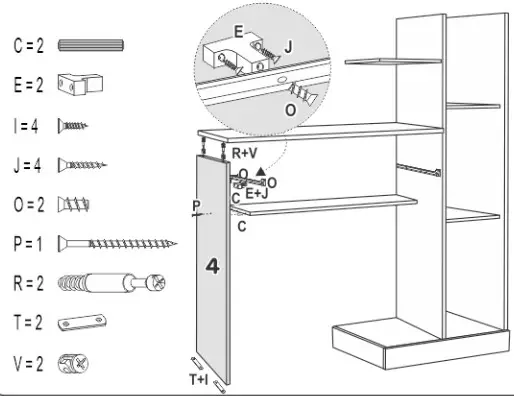

STEP 05 ATTACH AND SCREW PART 4, ALREADY WITH THE FEET(T+I) AND SLIDE BRACKET WITH SLIDE MOUNTING BRACKET(E+J AND 0), INTO PARTS 6 AN 17, WITH MINIFIX(R+V).

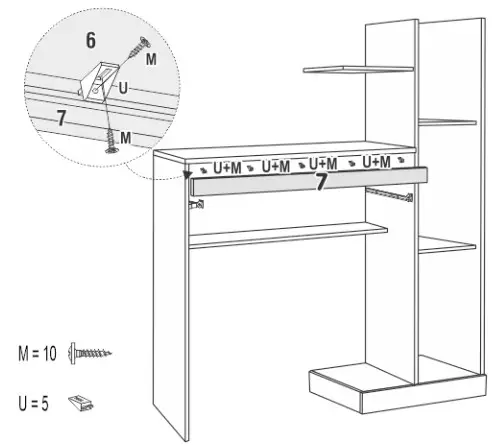

STEP 06 SCREW PART 7 INTO 6 WITH CORNER CONNECTOR, ACCORDING TO THE PICTURE BELOW:
STEP 07 SCREW PART 8 INTO 4 WITH CORNER CONNECTOR(U+M), ACCORDING TO THE PICTURE BELOW:

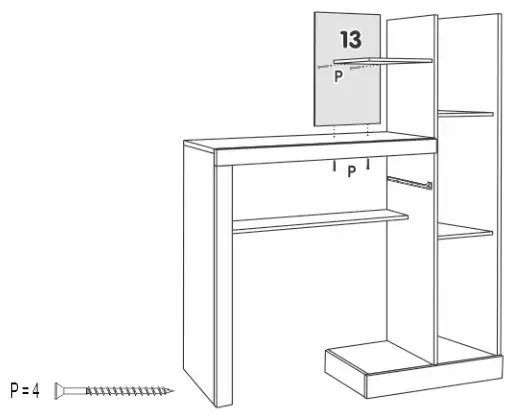

STEP 08 LIFT THE PIECE. SCREW PART 13 INTO PARTS 6 AND 35 WITH 5×40 SCREW(P):

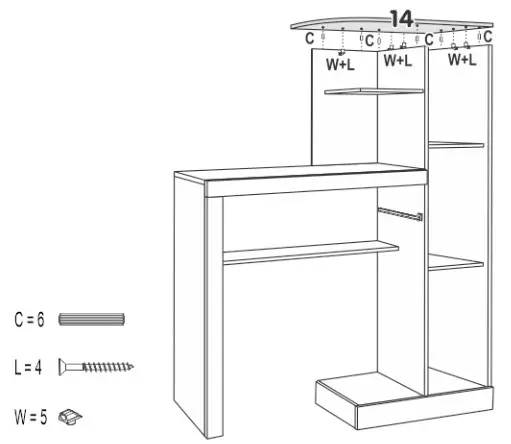

STEP 09 SCREW PART 14 INTO PARTS 1, 36 AND 13 WITH DOWEL(C) AND TRAPEZIUM CONNECTOR(W4L);

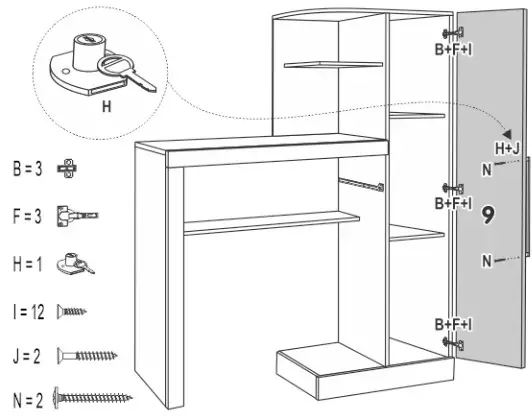

STEP 10 ATTACH THE DOOR (3) TO PART 1 WITH HINGES(B¢F+!), PLACE THE LOCK(H+J) AND THE HANDLE WITH THEIR HARDWARE, ACCORDING TO THE PICUTRE BELOW:

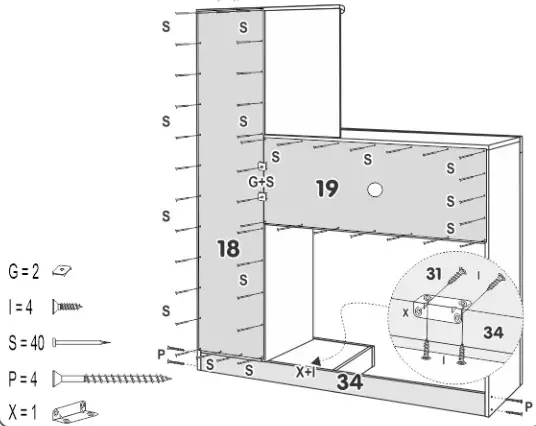

STEP 11 FASTEN THE BACK WITH 8×8 NAIL(S) AND SCREW BASE BACK BAR WITH 5×40 SCREW(P) AND 4-HOLE ANGLE BRACKET(X+1);

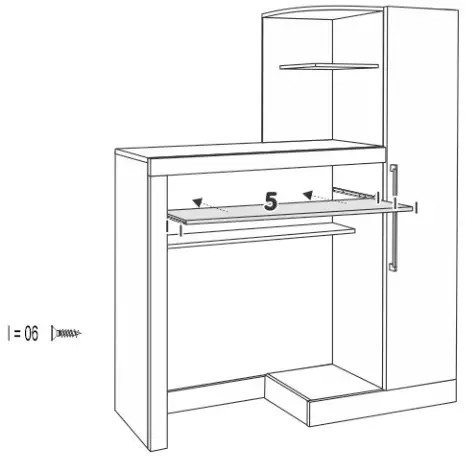

STEP 12 INSERT THE KEYBOARD SHELF (5) BETWEEN PARTS 36AND 4.
