Pond Clear UVC
7500 – 15000
For a healthy and clear pond
Pour un bassin sain et limpide

Translation of original manual.

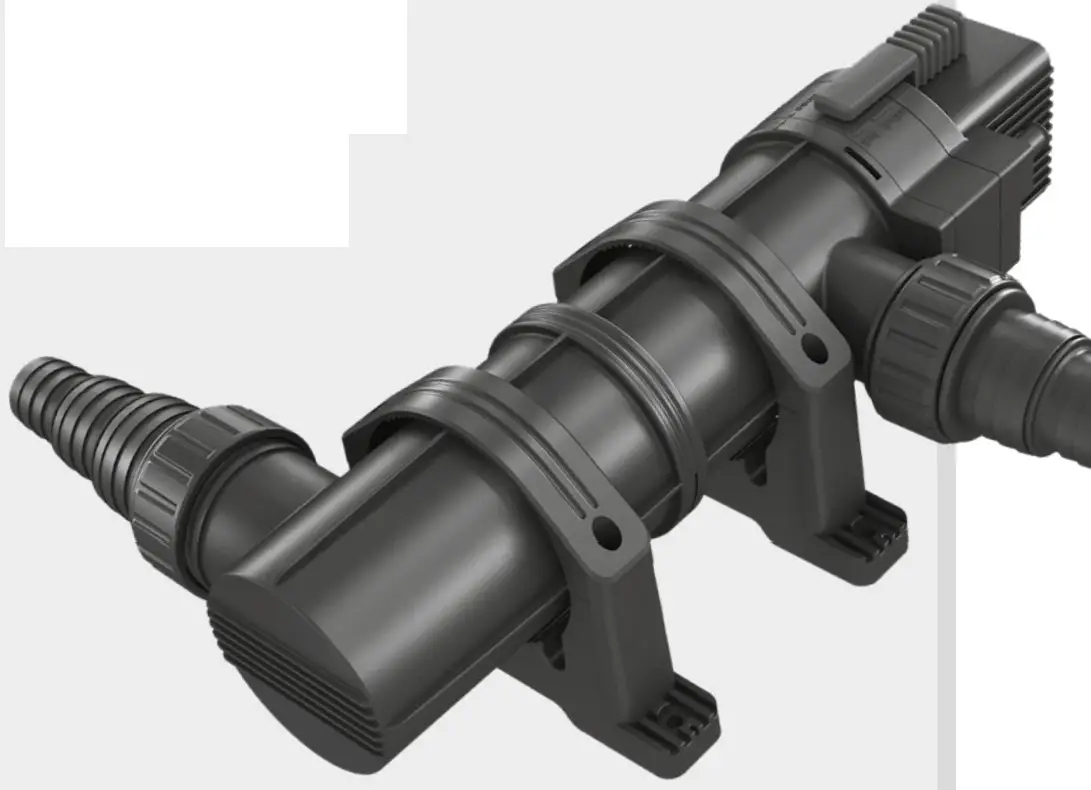

SuperFish Pond Clear UVC 7500 and 15000

General instructions
Read this manual carefully before using this device. Keep this manual for future reference.

Meaning of symbols
The following warning symbols and/or signal words are used in this manual:
DANGER!
This means an imminent danger due to electric current. Failure to follow the safety instructions can result in serious or fatal injury and/or serious damage to the product or environment.
WARNING!
This means a dangerous situation due to UV-C radiation. Failure to follow the safety instructions can result in serious eye damage and damage to the skin.
WARNING!
This means a dangerous situation. Failure to follow the safety instructions can result in moderate or minor personal injury and/or damage to the product or environment.
NOTICE!
This means caution, useful information, or advice.
Fig. … This refers to the relevant drawing … on pages 2 and 3 of this manual.

Meaning of the symbols on the device itself:
This UVC device produces harmful radiation, direct contact can be dangerous for the eyes and skin. Always turn off
the UV lamp before opening it.
This device complies with all applicable EU standards.
This device may not be disposed of with normal household waste but must be collected separately for recycling.
Use
Suitable for outdoor use, for pond purposes.

• The UVC device may only be connected if there is a sufficient flow of water.
• This UVC should be only used for cleaning pond water and the water temperature should not exceed 35°C. It should never be used for other liquids or chemicals.

Safety

Always follow the safety instructions below for safe use of the device. Failure to follow these instructions may endanger persons or the environment.

• WARNING! This UVC device emits UV-C radiation, which can cause serious eye damage and/or damage to the skin. The UV lamp must therefore always be installed completely shielded from the eyes.
• Never look at a burning UV lamp. Do not switch on the lamp until it is fully shielded installed and fully submerged.

• This device must be supplied through a residual current device (RCD) having a rated residual operating current not exceeding 30 mm.
• Ensure the voltage shown on the label matches the main supply voltage.
• This device must be connected to a socket that is earthed.

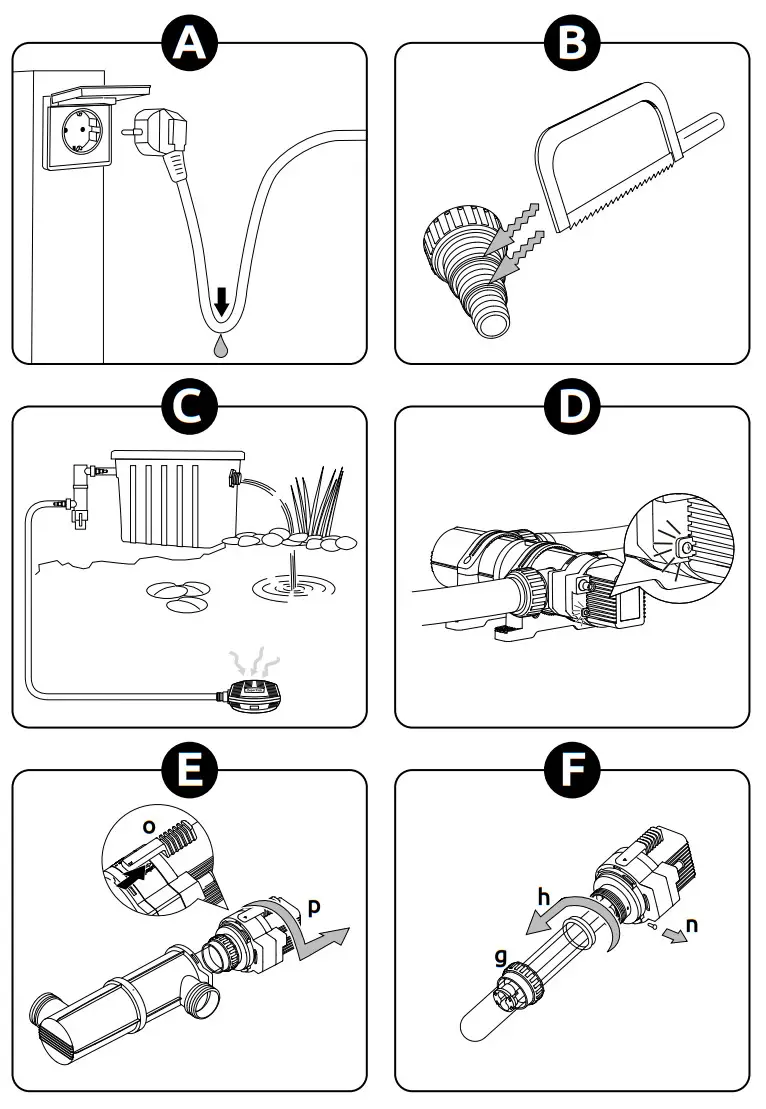

• Protect the socket and plug against moisture. Use a drip loop to ensure that water cannot reach the socket via the cord (see Fig. A).
• Don’t use the product if the device, quartz glass, cord, or plug is damaged. Replace the quartz glass or return the device to your dealer for repair or recycling.
• If the power cord or plug of the UVC is damaged, the unit head should be replaced.
• Be careful with the combination of water and electricity. Do not operate with wet hands. Dry hands before carrying out maintenance.
• Always switch off all devices in the aquarium before maintenance. Disconnect the plug(s) from the socket.

• NOTICE! The UV lamp becomes warm. The UV lamp becomes warm. Allow the lamp to cool for at least 10 minutes before carrying out maintenance.
• In the event of frost or the risk of frost, appropriate precautions must be taken to prevent it from freezing.

• This device can be used by children aged from 8 years and above, persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, if they have been given supervision or instructions concerning the use of the device in a safe way and understand the hazards involved. Children shall not play with the device.  Cleaning and maintenance of the device shall not be done by children without supervision.
• Modifications to the device may affect safety. The warranty will also expire.
• Aquadistri is not liable for any problems, damage or accidents due to incorrect use of this device.

Function

The UVC device ensures a clear pond within 14 days. The UV lamp that produces ultraviolet light is set to maximize effectiveness, with a wavelength of exactly 254 nm. The UV  radiation combats floating algae without the use of chemicals and reduces harmful bacteria and germs. The UV-C radiation does not affect the pH value of the pond water and is safe for fish and plants.

Installation

Always install the UVC device outside the pond, securely so it cannot fall into the pond. A pump transports the water from the pond through the UVC device and then through the filter back into the pond. See technical data for the correct pump capacity. Purification bacteria in the filter do not come into contact with the UV light, therefore the biological filtration is not adversely affected. pond hoses. Secure the hoses with hose clamps.
Fig. B Cut the hose connectors (a) at the same diameter as the diameter of the hose. Unscrew the hose connectors from the UVC device before making cuts to avoid damaging the UVC device.

• Screw the hose connectors with the rubber gaskets (b) back onto the UVC device.
  Fig. C Connect the pump and filter to the hose connectors of the UVC device using pond hoses. Secure the hoses with hose clamps.
• Switch on the pump and check for any leaks.
• Then turn on the UVC device by plugging in the power cord.
  Fig. D Check the operation of the UV lamp via the light indicator on the UVC device.
• To avoid UVC overheating, switch off the UVC device when no water is flowing past it.

Maintenance

• Check monthly if the UV lamp is burning via the light indicator on the UVC device.

• Remove the plug from the socket before carrying out maintenance!
• The UVC device should be cleaned twice a year. As soon as algae growth increases, check the UVC device and UV lamp and clean the whole or exchange the UV lamp as needed.

• The lamp is hot, wait 10 minutes after switching off before opening the UVC device.
• Ensure that the water is drained out of the UVC device first, before opening the device.

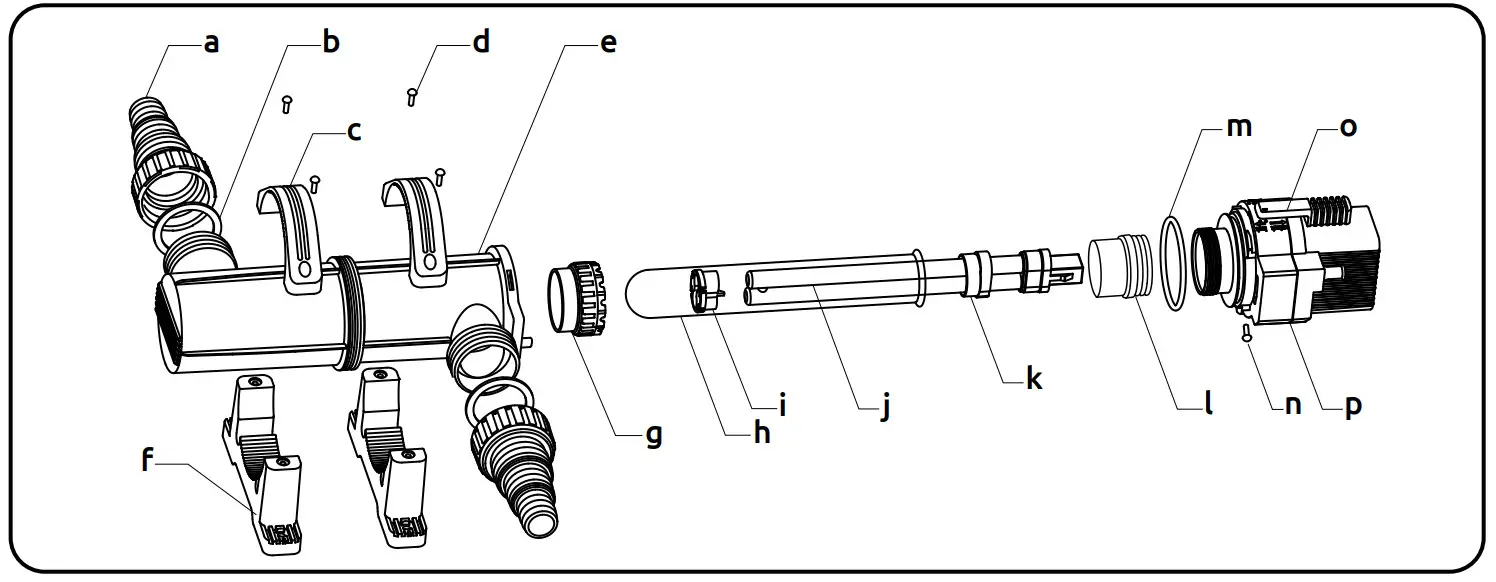

  Fig. E Slide the red switch lock (o) to unlock the electrical part/unit head and housing.
• Turn the unit head (p) counter-clockwise against the stop and carefully pull it out of the housing.
• Clean the inside of the housing (e) with a clean brush or cloth and rinse with clean tap water.
  Fig. F Loosen the locking screw (n) from the unit head, screw off the locknut (g). Pull off the quartz glass (h) including the gasket (l) by a slight rotary movement.

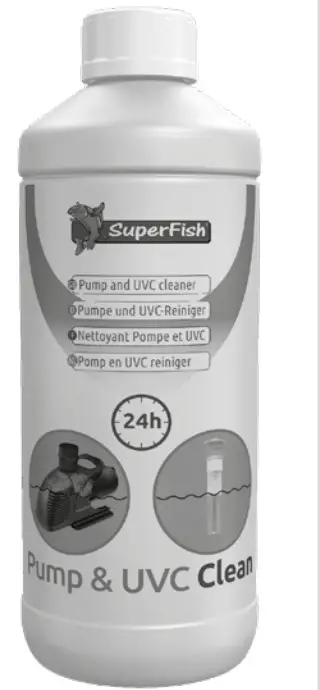

• carefully clean the quartz glass outer face with a soft cloth and SuperFish Pump & UVC Clean. After cleaning, thoroughly rinse the quartz glass with clean tap water and check for damage. Replace the quartz glass if it shows any damage (to prevent glass breakage). Quartz glass replacement kit for the Pond Clear UVC 7500 (Art. 06010350) and for the Pond Clear UVC 15000 (Art. 06010355).
• The UV lamp should be replaced annually, as the lamp may still burn but no longer emits enough UV radiation (maximum 8000 operating hours). Replacement lamp for  Pond Clear UVC 7500: SF UV PL-lamp 9 W G23-167 mm (Art. 06011015) and for Pond Clear UVC 15000: SF UV PL-lamp 18 W G23-236 mm SP (Art. 06010140).

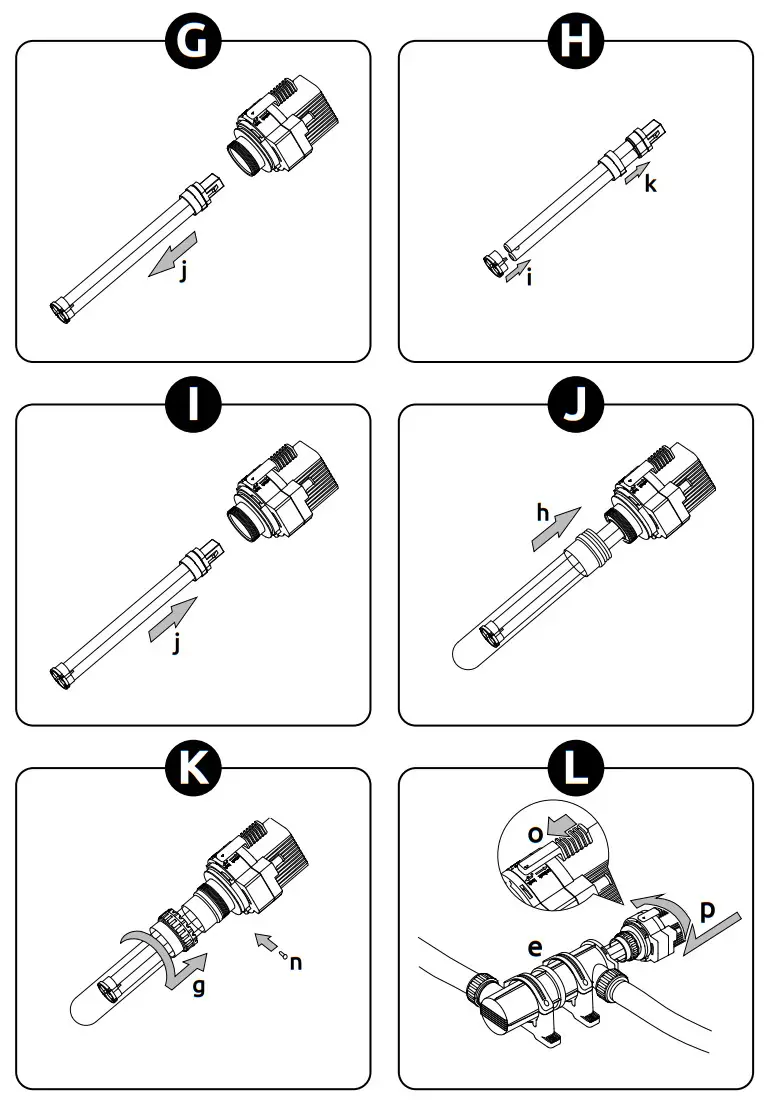

  Fig. G Remove the old lamp (j) together with clip (i) and tube protection ring (k) and remove the O-ring.
  Fig. H Slide the tube protection ring (k) over a new UV lamp and put the clip (i) on the end of the UV tube.
  Fig. I Insert the new UV-lamp (j) in the fitting of the unit head.
  Fig. J Slide the quartz glass (h) gently over the UV lamp and insert the quartz glass with the gasket in the unit head.
  Fig. K Slide the locknut (g) over the quartz glass and tighten it onto the unit head.
• Place back the locking screw (n) to lock the locknut.
  Fig. L Place the unit head (p) with fitted UV-lamp and quartz glass back into the housing (e) correctly and lock the red switch (o).
• Check the whole assembly for possible leaks and check if the UV lamp is working.

Recycling

This symbol indicates that this product (if it is discarded) may not be disposed of with normal household waste. Instead, it must be handed in at an official collection center (e.g. HWRC). Or can be returned to the dealer when purchasing a similar new product. Follow the applicable rules in your country for the separate collection of electrical and electronic products. Separate collection and recycling are better for the environment, public health and reduce waste.

Warranty

2 years manufacturer’s warranty on materials and construction defects. Devices must be returned complete with all components, accompanied with an official proof of purchase confirming a purchase date for any warranty claims. Incomplete devices of which parts are missing, and devices without proof of purchase are not eligible for warranty. After receiving and checking, we will determine whether the device will be repaired or replaced. For a device repaired or replaced under warranty, the remaining time of the original warranty period applies. Carefully read the instructions on installation, use, and maintenance. Damage due to incorrect use, damage due to contamination or not cleaning the device, glass breakage, and damage to the cord are not covered by the warranty. Always keep the proof of purchase, without proof of purchase the warranty will be void!

 Important, clean your UVC device at least twice a year!
Dirt and calcification reduce the UV-light permeability. Descale your quartz glass at least twice a year, for smooth, long-term use. In areas with extremely hard water, you may need to descale more often. Technical problems caused by scale are not under warranty. For cleaning and descaling, the quartz glass special SuperFish Pump & UVC Clean is available at your dealer.

www.tuv.com
ID 1419053311

www.aquadistri.com
Vlietweg 8, 4791 EZ Klundert, The Netherlands, [email protected]
10-2021 MH
