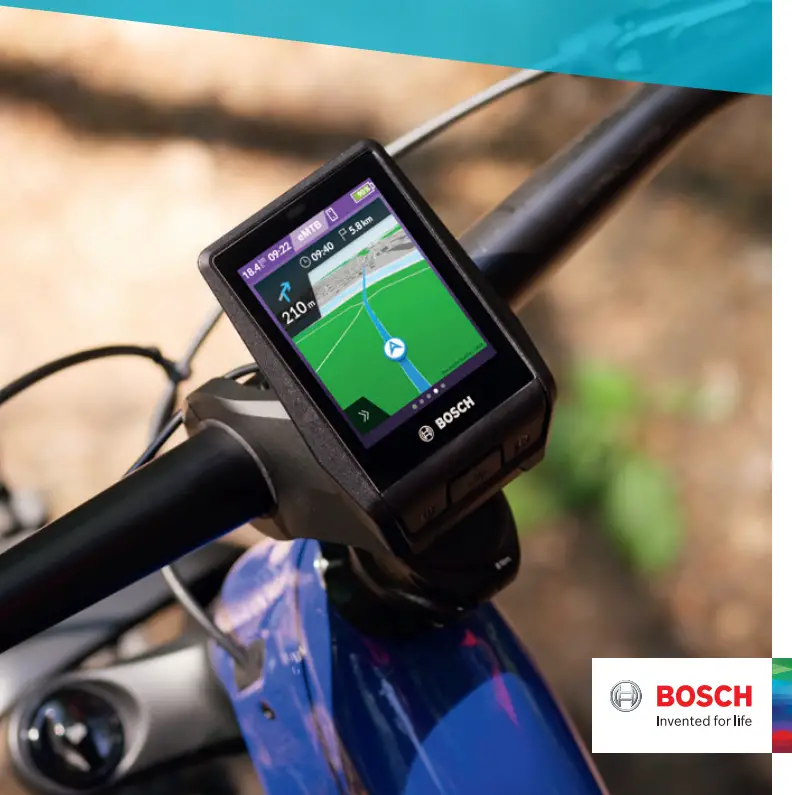

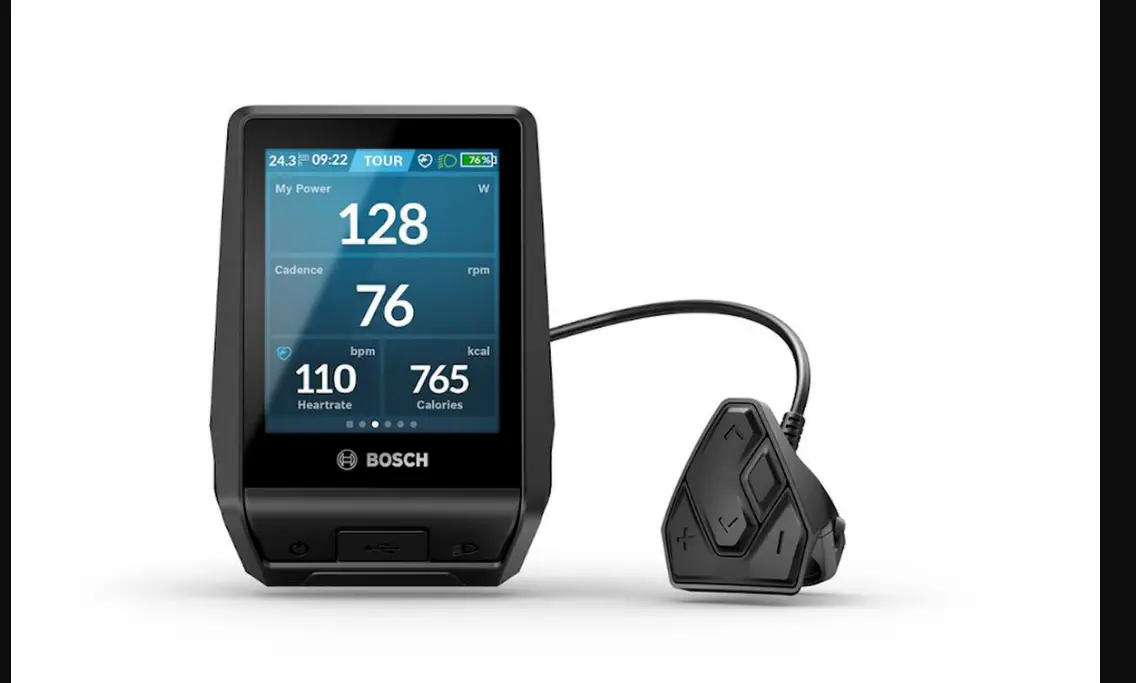

Nyon - the connected all-rounder

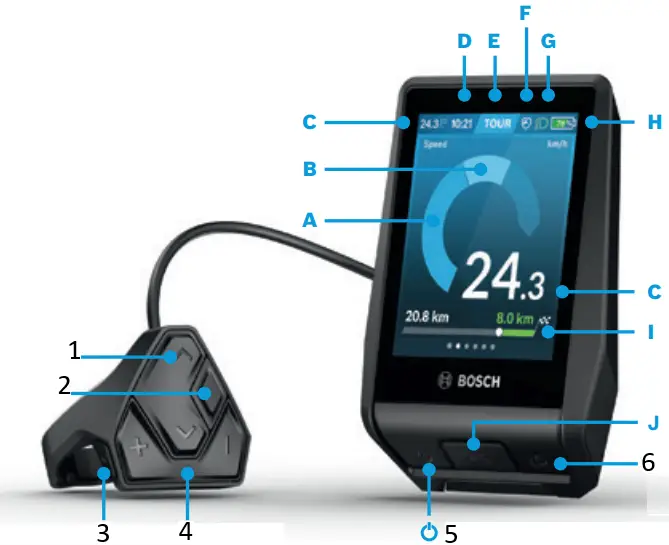

Nyon at a glance
- Switch screens
- Select button
- Walk assistance
- Riding modes
- Switching on/off.
< 3 sec. Stand-by / > 3 sec. Off - Bicycle light on/off
A Motor performance
B Performance indicator
C Current speed
D Time
E Current riding mode
F Connected heart rate sensor
G Bicycle light switched on
H Battery charge level
I Remaining range
J Micro-AB-USB port
Use the + and – buttons to select one of 4 assisted riding modes
Eco Effective support for the greatest range
Tour Consistently reliable support for long rides
Sport Powerful support for universal uses
eMTB* Progressive, dynamic support for a natural riding sensation
Turbo Maximum support for a sporty ride
Functions
Navigation
Touch display
Customisation
Topographical residual range
Fitness data tracking
The eBike Connect App and the eBike Connect portal open up new options. Log in at ebike-connect.com and learn more. All functions and details about the Nyon can be found at www.bosch-ebike.com

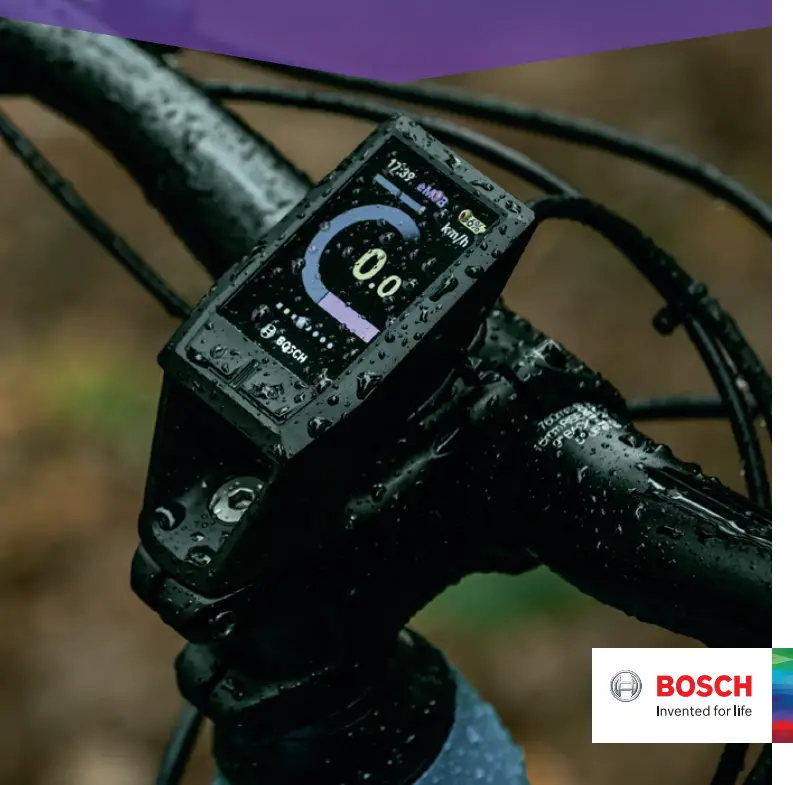

Kiox – sporty connectivity

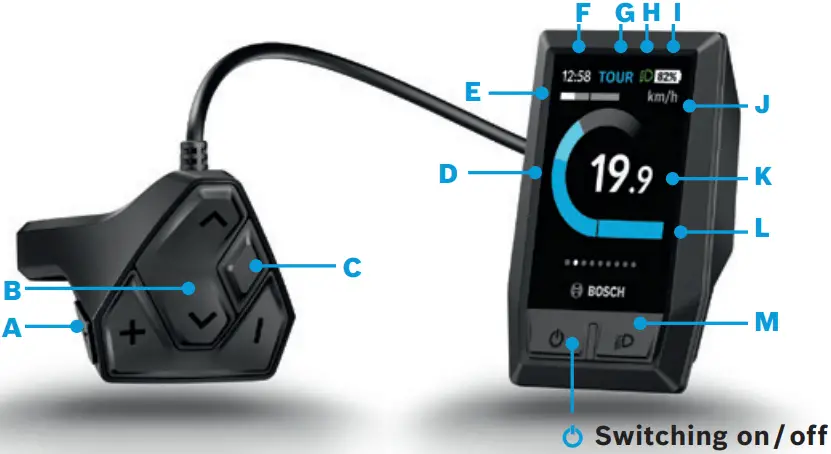

Kiox at a glance
A Walk assistance
B Cursor buttons: toggle between screens & settings
C Select button
D Performance indicator
E Current speed compared to average speed
F Time or speed
G Current riding mode
H Bicycle light switched on
I Battery charge level
J eShift (optional)
K Current speed
L Motor performance
M Bicycle light on/off
Use the + and – buttons to select one of 4 assisted riding modes
Eco Effective support for the greatest range
Tour Consistently reliable support for long rides
Sport Powerful support for universal uses
eMTB* Progressive, dynamic support for a natural riding sensation
Turbo Maximum support for a sporty ride
Functions
Navigation Personalization Fitness data tracking
The eBike Connect App and the eBike Connect portal open up new possibilities, such as navigation using the app on the Kiox (available from Model Year 2021). Log in at ebike-connect.com now and find out more.

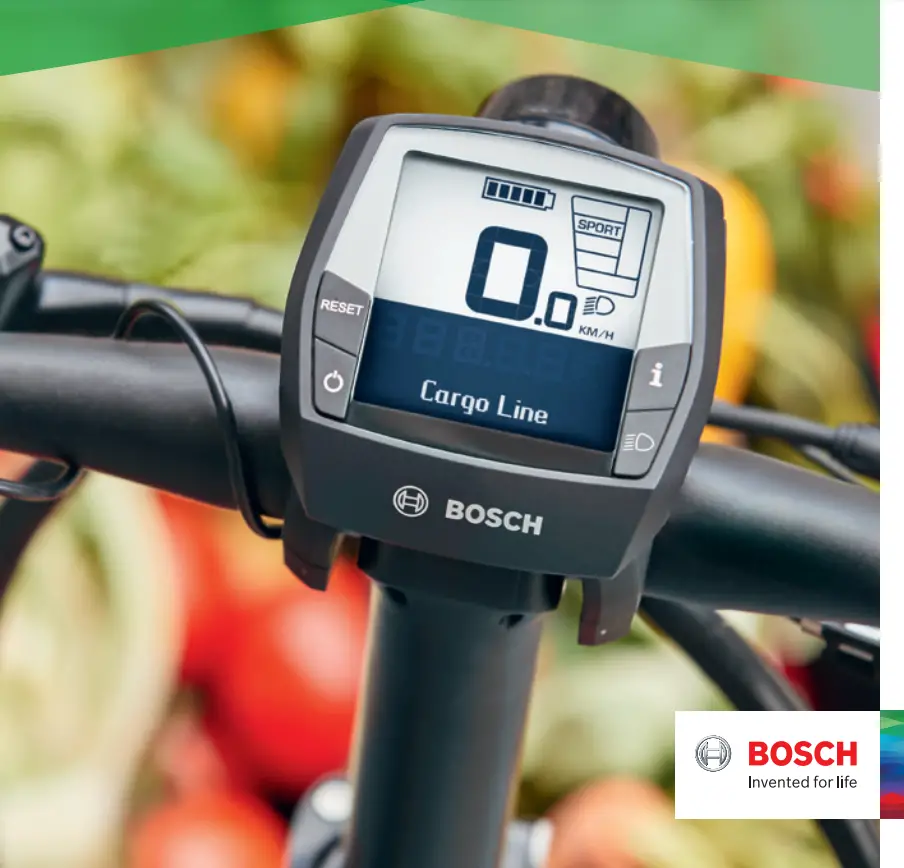

Intuvia - clever and clearly arranged

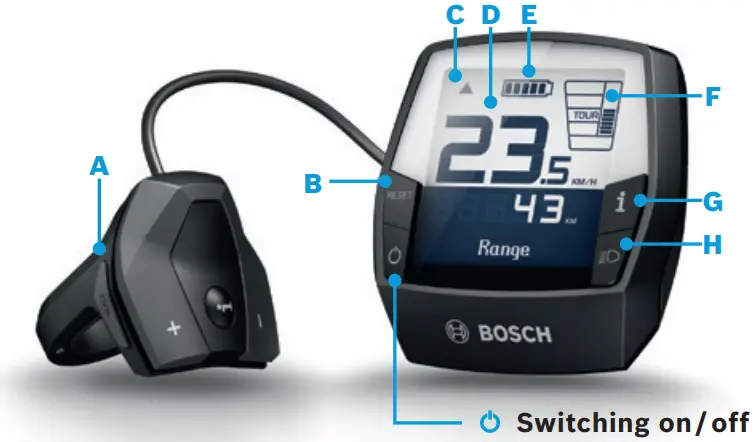

Intuvia at a glance
A Walk assistance
B Reset counters
C Shift recommendation
D Current speed
E Battery charge level
F Current riding mode
G Information button: toggle between the various display options (trip distance, trip time, average, range)
H Bicycle light on/off
Use the + and – buttons to select one of 4 assisted riding modes
Eco Effective support for the greatest range
Tour Consistently reliable support for long rides
Sport Powerful support for universal uses
eMTB* Progressive, dynamic support for a natural riding sensation
Turbo Maximum support for a sporty ride
You’ll find information on upgrade options for the displays in the enclosed foldout booklet Expertise. If you don’t have this to hand, you’ll find the full range of functions and more details at www.bosch-ebike.com

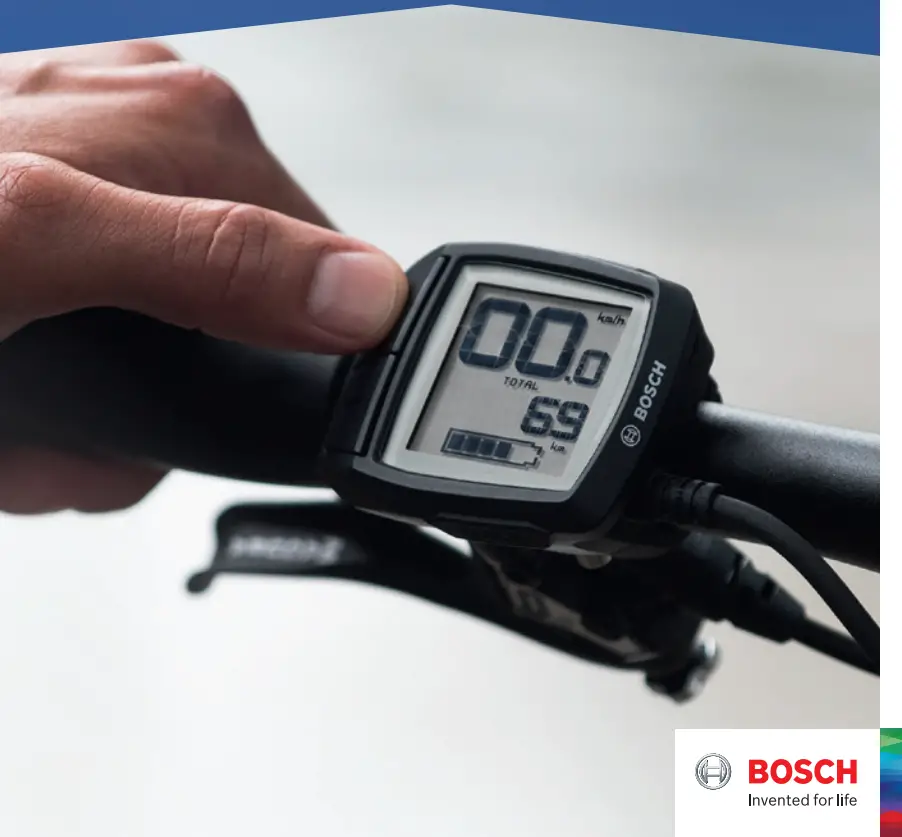

Purion - the compact purist

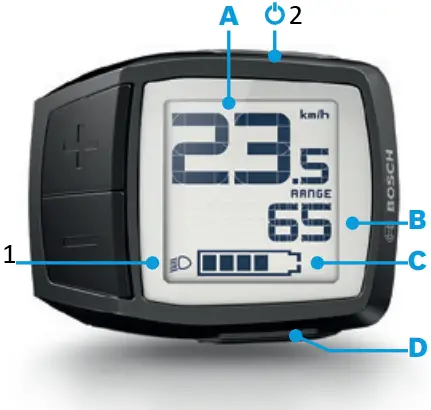

Purion at a glance
- Bicycle light on/off
- Switching on/off
Functions
(+) Long press: Light on/off
(-) Long press: Display trip distance, total distance and range
(±) Short press: Switch ride modes
(+) + (-) Long press: Reset the trip distance or range display
A Current speed
B Range
C Battery charge level
D Activate walk assist, keep (+) pressed for support
Click
| Short | Medium | Long |
| up to 1 sec. | up to 2.5 sec. | more than 2.5 sec. |
Use the + and – buttons to select one of 4 assisted riding modes
Eco Effective support for the greatest range
Tour Consistently reliable support for long rides
Sport Powerful support for universal uses
eMTB* Progressive, dynamic support for a natural riding sensation
Turbo Maximum support for a sporty ride
You’ll find information on upgrade options for the displays in the enclosed foldout booklet Expertise. If you don’t have this to hand, you’ll find the full range of functions and more details at www.bosch-ebike.com
* Depending on the eBike type, the eMTB mode replaces the Sport mode in the Performance Line and the Performance Line CX.
