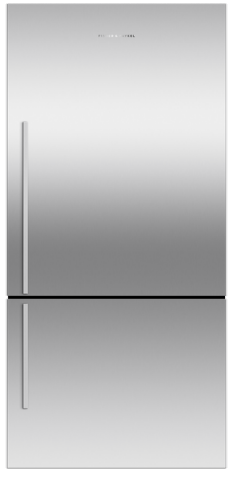

Fisher and Paykel RF522BRXFD5 Freestanding Refrigerator Freezer
INTRODUCTION
Large capacity in stylish stainless steel, you’ll have plenty of room
for your chilled and frozen food.
- ActiveSmart™ technology helps keep food fresher for longer by constantly maintaining the ideal temperature.
- Spacious bottom freezer with full extension drawer gives easy access to frozen goods.
- Choose which side you’d like your door hinge on to suit your kitchen layout

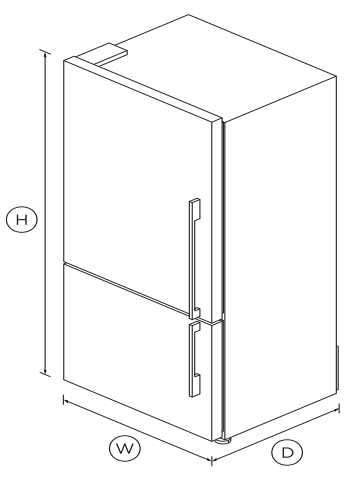

DIMENSIONS
| Height | 1715mm |
| Width | 790mm |
| Depth | 695mm |
FEATURES & BENEFITS
ACTIVESMART™ FOODCARE
Every time you open your refrigerator, the temperature around your food changes. ActiveSmart™ foodcare adjusts airflow to create a stable temperature, helping your food stay fresher for longer.
EASY CLEANING
No more permanent dirty marks with our EZKleen feature for stainless steel refrigerators. Anti-fingerprint coating means you simply wipe clean any marks. Spill-safe secure glass shelves easily capture any drips or leaks.
DESIGN QUALITY
Our refrigerators are designed and built using quality materials. We use real stainless steel, and solid glass for shelving as well as in our wine cabinet doors.
CLEVER ENERGY
Your refrigerator adapts to daily use by cooling and defrosting only when needed. This means it uses the energy it needs without compromising on food care
HUMIDITY CONTROL
Your fruit and veges need different environments. The humidity control slides in each storage bin create a microclimate that helps keep food fresher for longer.
SPECIFICATIONS
| Accessories (sold separately) | |
| Joiner kit | 819264 |
| Surround Kit (Joined left/right | Part number 23988 |
| Capacity | |
| Total net volume | 494L |
| Volume freezer | 146L |
| Volume refrigerator | 348L |
| Consumption | |
| Energy consumption | 369kWh/year |
| Energy rating | F |
| Features | |
| Adjustable door shelves | 4 |
| Adjustable glass shelves | 4 |
| Supply frequency | 50Hz |
| Supply frequency | 50Hz |
| Covered door shelves | 2 |
| Door alarm | • |
| Front levelling feet | • |
| Fruit and vegetable bins | 2 |
| Full extension runners | • |
| Full width door shelves | 2 |
| LED lighting | • |
| Rear rollers | • |
| Single bottle holders | 4 |
| SmartTouch control panel | • |
| Stackable bottle holders | 4 |
| Freezer Features | |
| Bottle chill | • |
| Door alarm | • |
| Fast freeze | • |
| Large plastic bins | • |
| Performance | |
| ActiveSmart™ Foodcare | • |
| Adaptive defrost | • |
| Frost free | • |
| Frost free freezer | • |
| Humidity control system | • |
| Noise emissions | 42dBA |
| Noise emissions class | D |
| Sabbath mode | • |
| Power requirements | |
| Rated current | 10A |
| Supply frequency | 50Hz |
| Supply voltage | 230V |
| Product dimensions | |
| Depth | 695mm |
| Height | 1715mm |
| Width | 790mm |
| Warranty | |
| Parts and labour | 5 years |
| SKU | 26454 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher &
Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
Other product downloads available at fisherpaykel.com
Service & Warranty User & Installation Guide ActiveSmart Refrigerator User Guide Declaration of Conformity Installation Guide Data Sheet Freestanding Refrigerator Freezer
