TA-61 Guitar Violin Mandolin Lyre
Owner’s Manual
TA-61 Guitar Violin Mandolin Lyre
FEATURES – INSTRUCTION
Exceptional and flexible, sensor – (contact microphone).
The sensor takes the vibrations directly from the musical instruments body and produce clean and undistorted sound.

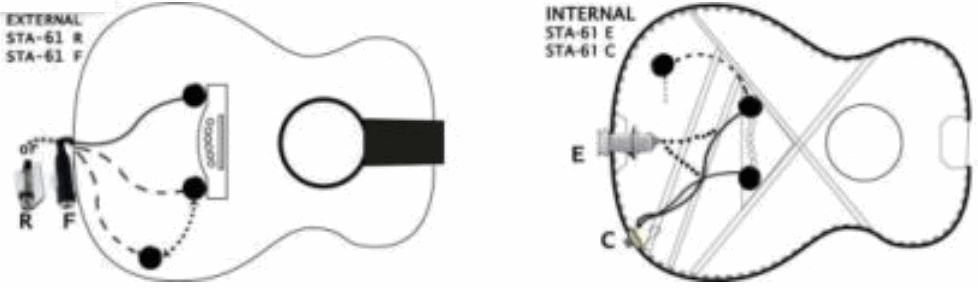

Comes with high output signal for connection on amplifier or console Suitable for Guitar, Dulcimer, Aud, Lute, Bouzouki, Violin, Lyre, Saz, etc. *STA-61R (for external installation) with RCA plug and clamp holder.
**STA-61F (for external installation) with 1/4 female jack and clamp.
***STA-61C (for internal installation) with 1/4 (6.3mm) chassis jack.
****STA-61E (for internal installation) with 1/4 (6.3mm) Endpin jack

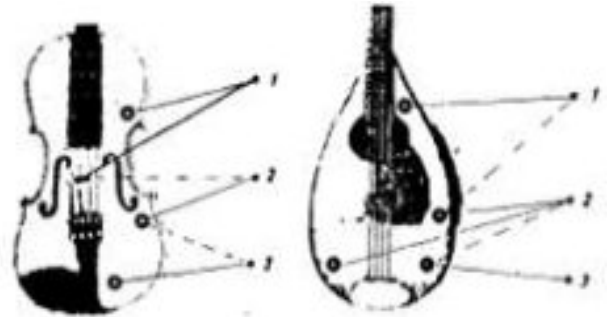

Installation
Before installing the STA-61, must cleaning the instrument surface. After that, easy mount the sensor with the double adhesive tape.
For removing the sensor, keep firmly with fingers around the diameter and pull out carefully – slowly.
For reinstallation, a spare part of double adhesive tape included.
