OUTLIER ONE V2
WIRELESS SWEATPROOF IN-EARS
QUICK START GUIDE
Model No. EF0850

PN: 03EF085000000 Rev B

Hereby, Creative Labs Pte. Ltd. declares the Bluetooth ® headset, model no. EF0850 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at http://www.creative.com/EUDoC

Contents hide

1 OVERVIEW

2 TECHNICAL SPECIFICATIONS

3 PRODUCT REGISTRATION

4 OTHER INFORMATION

5 Documents / Resources

5.1 References

6 Related Posts

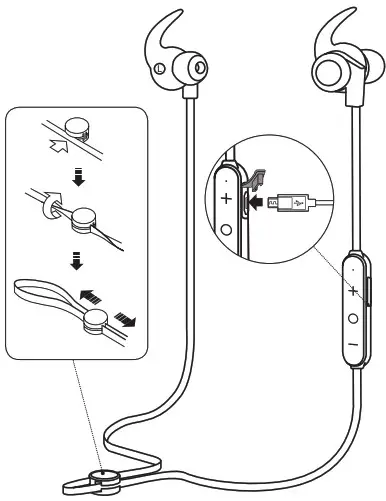

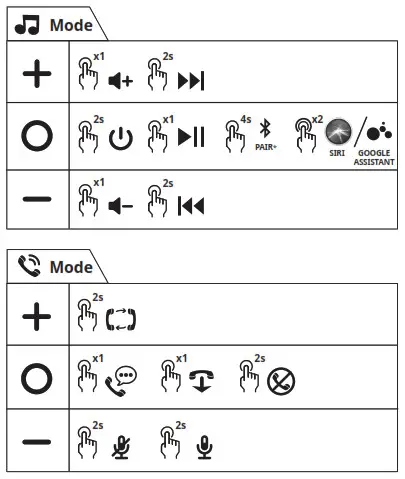

OVERVIEW

TECHNICAL SPECIFICATIONS

Headphones drivers
• 5.5 mm Dynamic drivers,
Neodymium magnet
• Frequency Response:
20–20,000 Hz
Microphones
• Type: Omni-directional
• Frequency Response:
100–10,000 Hz
• Sensitivity (1 kHz): -42 dBV / Pa
Weatherproof Resistance
• IPX5 (IEC60529)
Interface
• micro USB (charging),
Bluetooth® 5.0
Bluetooth® Profiles
• A2DP
(Wireless Stereo Bluetooth)
• AVRCP
(Bluetooth remote control)
• HFP (Hands-free profile)
Frequency
• 2.4 GHz
Wireless Operating Range
• Up to 10m / 33 ft
Playtime
• Up to 9.5 hours

Charging Time
• 1–2 Hours
Audio Codec
• SBC
Voice Assistant Support
• Siri and Google
Assistant
Operating Temperature
• 0–45°C
Battery Type
• Built-in Lithium-ion,
55 mAh x 2
Weight
• Earphones: 15g
• Charging cable: 11g
Length of Cables
• Earphone: 62 cm
• Charging cable: 30 cm
Bluetooth® Version
• Bluetooth 5.0
Operating Frequency
• 2402–2480 MHz
RF Output Power
• < 4 dBm
Input
• 5V 500 mA

*Device must be turned off to enter Bluetooth Pairing Mode. LED will flash in Red / Blue, indicating pairing mode
© 2019 Creative Technology Ltd. All rights reserved. Creative and the Creative logo are trademarks or registered trademarks of Creative Technology Ltd in the United States and/ *Device must be turned off to enter Bluetooth Pairing Mode. LED will flash in Red / Blue, indicating pairing mode or other countries. The Bluetooth® word mark and logo are owned by the Bluetooth SIG, Inc. and any use of such marks by Creative Technology Ltd is under license. All other trademarks are the property of their respective owners and are hereby recognized as such. All specifications are subject to change without notice. The actual product may differ slightly from the images shown. Use of this product is subject to a limited warranty.

PRODUCT REGISTRATION

Registering your product ensures you receive the most appropriate service and product support available. You can register your product at www.creative.com/register.
Please note that your warranty rights are not dependent on registration.

OTHER INFORMATION

Please visit creative.com/compliance/outlieronev2 for the user guide, safety, and regulatory information, ErP information where applicable, and battery removal instruction which is meant strictly for independently qualified professionals.
Please visit creative.com/support/outlieronev2 for all other support related to your product.

Warranty

Warranty information is supplied with your product in a separate document.
Please keep your Proof of Purchase for the duration of the Warranty Period.

Keep this document for future reference.
