Redragon Draconic Pro Wired 2.4g Bt Mechanical Gaming Keyboard Instruction Manual

Draconic Pro Wired 2.4G BT Mechanical Gaming Keyboard
Instruction Manual

Dear user
Thank you for choosing our REDRAGON product. To protect your rights and for better customer service, we ask that you note our warranty rules.

1. Within the guaranty period, the repair is guaranteed for failure due to electrical circuit problems. Other damages, such as disassembly, hard impacts, submersion into water plugging into improper current or voltage. and damage caused by natural disasters such as fire, flood, or earthquake are not included
2. Consumable parts such as footpad and spare parts replacement are not included in our warranty

OS support
Windows XP Vista.Win7 Win8.Win10

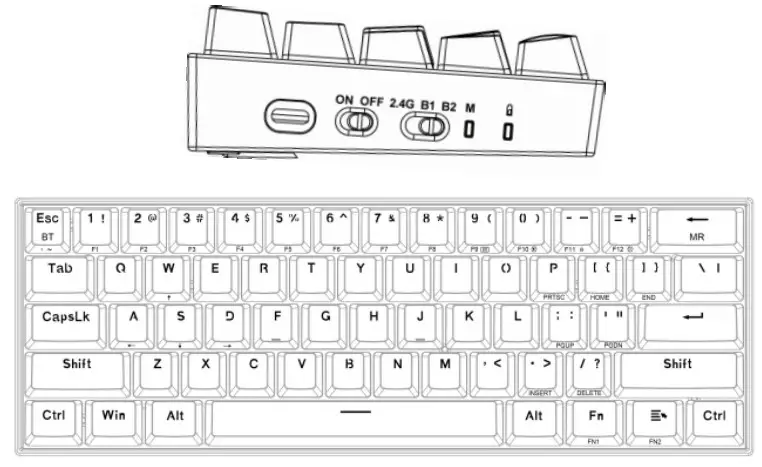

How to connect the keyboard with a computer

Wired Connection

1. Slide the ON’OFF switch on the left side of the keyboard to OF
2. Take out the USB A to U5SB Type C cable in the package and connect the keyboard with your Computer
3. The computer will recognize and configure the keyboard automatically
4. Once the keyboard is powered up, charging begins, LED of the battery will turn to green when charging complete

2.4G Wireless Connection

1. Slide the ON/OFF switch on the left side of the keyboard to ON.
2. Slide the 2 4G/B1/B2 switch to 2.4G.
3. press [FN2]+[ESC] for about 3 seconds, the LED marked with M flashes quickly in Blue, plug the USB receiver into any available USB port on your computer within 20 seconds. The computer will recognize and configure the keyboard automatically.

Bluetooth Connection

1. Slide the ON/OFF switch on the left side of the keyboard to ON.
2. Slide the 2 4G/B1/B2 switch to B1 or B2.
3. Press [FN2]+[ESC], and the LED marked with M flashes in Red(B1) or Green(B2). Turn on Bluetooth and scan for available devices on your computer or smartphone. It will find the “BT3.0Keyboard or BT5.0 KB” device. Select one of them to get connected with it automatically.

Function Introduction

1. With standard USB and 2.4G/BT connections, the keyboard can be used on a computer without any software or driver installation.
2. There are 18 backlight effects, switch by pressing FN2+9.
3. Commands of key combinations with [FN2] key
   [FN2]+[9]: Change backlight mode. There are 18 backlight effects.
   [FN2]+[8]: Change backlight color.
   [FN2] + [-1/[+] :Brightness +/-, total 6 levels.
   [FN2]-F[0]• Turn ON/OFF the backlight.
   [FN2]+[backspace]: Lighting record function.
   Press[FN2]+[Backspace] to get ready recording mode, Press[FN2]+[backspace] again to start the recording, then keep pressing the desired key for a favorite LED color, press[FN2]+[backspace] again to save the setting.
4. Commands of key combinations with [FN1] key
   [FN1] + [Win]: Disable or enable the [Win] key.
   [FN1] + [CAPSLK]: Set the keyboard to default setting.
   [FN1]+[ESC]=’∼
   [FN1]+[1!-0)]= F1∼F10
   [FN1]+[- J=F11
   [FN1]+[+=]=F12
   [FN1]±[A]=↑
   [FN1]-F[S]=↓
   [FN1]+[D]=→
   [FN1]+[W]=↑
   [FN 1 ]+[P]= PRTSC
   [FN 1 ]+[[{)=HOME
   [FN1]+[]}]=END
   [FN1]+[;:]=PGUP
   [FN 1 ]+[.>]=INSERT
   [FN 1 ]+[/?]=DELETE

How to recharge the keyboard
The LED indicator of the battery will turn to red when the keyboard is out of battery.
Find the U5SB A to U5B type C cable in the packaging plug the keyboard and connect it with a computer for charging.

FAQ

1. If the keyboard doesn’t respond, please check if the keyboard U5SB cable is correctly inserted into the corresponding U5SB port on the computer or try another USB port on the compute
2. If you spill liquid on the keyboard, please remove the keyboard’s USB cable from the computer immediately. Wipe up excess liquid and put the keyboard  in a warm place
   for instance. under a lamp, to let the keyboard dry naturally before using again

FCC Statement

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
