5V/6A DUAL USB CHARGER
CHARGEUR DOUBLE USB 5V/6A

USER GUIDE
MODE D’EMPLOI

Contents hide

6 Documents / Resources

6.1 References

7 Related Posts

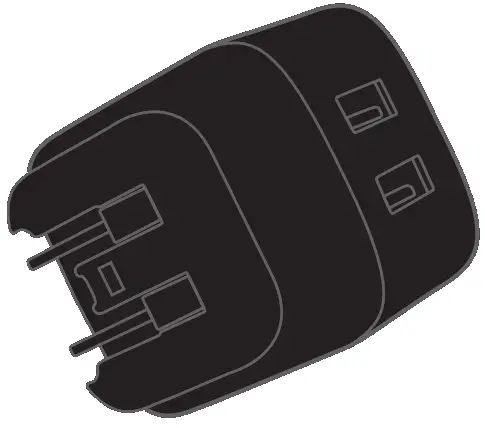

PRODUCT OVERVIEW

LED Charging Indicator

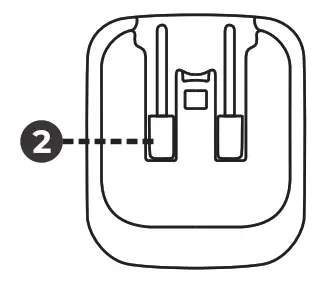

Foldable Plug

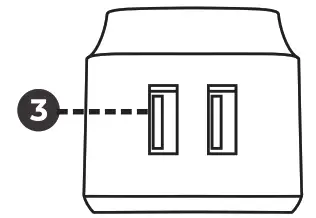

USB-A Ports

SPECIFICATION

Input:	100V – 240V, AC 50/60Hz
Output:	5V d.c. 30W MAX. (ЗА Мах/Single USB)
Dimensions:	1.7 x 2.3 x 2 inch (42 x 58 x 51 mm)
Weight:	3.1 oz (88 gram)
Operating Temperature:	41°F to 104°F (5°C to 40°C)

INSTRUCTIONS

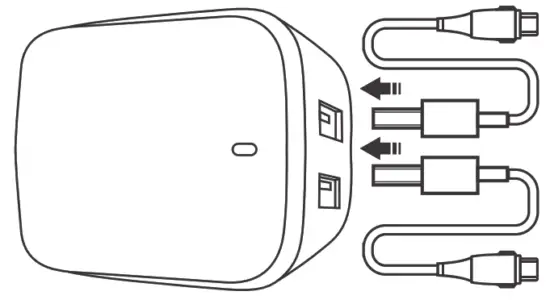

Insert the USB-A connector (the larger, non-reversible end) of the charging cable into either USB port of the charger.
Insert the USB Type-C connector (the reversible end) of the charging cable into the Type-C port on the battery.
Unfold the power plug
Plug the charger into the wall socket. The LED charging indicator will turn BLUE when charging.

WARNINGS

Read all the instructions before using the product.

The charger is designed for indoor and dry locations use only.
Only use outlets with the correct voltages. Using incorrect voltage can lead to injury.
Do not expose the charger to any liquid. Do not touch the charger, cable or outlet with wet hands.
Do not charge the battery under the following conditions: in temperatures below 5 °C, in direct sunlight, in humid or dusty areas.
The maximum ambient temperature during use of the charger must not exceed 104 °F (40 °C).
Do not operate the charger with a damaged enclosure or plug. Do not use a damaged charging cable to charge any device through the charger.
Always unplug the charger when it is not in use.
Always remove the charger from the wall socket before cleaning the charger. Clean the charger with a dry and soft cloth.
Do not store the charger in a hot or humid environment.
The charger is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the charger by a person responsible for their safety.

FCC NOTICE

This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and(2) this device must accept any interference received, including interference that may cause undesired operation.

CUSTOMER SERVICE
www.ororowear.com/suppor
[email protected]
