BladeCenter Open Fabric Manager (Withdrawn)

Product Guide (withdrawn product)

BladeCenter Open Fabric Manager (BOFM) is a tool for simplifying the deployment, failover, and repurposing of blade servers. BOFM performs these tasks by controlling the assignment of physical Ethernet MAC and Fibre Channel WWN addresses for the integrated Ethernet interfaces and I/O expansion cards in each blade.
BOFM provides the ability to create predefined configurations for external infrastructure connections including network switches, SAN switches, storage systems, and so on. With BOFM, you can configure MAC-based VLANs and security policies, WWN-based zones on switches, and storage partitions on storage systems by using your own pool of MAC addresses and WWNs created in advance. You can then assign these predefined addresses to a blade’s I/O ports with BOFM instead of using burned-in hardware addresses that were assigned during manufacture.

Did you know?
It is highly recommended that you plan BOFM together with boot-from-SAN to make the most of the entire solution. BOFM functionality, together with boot-from-SAN techniques, enables you to deploy new blades easily by assigning predefined MAC addresses and WWNs to them and, thus, connecting them to the existing infrastructure in minutes. You can also repurpose blades quickly by assigning addresses from different services or even provide simplified failover by assigning addresses from a failed blade to the spare blade.

Part number information

There are three different versions of BladeCenter Open Fabric Manager. Table 1 shows the part number to order them.
Table 1. Part number and feature code for ordering

Notes:

• One BOFM license is required for each BladeCenter chassis (not for each server)
• Any of the BOFM Advanced Upgrade products requires BOFM Basic or BOFM for BladeCenter S as a prerequisite
  Each of the part numbers listed in Table 1 includes a letter explaining how to activate BOFM. BOFM Basic and BOFM for BladeCenter S are part of the advanced management module interface as shown in Figure 2, and other than the latest AMM firmware, no additional BOFM software is needed. The BOFM Advanced Upgrade consists of an activation letter with instructions on how to download the software. You can download the installation guides using the links in the Related Publications section. Figure 2 shows the AMM interface of BladeCenter Open Fabric Manager Basic.

Features

BladeCenter Open Fabric Manager solution consists of the following components:

• BladeCenter Open Fabric Manager Basic (BOFM Basic or BOFM for BladeCenter S)
• BladeCenter Open Fabric Manager Advanced Upgrade

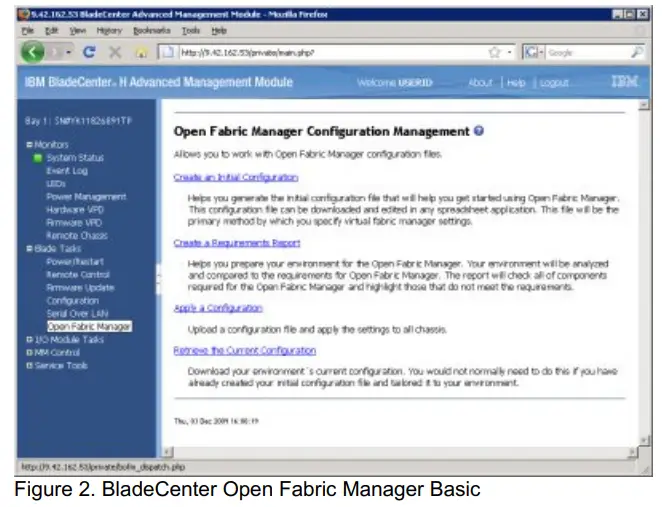

BOFM Basic is the core part of the BOFM solution and is integrated into the firmware of the Advanced Management Module of the BladeCenter chassis. BOFM Basic controls address assignments and provides a Web-based user interface through AMM. With BOFM Basic, you are able to manually configure address assignments and reassignments.
BOFM Advanced Upgrade is either a stand-alone or IBM Director-based management extension to the user interface that provides IBM Director-style GUI (Java-based for Director 5.2 or Web-based for Director 6.1) and policy-based automated failover capabilities with Event Action Plans.
Table 2 summarizes the management tasks of BOFM Basic and BOFM Advanced Upgrade.
Table 2. Comparing BOFM Basic and BOFM Advanced Upgrade management tasks

BladeCenter Open Fabric Manager Basic
BOFM Basic is a software upgrade to the Advanced Management Module. It interacts with the BMC or IMM microcode in the blades and the firmware in the I/O expansion cards to replace the burned-in addresses with addresses specified at the blade-bay level by the administrator. BOFM Basic uses the AMM browser-based user interface. When a blade server is inserted into a specific bay, it inherits hardware addresses for I/O ports that were assigned to this bay by the administrator. This enables simplified deployment of blades because you can preconfigure your infrastructure before the physical installation of the blade server into the chassis. In case of blade failure, all you need to do is to replace the failed blade with a new one. The following solution components must support BOFM for the solution to work properly. These components all need to have firmware levels that support BOFM.

• Blade servers (BIOS and BMC/IMM)
• Expansion cards
• Advanced management modules in each chassis

BOFM is compatible with most I/O modules because it is not dependent on them. It also uses address reassignment at the blade level rather than at the I/O module level.
With BOFM Basic, you can provide quick deployment and redeployment of blades, and manual slot-based failover or manual blade replacement. To provide automated failover capabilities, the BOFM Advanced Upgrade is required.
BladeCenter Open Fabric Manager for BladeCenter S
BladeCenter Open Fabric Manager for BladeCenter S is based on BOFM Basic and allows you to reassign the Ethernet MAC addresses and Fibre Channel WWN addresses used by the I/O ports. This version offers a low-cost offering designed specifically for small and medium businesses (SMB), as well as distributed and retail clients.
With this offering, you can preconfigure the BC-S chassis at a central location and deploy it uniformly across your remote locations. As with BOFM Basic, BOFM for BladeCenter S can be enhanced with BOFM Advanced Upgrade.
BladeCenter Open Fabric Manager Advanced Upgrade

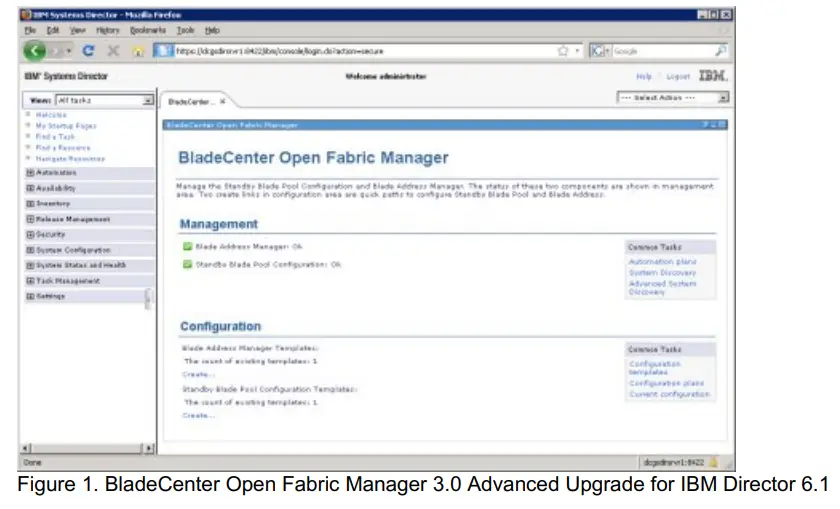

BOFM Advanced Upgrade adds capabilities for managing address assignments through the IBM Systems Director user interface and policy-based automated failover. With this upgrade, you can define failover pools of spare blades across chassis and failover rules with Event Action Plans. BOFM Basic uses the advanced management module’s Web interface for configuration tasks. However, BOFM Advanced Upgrade uses a separate IBM Director-based GUI (for both IBM Director and stand-alone editions). BOFM Advanced Upgrade is available in two editions:

• Stand-alone utility
  BladeCenter Open Fabric Manager 2.1 Advanced Upgrade, part number 4812S1X
  BladeCenter Open Fabric Manager 3.0 Advanced Upgrade, part number 4812S3X
• IBM Systems Director extension
  BladeCenter Open Fabric Manager 2.1 Advanced Upgrade, part number 4812S1D
  BladeCenter Open Fabric Manager 3.0 Advanced Upgrade, part number 4812S3D

BOFM 2.1 Advanced Upgrade is based on the IBM Director 5.2 core and user interface and is a Java application. You use BOFM 2.1 Advanced Upgrade if you are currently running IBM Director 5.2, including both the stand-alone and Director extension. BOFM 3.0 Advanced Upgrade is based on the IBM Systems Director 6.1 core and user interface and is a Web interface. You use BOFM 3.0 Advanced Upgrade if you have an IBM Systems Director 6.1 infrastructure in place. You need to install the Stand-alone utility on a separate management workstation. You install the IBM Systems Director extension on an existing IBM Systems Director management server. We list the supported
operating systems later.
The BOFM 3.0 Advanced Upgrade adds the following features compared to BOFM 2.1 Advanced Upgrade:

• Web-based user interface (based on IBM Systems Director 6.1)
• New Wizards:
  Blade Address Manager Configuration Template Wizard
  Standby Blade Pool Configuration Template Wizard
  CSV configuration file import/export
• Support for evaluation and permanent license keys
• Support for SAS cards and I/O modules
• Support for CIOv cards
• Support for HS22 and JS23/43

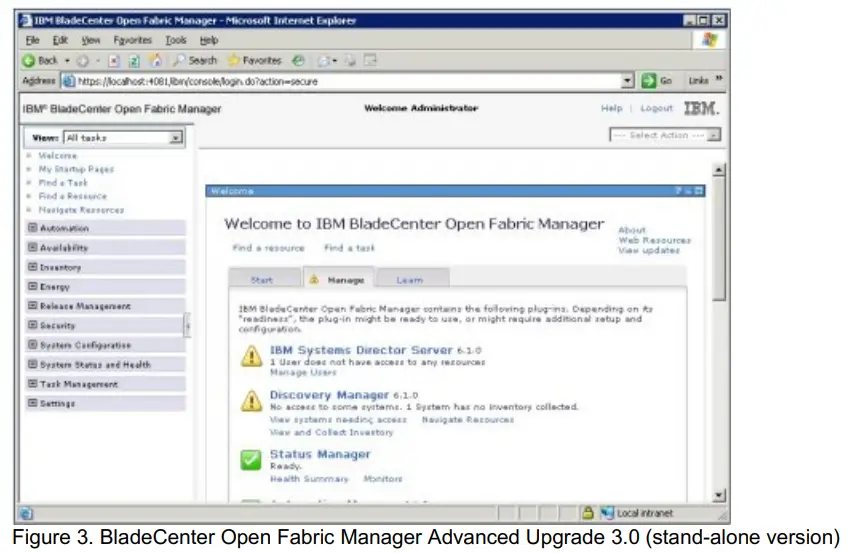

Figure 3 shows the stand-alone version of BOFM Advanced Upgrade 3.0

For more information, go to the BOFM product Web page:
http://www.ibm.com/systems/bladecenter/hardware/openfabric/openfabricmanager.html
Supported hardware
The following tables list chassis, servers, and options that support the various BOFM part numbers.
Table 3. BOFM solution support matrix – chassis support

		BORM Basic(2019B1X)
BladeCenter E	8677	Y	N	Y	Y	Y	Y
BladeCenter H	8852	Y	N	Y	Y	Y	Y
BladeCenter S	8886	Y	Y	Y	Y	Y	Y
BladeCenter T	8720, 8730	Y	N	Y	Y	Y	Y
BladeCenter HT	8740, 8750	Y	N	Y	Y	Y	Y
BladeCenter QS22	793	Y	N	Y	Y	Y	Y
BladeCenter JS23/JS43	7778	Y	Y	N	N	Y	Y
BladeCenter HS22	7870	Y	Y	N	N	Y	Y
BladeCenter LS22	7901	Y	Y	Y	Y	Y	Y
BladeCenter LS42	7902	Y	Y	Y	Y	Y	Y
BladeCenter LS21	7971	Y	Y	Y	Y	Y	Y
BladeCenter LS41	7972	Y	Y	Y	Y	Y	Y
BladeCenter HS21 XM	7995	Y	Y	Y	Y	Y	Y
BladeCenter JS12	7998-60X	Y	Y	Y	Y	Y	Y
BladeCenter JS22	7998	Y	Y	Y	Y	Y	Y
BladeCenter HS12	8014, 8028	Y	Y	Y	Y	Y	Y
BladeCenter HS21	8853	Y	Y	Y	Y	Y	Y
Integrated Gigabit Ethernet	None	Y	Y	Y	Y	Y	Y
QLogic 2-port 10Gb CNA (CFFh)	42C1830	Y	N	N	N	Y	Y
SFF Gigabit Ethernet Expansion Card	39R8624	Y	Y	Y	Y	Y	Y
NetXen 10 Gb Ethernet (CFFh)	39Y9271	Y	N	Y	Y	Y	Y
Ethernet Expansion Card (CFFv)	39Y9310	Y	Y	Y	Y	Y	Y
Ethernet Expansion Card (CIOv)	44W4475	Y	Y	N	N	Y	Y
2/4 Port Ethernet Expansion Card (CFFh)	44W4479	Y	Y	Y	Y	Y	Y
QLogic Ethernet & 4Gb FC (CFFh)	39Y9306	Y	N	Y	Y	Y	Y
QLogic Ethernet & 8Gb FC (CFFh)	44X1940	Y	N	N	N	Y	Y
Broadcom 10Gb 4-port Ethernet (CFFh)	44W4465	Y	N	Y	Y	Y	Y
Broadcom 10Gb 2-port Ethernet (CFFh)	44W4466	Y	N	Y	Y	Y	Y
Broadcom 10Gb Gen 2 4-port Ethernet (CFFh)	46M6164	N	N	N	N	N	N
Broadcom 10Gb Gen 2 2-port Ethernet (CFFh)	46M6168	N	N	N	N	N	N
Emulex Virtual Fabric Adapter (CFFh)	49Y4235	Y	N	N	N	Y	Y
Fibre Channel Expansion Cards
QLogic 4Gb StFF FC Expansion Card	26R0884	Y	Y	Y	Y	Y	Y
QLogic 4Gb SFF FC Expansion Card	26R0890	Y	Y	Y	Y	Y	Y
Emulex 4Gb SFF FC Expansion Card	39Y9186	Y	Y	Y	Y	Y	Y
QLogic Ethernet and 4Gb FC (CFFh)	39Y9306	Y	N	Y	Y	Y	Y
QLogic 4Gb Fibre Channel (CFFv)	41Y8527	Y	Y	Y	Y	Y	Y
Emulex 4Gb Fibre Channel (CFFv)	43W6859	Y	Y	Y	Y	Y	Y
QLogic Ethernet & 8Gb FC (CFFh)	44X1940	Y	N	N	N	Y	Y
QLogic 8Gb Fibre Channel (CIOv)	44X1945	Y	Y	N	N	Y	Y
QLogic 4Gb Fibre Channel (CIOv)	46M6065	Y	Y	N	N	Y	Y
Emulex 8Gb Fibre Channel (CIOv)	46M6140	Y	Y	N	N	Y	Y
SAS Expansion Cards
SAS Expansion Card (CFFv)	39Y9190	Y	Y	N	N	Y	Y
SAS Connectivity Card (CFFv)	43W3974	Y	Y	N	N	Y	Y
SAS Connectivity Card (CIOv)	43W4068	Y	Y	N	N	Y	Y
ServeRAID MR10ie (CIOv)	46C7167	N	N	N	N	N	N

Notes:

• Any I/O module that is compatible with the chassis and expansion card can be used with BOFM.
• The following blade servers are not supported by BOFM:
  HS20 (8678, 8832, 7981, 8843)
  HS40 (8839)
  LS20 (8850)
  HC10 (7996)
  JS20 (8842)
  JS21 (7988)
  QS20 (0200)
  QS21 (0792)
  PN41 (3020)
• InfiniBand adapters and I/O modules are not supported by BOFM.

Supported operating systems

BOFM Basic and BOFM for BladeCenter S are operating system independent.
BOFM 2.1 Advanced Upgrade is supported with the following operating systems:

• Microsoft Windows 2003 (SP1, SP2, R2)
• Microsoft Windows 2000 (Up to SP4)
• RHEL 3 (up to SP9)
• RHEL 4 (up to SP6)
• RHEL 5 with Xen 3.0 (up to SP1)
• SLES 9 (up to SP4)
• SLES 10 with Xen 3.0 (up to SP1)

BOFM 3.0 Advanced Upgrade is supported with the following operating systems:

• Microsoft Windows 2008 (SP1, SP2)
• Microsoft Windows 2003 (SP1, SP2, R2)
• RHEL 4 (up to SP8)
• RHEL 5 (up to SP4)
• SLES 9 (up to SP4)
• SLES 10 (up to SP2)

Related publications

For more information, see the following resources:

• BOFM home page
  http://www.ibm.com/systems/bladecenter/hardware/openfabric/openfabricmanager.html
• BladeCenter Advanced Management Module User’s Guide (including BOFM Basic)
  http://ibm.com/support/entry/portal/docdisplay?lndocid=MIGR-5073887
• BladeCenter Open Fabric Manager 3.0 Installation and User’s Guide (online)
  http://publib.boulder.ibm.com/infocenter/director/v6r1x/topic/bofm_300/btp0_bofm_main.html
• BladeCenter Open Fabric Manager 3.0 Installation and User’s Guide (PDF)
  http://publib.boulder.ibm.com/infocenter/director/v6r1x/topic/bofm_300/btp0_bofm_users_doc.pdf
• BladeCenter Open Fabric Manager 2.1 Installation and User’s Guide (online)
  http://publib.boulder.ibm.com/infocenter/director/v5r2/topic/bofm_1.00/btp0_bofm_main.html
• BladeCenter Open Fabric Manager 2.1 Installation and User’s Guide (PDF)
  http://publib.boulder.ibm.com/infocenter/director/v5r2/topic/bofm_1.00/btp0_bofm_users_doc.pdf
• BladeCenter Interoperability Guide
  http://ibm.com/support/entry/portal/docdisplay?lndocid=MIGR-5073016
• Lenovo Press publication BladeCenter Products and Technology, SG24-7523
  http://lenovopress.com/sg247523
