Camfil 84 Blend Campure Instructions

Camfil 84 Blend Campure Instructions

camfil-LOGO

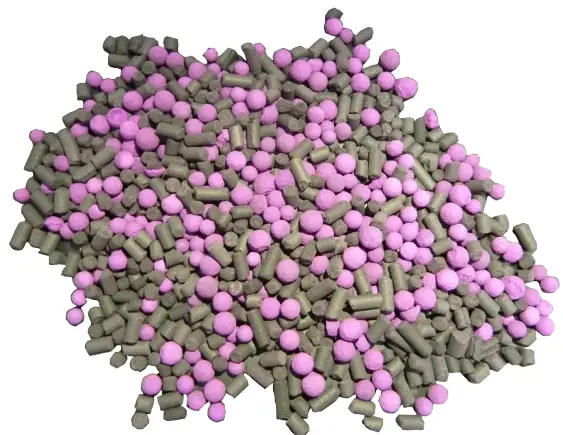

camfil 84 Blend CamPure

camfil 84 Blend CamPure-FIG1

ADVANTAGES

  • Able to be installed in any manufacturer’s loose-fill filters
  • ISO 10121-1:2014 tested media UL 900 classified for flammability
  • Targets oxidizable acidic gases responsible for corrosion and a wide range of volatile organic gases and odours.
  • Ideal for the removal of hydrogen sulfide, formaldehyde, ethylene, medium to high molecular weight VOCs, and low volatility organic contaminants

SPECIFICATION

  • Application
    Targets oxidizable acidic gases responsible for corrosion and a wide range of volatile organic gases and odours in a single stage when space is limited.
  • Media
    Activated Carbon;Impregnated Activated Alumina
  • Max Temperature (°C)
    40
  • Min Temperature (°C)
    10
  • Relative Humidity max
    40%-70%
  • Installation Options
    All loose-fill molecular air filters.
  • Comment
    UL approved

www.camfil.com
As part of our program for continuous improvement, Camfil reserves the right to change specifications without notice. 2023-03-13
