Adcraft WB-100 Fill Hot Water Dispenser Boiler
INTRODUCTION
- Do not touch any hot surfaces
- Do not use the machine with wet hands.
- Do not immerse unit, cord or plug in liquid at any time
- Unplug cord from outlet when not in use and before cleaning.
- Plug only into a 3-hole grounded electrical outlet
- Do not operate unattended
- Do not use this unit for anything other than the intended use
- Do not use outdoors
- Keep children and animals away from unit
- Always operate on a firm, dry and level surface at least 12” from walls or any other obstruction
- Do not use unit with a damaged cord or plug, in the event the appliance malfunctions, or has been damaged in any manner
- Any incorrect installation, alterations, adjustments, and/or improper maintenance can lead to property loss and injury. All repairs should be done by authorized professionals only
- Ensure that the power supply you are using is adequate for continual usage and the voltage is correct.
- The minimum volume to operate must be at least 1/3 of the maximum capacity.
- The lid must be closed when operating unit.
TO USE
- First, confirm the switch is off and the thermostat is set at “0” position.
- Fill the urn to at least half of total capacity with cool water.
- Place the lid on unit.
- Plug the power cord into the appropriately rated outlet.
- Turn the power switch “On”. The light will illuminate to indicate the power is connected.
- Control desired temperature by turning the knob.
- When the indicator lights up, the boil pressure is completed. Hot water is now ready to be served.
- When the temperature cools down to about 10°C or (50°F), the unit will restart and heat up automatically and the indicator will light up again.
- When the temperature cools down to about 100°C or (212°F), the unit will maintain a boiling temperature until setting is reduced.
CLEANING
NOTE: To maintain cleanliness and increase service life, the brewer should be cleaned every four weeks. Do not immerse the unit in water or any other liquid. If liquid enters the electrical compartment it may cause a short circuit or electrical shock.
On areas of the heating element, hard water will cause chalk and limestone to accumulate over time. It is recommended that you de-sediment when it is determined there are scale sediments at the bottom of the unit.
- Before cleaning or attempting to move water boiler, unplug from outlet.
- Pour 200ml of fresh lemon juice or concentrated lemon juice into the urn.
- Wait 5 minutes to allow the lemon juice to penetrate.
- A brush with soft bristles may be used to gently clean the unit.
- Repeat steps 1-3 until all residue is removed.
- Use a dry cloth to wipe away the lemon juice.
- Rinse with clean water and brush the heating element lightly.
- To avoid damage, do not use abrasive cleaners or scouring pads.
- If soap or chemical cleaners are used, be sure they are completely rinsed away with clear water immediately after cleaning. Chemical residue could damage or corrode the surfaces of the unit.

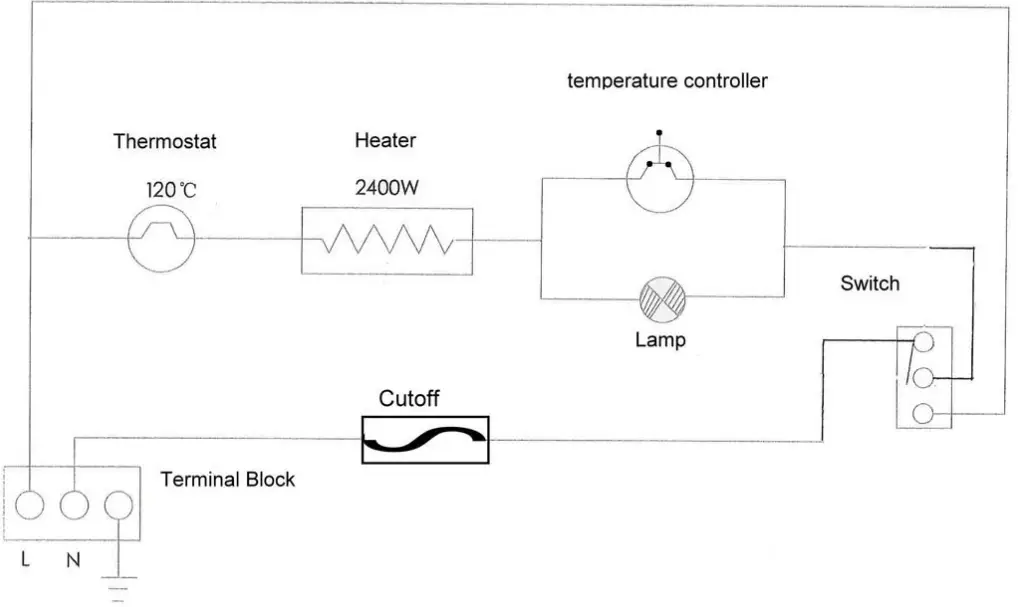

CONNECTIONS

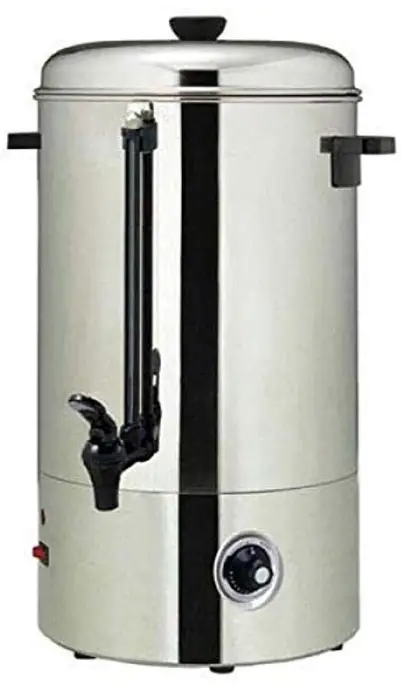

PRODUCT DESCRIPTION
FEATURES
- All parts constructed of heavy duty stainless steel
- Ideal for hot water for tea (water only, no tea contents)
- Variable temperature control knob
- Heat resistant handles and knob
- Easy to read clear water level gauge
- Illuminated power switch
- 100 cup capacity
- 120V, 1350W, 11.25 Amps
- ETL Listed and ETL Sanitation
ACE EQUIPMENT ONE YEAR A LIMITED WARRANTY
Admiral Craft Equipment Corp. (ACE) warrants its equipment against defects in materials and workmanship, subject to the following conditions:
ACE Equipment is warranted for one year, effective from the date of purchase by the original owner. A copy of the original receipt or other proof of purchase is required to obtain warranty coverage. This warranty applies to the original owner only, and is not assignable.
Should any product fail to function in its intended manner under normal use within the limits defined in this warranty, at ACE’s discretion, such product will be repaired, replaced with a refurbished unit, or replaced with a new unit by ACE, after defective unit has been inspected and defect has been confirmed. ACE does not assume any liability for extended delays in replacing any item beyond its control. This warranty does not apply to rubber and non-metallic synthetic parts that may need to be replaced due to normal usage, wear or lack of preventative maintenance.
This warranty covers products shipped into the 48 contiguous United States, Hawaii, and metropolitan areas of Alaska and Canada. Warranty coverage on products used outside the 48 contiguous United States, Hawaii and metropolitan areas of Alaska and Canada may vary. Contact ACE for details at 1-800-223-7750
The following conditions are not covered by warranty:
- Equipment failure relating to improper installation, improper utility connection or supply and problems due to improper ventilation.
- Equipment that has not properly been maintained, damage from improper cleaning, and water damage to controls.
- Equipment that has not been used in an appropriate manner, or has been subject to misuse, neglect, abuse, accident, alteration, negligence, damage during transit, delivery or installation, fire, flood, riot, or act of God.
- Equipment that has the model number or serial number removed or altered.
- Equipment on which the security seal has been broken.
If the equipment has been changed, altered, modified, or repaired without express written permission from ACE, then the manufacturer shall not be liable for any damages to any person or to any property, which may result from the use of this equipment thereafter.
This equipment is intended for commercial use only and this warranty is void if equipment is used in other than a commercial application.
For warranty and non-warranty related issues please call ACE at 1-800-223-7750 ext 3 to speak to technical support. When calling please have your model number, serial number and proof of purchase ready. To purchase replacement parts, receive online technical support or fill out a warranty claim visit www.admiralcraftequipment.com. It is not necessary to contact the place where you originally purchased your product from.
“THE FOREGOING WARRANTY IS IN LIEU OF ANY AND ALL WARRANTIES EXPRESSED OR IMPLIED INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR PARTICULAR PURPOSES AND CONSTITUTES THE ENTIRE LIABILITY OF ACE. IN NO EVENT DOES THE LIMITED WARRANTY EXTEND BEYOND THE TERMS STATED HEREIN.”
FAQs
How long will the water be heated to that temperature?
Even if that question doesn’t really make sense, I’ll try my best to respond. It will become hotter than 220 degrees. As long as you have the thermostat set to heat, it will do so. But after that, they frequently blow fuses, much like I’m going to do to your essay.
Is it sufficient to simply fill this with water, or does it also require a connection to the water source? What is the turnaround time for the water?
This hot water boiler has to be topped off. We fill a big pitcher from the sink and pour it in because it is so tall. It will take about 30 minutes to heat 100 cups of water to the desired temperature of 176 degrees. The temperature can be set lower or higher, and the time it takes to heat up will adapt accordingly.
How does a water dispenser work?
The majority of water dispensers operate by placing a 5-gallon water bottle upside down on the machine’s top. As a result, when someone presses the water spigot, gravity and vacuum pressure can fill a glass. As a result, water can leak into your glass or bottle and enter the atmosphere.
How long does it take for a water dispenser to heat up?
The water in the dispenser takes about an hour to get hot. 1. Unplug your device and turn off the hot tank heater switch on the rear of the dispenser (Fig 1). To enable the hot tank to cool, let the appliance stand for an hour before cleaning.
Why is my hot water dispenser not working?
Make sure that the hot switch is turned on. Make sure the device hasn’t been misused. If the machine has received a lot of use, it could need some time to re-heat. Your machine can be in sleep mode if it produces hot water throughout the day but not in the morning.
Why does water dispenser keep running?
The dispenser lever or switch may be stuck in the “pushed in” position if water or ice keep coming out continually. The dispenser’s accumulation of residue is typically to blame for this.
Do you need to clean a hot water dispenser?
It’s established that you must periodically maintain and clean your hot water dispenser. You must clean it more frequently than usual if your neighbourhood uses hard water, especially if you use it frequently. Don’t worry, you will only need to clean once a month at most, so it’s not too horrible.
How often should a water dispenser be cleaned?
You need to routinely clean and sterilise your bottled water dispenser if you want to adhere to these acceptable sanitation practises. It is advised to clean once every three to six months.
How do I clean my water dispenser nozzle?
To completely clean the outside of the nozzle, use a clean towel dampened with vinegar and shine a flashlight into the dispenser nozzle region to check for any dirt. To clean in tight, confined spaces and inside the nozzle hole, if necessary, use cotton balls or swabs. Use pure water to rinse the nozzle and line.
Can water dispenser catch fire?
An electrical arc caused by a water leak within the water cooler poses a fire risk.
How do water dispensers heat water so fast?
Energy is used by instant hot water dispensers. The water is heated by an energy-consuming heating element within. It is only maintaining a temperature because the heating element is thermostatically controlled. Unlike your water heater at home, it doesn’t heat up all the time.
What temperature should a hot water dispenser be?
This temperature ranges from 160 to 210 degrees Fahrenheit, with some tanks for quick boiling water reaching 212. The heat generated inside the tank itself determines the temperature.
How long does a water dispenser last?
Therefore, depending on consumption, you should have no trouble using your hot water dispenser for up to two years while saving money, while we update the filter for you every year.
Can you use water dispenser without electricity?
Non-electric water dispensers are an excellent choice if you have a limited budget. They are less expensive to purchase and operate. Non-electric water dispensers are better for the environment and quieter than electric ones because they don’t consume power.
