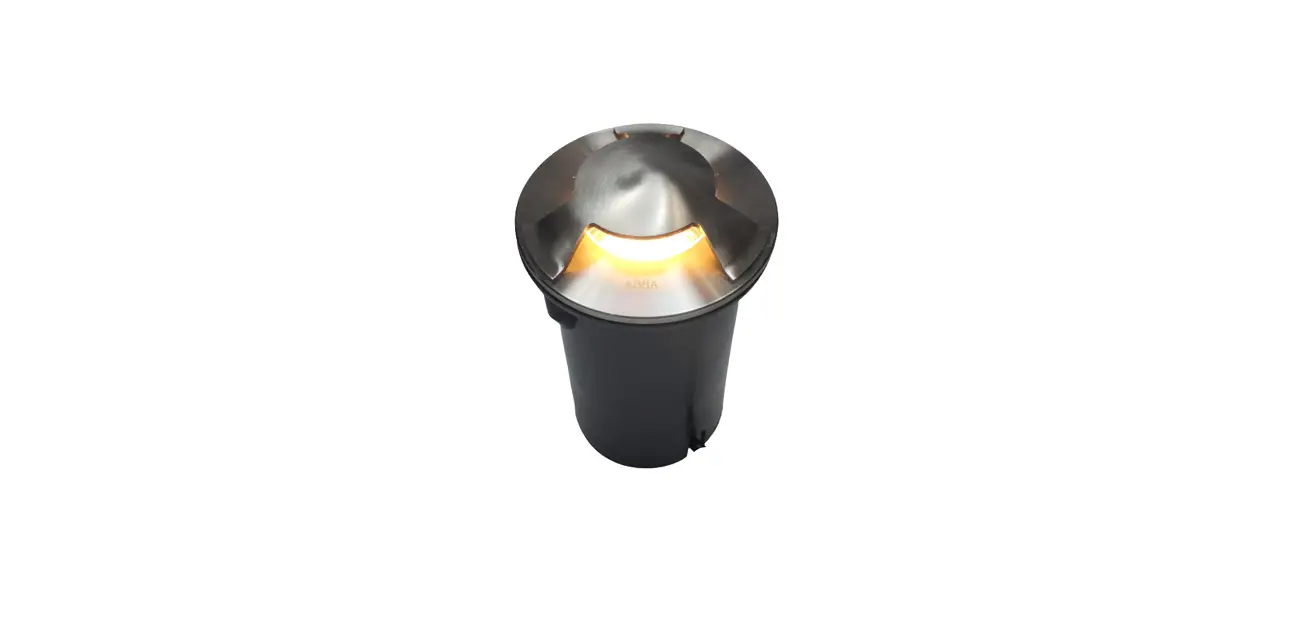

UNS03 Outdoor Lighting
Product Information
The UNS03 is an outdoor lighting fixture designed for use with
low voltage landscape transformers. It has a rated voltage of 12V
AC/DC and should be installed in accordance with local codes and
ordinances. The fixture comes with a 2-year warranty from the date
of purchase, which is valid provided there is no damage due to
improper usage or modification to the fixture.
Important Safety Instructions
Before attempting to install the UNS03, ensure all power
connections are off for your own safety. The lamp in the fixture
can get hot, so use caution when handling it. Failure to comply
with the instructions in the manual may increase the risk of damage
or injury, and will void the warranty.
Product Usage Instructions
- Turn off the power before attempting to install the
fixture. - Gently lift the casing away from the fixture to access the lamp
socket. - Rotate the top part of the fixture counter-clockwise to release
the fasteners. - Insert the lamp into the socket, ensuring a secure and snug
fit. - Carefully position the top part of the fixture above the lower
part, aligning the groove, and turn it clockwise until it is
securely fastened. Slide the casing back onto the fixture. - Select a suitable spot for installation and dig a hole, taking
into account factors such as purpose, accessibility, and
regulations. Fill the cleared space with pea gravel or sand,
leaving a 3-inch clearance on all sides. - Inspect the hole and surrounding area to ensure that the depth,
width, and clearance meet the specified requirements. - Attach the fixture wires using a suitable main cable connector
for direct burial, such as WN12 waterproof wire nuts (sold
separately). - Prepare the fixture for installation by ensuring it is clean
and free from debris or obstructions, and that any necessary
electrical connections have been made. - Install the fixture in the hole and ensure proper water
drainage by filling the extra space with pea gravel or sand.
UNS03
INSTALLATION GUIDE
www.ABBALightingUSA.com
RATED VOLTAGE 12V AC/DC
Congratulations on your purchase of this high-quality product! We want to ensure that you have the best possible experience with it, so we kindly ask that you take a moment to carefully read and follow all instructions before assembly, installation, and use. By doing so, you’ll not only guarantee correct function and safety, but also optimize the full potential of this exceptional product. Thank you for choosing us as your trusted provider of top-notch products – we truly appreciate your business!
IMPORTANT SAFETY INSTRUCTIONS LIGHTEN LAMP IS HOT!
WARNING: TO REDUCE THE RISK OF FIRE OR INJURY TO PERSONS:
Please exercise caution when using the lamp, as it tends to HEAT up rapidly. We recommend taking necessary safety measures to ensure optimal usage. For your safety, please refrain from touching the HOT lens, guard, or enclosure. We recommend waiting for the product to cool down before handling it. To prevent any fire hazards, please ensure that the lamp is kept away from materials that may easily catch fire. We appreciate your cooperation in maintaining a safe and secure environment. For safety reasons, we recommend that only a qualified professional install this electrical product.
Before attempting to install this unit, ensure all power connections are off for your own safety.
WARRANTY
We stand behind the quality of our product and offer a 2-year warranty from the date of purchase. Please note that the warranty is valid from the date of purchase, not from the date of installation. Kindly ensure that you keep the proof of purchase as it will be required for any warranty claims.
Warranty will be void if there is any damage due to improper usage or modification to the fixture.
Failure to comply with the instruction in this manual may increase the risk of damage or injury and will void warranty.
www.ABBALightingUSA.com
CAUTION:
Fixture(s) must be installed in accordance with all local codes and ordinances. Do not instal within 10 feet of a pool, spa or fountain
INSTALLATION INSTRUCTION
To ensure optimal performance and safety, it is important to use our fixtures ONLY with a low voltage landscape transformer. This transformer reduces the voltage from 120V to 12V, making it safe and suitable for outdoor use.
When installing the fixture(s), please follow these instructions carefully:
1.Before installation, please ensure the power is turned off for your safety.
that
2.Take a moment to examine the fixture and identify the casing that encloses it. Gently lift the casing away from the fixture.
3.Observe the upper portion of the fixture. Rotate the top part in a counter-clockwise direction. Maintain a steady force while turning, allowing the fasteners to release.
4.Locate the socket where the lamp will be inserted. Align the lamp’s base or pins with the corresponding slot in the socket. Gently push the lamp into the socket, ensuring a secure and snug fit.
5.Carefully position the top part of the fixture above the lower part aligning the groove. Turn in a clockwise motion until you feel the top part properly engaging with the lower part until it is securely fastened. Gently push or slide the casing onto the fixture, maintaining even pressure.
6. Select a suitable spot where you intend to dig the hole, considering factors such as purpose, accessibility, and any relevant guidelines or regulations. Gradually dig deeper, removing the loosened soil. Calculate the approximate volume of pea gravel or sand required to fill the cleared space, taking into account the 3-inch clearance on all sides.
Inspect the hole and surrounding area to ensure that the depth, width, and clearance meet the specified requirements.
7. Using a suitable main cable connector for direct burial, attach the fixture(s) wires. We recommend using WN12 waterproof wire nuts (sold separately) for optimal connectivity.
8.To install the fixture in the hole and ensure proper water drainage by filling the extra space with pea gravel or sand, please follow these instructions:
Step 1: Prepare the fixture for installation:
a. Make sure the fixture is clean and free from any debris or obstructions.
b. Ensure that any necessary electrical connections have been made or are ready to be connected.
Step 2: Position the fixture in the hole:
a. Carefully lower the fixture into the hole, aligning it with the opening and ensuring it sits securely.
b. Adjust the position of the fixture as needed to ensure proper orientation and alignment with any mounting or connection points.
Step 3: Fill the extra space with pea gravel or sand:
a. Take the pea gravel or sand that you have prepared for filling the extra space.
b. Begin pouring or distributing the pea gravel or sand around the sides of the fixture, allowing it to fill the space between the fixture and the hole.
c. Use a shovel or similar tool to gently pack the pea gravel or sand, ensuring it settles evenly and provides stable support.
Step 4: Verify the completed installation:
a. Inspect the fixture to confirm that it is securely positioned in the hole.
www.ABBALightingUSA.com
3.44″ 5.12″
b. Check that the pea gravel or sand fills the extra space adequately, providing proper drainage around the fixture.
c. Ensure that the fixture remains level and stable after the installation.
Step 5: Test the water drainage:
a. Pour a small amount of water near the fixture or use a hose to simulate water flow.
b. Observe the drainage around the fixture and ensure that water flows away from the fixture as intended.
c. Make any necessary adjustments to the pea gravel or sand to optimize water drainage if needed.
Once the fixture(s) are securely installed, turn on the power and enjoy the enhanced lighting experience!
We strongly recommend that the main cable from the transformer be buried underground for safety reasons. Additionally, please be sure to avoid exceeding the maximum wattage on the fixture(s) to prevent any damage or hazards.
Concrete 3″ Gravel
Below
3.47″
FIXTURE
2.48″ 3.43″
CASING
2.66″
3″ Gravel Both sides
WN12
(Sold separately)
Soil
3″ Gravel Below
Main line
3″ Gravel Both sides
WN12
(Sold separately)
Main line
