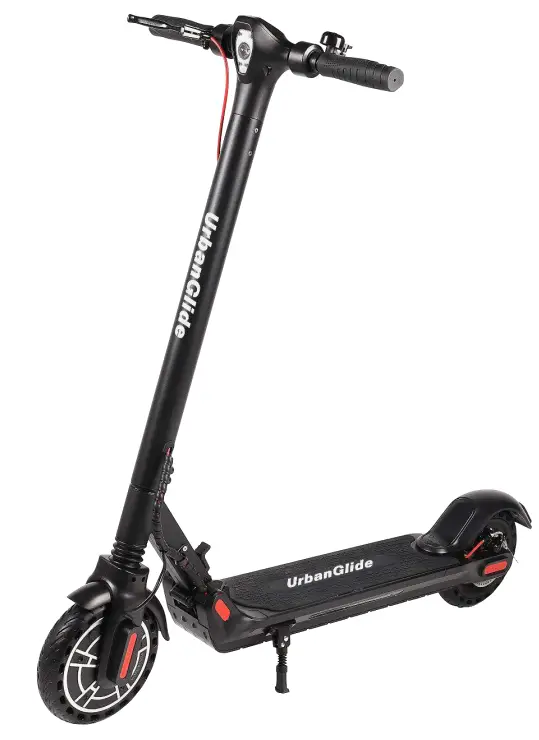

Urban Glide RIDE 85L Electric Scooter

Safety and precaution

Please read the manual carefully before using the product and read the risks and safety tips in the manual. The use of an electrical product can be dangerous if the user is not watchful. Misuse and non-respect with the safety instructions does not affect the company in event of accident. Self-judgment and common sense are necessary for users to detect the possible dangers.
Please verify the current regulations and laws in your country to know where and how to use your product legally. You must comply with the rules and laws that applicable to vehicles and pedestrians.

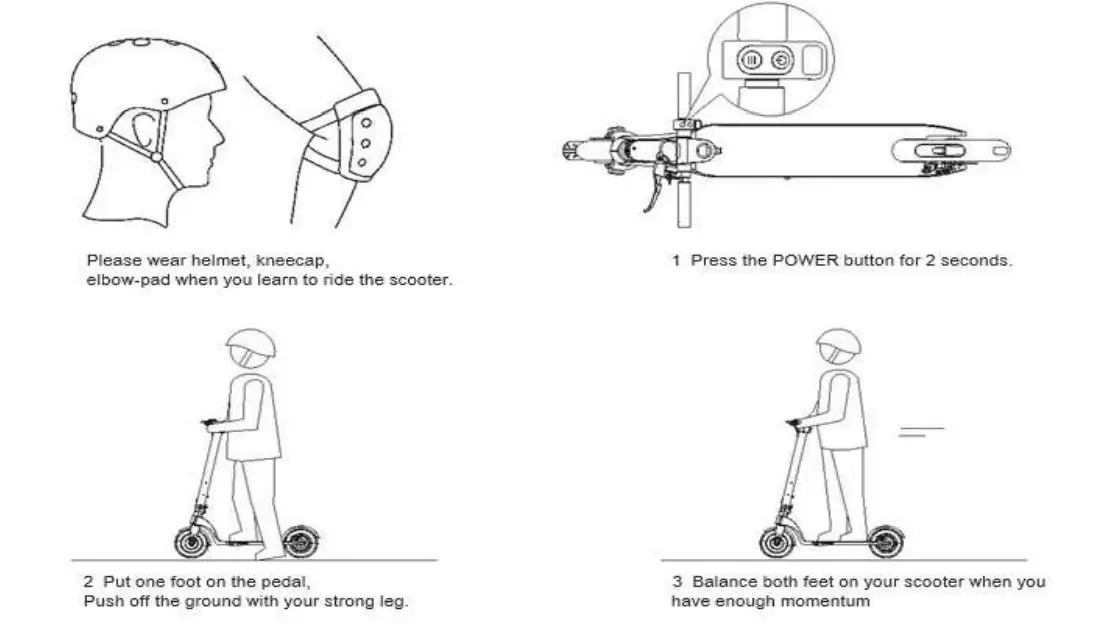

Protective equipment

Always wear the following protective equipment:

• Approved and certified helmet according to your location
• Knee pads and elbow patches
• Long sleeve t-shirt and long pants
• Gloves
• Shoes with rubber soles, never drive in barefoot or sandal. Verify to make the laces made and keep them as far as possible from the wheels and the internal system.

Driver’s advice

The user must not be more than 120 kg, the size and weight do not fully certify that the user will have full control of the vehicle. It is your responsibility to make sure that all users are aware of the risks. The recommended age for using this product is 12 years. It is your responsibility to put a younger child into consideration by taking into account their skills, maturity and ability and following the rules. Do not touch the engine or the brakes of the product immediately after use, these parts may be extremely hot.

Procedures and driving conditions

Please verify the current laws and rules in your country before using the product. In France, the linear speed on level ground and a person not exceeding the maximum permissible load is 25km/hour. Look around when using the product and pay attention to all possible risks. It is important to respect the rights and properties of everyone. For your safety do not start the accelerator if you are not on the product. This product is not designed to make jumps, acrobatic tricks and skids.
Never drive on roads, near vehicles, stairs, hills, swimming pools or other streams. Please hold the handlebars with both hands. Never go on the product with more than one person. Be sure to keep your fingers and other body parts away from hot parts during use (Brake, motor, chain). Never use the product with a Mp3 player, or with your smartphone at hand.
Never use the product to pull anything, as this may damage the components and wear out the battery. Never put the product in contact with water, the electrical components can be damaged and create a dangerous situation. Roll only on flat and solid surfaces. Avoid surfaces with gravel, holes, ice, which can lead to loss of control of the product. Do not drive at night or in areas where visibility is reduced. Do not ride indoors where there are carpets as they can interfere.
The A-weighted emission sound pressure level at the driver’s cab shall not exceed 70dB(A). The total value of the vibrations to which the hand-arm system is exposed does not exceed 2.5m/s², the maximum frequency-weighted root mean square value of the acceleration to which the whole body is exposed does not exceed 0.5m/².
(Measurement accuracy is uncertain)
After each use, verify that each piece is in its proper place, and that it is not damaged. Before each use, verify the following points:

• The brakes are in good condition
• All components are in good condition and in their places
• The parts with defects in the last use have been repaired or replaced according to the manufacturer’s conditions.

People who have medical follow-up or treatment such as: cardiac people, pregnant women, irresponsible people with back or neck problems, should not use the product.

Usage of the charger

Before using the product, it is necessary to charge it. A long charge may be necessary before the first use. Please refer to the battery indicator, you can charge your battery at any time to ensure the constant power. It is not necessary to wait until the battery is completely empty to charge it.
Please do not use the charger of other brand, these can damage the battery of your product. To ensure a normal life cycle, it is important to charge your battery at least once every 3 months, even if you are not using the product. Avoid shocks and contact with water, these are factors not covered by the warranty that may damage the battery. The supplied charger is “smart”, it will stop at 100% of the charge and not damage the battery.
The charger must be in perfect condition during each use, verify the wires, the condition of connection ends and connectors. If the product does not charge, the charger may be defective, it needs to be replaced.
The charger must be used only by an adult, it is important to unplug it from both sides when not charging.

Battery

Please do not store the battery in extreme temperatures. Store it below 30 ° C and above 0 ° C. If you do not use your product for 60-90 days, the battery may get worse. This loss of autonomy is due to lack of use and is therefore not covered by the warranty.
At the end of its cycle, the battery must be discarded separately from the undifferentiated generic waste. Discard the batteries in the containers provided for this purpose. The recovery and recycling of batteries contributes to protect the environment and material resources conservation. This product contains a Li-ion battery, the extinction of a possible fire must be done with a powder extinguisher (Fire class D).

Maintenance

Please store your product in a dry, dust-free place, and avoid leaving it in a humid area or under the sun for too long. To clean your appliance, use a damp cloth and mild detergent. Do not use alcohol, gasoline, kerosene, or other corrosive chemical solvents to clean your appliance, which will damage its appearance and structure. Constantly verify the condition of components of your product, if any part is damaged, please replace it before using the product. If a part is not working, falling, and injuring may occur.

Transport

If you wish to transport your product by air or other means of transport as well as its battery, please contact the local authorities and the carrier beforehand to obtain the possible prohibitions and limits of transport. Lithium batteries are considered dangerous in many countries. Please make sure that the access and transport are allowed before travelling. International law prohibits the transport of lithium batteries by air.

Use of the product

To turn on your product, press the Power button on your handlebars. To move forward, press the accelerator also located on your handlebars. Place both feet on the product and squeeze the accelerator trigger. To brake, use the manual brakes located on the handlebars. You can also use the rear mudguard if your product is equipped with one. Before each use, please check that the wheels are not jammed and that the brakes are working. In order to carry out some basic adjustments, in particular the brake control play, please go to our tutorial videos available on our YouTube channel: URBANGLIDE CHANNEL.
The use of this type of product over a long period of time can cause vibrations which can be unpleasant, take regular breaks. To warn other users of your presence, use the horn on your handlebars, if your product is equipped with one. Use the front LED to light your way in dark places. When you stop your product, use the crutch to stabilize it.

Rebus

THIS PRODUCT CONTAINS LITHIUM BATTERIES THAT MUST BE SAFELY RECYCLED: The battery must be removed before disposal. Before any work is carried out, remember to switch it off and unplug it from the socket.

Listing of parts subject to wear

Some parts require replacement depending on the degree of wear and tear and the time of use, you can obtain spare parts at the following address (Section RIDE 85L)

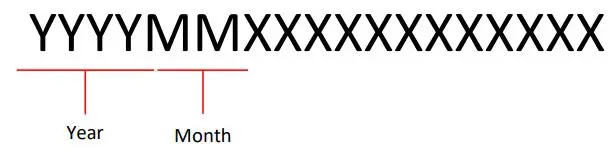

The serial number has the year of manufacture as a prefix located on the information label of your product.

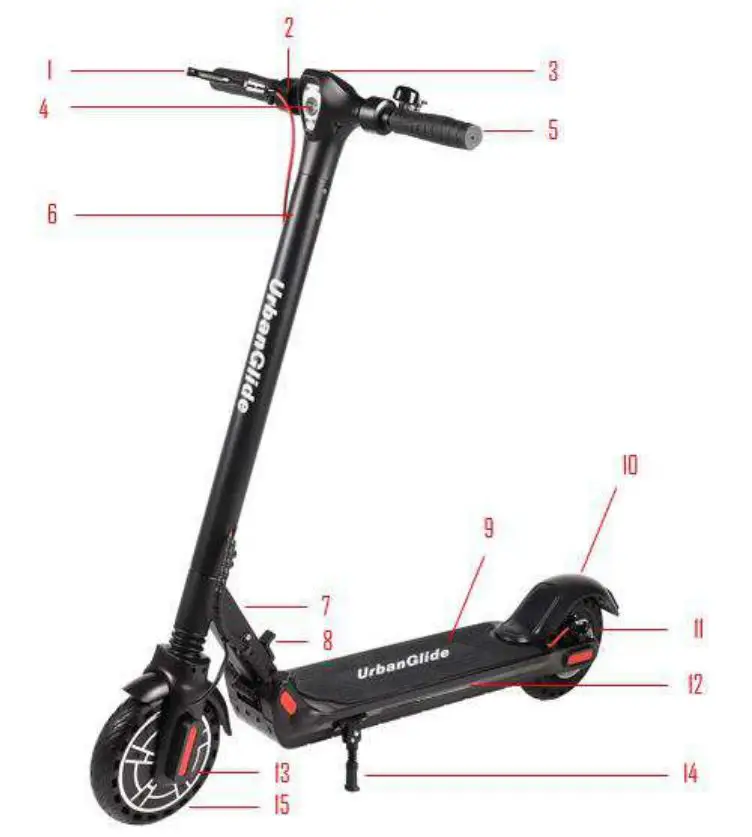

Overview

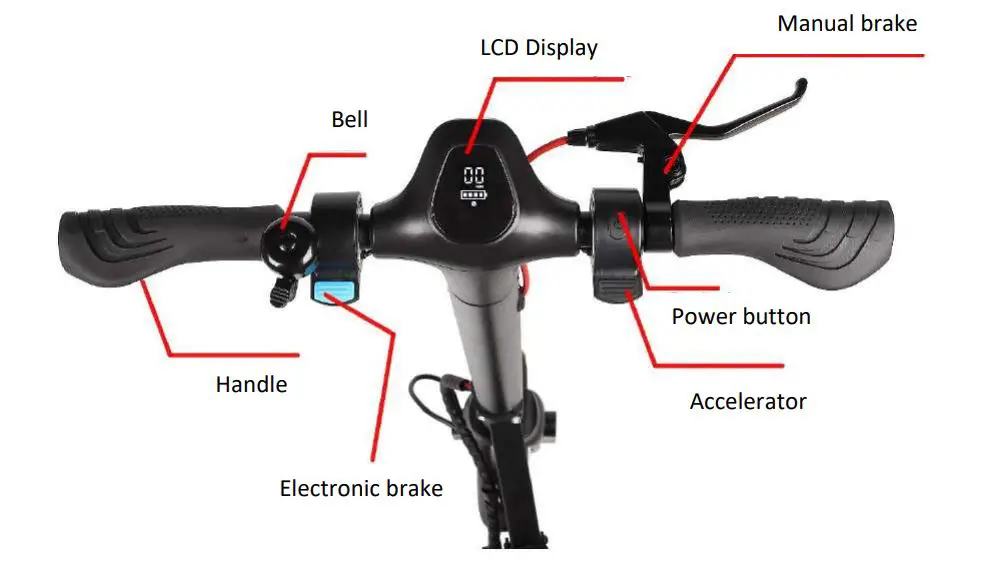

Button instructions

1. Turning on the scooter: Press and hold the power button to turn on your scooter.
2. Turn off the scooter: Press and hold the power button to turn off your scooter.
3. Accelerate: When the scooter starts to roll, place both feet on the platform and press the accelerator.

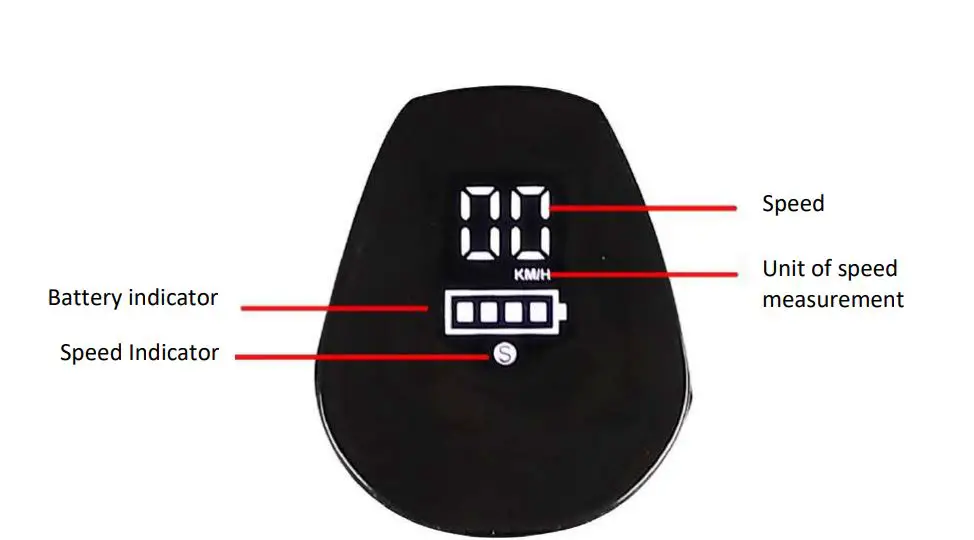

4. Change the speed of your scooter: Press the On/Off button once.3-speed modes :
   1. “S” blue = First gear
   2. “S” yellow = Second speed
   3. “S” Red = Third gear
5. Tur ning the headlights on/off: Press the power button twice.
6. Ch ange km/h and Mph: Press the power button 3 times.
7. Cruise control: To activate the cruise control, keep the same speed for 6 seconds, a beep will sound and the sc ooter will keep the same speed. To stop the cruise control, press the accelerator or the brake.

CAUTION: Do not pinch your fingers when folding the scooter!

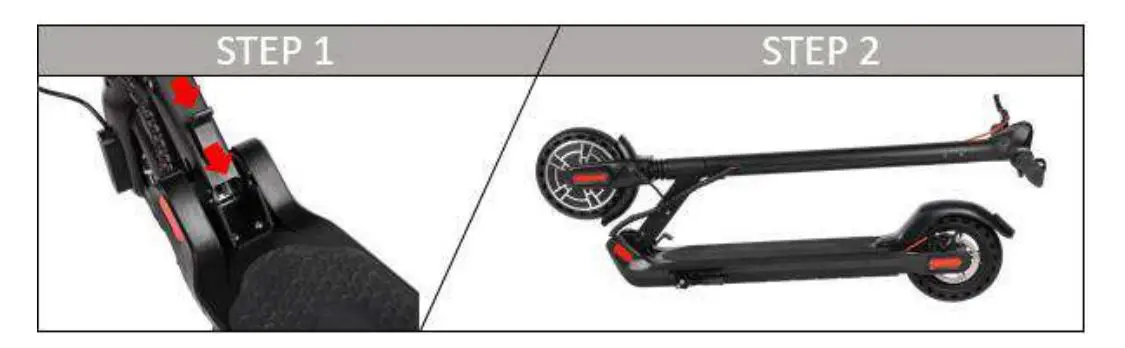

Folding scooterUnfolding scooter

Pull the handlebar upwards until you hear a “click”.

Advice

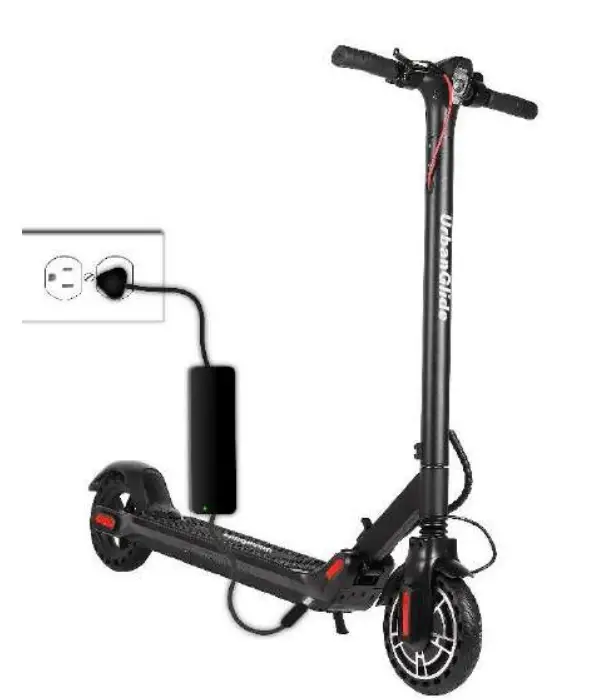

Charging step

• Open the charging port cover, Make sure the charging port is clean and dry.
• Connect the charger with the battery and the other end with power(100V-240V;50/60Hz), make sure the charging indicator is on
• When the indicator light on the charger changes, indicating that the charging process is normal, otherwise check if the line connection is good.
• When the indicator on the charger has color change, it indicates that the battery has been filled to 99%, Please stopcharging; long time over charge will affect the battery life.

Troubleshooting

For any information, contact our after-sales service at the following address
[email protected]
You will also find many tutorial videos concerning the maintenance and maintenance of your product on our YouTube channel
UrbanGlide Channel
Finally, do not hesitate to follow us on our social networks Instagram and Facebook to follow our news.
You can find the latest update of this manual in digital format by logging on to our website:
www.urbanglide.com
(Model section concerned).
The paper version will be given to you on request from our
customer service department.
All product names, logos and trademarks are the property of their respective owners. All company, product and service names mentioned in this manual are for identification purposes only. Mention of these names, logos and trademarks is not a recommendation for use.

DECLARATION OF CONFORMITY ORIGINAL

We undersigned PACT GROUP hereby declare that the product.

• Model: Urbanglide Ride 85L
• Type: Electric scooter
• Function: Electric scooter for individual transport
• Product description: Foldable electric scooter with adjustable speeds

Meets all standards and technical directives below:

DIRECTIVES

TESTS STANDARD

All tests were carried out by the laboratories mentioned below:

• Wuyi Chuangxin Metal Tools Co., Ltd
  Donggan Fenghuangshan Industrial Area Tongqin Town, Wuyi, Jinhua, Zhejiang China
• SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd.
  N° 588 West Jindu Road, Songjiang District, Shanghai, China

Contact details of the importer: PACT GROUP 33 rue du ballon 93160 Noisy le Grand – France

Contact details of the person authorized to edit the technical document

Fung NIM33 rue du ballon 93160 Noisy le Grand – France

This declaration shall be issued under the responsibility of his representative. 28/12/2020

Representative of the company: PACT GROUP 33 rue du ballon – Noisy le Grand – France Maurice Bodokh CEO
