PRESSALIT 2100 Removable Mesh Mattress

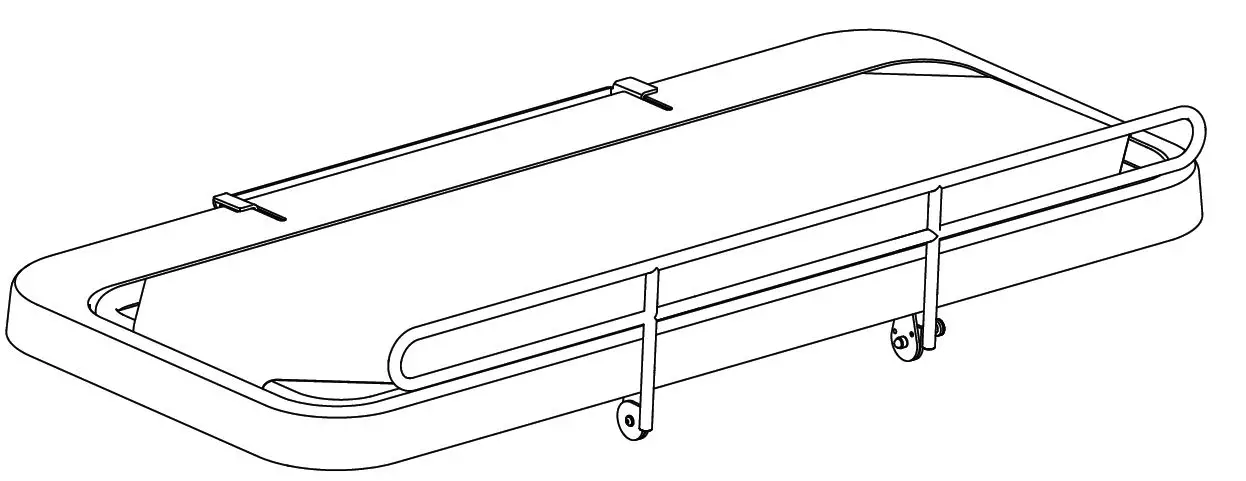

PRESSALIT 2100 Removable Mesh Mattress product

  • Pressalit 2000
  • Fixed Height Changing
  • Table R8425418000: Coated Canvas Mattress.
  • Model 2100
  • R8425218000: Removable Mesh Mattress.

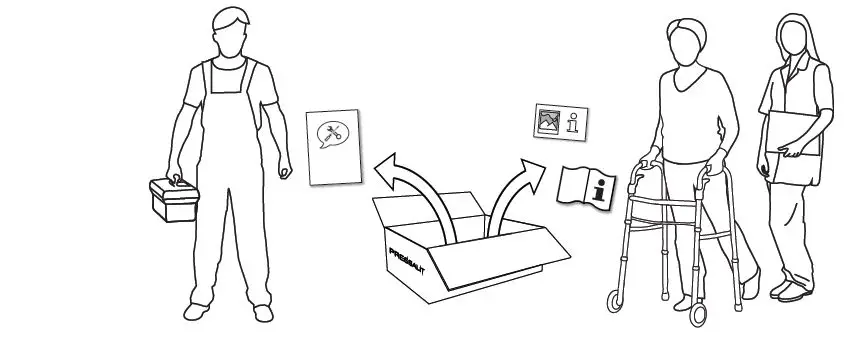

Inside the box

PRESSALIT 2100 Removable Mesh Mattress 1

Operation and maintenance of the (OMM) for this product is enclosed in the box. Please hand over to the user. It can also be downloaded at www.max-ability.comAn operation signage use by people with reading or cognitive disabilities, is enclosed in the box. It can also be downloaded at www.max-ability.com User information is not available in braille.

Mounting Instruction

Find the product number on the product label and ensure that these assembly instructions match your product.

WARNING
Failure to comply with these instructions may result in accidents involving serious personal injury or the product being damaged. If you suspect that any individual parts may be damaged, contact your Pressalit dealer or service provider. Do not remove, attempt to repair or install parts yourself, unless directed to do so by Press alit or its agents.
No modification of this equipment is allowed without express authorization from Pressalit. These instructions must be followed, and the product must be installed professionally by a qualified person e.g. a licensed plumber, in order to avoid personal injury or property damage while using the product. Pressalit cannot be held liable for injury to persons or damage to property caused by faulty mounting.

Installation Drawing

PRESSALIT 2100 Removable Mesh Mattress 2Concrete >B25 PRESSALIT 2100 Removable Mesh Mattress 3Solid Brick >= Mz12 PRESSALIT 2100 Removable Mesh Mattress 4Solid Sand Lime Brick >= Hlz12 PRESSALIT 2100 Removable Mesh Mattress 5Aerated Concrete P4 PRESSALIT 2100 Removable Mesh Mattress 6Drywall water-resistant, re enforced with wood.PRESSALIT 2100 Removable Mesh Mattress 7Dry wall water-resistant, re enforced with plywood.PRESSALIT 2100 Removable Mesh Mattress 8Dry wall water resistant, re enforced with steel plates.PRESSALIT 2100 Removable Mesh Mattress 9Dry wall water resistant

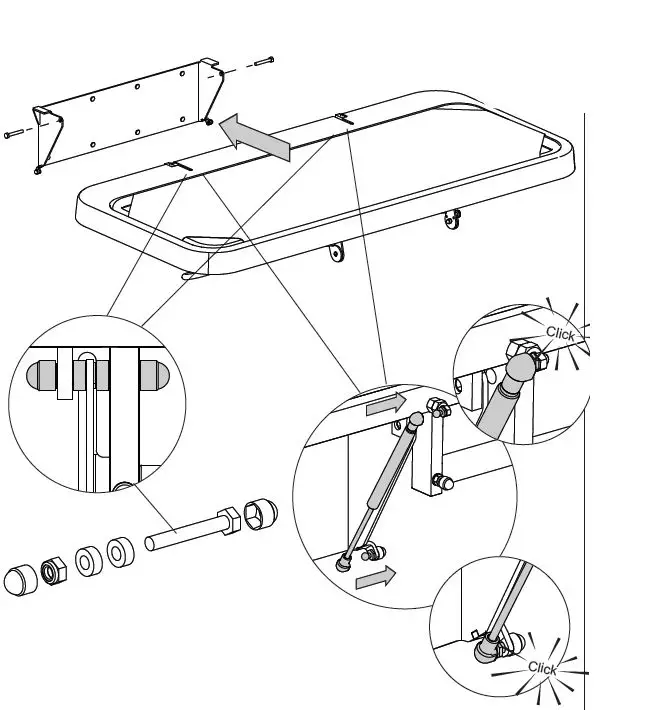

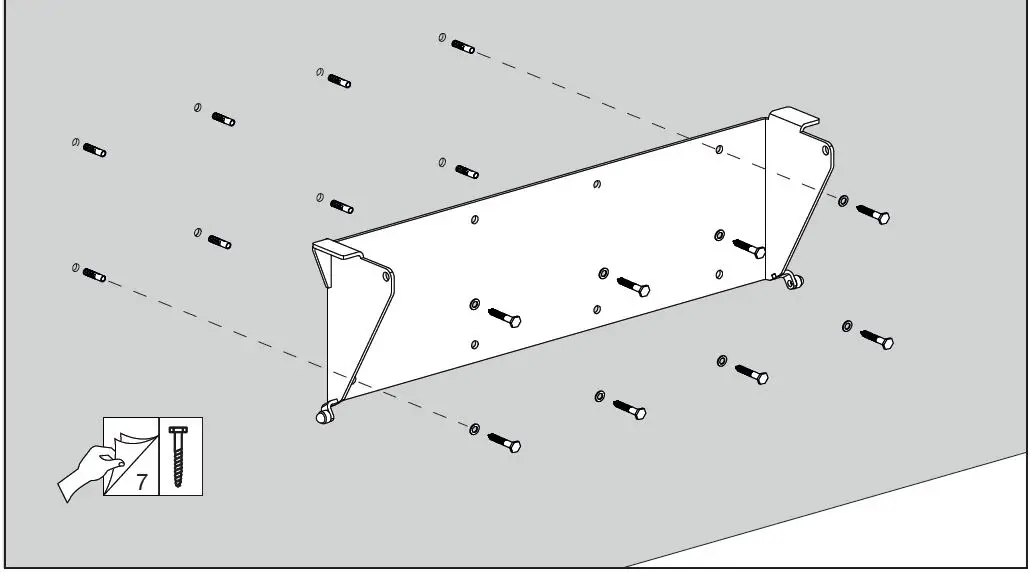

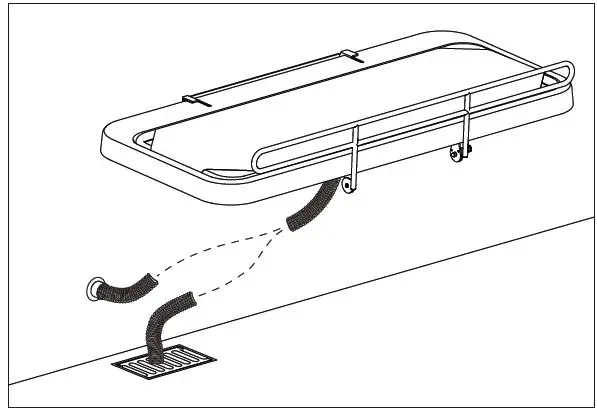

How we fix it?

PRESSALIT 2100 Removable Mesh Mattress 11

PRESSALIT 2100 Removable Mesh Mattress 12

PRESSALIT 2100 Removable Mesh Mattress 13

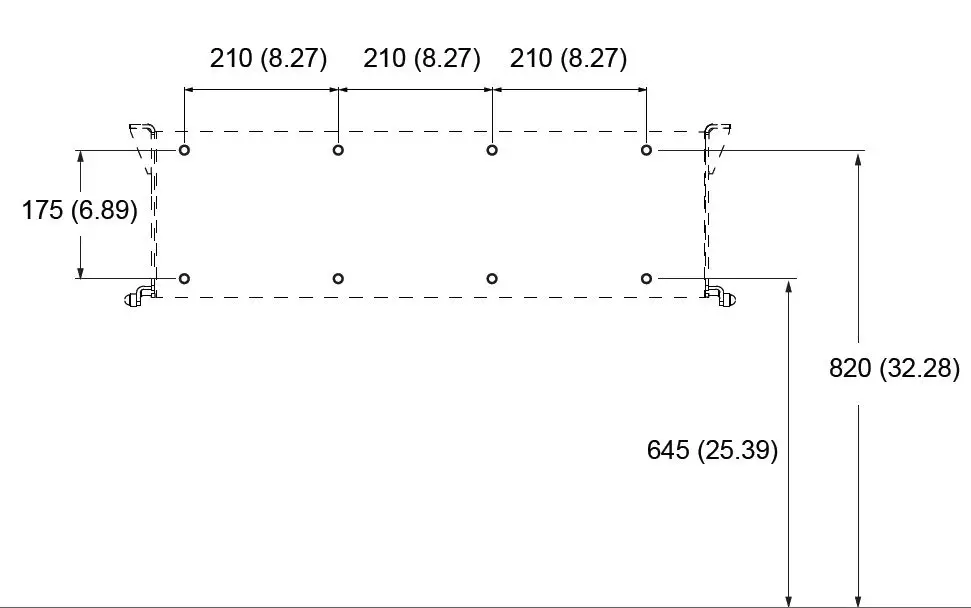

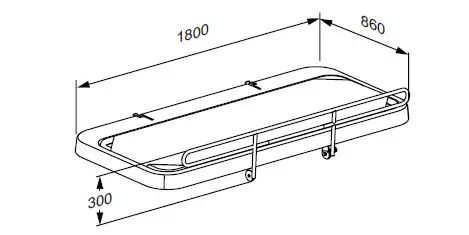

Dimensions required

PRESSALIT 2100 Removable Mesh Mattress 10

PRESSALIT 2100 Removable Mesh Mattress 15

PRESSALIT 2100 Removable Mesh Mattress 16
