ErgoMixx
User manual Accessories
Scan the QR code or visit the website to open the Further Notices for Use. You can find additional information about your appliance or accessory here.
 |  |
 |  |
 |  |
 |  |
Safety
Read this instruction manual carefully. Observe the instructions for the base unit. Only use the accessories: with a hand blender MS6….for applications described in these instructions.
▶ Care should be taken when handling sharp blades, emptying the container and during cleaning.
▶ Never touch the sharp blades and edges with bare hands.
▶ Only ever take hold of the cutter inserts by the rim.
▶ Do not reach into the filling shaft.
▶ Only use the pusher to push down ingredients.
▶ Only attach and remove accessories once the drive has stopped and the appliance has been unplugged.
▶ Only use the accessories once fully assembled.
▶ Never operate the multifunctional accessory without having fitted and secured the gear attachment.
Avoiding material damage
▶ Never immerse the gear attachments in liquids and do not clean under running water or in the dishwasher.
▶ Never use the universal accessory container in the microwave or oven.
▶ Do not insert objects into the container or filling shaft, e.g. wooden spoons, or knives.
▶ Do not apply great force with the pusher.
▶ Never use the blender foot or the double stirring whisk in the container for the universal accessory.

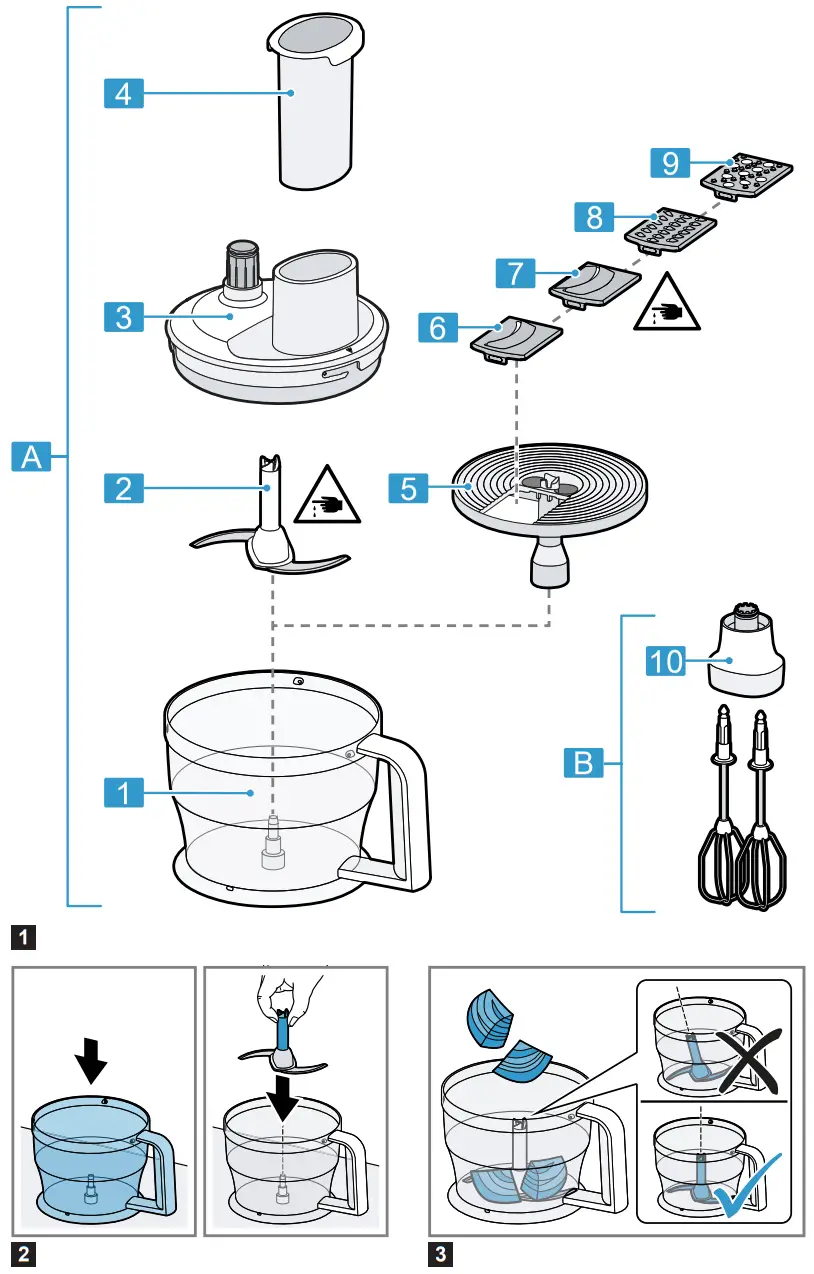

Overview
→ Fig. 1
| A | Multifunctional accessory |
| B | Double stirring whisk¹ |
| 1 | Container |
| 2 | Universal blade |
| ¹ | Depending on the model |
| 3 | Gear attachment for the multifunctional accessory |
| 4 | Pusher |
| 5 | Carrier disc for cutter inserts |
| 6 | Slicing insert – coarse¹ |
| 7 | Slicing insert – fine¹ |
| 8 | Shredding insert¹ |
| 9 | Grating insert¹ |
| 10 | Gear attachment for the double stirring whisk |
| ¹ | Depending on the model |
Note: If an item is not included in the scope of supply, it can be ordered from customer service.
Multifunctional accessory
The multifunctional accessory is suitable for cutting up and shredding food.
Notes Remove hard pieces of food before processing, e.g. gristle, bones, sinews or stones from stone fruit. The multifunctional accessory is not suitable for cutting up very hard ingredients, e.g. coffee beans, nutmegs, radishes or frozen food.
Symbols
| Symbol | Description |
 | Do not reach into the filling shaft. |
 | Not suitable for dishwashers. |
 | Do not immerse in liquids or hold under running water. |
 | Marking on gear attachment. When fitting onto the container, align the marking with a fixing point. |
Recommended speeds
| 4-8 | Slicing inserts |
| 8-12 | Shredding and grating insert |
 | Universal blade |
Universal blade
The universal blade is suitable for cutting up food, e.g. meat, hard cheese, onions, garlic, fruit, vegetables, herbs, nuts and almonds.

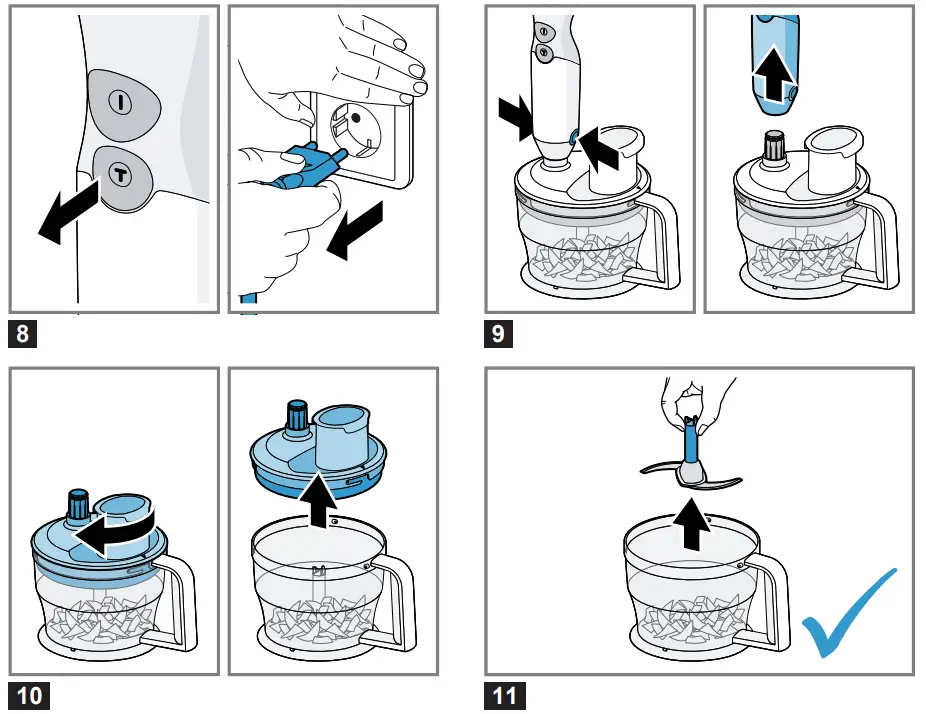

Using the universal blade

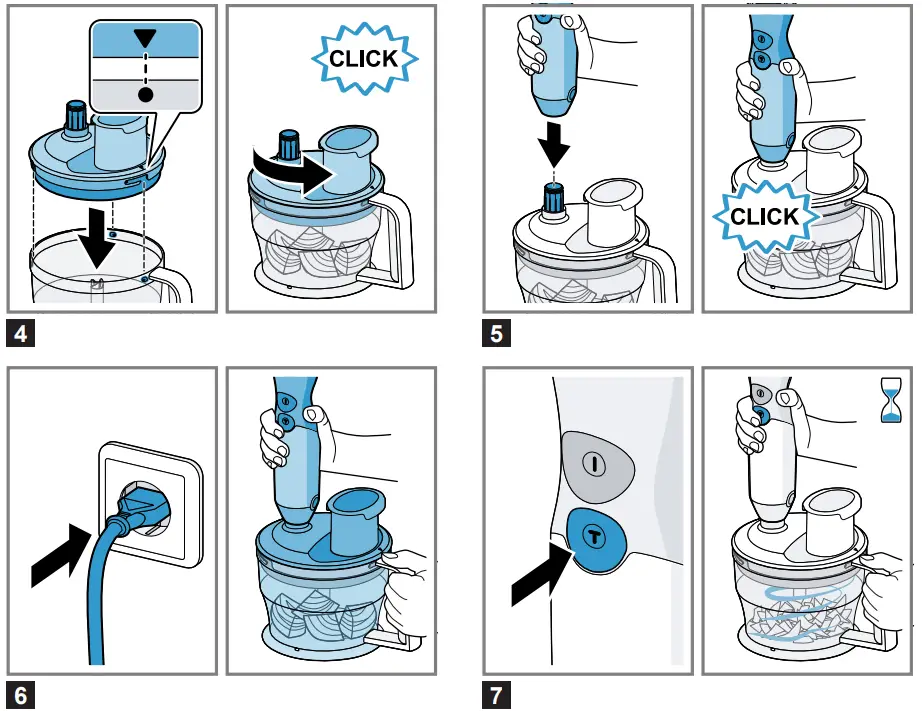

→ Fig. 2 – 11
Note: If the gear attachment is a bit stiff to fit, turn the three-piece coupling on the underside of the attachment slightly and try again.
Carrier disc with cutter inserts
The carrier disc with cutter inserts is suitable for cutting, shredding and grating food, e.g. fruit, vegetables and cheese.
Overview of cutter inserts
| Slicing intercourse | For slicing cucumbers, carrots, potatoes |
| Slicing insert – fine | For slicing cucumbers, carrots, beetroot, courgettes |
| Shredding insert | For shredding apples, carrots, cheese |
| Grating insert | For grating potatoes for dumplings and potato pancakes and fruit and vegetables for salads Note: Must not be used for grating carrots. |
Note: The cutter inserts are not suitable for cutting up very hard foods, e.g. Parmesan cheese or chocolate. The cutter inserts are only partly suitable for cutting up fibrous foods, e.g. leeks, celery or rhubarb.

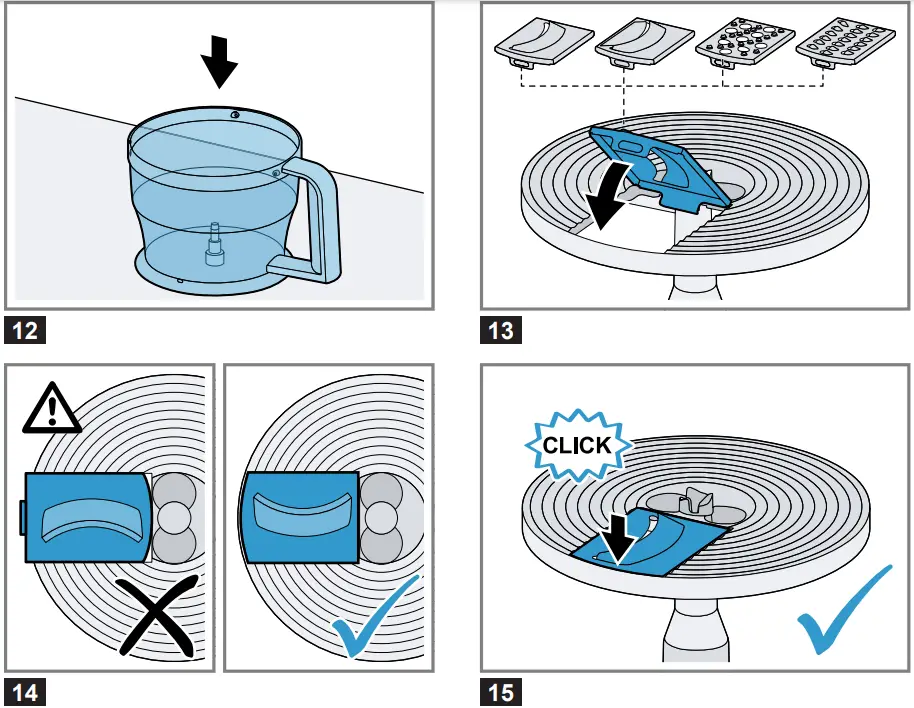

Using the carrier disc with cutter inserts

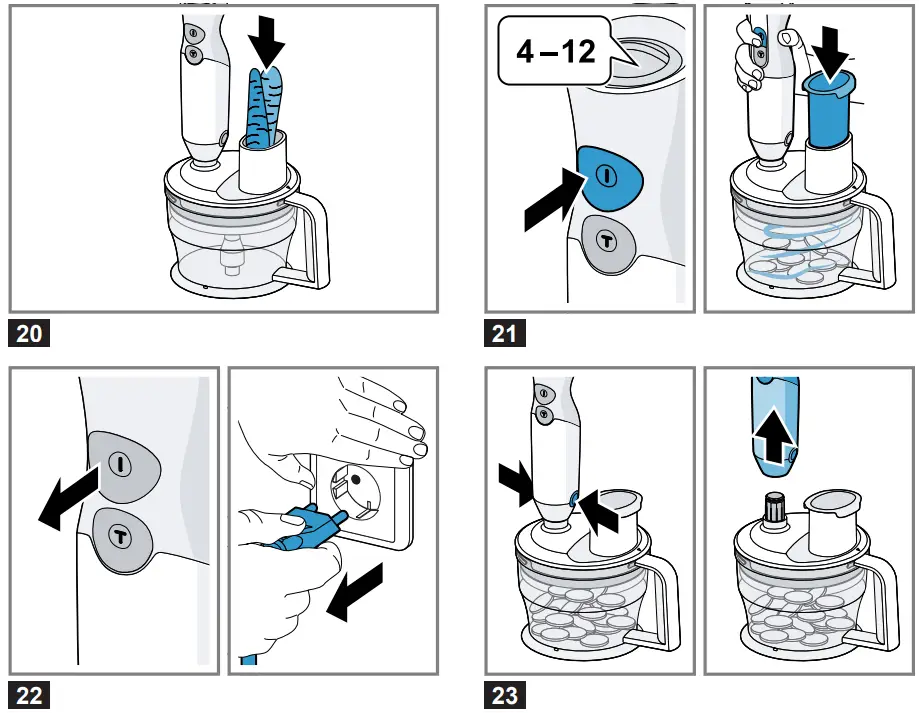

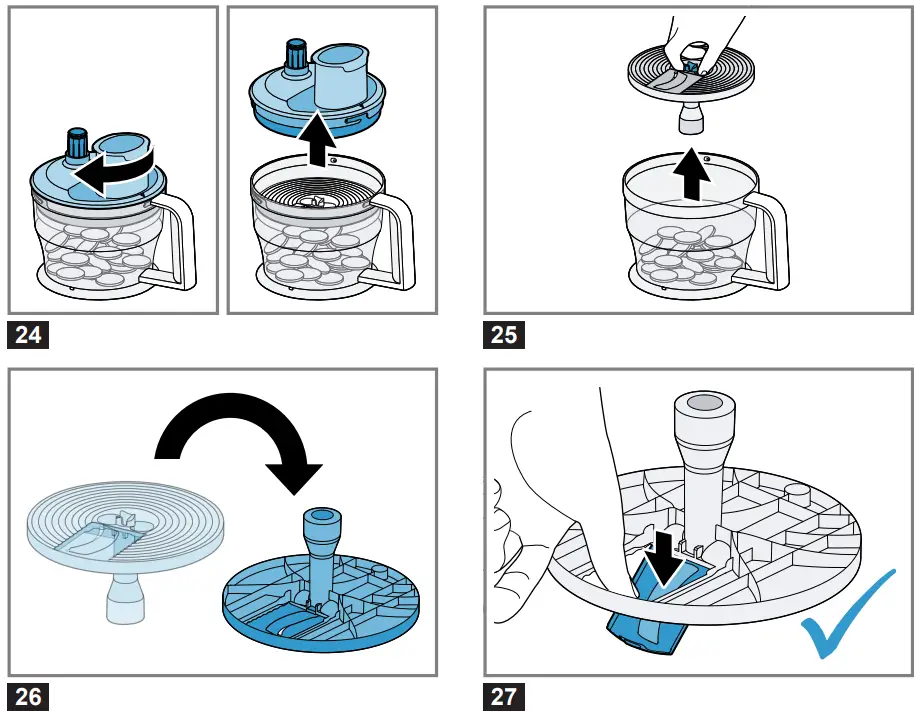

→ Fig. 12 – 27
Note: Finish processing and empty the container before the processed food reaches the underside of the carrier disc.
Double stirring whisk
The double stirring whisk is suitable for whipping cream, beating egg whites and making sauces or desserts. Recommendations for optimum results: Use cream with a minimum fat content of 30% and a temperature of 4-8 °C Whip cream or beat egg whites in a wide jug
Note: To prevent splashing, use deep containers with the double stirring whisk.

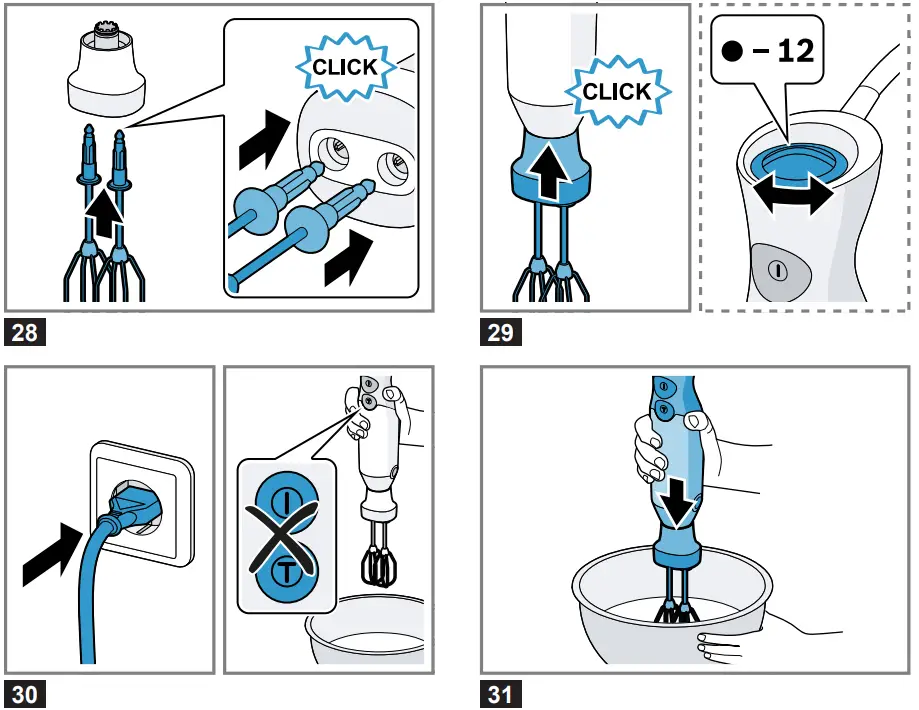

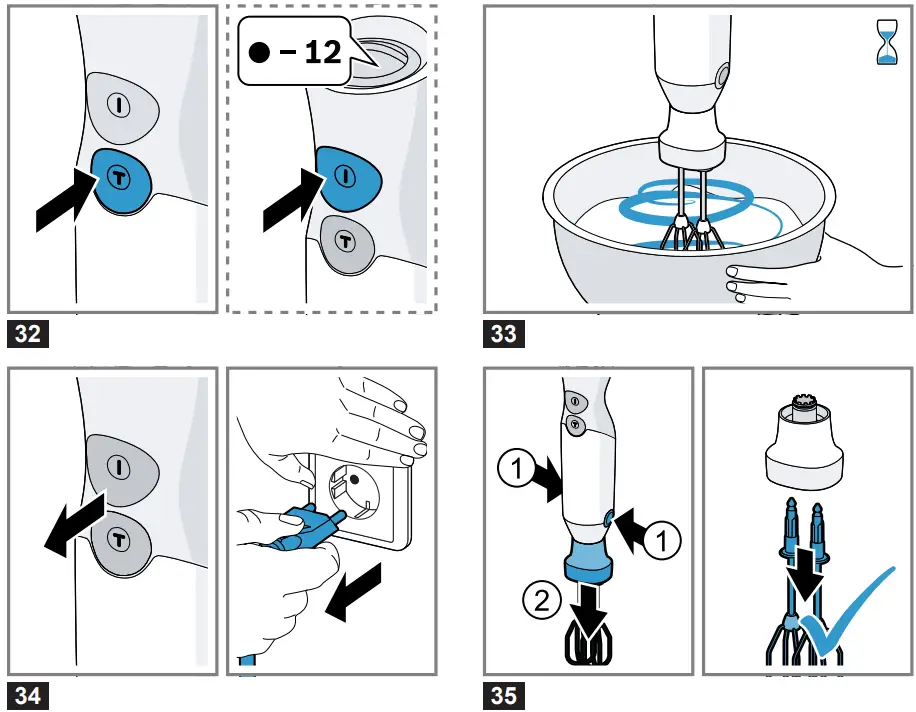

Using the double stirring whisk
→ Fig. 28 – 35
Application examples
Always observe the maximum quantities and processing times in the tables.

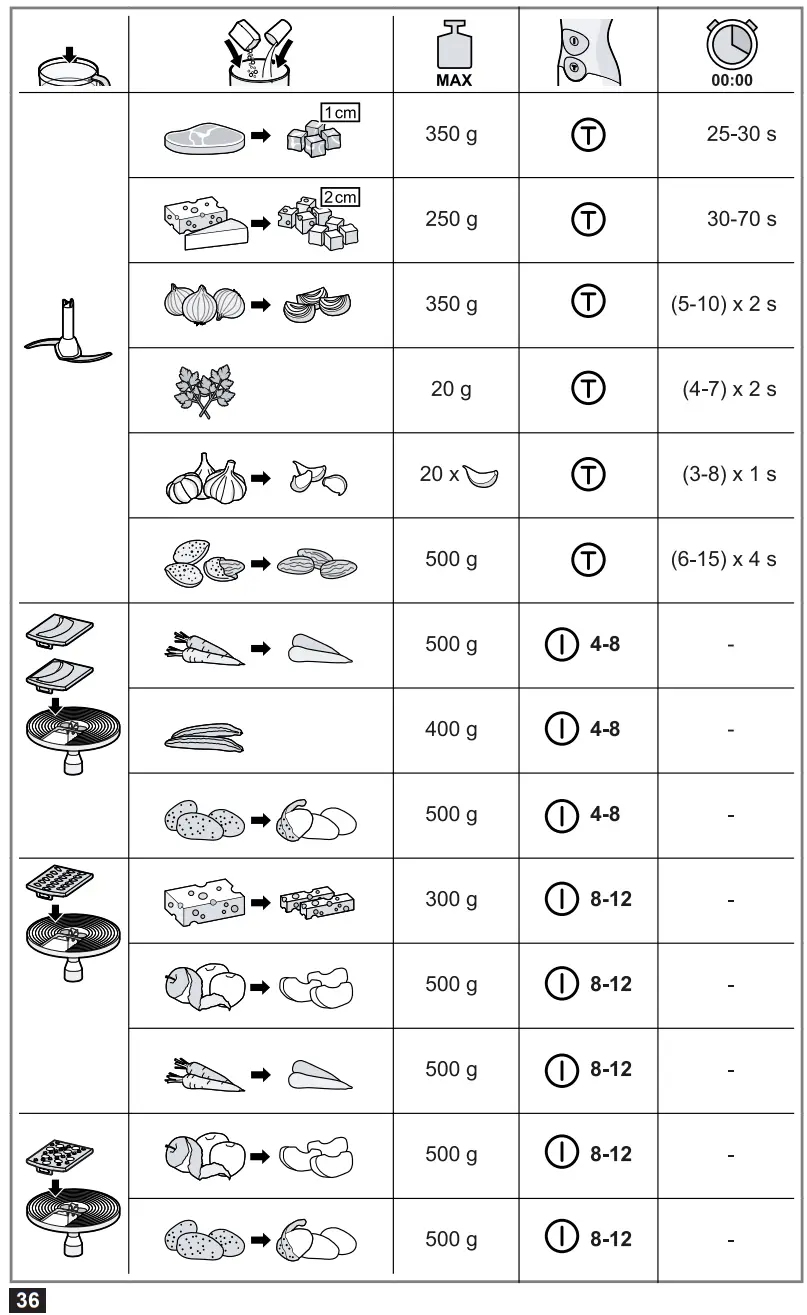

Multifunctional accessory
Note: After each operating cycle let the appliance cool down to room temperature.
→ Fig. 36

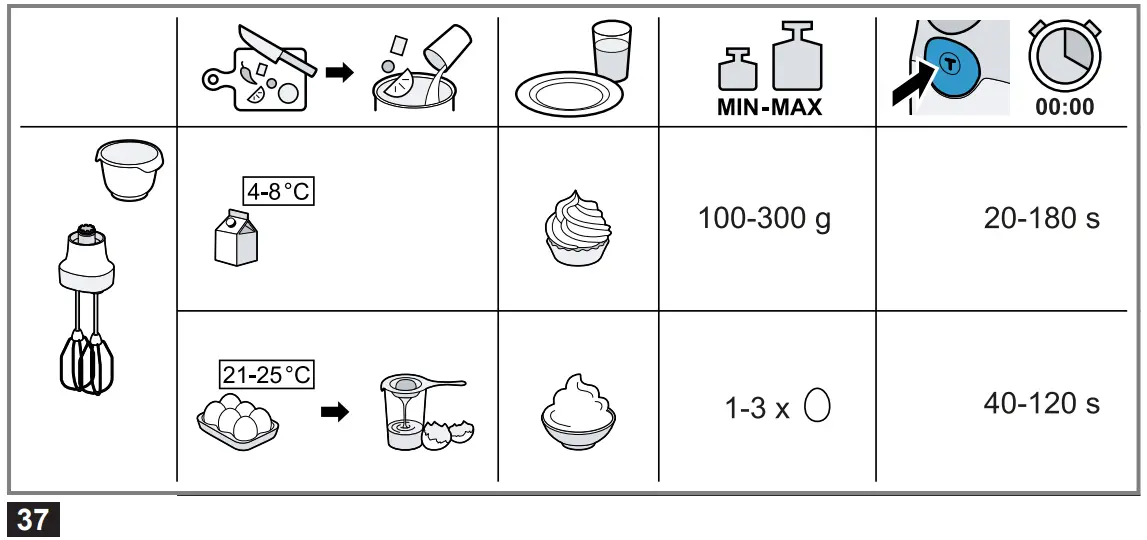

Double stirring whisk
→ Fig. 37
Sample recipe
Potato patties 500 g potatoes 1 large egg3 tbsp flour Salt and pepper to taste Preparation Insert the grating insert in the carrier disc and prepare the multifunctional accessory for processing.Peel and grate the potatoes. Mix the grated potatoes, egg, flour, salt, and pepper. If the mixture is too liquid, add more flour. Heat oil in a pan. Then add a large spoonful of the mixture and shape it into patties. Fry on both sides until golden brown.

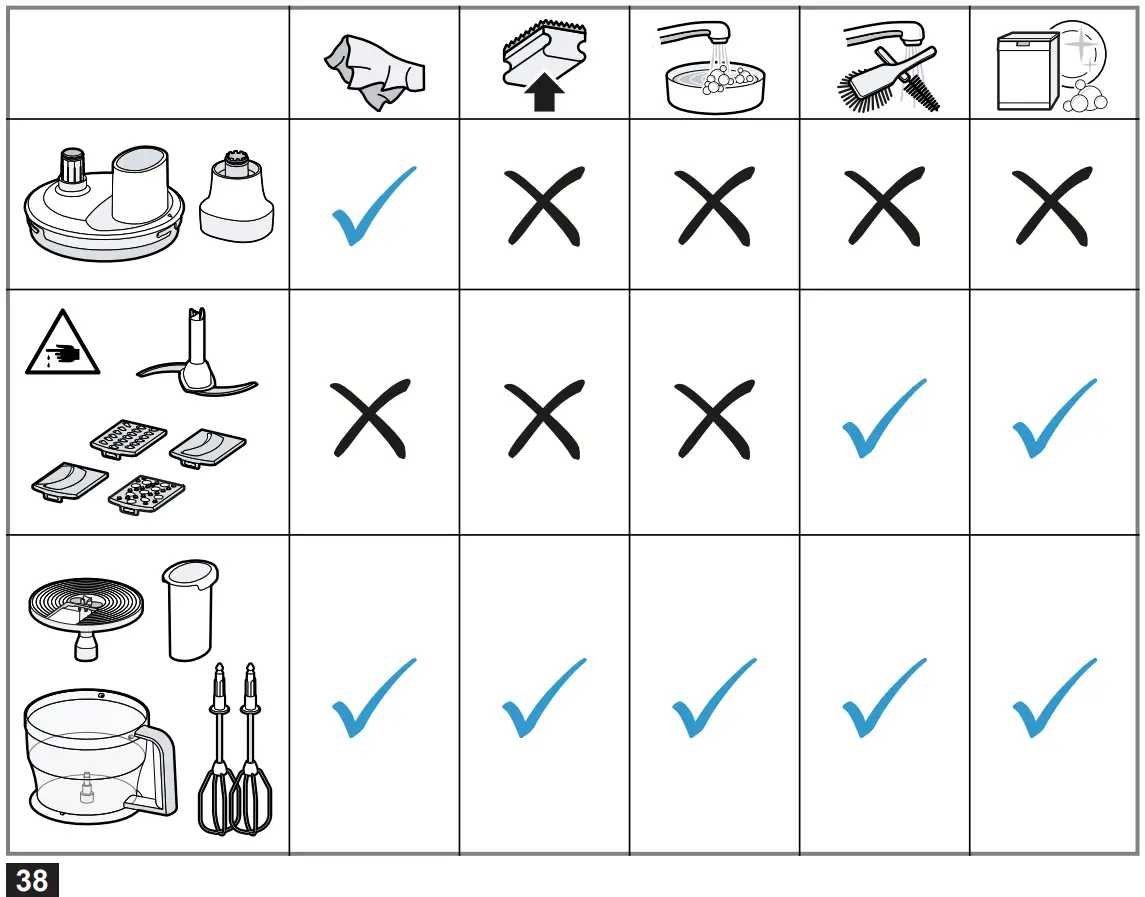

Overview of cleaning
Clean the individual parts as indicated in the table.
→ Fig. 38
