Schneider Apcrbc110 Battery Cartridge Replacement Installation Guide

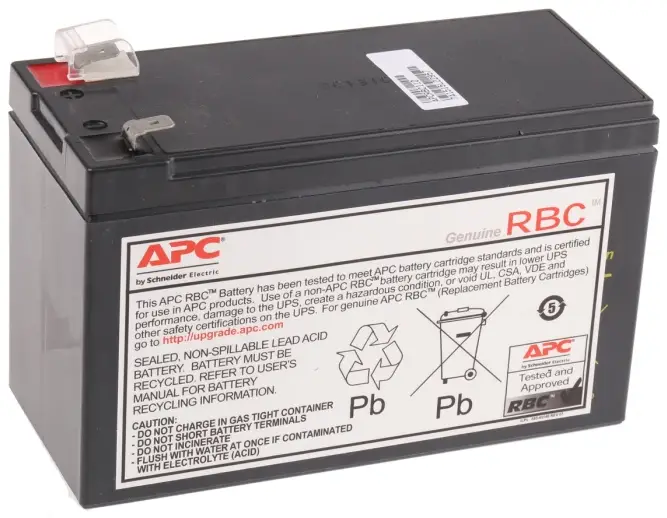

SCHNEIDER APCRBC110 Battery Cartridge Replacement

CAUTION:

• Only APC authorized service technicians should replace the battery.
• Use APC-authorized batteries only.
• Use an authorized battery recycler. See www.apc.com/recycle for information on recycling services offered in your country.

Instruction

SMV/SMVS 750-3000VA

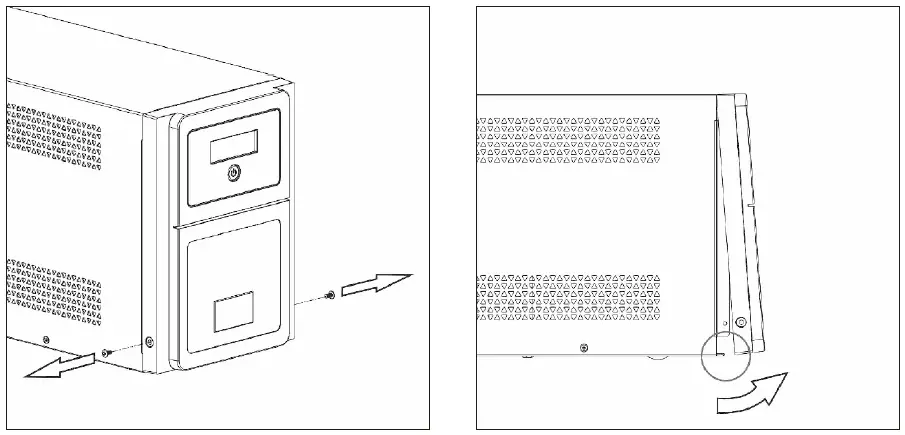

1. Locate the screws (2nos) securing the

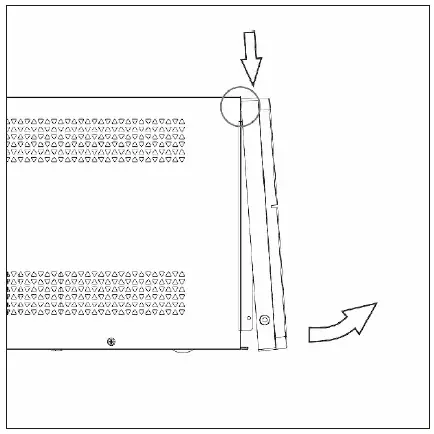

2. Release the bezel from the base & rotate the bezel in the direction.
3. Slide the bezel down to release it from the top cover and take out the bezel.
4.  Re-install the bezel removed in step 1.
   © 2022 APC by Schneider Electric. APC, the APC logo are owned by Schneider Electric Industries S.A.S. or their affiliated companies. All other trademarks are property of their respective owners.
