Orcatorch Sd03 Dive Beacon Torch User Manual

SD03 Dive Beacon Torch
User Manual

PRODUCT INTODUCTION

The OrcaTorch SD03 is a compact and multifunctional 4-colour dive beacon. It can emit light in 4 different colours and has 8 lighting modes: for each colour either constant light or flashing mode. Both colour and light mode can be chosen by rotating the body. The SD03 can be used as an underwater or outdoor signal light, dive backup light, outdoor regular light, etc. Its shell is made of plastic which provides good light penetration. With excellent waterproofness, it will function up to 150m underwater. There is no doubt that the SD03 is one of the best choices for diving or outdoor lighting.

PRODUCT FEATURES

4 single colours and 8 modes integrated in one light
Compatible with 1*AA battery or 1*14500 battery
Non-slip and comfortable silicone ring
The tail D-ring can be used more easily with lanyard
Practical and convenient mode memory function
Plastic transparent shell with enhanced light guide performance
Professional waterproof design, depth rated to 150 meters underwater
Reverse polarity protection, to protect the light from improper battery installation
Aircraft-grade high-strength aluminum AL-6061-T6 used with type III military grade hard anodization technology

INSIDE THE BOX

SD03x1, AA batteryx1, Lanyardx1, User Manualx1.
Note: The 14500 battery is not included in the box. If you need the 14500 battery, please buy it yourself.

SPECIFICATIONS

Notice: Stated data has been measured according to the international flashlight test standards ANSI/NEMA FL1 using one OrcaTorch 14500 Li-ion battery (3.7V, 900mAh) or 1*AA battery (1.5V, 1800mAh) under laboratory conditions. The parameters are approximate and may vary between flashlights, batteries and environments.

ANSI/NEMAFL1	Output				Runtime
BatteryType	14500		AA		14500	AA
White	1001m		501m		3Hr 30mins	3Hr 10mins
White Flash	100 Im		50 Im		6Hr 30mins	5Hr 30mins
Red	1 Im		0.5 Im		62Hr	95Hr
Red Flash	1 Im		0.5 Im		120Hr	250Hr
Blue	1 Im		0.5 Im		62Hr	120Hr
Blue Flash	1 Im		0.5 Im		120Hr	220Hr
Green	1 Im		0.5 Im		62Hr	120Hr
Green Flash	1 Im		0.5 Im		120Hr	220Hr
Max Intensity		14500		280cd
		AA		600cd
Beam Distance		14500		48m
		AA		33m
Waterproof		Underwater 150m
Impact Resistant		1.5m
Dimension		30.5mm (Head Dia)*76.15mm (Length) 1.2in (Head Dia)*3in (Length)
Net Weight		50g/1.76oz(excluding battery)

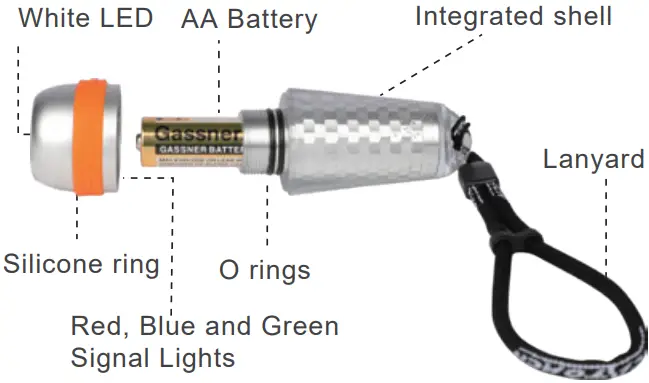

PRODUCT PICTUREBATTERY INSTALLATION

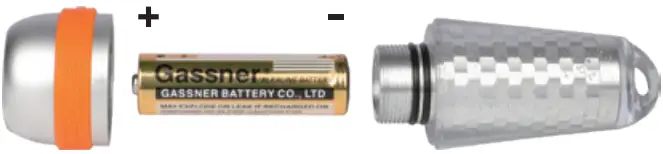

The battery assembly direction is shown in the figure.Note: The supplied AA battery is not rechargeable. If you need a rechargeable lithium 14500 battery, please buy it yourself.

OPERATION INSTRUCTION

ON/OFF
Insert the battery and tighten the tail to turn on the SD03.Mode Selection
After the light is switched on, loosen and tighten the tail to switch modes among white, white flash, red, red flash, blue, blue flash, green, and green flash in sequence.
MEMORY FUNCTION
The mode will be memorized if it has worked for more than 3S. The light will start from this mode by default when turned on the next time.

USAGE AND MAINTENANCE

• Please clean the surface of the light with fresh water and wipe it dry afteruse in case of the seawater corrosiveness.
• Do not drop or place the light on sand in case iron sand stick or go into switch section or screw thread.
• Tighten all the connections of the light before going underwater.
• Please take out the batteries after each diving.
• Please don’t disassemble the sealed head, doing so may cause damageto the flashlight and will void the warranty.
• We recommend the use of high quality batteries. lf the flashlight will notbe used for a long time,remove the batteries to avoid damage fromelectrolyte leakage or battery explosion.
• Please replace the O-rings if they are damaged after prolonged use and regularly lubricate the o-rings so as to not erode the rubber. Doing so willkeep the flashlight properly sealed against water.
• Please clean the contacts of your light from time to time, especially when the light flickers or doesn’t light up.
  There are probably several reasons for a flickering or not working light:
  Reason A: The batteries need to be replaced.
  Solution: Replace batteries (Please confirm correct installation of + and -terminals).
  Reason B: The threads,PCB board contact or other contacts are dirty.Solution: Clean the contact points with an alcohol soaked cotton swab.
  If the methods above don’t work, please contact the distributors and referto the warranty policy.

We will replace products afflicted with manufacturing defects within 30days of purchase and repair a light free of charge within 12 months ofpurchase if problems develop under normal use; if repair is required after12 months from the date of purchase, we will charge for parts. The totalrepair fee is dictated by the cost of the replaced materials.
Please register your OrcaTorch products through official website www.orcatorch.com to get extra 1 year warranty.
warning
The flashlight is high intensity lighting device and capable of causingeye damage, please avoid shining the light directly into the eyes.

ORCATORCH TECHNOLOGY LIMITED
Tel:+86-755-33560383
Fax:+86-755-29454989
Email: [email protected]
www.orcatorch.com
Address: 7F, Building 6, Rundongsheng Industrial Park,
Gushu, Xixiang, Baoan, Shenzhen, China (518102)www.orcatorch.com
