IBMCWA
Mobile Computerised
Wheel Aligner
Collaboratively Manufactured In The UK & Italy
IBEX IBMCWA Mobile Computerised Wheel Aligner
SharkEye Ibex is our class leading 8CCD computer aligner in a 42 inch assault rifle case… What’s not to like! It’s portable and space saving, a real go anywhere affair, in the workshop or in the van.
PRODUCT SPECIFICATIONS
- 4 x Fasep Heads
- Panasonic Toughbook CF-D1 Mk1 1.10Ghz 4GB RAM 250GB Win 10 Pro 13.3″ Touch Screen
- Ergonomic folding keyboard
- EMG (Electronic Measuring Gauge) extension reach 193mm
- 4 x Magnesium alloy wheel clamps

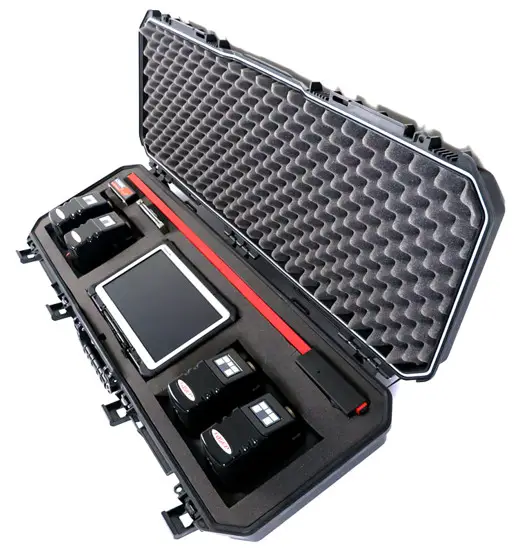

Heavy Duty Rifle Case:
- Water resistant rubber seal around the lid
- Egg crate foam on lid: 40mm
- Solid foam base: 40mm
- Built in pressure valve
- Lockable cliplocks
- Soft grip handle
- Metal Hinges

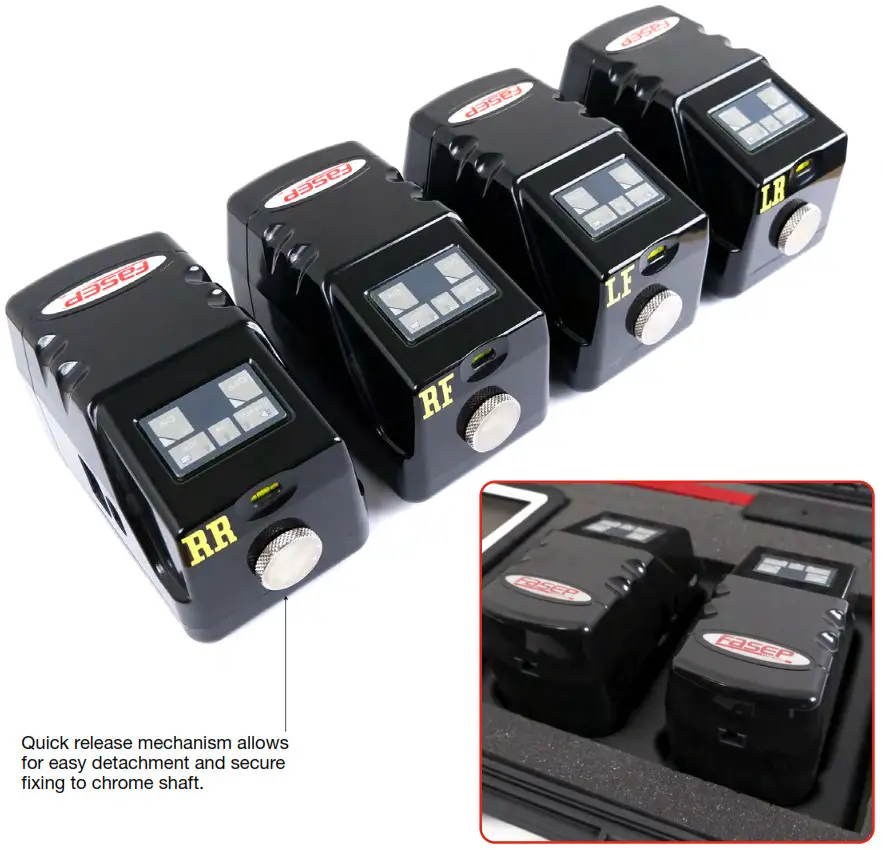

4 x Fasep Heads
Each Fasep Head incorporates a micro sensor includes n.6 battery stilo AA Ni-Mh 1, 2V 2000 mAh

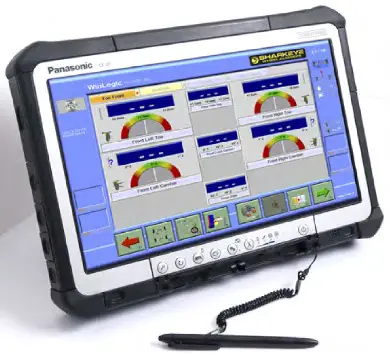

Panasonic Toughbook CF-D1 Mk1
1.10Ghz 4GB RAM 250GB Win 10 Pro 13.3″ Touch Screen

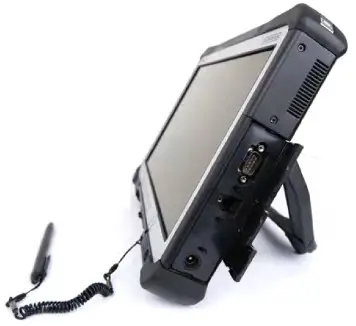

Ports:
- 1x PC card type I or type II (3.3 V: 400 mA, 5 V: 400 mA)
- 1x express card
- 1x SD/SDHS memory card 2 x RAM
- 1x serial – RS-232 – D-Sub (DB-9), 9-pin
- 1x audio – line-out/headphone – mini-phone stereo 3.5 mm
- 1x audio – line-in/microphone – mini-phone 3.5 mm
- 3x Hi-Speed USB 2.0 –
- USB Type A, 4-pin
- 1x Docking/port replicator – 80-pin connector 1 x antenna
Ergonomic folding keyboard
EMG (Electronic Measuring Gauge) Extension reach 193mm
4 x Magnesium alloy Wheel Clamps
