HONDA CBR 650, 650R 14-20
Installation Guide
HONDA CBR 650, 650R 14-20

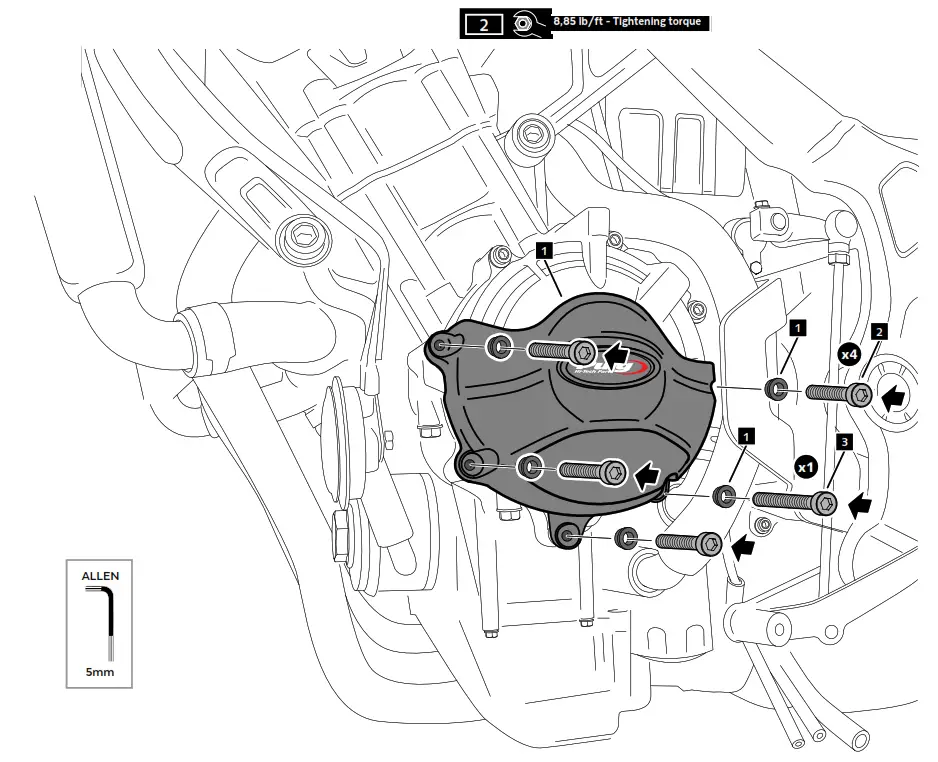

LEFT SIDE COVERS
| ID. | PIEZA / PART | DESCRIPTION | QTY. | REF: |
 | Left cover | 1 | CONJUNTO–20625 | |
 | M6x35 DIN912 screw | 1 | – | |
| M6x45 DIN912 screw | 1 | – |
WE RECOMMEND TO MOUNT THE SCREWS UNIFORMLY TIGHTENING ONE AFTER THE OTHER, TO FINALLY TIGHTEN WITH DYNAMOMETRIC
MOUNTING INSTRUCTIONS
ASSEMBLY
CONSULT OUR WEBSITE THE VIDEO MOUNT AVAILABILITY OF THIS REFERENCE.
https://puig.tv/es/tuning-motos/protectores-de-motor/protector-tapa-motor?bike=26301

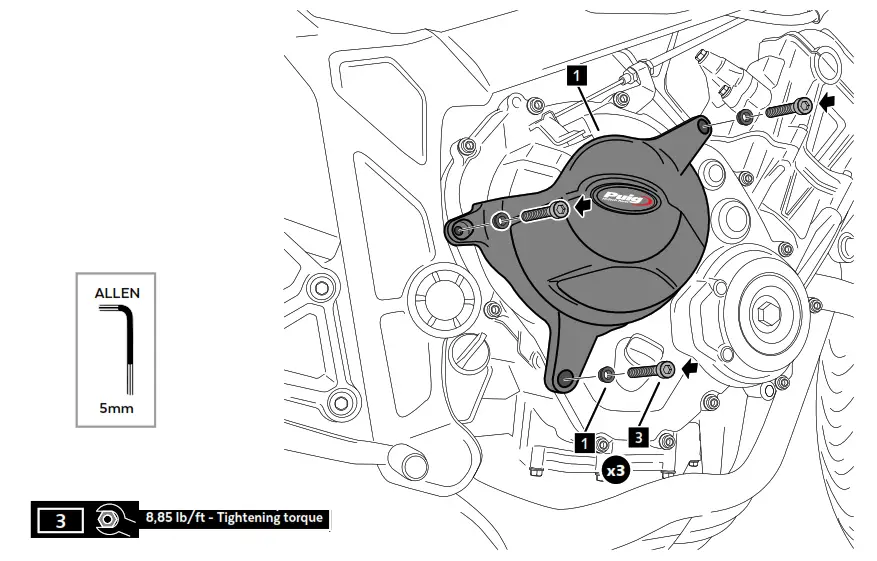

RIGHT SIDE COVERS
| ID. | PIEZA / PART | DESCRIPTION | QTY. | REF: |
 | Right cover 1 | 1 | CONJUNTO–20625 | |
 | Right cover 2 | 1 | CONJUNTO–20625 | |
| M6x35 DIN912 screw | 1 | – |
WE RECOMMEND TO MOUNT THE SCREWS UNIFORMLY TIGHTENING ONE AFTER THE OTHER, TO FINALLY TIGHTEN WITH DYNAMOMETRIC
ASSEMBLY
ASSEMBLY
