Hama 200110 Usb Multiport Instruction Manual

hama 200110 USB Multiport

1. Package Contents

   • USB-C Multiport
   • These operating instructions
2. Safety Notes
   • Do not attempt to service or repair the product yourself. Leave any and all service work to qualified experts.
   • Do not open the device or continue to operate it if it becomes damaged.
   • Do not operate the product outside the power limits given in the specifications.
   • Do not modify the product in any way. Doing so voids the warranty.
   • Keep this product, as all electrical products, out of the reach of children! Use the product for its intended purpose only.
   • Protect the product from dirt, moisture and overheating, and only use it in a dry environment.
   • The product is intended for indoor use only.
   • Do not use the product in the immediate vicinity of heaters or other heat sources or in direct sunlight.
   • Do not use the product in moist environments and avoid splashes.
   • Do not use the product in areas where the use of electronic devices is not permitted.
   • Do not drop the product and do not expose it to any major shocks.
   • Dispose of packaging material immediately according to locally applicable regulations.
     Warning
   • Find out the maximum output current capacity of the USB port on your device. To do this, consult the operating instructions or ask the manufacturer.
   • Common values are 500 mA for USB-A 2.0, 900 mA for USB-A 3.0, and up to 3000 mA for USB-C.
   • Ensure that the cumulative current draw of all USB devices connected to the hub/multiport adaptor does not exceed this value.
     Note

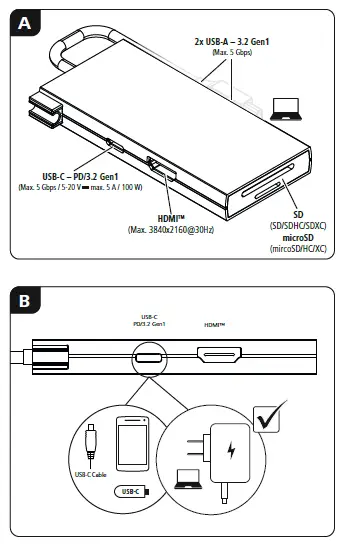

   • To be able to use the charging function, the device must support Power Delivery (PD) or Thunderbolt-3/4.

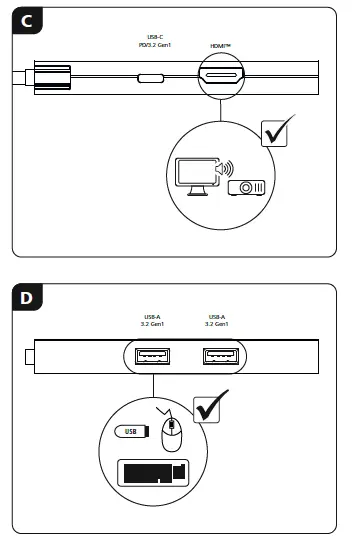

   • To be able to use the HDMI™ function, the device must support DisplayPort Alternate Mode or Thunderbolt-3/4.
   • For optimized video function, we recommend passive monitor adapters / cables (without chipset / signal converter).
3. Startup and Operation
   • Switch on your computer and boot the system.
   • Connect the product to a free USB port on your computer.
   • You do not have to install drivers; the computer will automatically recognise the product.
   • If necessary, follow the instructions for your operating system.
   • In order to use your devices, plug them into the product one after the other.
4. Warranty Disclaimer
   Hama GmbH & Co KG assumes no liability and provides no warranty for damage resulting from improper installation/mounting, improper use of the product or from failure to observe the operating instructions and/ or safety notes.
5. Technical Data

• Operating voltage / current consumption 5 – 20 V max. 5 A
• Compatibility USB-C port
• System requirements Windows 11 / 10 / 8 / 7 Mac OS 10.8 ≥
• USB specification USB 3.2 Gen1

Note

• If there is interference or the product no longer responds, unplug the product, wait a few seconds and then plug it in again.
