Garett
Men Elegance RT
User manual
Thank you for purchasing the Garett Men Elegance RT
SAFETY ISSUES
Before use, read this user manual carefully and keep it for further reference. The manufacturer shall bear no liability for any damage/injuries caused by improper use. Depending on the smartwatch batch, certain functions may differ from the functions described in this user manual.
Using this device in the vicinity of medical devices may disrupt their operation. Users should pay special attention when using the smartwatch in the vicinity of medical devices such as pacemakers, hearing aids, and other electronic medical devices.
Do not dispose of the device in fire. There is a risk of battery explosion and the resulting threat to life and health.
Protect the device from heat sources and direct sunlight.
Do not store the device in damp places or at high temperatures, because it may cause electric shock or fire.
Do not immerse the device in hot water.
Do not drive while wearing the device.
In case of failure/damage, please stop using the product and contact the Garett service center. Any attempts to make your own repairs may damage the device and result in the invalidation of the warranty.
The device should only be cleaned with a soft, slightly damp cloth. Do not use strong detergents or any other stimulants to clean the product.
Garett Men Elegance RT is not a medical device. The smartwatch and the FitCloudPro app are not designed for medical diagnosis, treatment, or as a preventive measure against illness or disease. You should seek medical advice first before changing your sleep and physical activity habits.

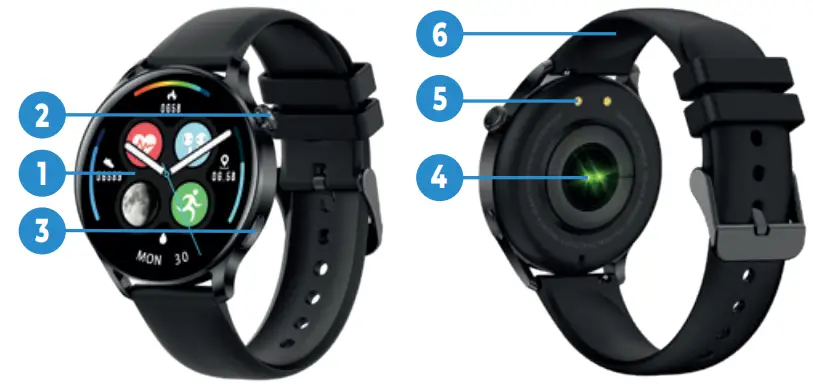

PRODUCT DESCRIPTION
- Touchscreen
- Function button (on/off/return/wake up/blank/navigation to the menu)
- Sport modes button
- Set of sensors
- Magnetic charging port
- Interchangeable strap
INSTALLATION
Put the watch on your wrist and adjust the strap length so as to ensure the device strap is not too loose.
OPERATION
Switch on/off
 | To start the device, press and hold the function button(2) for approx. 5 seconds. To switch off, repeat the action and confirm switching off. In case when the smartwatch does not start up, try to charge it. |
| After start-up | |
 | The smartwatch is operated using a touch screen, function button, and sport modes button. |
| Dial change | |
 | Press and hold the home screen to display the menu for changing the smartwatch face. While swiping right/left choose the dial look and then confirm your choice by clicking any place on the screen. More dials are available in the Da Fit application. |
| Navigation | |
 | Swipe right on the home screen to access the main menu. By touching the screen you will enter the selected function. After entering the function, swiping right allows you to return to the previous screen, or pressing the function button(2) takes you to the main screen. |
 | Swipe left on the home screen to access the quick menu, i.e .: daily activity summary, sleep recording, health measurements, connections, remote camera, player, and weather information. |
 | Swipe down on the home screen to access the settings bar. It allows you to quickly change selected functions of the smartwatch |
 | Swipe up on the home screen to access the recent notifications. It enables viewing/ removing notifications. |
CHARGING
- The smartwatch is charged using the magnetic cable supplied with the device.
- Attach the end of the magnetic cable so that the contacts of the watch touch the contacts of the charging cable. Then connect the other end of the cable to the USB port of a computer or a USB power adapter. When it is connected properly, the charging animation will appear on the watch screen.
If there is no animation, make sure the watch is properly connected.
When the battery is completely discharged, the animation may appear after several minutes. Before switching on the watch for the first time, it is recommended to charge it for about 2 hours.
The charging voltage should not exceed 5V.
The recommended charging current is a maximum of 1A.
INSTALLING THE DA FIT APP
The smartwatch works with your smartphone using the Da Fit app. Before use, you must first download the app from the Google Play Store or the AppStore and install it on your phone. You can search for the app by entering “Da Fit” in the store search engine or by scanning the relevant QR code provided below.
 |  |
| https://play.google.com/store/apps/details?id=com.crrepa.band.dafit&hl=pl&gl=US | https://apps.apple.com/pl/app/da-fit/id1316004998?l=pl |
Garett Men Elegance RT smartwatch does not require a permanent smartphone connection, but in order to fully enjoy the functions of the watch, you need to pair it with the app.
Each time the smartwatch is turned on and paired with the app, the data is synchronized automatically. The smartwatch measures and analyses certain user data in standby mode. Garett Men Elegance RT has a set of sensors that monitor movement and the measurements taken in order to determine the details of sleep and physical activity.
PAIRING
Process of pairing
- Activate Bluetooth on your phone.
- Make sure the smartwatch is switched on.
- Open the Da Fit application, grant it all permissions, and enter the smartwatch user data.
- Go to the Device tab, click Add Device, then select the device named AK37.
- When pairing, place the watch close to the phone you are pairing it with.
- After successful pairing, the data will be fully synchronized.
The Garett Men Elegance RT smartwatch works with smartphones that support Bluetooth 5.1 connectivity. It is also compatible with Android 4.4 (and newer) and iOS 9.0 (and newer). Remember to grant the app the required consent and permissions before pairing so that it works properly. If you refuse, selected functions may not work properly or will be unavailable.
ADDITIONAL PAIRING
(Necessary for optional Bluetooth functions)
If you want to use additional Bluetooth functions, such as making voice calls using the smartwatch or synchronizing the phone book from the phone, you must make an additional connection directly from the phone’s Bluetooth settings.
- Activate the Bluetooth connectivity on your phone.
- Activate the Phone function in the smartwatch settings:
Swipe left on the home screen to go to the main menu. Then, find and select the receiver icon. Make sure the battery level is not too low (otherwise the function will not start). - After activation, the device will start pairing with the phone automatically.

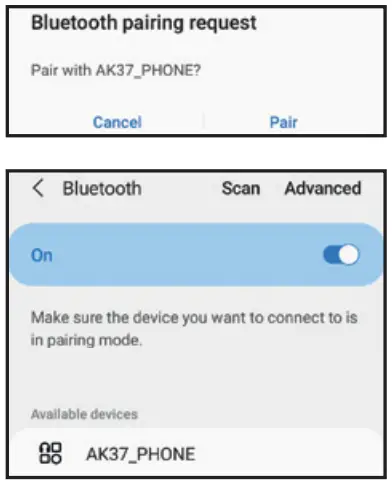

- Give your consent to pair the phone with the smartwatch, i.e .: AK37_PHONE or if automatic pairing does not work, search for it in the phone’s Bluetooth settings and connect to the device.
- After connecting, grant permission to sync the contacts for the Bluetooth functions to work properly.
 | – Steps: Daily summary of the number of steps you have taken. |
 | – Sleep: Information about your last sleep. |
 | – Measure HR: Heart rate function. Click anywhere on the screen to start measurement. |
 | – Training: Sports modes. To start recording an activity, select it from the list, and the recording of the exercise will start automatically. After completing the training, swipe the left or press the function button(2) and press End to save the result. The data will be saved and will be available in the Da Fit application. |
 | – Phone: Ability to dial a number and remotely connect from the smartwatch. For the proper operation of the function, it is required to agree to an additional connection of the watch with the phone from the smartphone settings. In order to synchronize contacts and calls, you must also grant permission to synchronize contacts in the application/ Bluetooth settings of the phone. |
 | – BP: Blood pressure monitor function. Click anywhere on the screen to start measurement. |
 | – SPO2: Pulse oximeter function. Click anywhere on the screen to start measurement. |
 | – Weather: Current weather information downloaded from the application. |
 | – Shutter: Take photos remotely by means of your phone’s camera. Shaking your wrist or clicking anywhere on the screen will take a photo. The camera starts up via the application. |
 | – Player: Music control function on the phone. |
 | – Others: |
 | – Stopwatch: Stopwatch function. |
 | – Alarm: Preview and switch the on/off option for previously set alarms in the application. |
 | – Countdown: Timer function. |
 | – Brightness: Adjust the brightness level of the display. |
 | – Phone: The connection function can be switched on/off. |
 | – Call reset: Clear the data of the Connections function. |
 | – Shake: The vibration on the smartwatch can be switched on/off. |
 | – Theater: Activating this mode mutes notifications and puts the device on a low display brightness level. |
 | – Reset: The reset to factory settings can be performed. |
 | – Power off: The watch can be switched on/off. |
 | – About: System information (MAC address and precise data about the smartwatch software). |
 | – App QR code: It displays the QR code of the dedicated application. |
 | – Young bird: Arcade game. |
TAKING MEASUREMENTS
Make sure the sensor is in contact with the skin before starting the measurement. The area where the measurement is performed should be kept clean – dirt may have a negative effect on the result.
To start, go to the desired function in the smartwatch (Heart Rate, Blood Pressure, or Blood Oxygenation). The measurement is started by clicking anywhere on the screen and should take approximately 1 minute to get the optimal result.

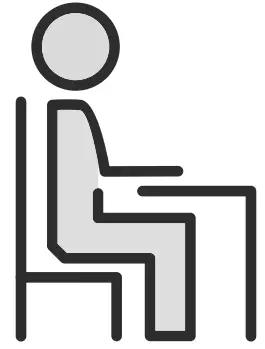

Keep your body relaxed and still during the tests.
Hold the device at the same height as your heart, do not speak during the test.
DA FIT APPLICATION

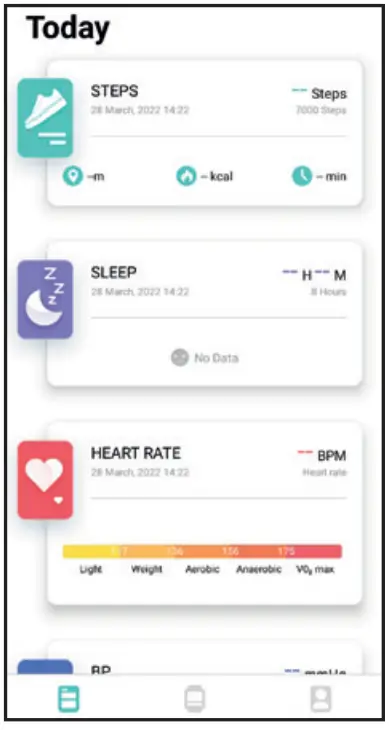

| Main page It displays the most important information on activity and health data from the current day..
|  |

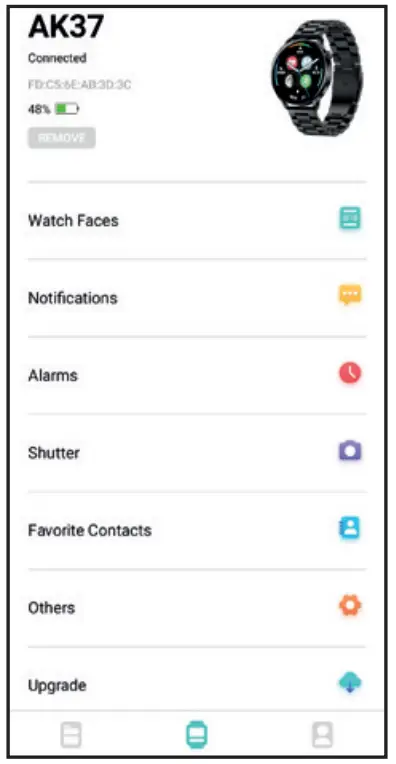

| Device Settings regarding the smartwatch and its functionality.
|  |
| Device – Others Additional functions and settings for the smartwatch.
|  |

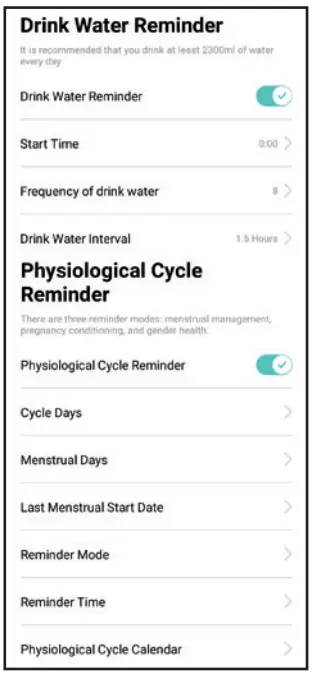

| Device – Drink Water Reminder Hydration notification settings. Device – Physiological Cycle Reminder Settings for notification related to the menstrual cycle.
|  |

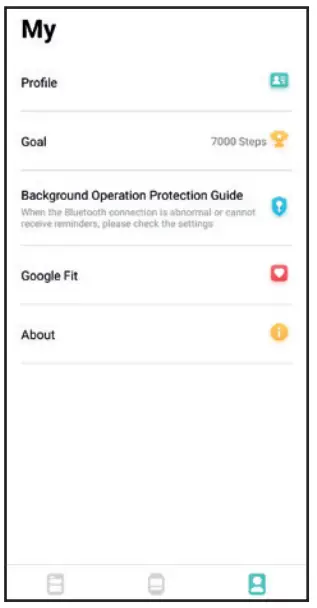

| My The ability to configure and view personal data and settings related to the smartwatch user profile.
|  |
TECHNICAL SPECIFICATION
 | Bluetooth: 5.1 |  | Processor: Realtek 8762C |
 | Battery: 210 mAh |  | Weight: max. 71 g |
 | Display: LCD 1,28″ |  | Face dimensions: 50 x 47 x 12 mm |
 | Interchangeable strap |  | Waterproof: 5 Bar |
 | Dedicated app: Da Fit |  | Warranty: 24 months |
More information about this device is available at www.garett.pl. Visit our website to see more products and accessories.
WARRANTY/CLAIMS
The product is covered by a 24-month manufacturer’s warranty. The warranty does not cover defects and damage caused by the user or as a result of improper use (misuse), mechanical damage, and damage resulting from using accessories and/or consumables other than those provided with the device. When lodging a complaint, fill in the warranty card supplied with the device and send the device accompanied with proof of purchase to the address of the service center provided on the warranty card.
Contact details are available on the website: www.garett.eu
Manufacturer:
GARETT sp. z o.o.
Targowa 18/1413
25 – 520 Kielce
www.garett.eu
Proper disposal of the product (waste electric and electronic equipment)
As indicated by the marking on the product or in the related content, the device should not be disposed of with other household waste after the end of its service life. To avoid harm to the environment and human health as a result of uncontrolled waste disposal, please separate the product from other types of waste and recycle responsibly in order to promote the reuse of material resources as a regular practice. For information about where and how to recycle this product in a way that is safe for the environment, household users should contact the retail outlet at which they purchased the product or local authorities. Business users should contact their suppliers and check the terms of the purchase agreement. Do not dispose of the product with other commercial waste.
