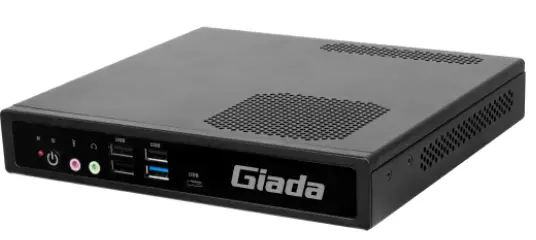

Giada BQ611 Rocket Lake High-end Fat-Client
Specifications
|
Processor | CPU | Intel® LGA1200 Socket 10th/11th Gen. Processors |
| Chipset | H510 / B560 | |
| BIOS | AMI Source Code | |
|
Memory | Type | DDR4-3200MHz |
| Socket | SO-DIMM | |
| Channel | 2 | |
| Max Size | 32GB | |
|
Graphics | GPU | Intel® 10th/11th Gen. UHD Graphics |
| Graphic Engine | DirectX 12, OpenGL 4.5, OpenCL 2.2, | |
| Interface | 1 x DP (Max.4096 x 2304 @60Hz) | |
| 1 x HDMI (Max.3840 x 2160 @60Hz) | ||
| 1 x VGA (Max.2048 x 1536 @60Hz) | ||
|
Network | Controller | 2 x RTL8111H Gigabit Ethernet ( Optional: 1 x RTL8111H Gigabit Ethernet ) |
| Interface | 2 x RJ45 (Optional: 1 x RJ45) | |
|
I/O | USB Type-A | 2 x USB3.2 Gen1, 6 x USB2.0 (H510) 2 x USB3.2 Gen2, 6 x USB2.0 (B560) |
| USB Type-C | 1 x USB Type-C3.2 Gen1 (H510) 1 x USB Type-C3.2 Gen2 (B560) | |
| Serial Port | 1 x RS232 | |
| Audio | 1 x MIC-IN, 1 x ADUIO-OUT | |
| Wireless | 1 x E-key M.2 (2230) for WiFi/BT | |
| TPM | infineon TPM2.0 (Optional) | |
|
JAHC | WatchDog Timer | 0~255 Second Time Out Support |
| Auto Power On | Power Activated Automatically Start | |
| RTC | Set Up Independently Every day | |
| Remote Control | Wake on LAN | |
| Storage | Socket 1 | 1 x M-key M.2 (2242/2280) for SSD |
| Socket 2 | 1 x 2.5” SATA (7+15Pin) | |
| Operation System Supported | Windows | Windows 10 IoT Core |
| Linux | Support | |
| Power | Power Adapter | DC-IN 19V / 6.32A |
|
Mechanical | Dimensions ( W x D x H ) | 200mm x 185mm x 34mm (7.46” x 5.83” x 1.02”) |
| Construction | Metal | |
| Environment | Operating Temperature | 0℃~40℃ (32℉~104℉) @0.7m/s Air Flow |
| Relative Humidity | 95% @ 40℃ (non-condensing) | |
| Certification | CE, FCC |
Features
- Intel® Rocket Lake-S Processors (TDP≤65W)
- 2 x SO-D IMM DDR4 Memory, Up to 32GB
- 1 x DP, 1 x HDMI, 1 x VGA, Supporting 4K Display
- 1 x M-key M.2 (2242/2280) for SSD, 1 x 2.5”SATA
- 8 x USB Type-A, 1 x USB Type-C
- 2 x RJ45 (Optional: 1 x RJ45), 1 x M.2 (2230) for WiFi/BT, Supporting WiFi 6(CNVi)

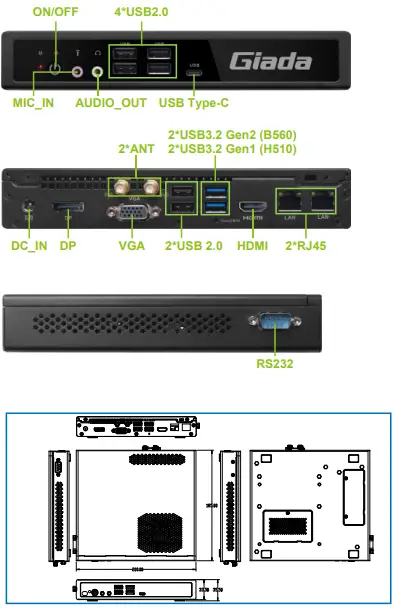

Dimensions and Drawing
Ordering Information
| BQ611-H510E0000 | Intel LGA1200 Socket 10th/11th Gen. Processors Chipset: H510 |
| BQ611-B560E0000 | Intel LGA1200 Socket 10th/11th Gen. Processors Chipset: B560 |
| Packing List | 1 x User manual, 1 x Drive Disk, 2 x WiFi Antenna |
| Optional Item | VESA Mounting JZ200 |
Giada resenves the right of final interpretation for the content hereinabove. www.giadatech.com
