Eureka V19p11a510 Electric Vacuum Cleaners Owner's Manual

Owner’s Guide

Thank you for purchasing your new Eureka machine! Please read this Owner’s Guide carefully before operating, and keep it properly.

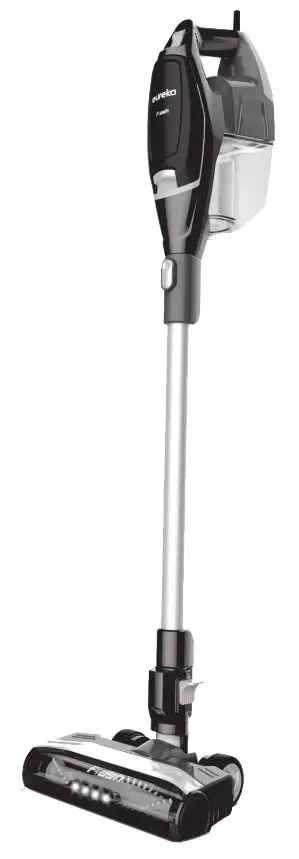

Electric vacuum cleaners V19P11A510

V19P11A510 Electric Vacuum Cleaners

Follow caution information wherever you see this symbol.
If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
Children should be supervised to ensure that they do not play with the appliance.

PLEASE RECYCLE.
OPEN OTHER END. DISPLAY THIS END DOWN
FOR HOUSEHOLD USE ONLY.

IMPORTANT SAFEGUARDS

When using an electrical appliance, basic precautions should always be followed, including the following
READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM CLEANER
Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

WARNING

• Prevent unintentional starting. Ensure the switch is in the off-position before picking up or carrying the appliance. Carrying the appliance with your finger on the switch or energizing appliance that has the switch on invites accidents.
• Do not touch nozzle when the vacuum cleaner is on. Danger.
• Do not put any object into openings. Do not use with any openings blocked; keep free of dust lint hair and anything that may reduce air flow.
• Do not use outdoors or on wet surfaces. Do not operate the vacuum cleaner if it has been damaged in any way. Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Use only as described in this manual. Use only manufacturer’s recommended attachments.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord. This product is functioning at temperature range within 40°F – 104°F.
• Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.
• Do not modify or attempt to repair the appliance except as indicated in the instructions for use and care. This vacuum cleaner creates suction. Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes. Do not use without filters in place. Use extra care when cleaning stairs. Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• Store vacuum cleaner and charger indoors in a cool dry area. To avoid electric shock and / or cleaner damage, do not expose to weather elements.
• Keep your work area well lit. Unplug electrical appliances before vacuuming them.
• Do not incinerate this appliance even if it is severely damaged.
  Contact local waste facility before discarding in trash.
• Do not leave appliance when plugged in. Unplug from outlet when not in use and before servicing.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
• Do not handle plug or appliance with wet hands.
• Turn off all controls before unplugging.
• Unplug before connecting crevice tool or 2-in-1 upholstery tool.

SAVE THESE INSTRUCTIONS

PRODUCT INTRODUCTION

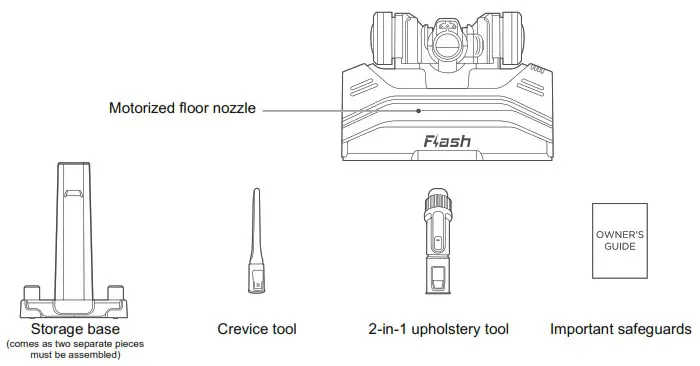

WHAT COMES IN THE CARTON

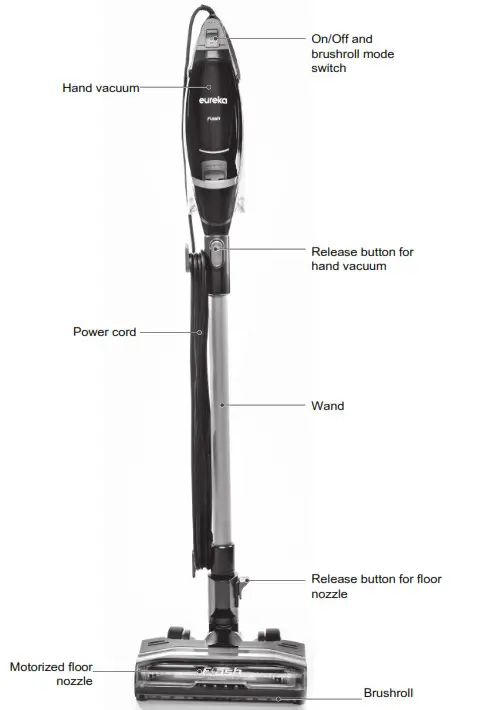

HOW TO IDENTIFY PARTS OF YOUR VACUUM CLEANER

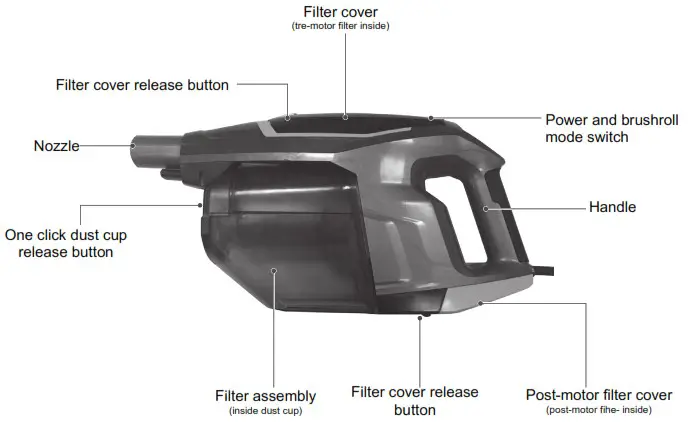

HOW TO IDENTIFY PARTS OF YOUR VACUUM CLEANER

For filter maintenance instructions (see page 13)

OPERATIONS

ASSEMBLY

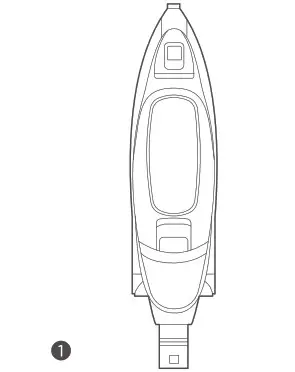

1. Slide wand onto hand vacuum until it clicks (Fig. 1).
2. Push wand into motorized floor nozzle until it clicks (Fig. 2).

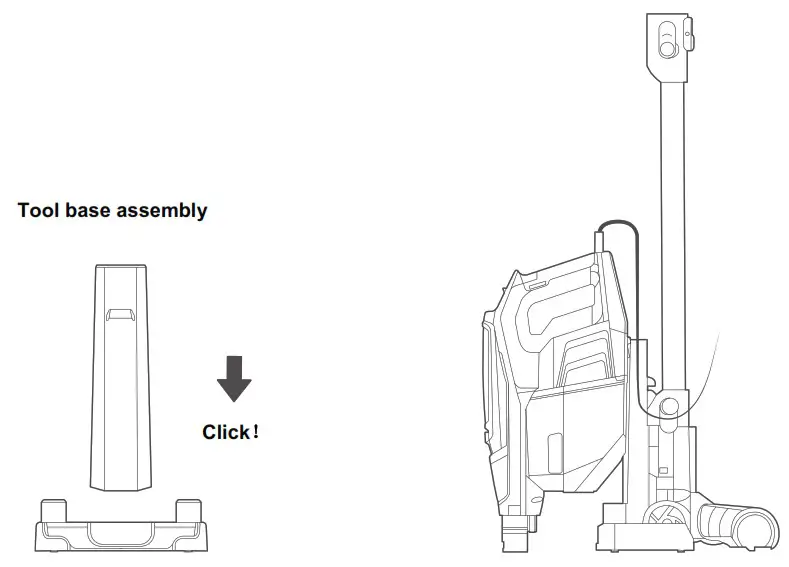

ASSEMBLY OF STORAGE BASE

1. Insert storage base shaft into slot on base until it clicks into place. Ensure side of shaft that says
   Floor Nozzle goes in the same side as wheel well.
2. Detach hand vacuum from wand
3. Keep wand attached to floor nozzle and place in the wheel well rest on storage base
4. On back of hand vacuum, slightly below the vent, locate the notch
5. On upright portion of storage base locate the hook
6. Align notch on hand vacuum so it rests on storage base hook
7. Wrap power cord either around the cord wrap hooks on the wand or around the hand vacuum.
8. Tools can be stored on the two side mounts

Note:
When lifting unit on storage base always make sure hooks are properly engaged with both the wand and the hand vacuum

WORKING

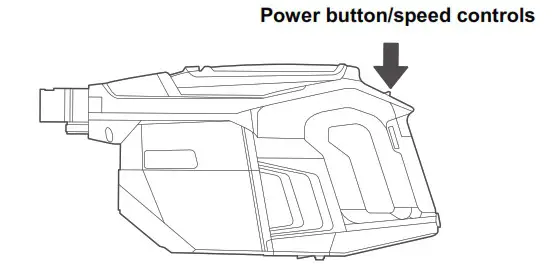

1. Move power switch on handle to the first position for bare floor cleaning and second position to engage brushroll for carpet cleaning
2. Using motorized floor nozzle, glide back and forth on area to be cleaned. Avoid oversized or sharp items (such as screws) with cleaner.
3. Twist wrist to engage swivel function.
4. When done, switch to off position


HOW TO USE HAND VACUUM AND ACCESSORIES

CAUTION
Moving parts! Always turn off hand vacuum before attaching accessories.

The hand vacuum can be used with or without tools.

1. To use without tools, press release button and remove wand. Collect debris directly with hand vacuum nozzle.

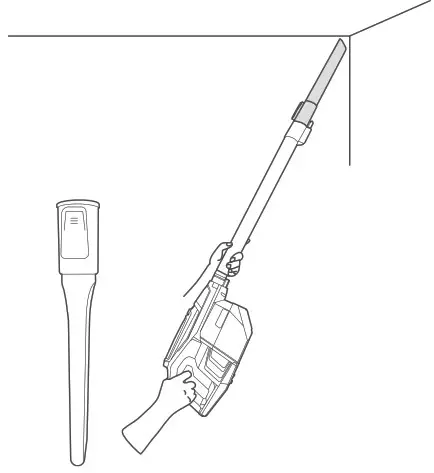

2. To use tools with wand, press release button to remove motorized floor nozzle. Slide tool onto end of wand until it clicks.
3. To use tools with hand vacuum only, press release button to remove wand, Slide tool onto hand vacuum until it clicks

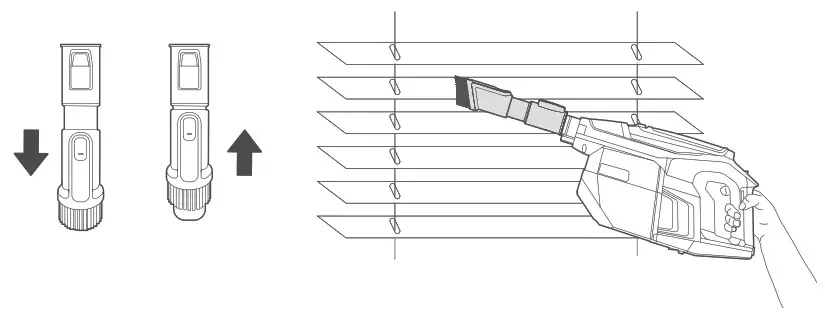

   2-in-1 upholstery tool: Use brush to vacuum blinds, vents or upholstered surfaces. Use felt portion to clean delicate surfaces. To switch between felt and brush portions, press thumb release and slide brush up or down.


USE HAND VACUUM AND MOTORIZED FLOOR NOZZLE

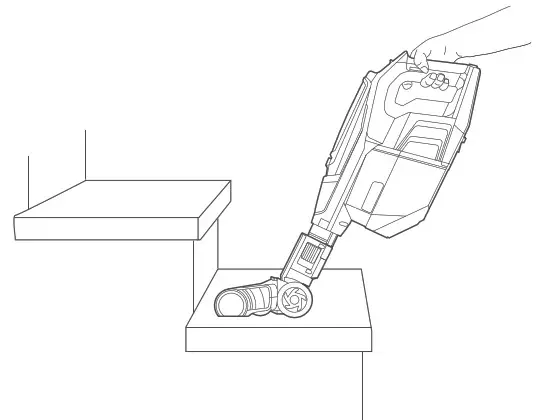

Ideal for cleaning stairs.

1. Press release button to remove wand from hand vacuum.
   Attach motorized floor nozzle directly to hand vacuum until it clicks.
2. Use power switch button to go between settings to do barefloor cleaning or engage brushroll for carpets.


CLEANING AND MAINTENANCE

DISASSEMBLY AND CLEANING OF THE DUST CUP

CAUTION
Never operate vacuum cleaner without all filters, filter screen and dust cup in proper position.
WARNING: Moving parts!

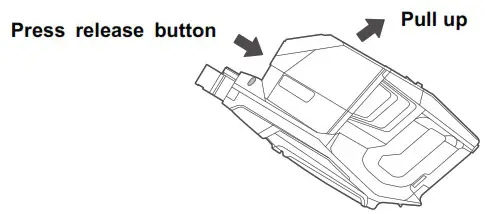

1. Click the dust cup release button, located on the bottom of the dust cup to detach it from the unit, and pull dust cup out.

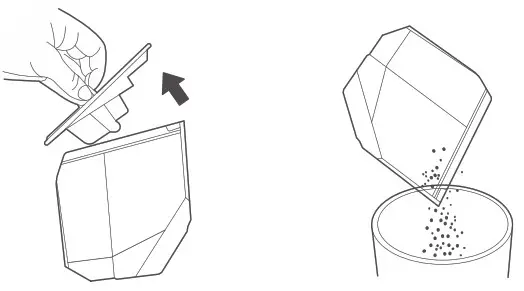

2. Use handle on top of dust cup to remove lid, empty dust cup and replace lid

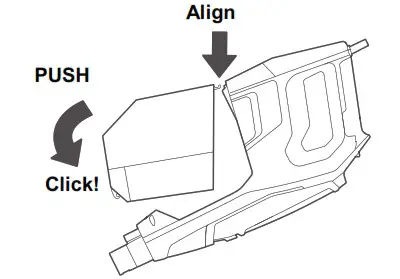

3. To place dust cup back, align hooks on dust cup to slots on body and press up until it clicks into place


DISASSEMBLY AND CLEANING OF THE FILTER

CAUTION

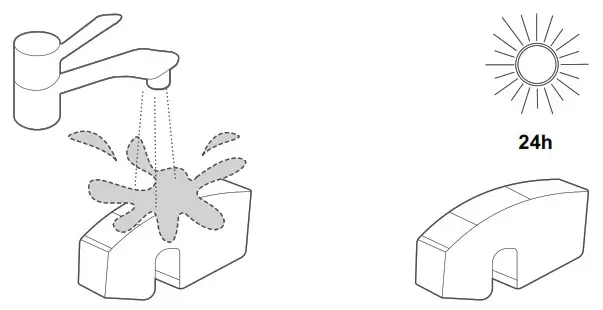

1. Filter cotton is washable;
2. Please make sure that each part is fully dry before installing after cleaning.

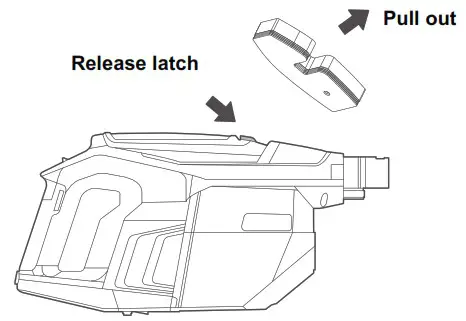

   1. On front of hand vac. locate the latch and pull to remove plate and take out pre-motor filter. Just below the cord on the back of the hand vac, locate the latch to remove the vented plate and take out post-motor filter.
   2. Lift out pre-motor filter and shake off dust frequently. Rinse filter and dry THOROUGHLY

3. Reattach filters.
4. Click corresponding plates back into place.

5. The upper cover of the filter is added with screw posts for fixing the filter bracket, and the air inlet sponge is added with fixing holes. The air inlet sponge is fixed to the woven filter through the filter bracket. When the upper cover of the filter element is removed, the sponge is taken out synchronously.


DISASSEMBLY AND CLEANING OF THE POWER BRUSH

CAUTION

1. In order to avoid affecting the operation of the power brush, perform cleaning and maintenance when the roller brush or wheels are entangled or dirty;
2. Before disassembling and maintaining, be sure to stop the operation of the power brush.
   1. Step on floor nozzle to lower handle. Turn vacuum face down on floor.
   Use scissors to clip heavy threads or strings.

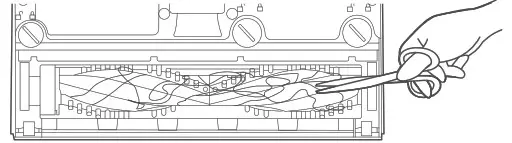

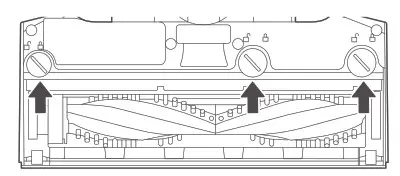

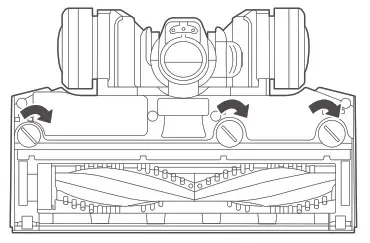

   2. If debris cannot be removed easily, remove retainer to access brushroll. Using flathead screwdriver or coin turn screws to the ‘unlock’ position. Remove the brushroll and clear any tangled hair and remaining debris.

3. To reassemble:
   a. Align one end of brushroll with floor nozzle gear.
   b. Press other end into slot.
   c. Place retainer back in place and put in screws and turn to ‘lock’ position.


PROBLEM SOLVING

CAUTION
Make sure vacuum cleaner is off and charging plug is unplugged.

NOTICE: THERMAL CUT-OFF
This vacuum cleaner has a special thermostat that protects the vacuum cleaner in case of motor overheating. If the vacuum suddenly shuts off, proceed as follows:

1. Check the vacuum for a possible source of overheating such as a full dust cup. blocked wand or clogged filters. If these conditions are found, fix them and wait at least 30 minutes before attempting to use the vacuum.
2. After the 30 minute period, press the power button. starting. Ensure the switch attachments.


   Problem	Solution
   Motor will not start	• Push cord securely into electrical outlet, try another outlet or check circuit breaker. • See detailed “thermal cut-off’ instructions above.
   Not enough suction power	• Empty dust cup and clean or change filters. See page 12 for maintenance instructions. • Remove clogs that restrict the airflow.
   Brushroll will not turn	• Check brushroll for debris. See page 14 for maintenance instructions.

We Offer 2-Year Limited Warranty.
Email Our Customer Service: [email protected]

SINCE 1909
