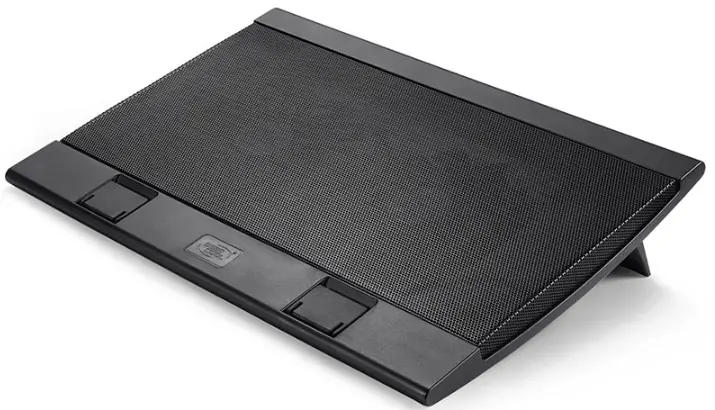

WIND PAL FS Notebook Cooler
User Guide
Pre-Use Note
- Check the product condition before use. In case of any problem, please contact your retailer.
- To ensure product lifespan, please do not use on uneven or vibrating surfaces.
- To ensure fan performance, please do not interrupt the air inlets or obstruct the fan rotation.
- All specifications subject to change without notice.
- Under no condition shall Deepcool be liable for any indirect, incidental or consequential damages arising from any defect or error in this manual or product.
- For more information for this product, please visit our website: www.deepcoolglobal.com.
Specifications
| Overall Dimension | 382X262X24mm |
| Fan Dimension | 140X140X15mm |
| Weight | 793g |
| Rated Voltage | 5VDC |
| Operating Voltage | 4.5~5VDC |
| Rated Current | 0.26±10%~0.40±10%A |
| Power Input | 1.3~2.0W |
| Fan Speed | 700±150~1200±10%RPM |
| Max. Air Flow | 115CFM |
| Noise Level | 21.5~26.5dB(A) |
| Bearing Type | Hydro Bearing |
Components List
- WIND PAL FS
- USB Power Cable
- User Guide

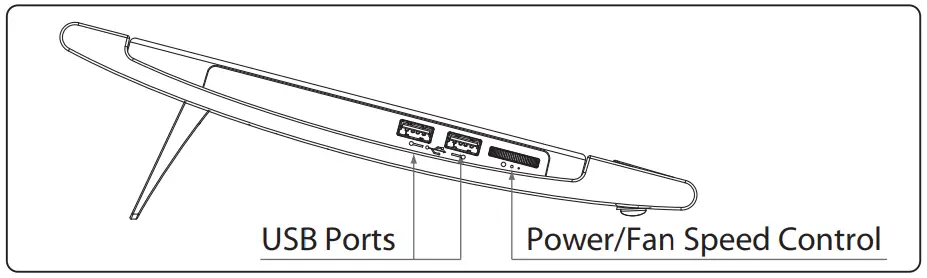

Features

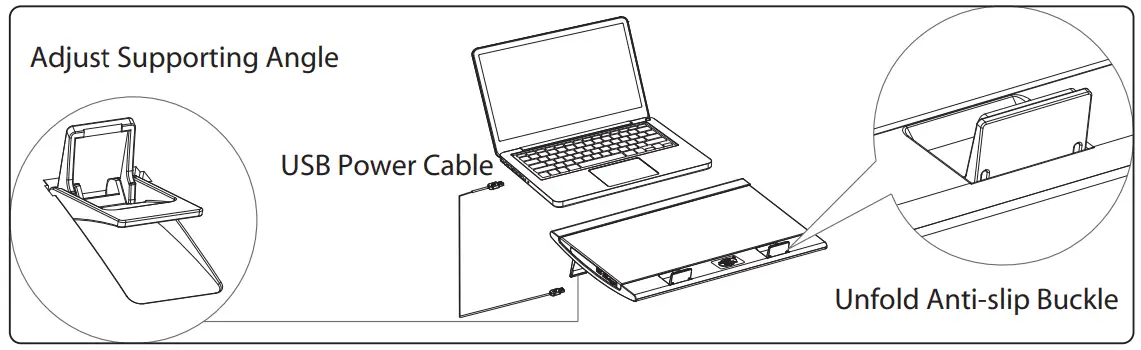

How to Use
- Connect WIND PAL FS with Notebook using the USB power cable.
- Turn the knob in clockwise direction to switch on the fan and adjust the fan speed accordingly. And turn the knob in unclockwise direction to switch off the fan.
- Use either one USB port for power input, and the other USB port for your USB device.
Appearance Patent NO. : 201130481206.8
Brands and designs are trademarks from Beijing Deepcool Industries Co., Ltd.
All rights reserved.
Beijing Deepcool Industries Co., Ltd.
MADE IN CHINA
