50R
LOW PROFILE MOTORCYCLE BLUETOOTH ®
COMMUNICATION SYSTEM WITH MESH INTERCOM™
SOUND BY harman/kardon
QUICK START GUIDE
ENGLISH / 2.0.0
RIDE CONNECTED
Designed for those who want a sleeker device, the 50R Mesh Intercom™ headset continues Sena’s affinity for advancing adventure and keeping people connected on the road.
 | Bluetooth |
 | Multi-Way Intercom |
 | Mesh Intercom™ up to 2 km (1.2 mi)* |
 | Intercom up to 2 km (1.2 mi)* |
 | Audio Multitasking™ |
 | • Multi-Language Voice Command • Support Siri and Google Assistant |
 | Fast Charging |
* in open terrain
GETTING STARTED

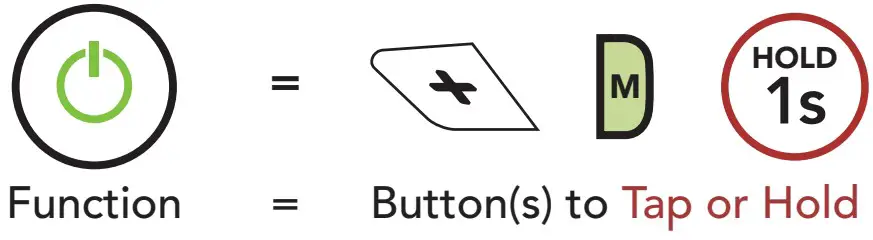

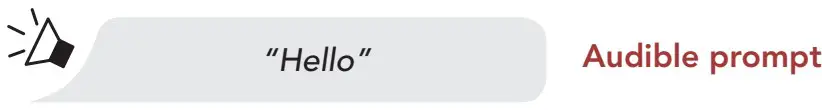

Icon Legend
Tap button the specified number of times
Press and Hold button for the specified amount of time
Follow us on Facebook, YouTube, Twitter and Instagram to check the latest information and helpful tips.
How to Use This Guide
The legend and callouts are here to help you read the illustrations.
New technology can be confusing, but we’ve created a simple way to perform actions using illustrations.

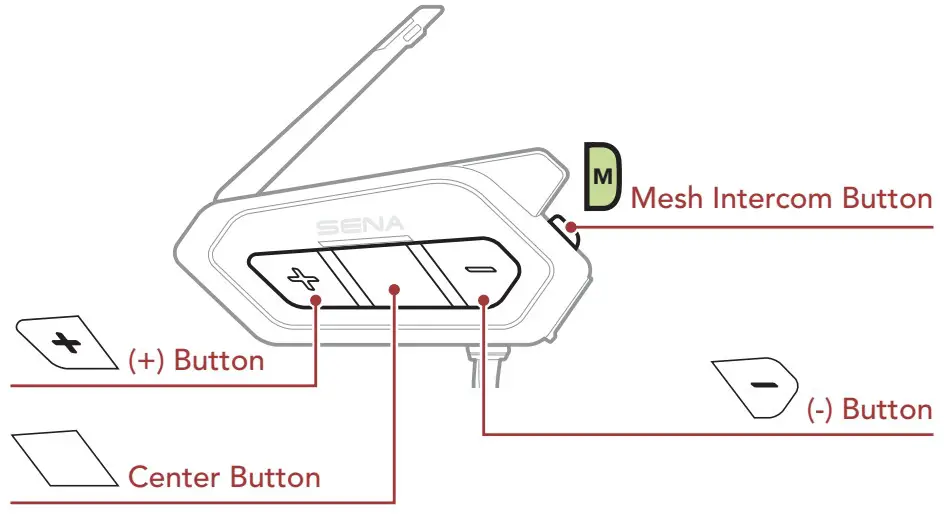

Buttons
QUICK START GUIDE

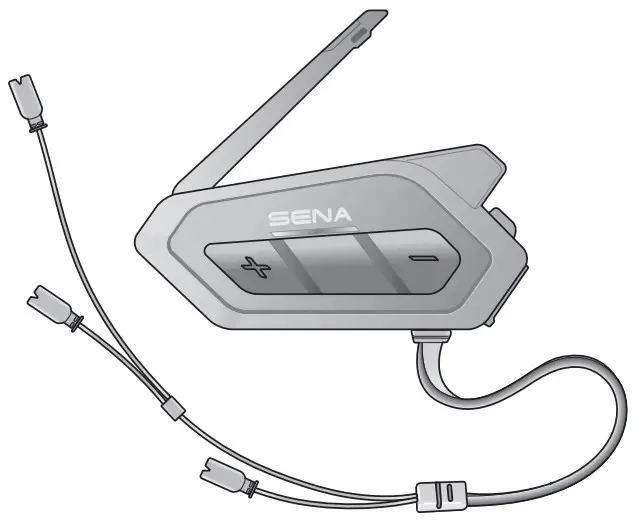

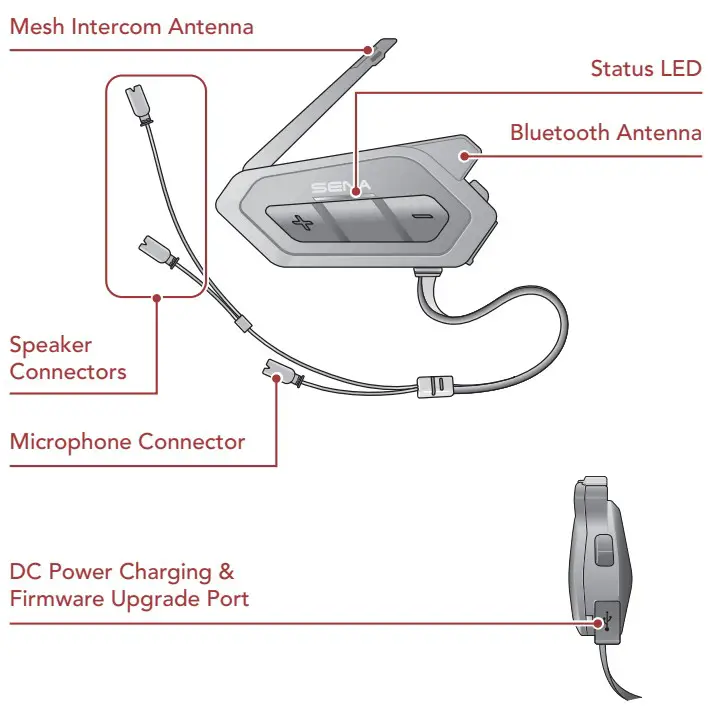

Product Details
Installation

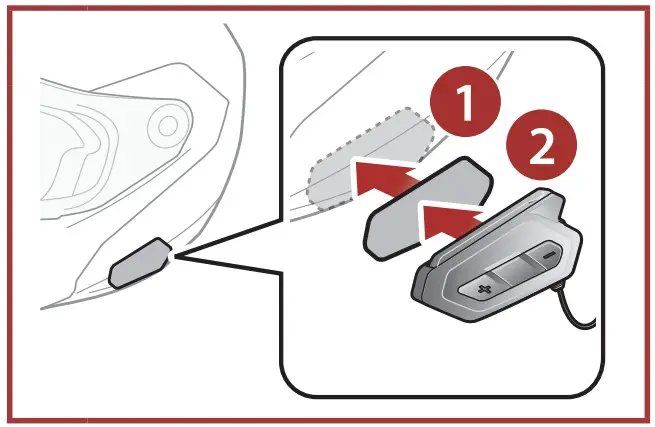

Using the Hook and Loop Fasteners for Main Unit

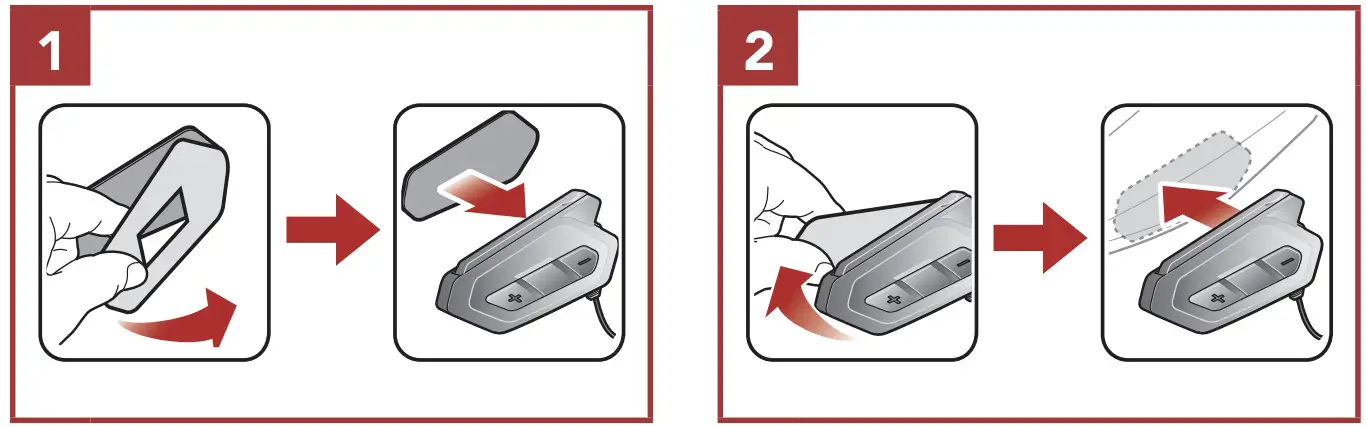

Using the Double Sided Adhesive Tapes for Main Unit

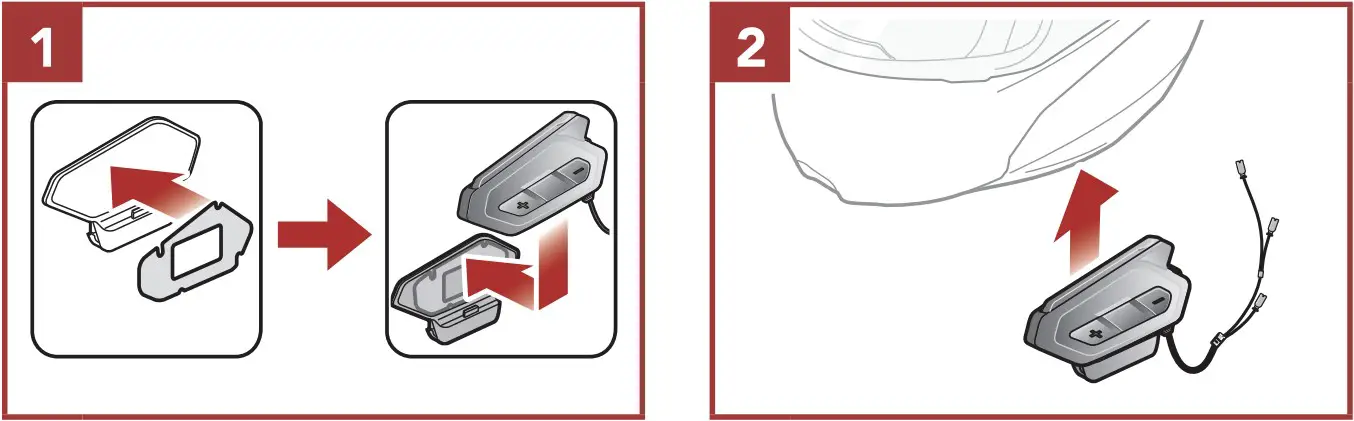

Using the Clamp for Main Unit

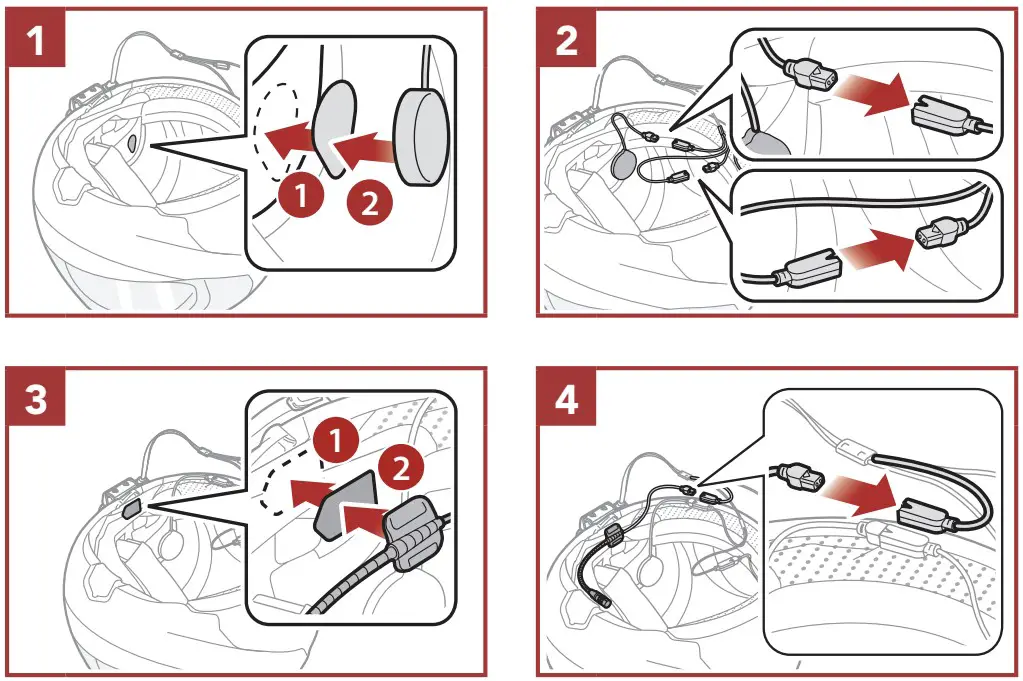

Installing the Speakers and the Microphone

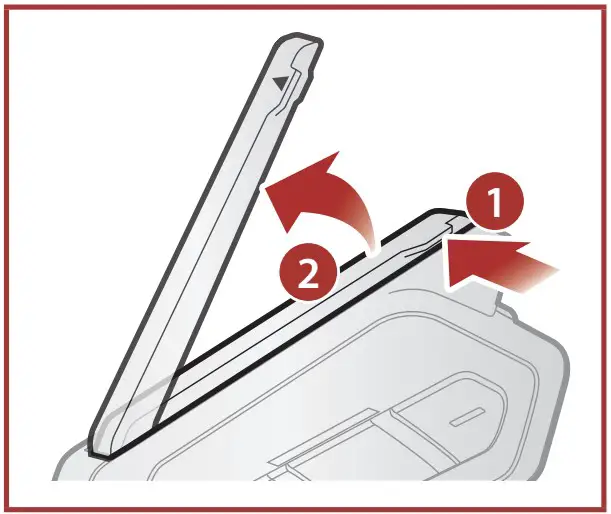

Mesh Intercom Antenna
Pull the Mesh Intercom Antenna inwards slightly to unfold it.
Downloadable Sena Software
Download the SENA MOTORCYCLES App at Google Play Store or App Store.
SENA MOTORCYCLES
- Device configuration setting
Download the following items at sena.com.
 | Firmware |
 | Sena Device Manager • Firmware upgrade • Device configuration setting |
 | Quick Start Guide, User’s Guide |
NOTICE
- This Quick Start Guide (Version 2.0.0) explains how to operate the 50R with firmware version 2.0 or higher.
- For the operation of the 50R with a firmware version lower than 2.0, refer to the 50R Quick Start Guide (Version 1.0.1).

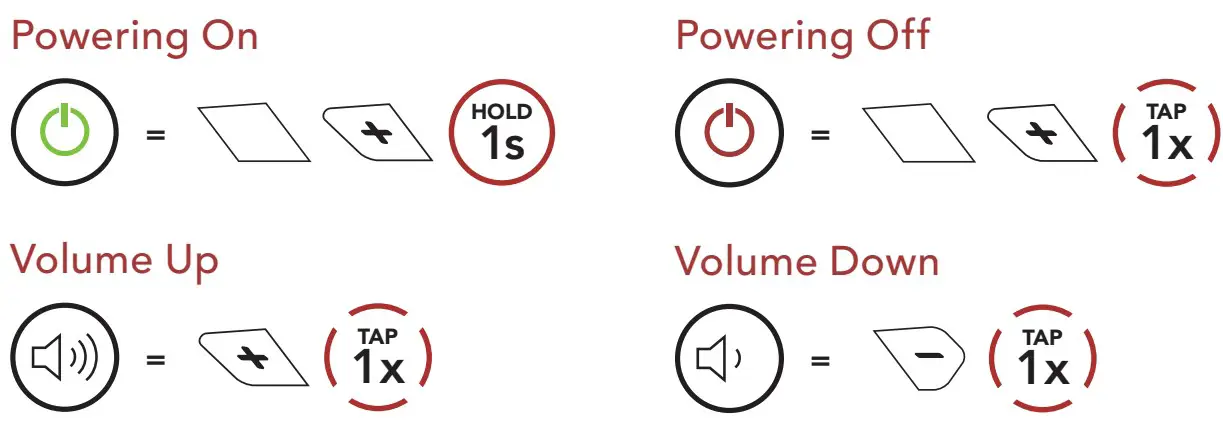

Basic Operations
Checking the Battery Level
Instructions are for when powering the headset on.

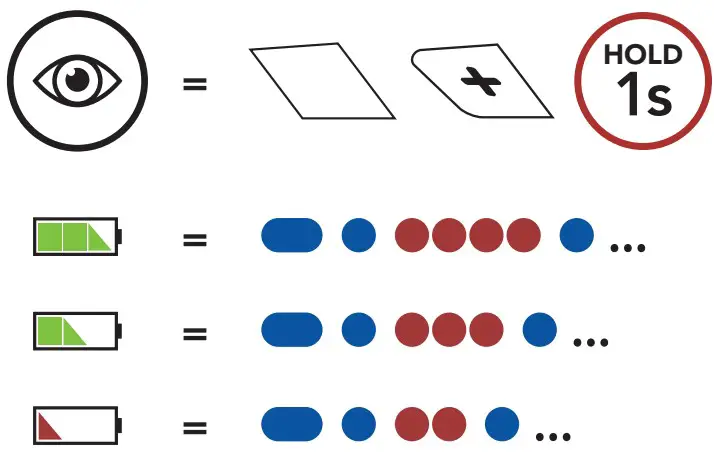

Visual Method

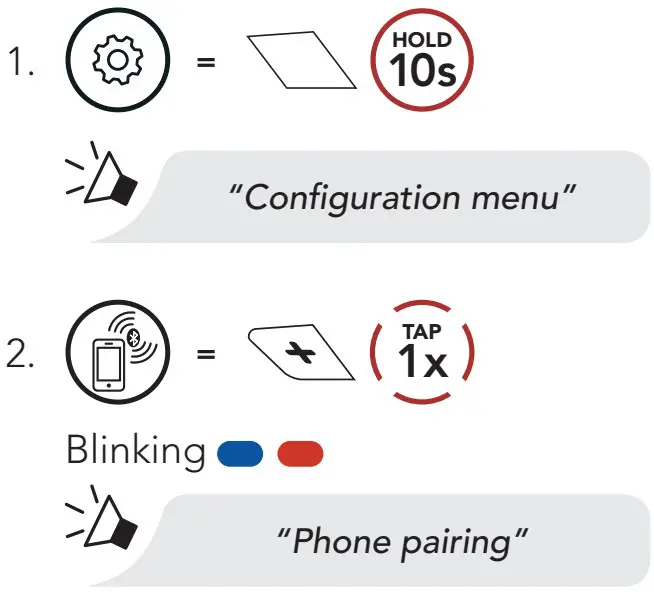

Phone Pairing
3. Select 50R in the list of Bluetooth devices detected.
- The headset will enter the Phone Pairing mode automatically when you initially turn on the headset.
- For more information on phone pairing, refer to the User’s Guide.

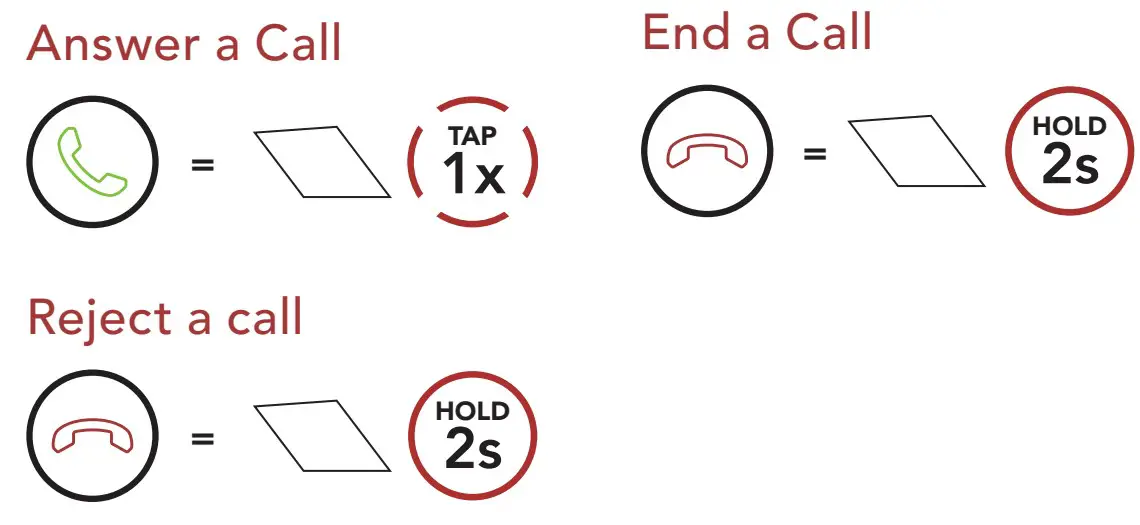

Mobile Phone

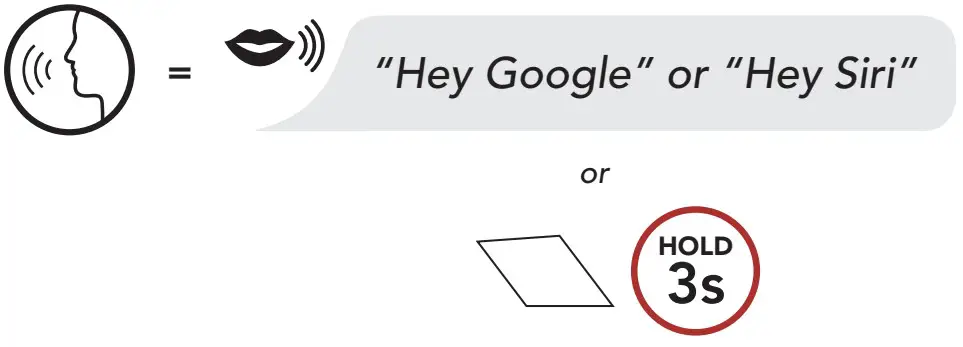

Siri and Google Assistant
Activate the Siri or Google Assistant Installed on Your Smartphone

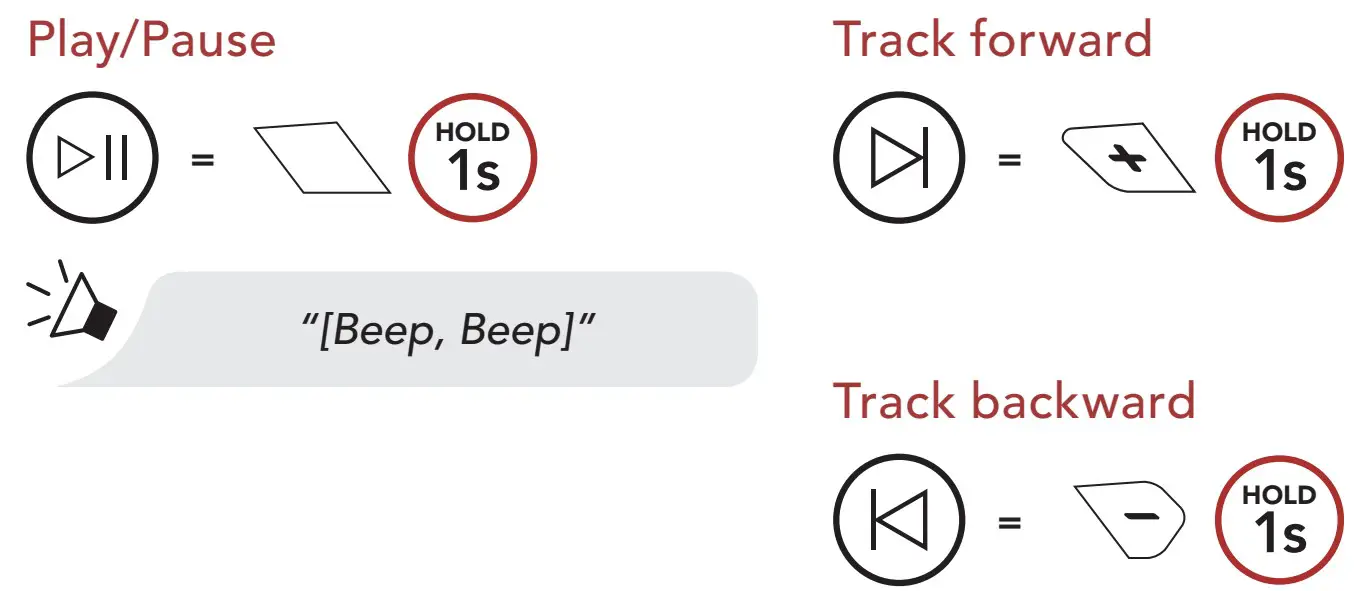

Music Controls
Mesh Intercom™
When Mesh Intercom is enabled, the 50R will automatically connect to nearby 50R users and allow them to talk to each other by pressing the Mesh Intercom Button.

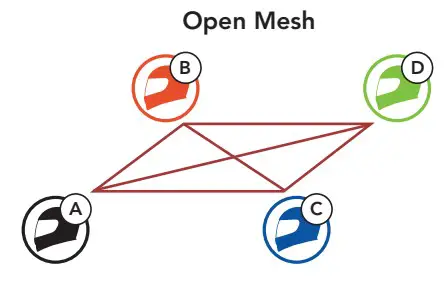

Open Mesh™
When Mesh Intercom is enabled, the headset will be in Open Mesh (default: channel 1) initially. Users can freely communicate with each other in the same Open Mesh channel.

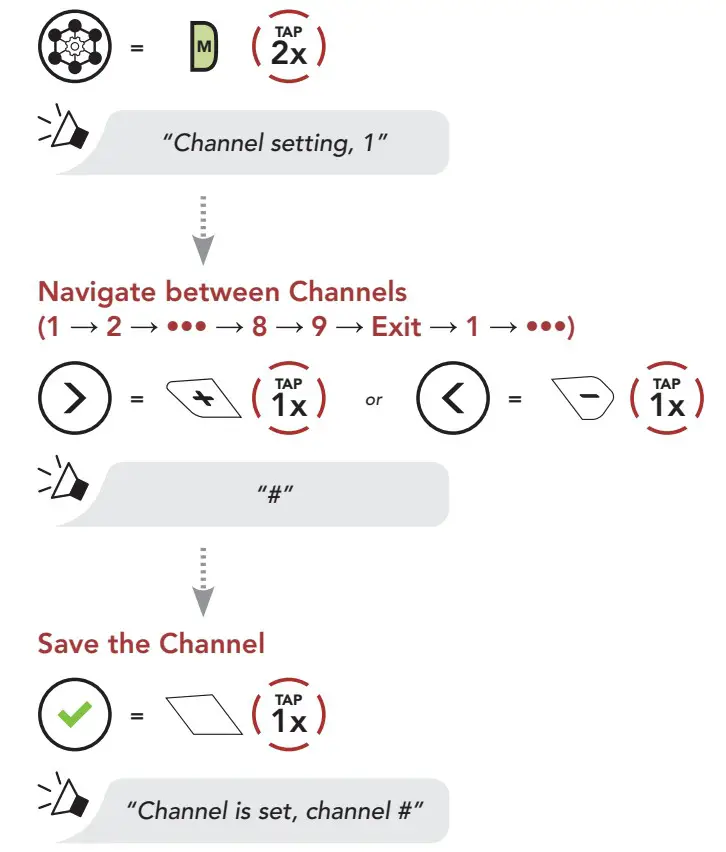

Channel Setting (Default: channel 1)
If the Open Mesh communication experiences interference because other groups are also using channel 1 (default), change the channel.
You can select from channels 1 to 9.
Enter into the Channel Setting
Note: To exit the Channel Setting, tap the (+) Button or (-) Button until you hear a voice prompt, “Exit”, and tap the Center Button.
Group Mesh™
Group Mesh is a closed group intercom function that allows users to join, leave, or rejoin a group intercom conversation without pairing each headset. Up to 24 users can all be connected in each private group.

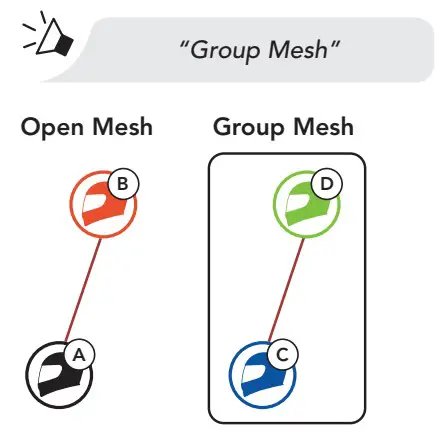

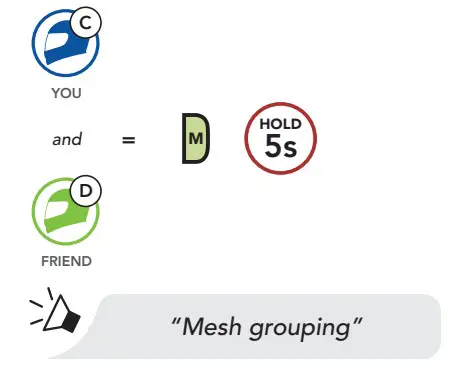

Creating a Group Mesh
Creating a Group Mesh requires two or more Open Mesh users.
- Enter into Mesh Grouping to create a Group Mesh.
- The headsets complete Mesh Grouping and automatically switch from Open Mesh to Group Mesh.

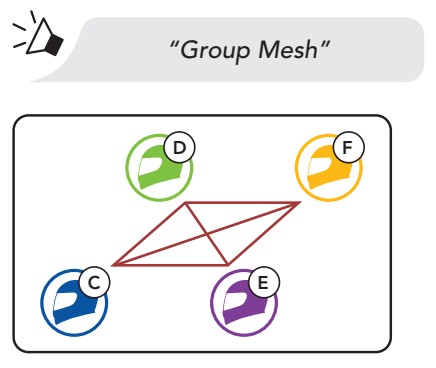

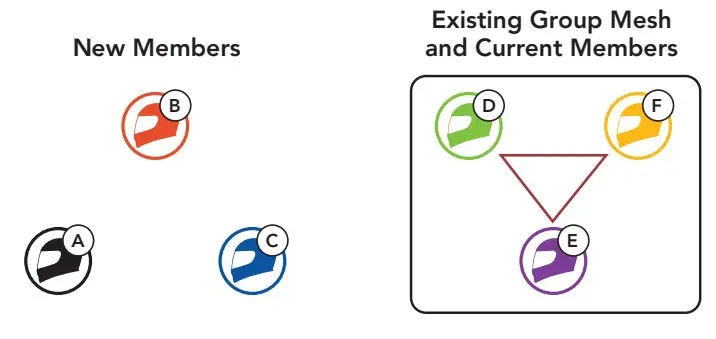

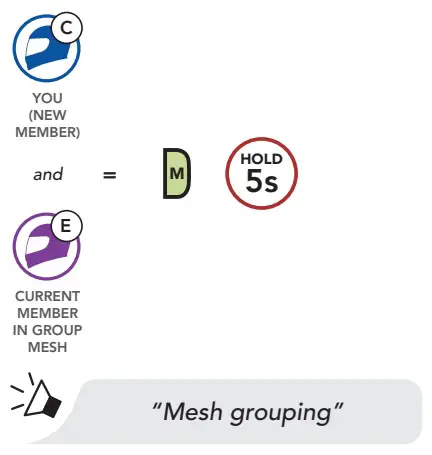

Joining an Existing Group Mesh
One of the members in an Existing Group Mesh can allow new members in Open Mesh to join the Existing Group Mesh.
- One of the current members and a new member enter into Mesh Grouping to join the Existing Group Mesh.
- The headsets complete Mesh Grouping. The new members will hear a voice prompt as their headsets automatically switch from Open Mesh to Group Mesh.
Reset Mesh
If a headset in an Open Mesh or Group Mesh resets the Mesh, it will automatically return to Open Mesh (default: channel 1).
Enable/Disable Mic (Default: Enable)
Users can enable/disable the microphone when communicating in a Mesh Intercom.
Enable/Disable the Microphone
Bluetooth Intercom

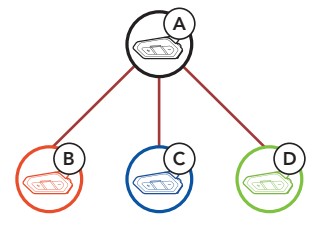

Up to three other people can be paired with the headset for Bluetooth intercom conversations.
Intercom Pairing
There are two ways to pair the headset.
Using the Smart Intercom Pairing (SIP)

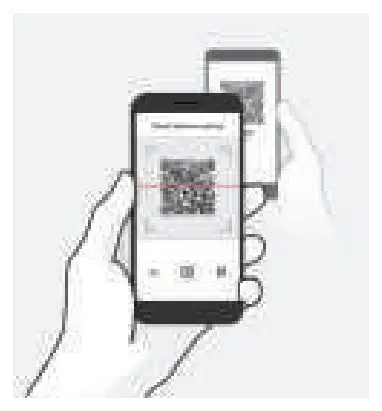

SIP allows you to quickly pair with your friends for intercom communication by scanning the QR code on the SENA MOTORCYCLES App without remembering the button operation.
- Pair the mobile phone with the headset.
- Open the SENA MOTORCYCLES App and tap
(Smart Intercom Pairing Menu). - Scan the QR code displayed on your friend (B)’s mobile phone.
• Your friend (B) can display the QR code on the mobile phone by tapping > QR code (
) on the SENA MOTORCYCLES App.
- Tap Save and check that your friend (B) is paired with you (A)correctly.
- Tap Scan (
) and repeat steps 3-4 to pair with Intercom Friends (C) and (D).
Note: The Smart Intercom Pairing (SIP) is not compatible with Sena products that use Bluetooth 3.0 or below.
(Smart Intercom Pairing Menu).
) on the SENA MOTORCYCLES App.
) and repeat steps 3-4 to pair with Intercom Friends (C) and (D).Using the Button
Note: Repeat the step above to pair with Intercom Friends C & D.

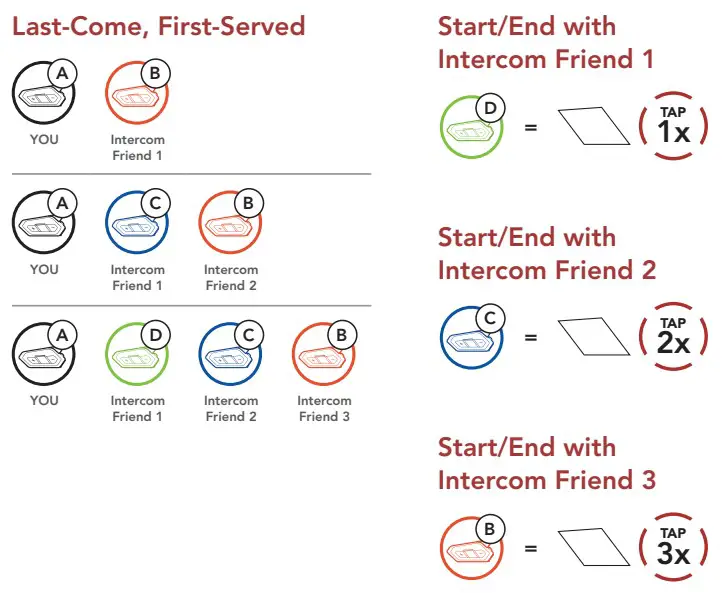

Two-Way Intercom

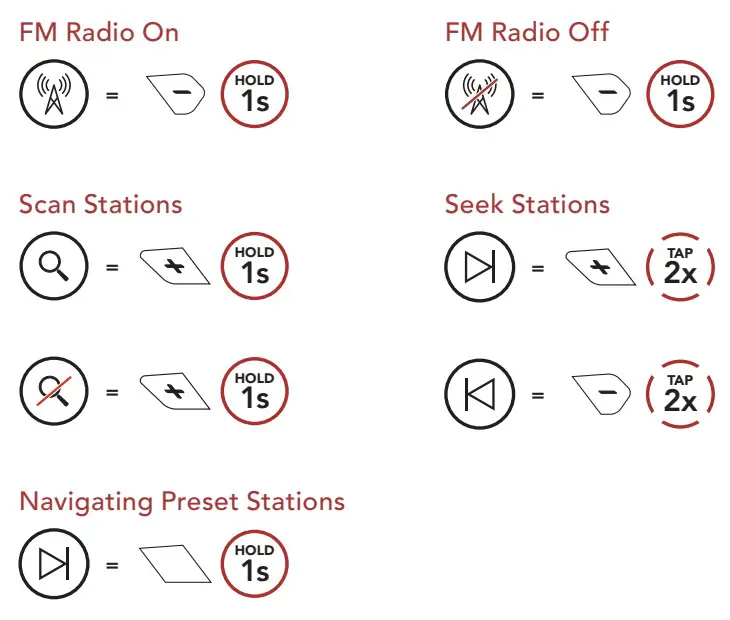

FM Radio

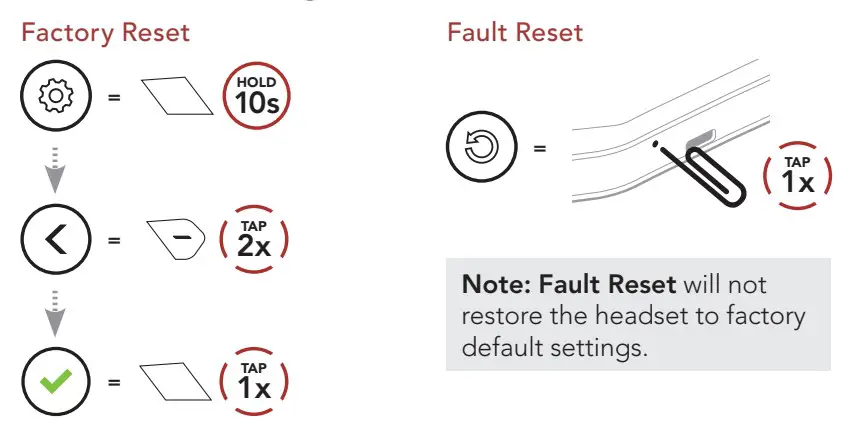

Troubleshooting
| TYPE | OPERATION | BUTTON COMMANDS |
| Power on / Power off |  |
| Volume up / Volume down |  | |
| Answer phone call |  |
| End phone call |  | |
| Reject phone call | | |
 Siri and Google Assistant | Activate the Siri or Google Assistant |  |
 | Play/Pause music |  |
| Track forward |  | |
| Track backward |  | |
 | FM radio on/off |  |
| Select preset |  | |
| Seek forward/ backward |  | |
| Scan up FM band/ stop scanning |  | |
 | Mesh Intercom on/off |  |
| Channel setting |  | |
| Mesh Grouping |  | |
| Reset Mesh |  | |
| Enable/Disable Mic |  | |
 | Intercom pairing |  |
| Start/End intercom | |
Basic
Mobile
2.0.0_EN_May2022
