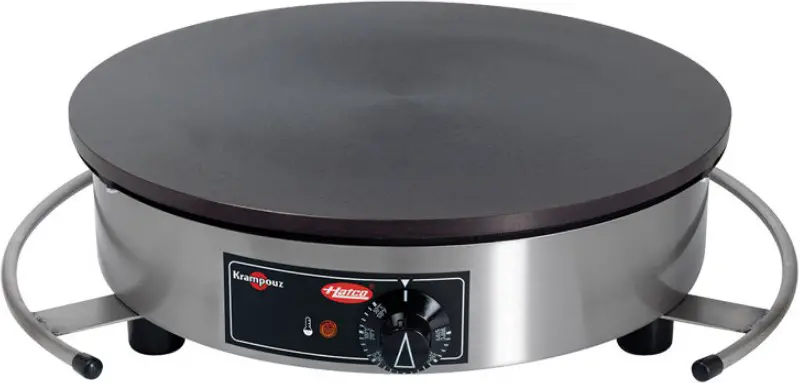

Hatco CORPORATION KCME Series Electric Crepe Makers Instructions
IMPORTANT NOTE:

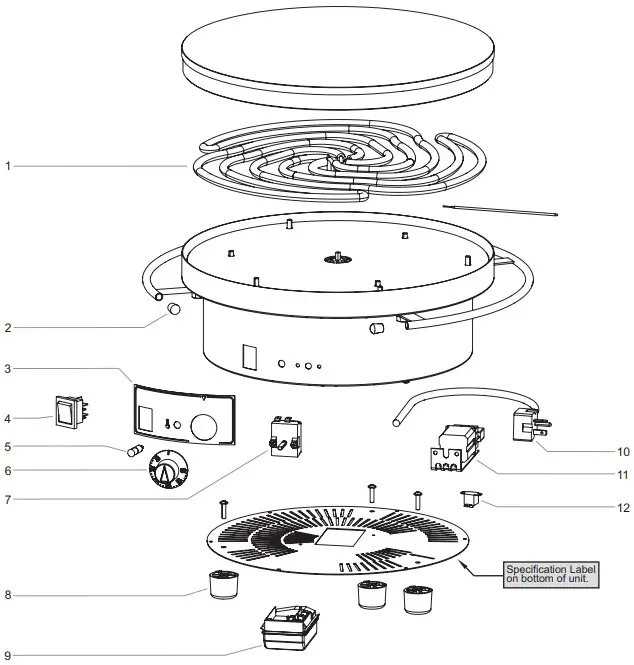

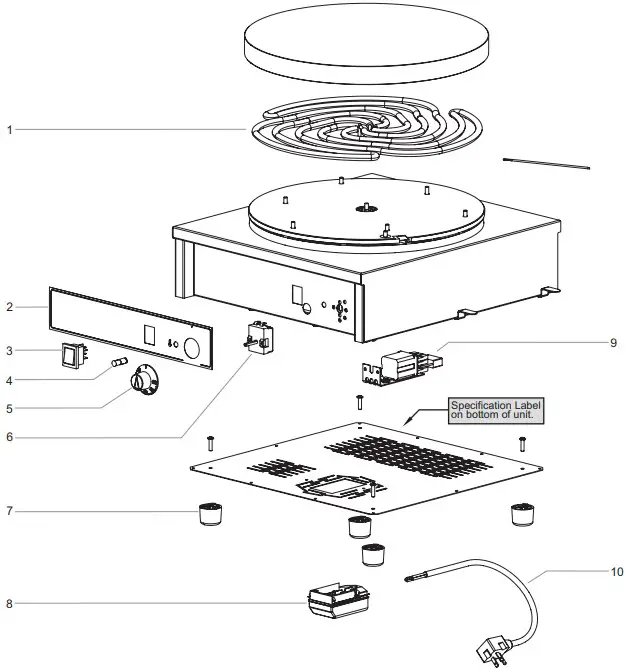

Locate the Specification Label on unit to determine exact Model Name and electrical specifications. This information is needed to identify the correct replacement parts. See exploded view illustration(s) for Specification Label location.
CAUTION
Use of replacement parts other than those supplied by Hatco Corporation may result in damage to unit or injury to personnel and will void all warranties.
Overview
| Item | Description | Part Number | Qty. |
| 1 | Element | ||
| 120 V | X02.08.734.00 | 3 | |
| 208–240 V | X02.08.735.00 | 3 | |
| 2 | Cap, End Piece | X05.30.339.00 | 2 |
| 3 | Control Panel | ||
| 120 V | X07.01.497.00 | 1 | |
| 208–240 V | X07.01.498.00 | 1 | |
| 4 | Rocker On/Off Switch | X02.19.284.00 | 1 |
| 5 | Indicator Light | X02.30.173.00 | 1 |
| 6 | Thermostat Knob | X05.30.333.00 | 1 |
| 7 | Thermostat | X02.01.545.00 | 1 |
| 8 | Legs | X05.30.224.00 | 3 |
| 9 | Terminal Block | X02.19.286.00 | 1 |
| 10 | Power Cord and Plug | ||
| 120 V, NEMA 5-15P | X02.18.901.00 | 1 | |
| 208–240 V, NEMA 6-20P | X02.18.904.00 | 1 | |
| 11 | Relay | X02.01.546.00 | 1 |
| 12 | High Limit Thermostat | X02.19.287.00 | 1 |
| 13 | Cleaning Pad Refill (not shown) | 04.56.835.00 | 1 |
| 14 | Cleaning Stone (not shown) | 04.56.832.00 | 1 |
| 15 | Round Steel Spreader (not shown) | 04.56.829.00 | 1 |
| 16 | Flat Beech Spreader (not shown) | 04.56.830.00 | 1 |
| 17 | Metal Spatula (not shown) | 04.56.831.00 | 1 |
| 18 | Abrasive Stone (not shown) | 04.56.832.00 | 1 |
| 19 | Cleaning Pad (not shown) | 04.56.833.00 | 1 |
| Wiring Diagrams | |||
| 120 V | 10-01-1524 | ||
| 208‒240 V | 10-01-1525 |
NOTE: The last four digits in a ten digit numerical serial number are the manufacturing date code. Example: Serial number 9625061931 has a date code of “1931” which indicates the following: Week Thirty-One 1931 Year 2019
| Item | Description | Part Number | Qty. |
| 1 | Element | X02.08.735.00 | 3‒6 |
| 2 | Control Panel | X07.01.499.00 | 1‒2 |
| 3 | Rocker On/Off Switch | X02.19.284.00 | 1‒2 |
| 4 | Indicator Light | X02.30.173.00 | 1‒2 |
| 5 | Thermostat Knob | X05.30.333.00 | 1‒2 |
| 6 | Thermostat | X02.01.545.00 | 1‒2 |
| 7 | Legs | X05.30.224.00 | 4 |
| 8 | Terminal Block | X02.19.286.00 | 1–2 |
| 9 | Relay | X02.01.546.00 | 1 |
| 10 | Power Cord and Plug, 208–240 V, NEMA 6-20P | X02.18.904.00 | 1-2 |
| 11 | Cleaning Pad Refill (not shown) | 04.56.835.00 | 1 |
| 12 | Cleaning Stone (not shown) | 04.56.832.00 | 1 |
| 13 | Round Steel Spreader (not shown) | 04.56.829.00 | 1 |
| 14 | Flat Beech Spreader (not shown) | 04.56.830.00 | 1 |
| 15 | Metal Spatula (not shown) | 04.56.831.00 | 1 |
| 16 | Abrasive Stone (not shown) | 04.56.832.00 | 1 |
| 17 | Cleaning Pad (not shown) | 04.56.833.00 | 1 |
| Wiring Diagrams | 10-01-1526 |
NOTE: Quantities shown as a range are dependant upon the style of crepe maker, single griddle or double griddle.
NOTE: The last four digits in a ten digit numerical serial number are the manufacturing date code. Example: Serial number 9625061931 has a date code of “1931” which indicates the following:
Week Thirty-One 1931 Year 2019
