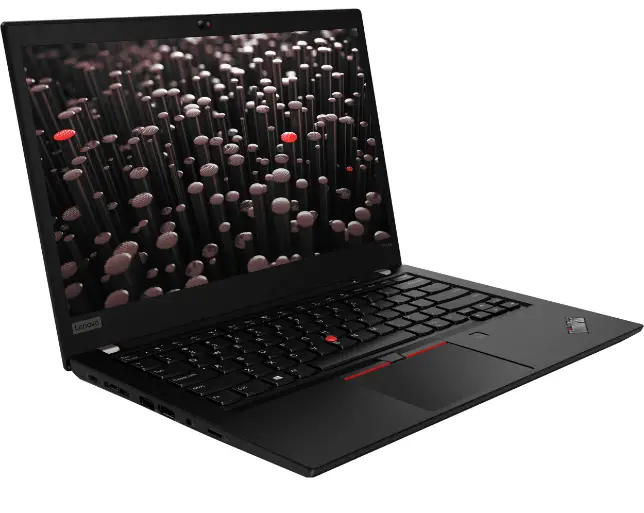

Lenovo P14s i Gen 3 Laptop

Lenovo-P14s-i-Gen-3-Laptop-PRODACT-IMG

Downloads

Hardware Maintenance ManualP14s i Gen 3 HMM
Drivers & SoftwareP14s i Gen 3 Drivers & Software

SECTION I: Platform Overview

DescriptionThinkPad P14s i

LENOVO’S LIGHTEST MOBILE WORKSTATION

The ThinkPad® P14s i, Lenovo’s most mobile workstation, combines the latest Intel® Core™ processors and NVIDIA® professional graphics, all in a 14-inch chassis. Perfect for highly-mobile power users, the P14s i strikes the balance between power and mobility–allowing students, architects, and engineers to be creative anytime, anywhere.

CPU

Processor SupportAlder Lake P28 Series Core i5/i7
Socket TypeBGA

Operating Systems

PreloadedWindows 11 Pro 64 (21H2)

Windows 10 Pro (preinstalled through downgrade rights in Windows 11 Pro)

Windows 11 Home 64 (21H2)

Windows 11 Home Single Language 64(21H2) Windows 11 Home Chinese Language Edition 64(21H2)

 Windows 11/DG10 CMIT Government Edition Ubuntu (Version20.04)
SupportedWindows 11 Pro 64 (21H2)

Windows 10 Pro (preinstalled through downgrade rights in Windows 11 Pro)

Windows 11 Home 64 (21H2)

Windows 11 Home Single Language 64(21H2) Windows 11 Home Chinese Language Edition 64(21H2) Windows 11/DG10 CMIT Government Edition

Ubuntu (Version20.04)

Memory

Number of DIMM Slots1 soldered-down DIMM + 1 DIMM slot
ChannelsSingle Channel w/ 1 soldered DIMM

Dual Channel w/ 1 soldered DIMM + 1 add-in DIMM

TypeDDR4
ECC SupportNo
Speed3200 MHz
Max DIMM Size32GB
Max System Memory48GB
Min System Memory8GB
Soldered Memory8GB/16GB

Storage

Storage Slots1 x PCIe Gen 4 M.2 2280
SATA/
PCIeSolid State Drive, OPAL2 PCIe-NVMe Gen 4 M.2 2280- TLC
SASNone
InterfaceYes–>PCIe Gen 4
SecurityPCIE
Optional Hard Disk Drive ControllersOPAL2 for NVMe SSD
Integrated GraphicsProcessor Graphics Intel® Iris Xe (dual RAM channel required)
Discrete GraphicsNVIDIA T550
AdapterNone
Bus InterfacePEG
DisclaimersDual RAM channel required

Display

ResolutionsFHD+ / UHD+

Camera

ResolutionFHD 1080p
Frames per Second30 fps
FocusFixed 50cm
Camera InterfaceUSB 2.0
IR CameraYes (optional) (with WWAN co-existance), Hybrid Camera

Keyboard

Number of KeysUS : 84 / UK : 85 / JP : 89
NumpadNo
Size100% ISO
Function Key FeaturesYes
BacklitYes
Keyboard sizeCS20 KYB
Key stroke1.5mm
Key pitch19.05mm
Keyboard backlightOptional
Keyboard thicknessStandard

Touchpad / Fingerprint Reader

TrackPoint DetailsCOMO TrackPoint module (t5.5mm)
Finger Print Reader ModelSynaprics Metallica 8×8 FPR, MoC
Multi-TouchYes
Resolution1000 ppi
TouchPad/Trackpad thickness3.3mm
TouchPad/Trackpad type3 BCP
Trackpad size115mm x 61 mm
Trackpad material/finishMylar surface

Ports and Connectors

USB2x USB-A 3.2 (Gen 1) (1 powered)
Thunderbolt2x Thunderbolt 4 (USB 4/USB-C 3.2 Gen 2/DP2.0/PD)
HDMI1x HDMI 2.0b
Audio Combo Jack1x Microphone & Headphone Combo Jack (3.5mm)
Media Card ReaderN/A
Smart Card ReaderYes (optional)
Power ConnectorDC-In
Docking PortDocking Via Thunderbolt 4
VirtualLinkNone
Network adapterGigabit Ethernet (RJ45)

Power Connector

MainDC-In
USB-C1x Thunderbolt 4 (USB-C/DP/PD)

Ethernet

VendorIntel
Countx1
EEPROMSPI ROM (Merge with BIOS/MEFW)
Speeds10/100/1000 Mbps
FunctionsWake On LAN

MAC Address Pass Through PXE Boot

Flash Over LAN

ConnectorsRJ45

WWAN

Modeloptional: CAT16/CAT4 with eSIM

Near Field Communications

ModelYes, optional

Audio

VendorRealtek
TypeHigh Definition Audio Codec
Internal SpeakerYes, dual speakers
ConnectorsMicrophone & Headphone Combo Jack (3.5mm)
ChipsetALC3287
Number of Channels4-channel DAC, 4-channel ADC
Number of Bits/Audio Resolution16/20/24-bit PCM format
Sampling Rate (Recording/Playback)n
Signal to Noise Ratio90dB Signal-to-Noise Ratio (A-weighting) for ADC input. 100dB Signal-to-Noise Ratio (A-weighting) for DAC output
Analog AudioNone
Dolby DigitalYes
Digital Out (S/PDIF)No
Speaker Power Rating2W@4ohm/ch

Power adapter

Type100W AC Adapter65W AC Slim Adapter65W AC Adapter
Dimensions142cc (28.5 x 46 x 108 mm) 65W (*0)142cc (28.5 x 46 x 108 mm) 65W (*0)142cc (28.5 x 46 x 108 mm) 65W (*0)
Input Voltage100-240V100-240V100-240V

Security

TPMYes, TPM2.0
Asset IDYes
vProYes on vPro model

Chassis Information

ColorBlack/Storm Grey
Thermal SolutionsInternal Single FAN, Intelligent Cooling
DimensionsLength

12.95 inches 329 millimeters Width

8.94 inches

 227 millimeters Height

0.70 inches (Thickest 0.74 inches, Thinnest 0.52 inches)

17.9 millimeters (Thickest 18.9mm, Thinnest 13.14mm)

Packaging Parameters

Height (mm)300
Height (inch)11.8
Width (mm)446
Width (inch)17.6
Depth (mm)81
Depth (inch)3.1
Weight (kgs)0.32kg
Weight (lbs)0.71lbs

Security & Serviceability

Self Healing BIOSNo
Access PanelRemoveable bottom cover
Number of Screws6
Swappable ComponentsBase cover assembly, TrackPoint pointing stick, Lenovo factory recovery USB key, Power cord, ac power adapter (65W)
Storage Slots1 storage slot
Memory1 soldered down RAM + 1 SODIMM slot
System Board1190 System Board. No self-service CRU.
Restore CD/DVD/USB SetNone. Purchase via Lenovo Customer Support Center
Cable Lock SupportSecurity-lock slot
Power-On PasswordYes
Hard Disk PasswordYes; User and Master hard disk password
Supervisor PasswordYes
NIC LEDs (integrated)Yes (if it means the LED for Ethernet)
Security ChipYes (for TPM 2.0)
Access Panel Key LockBottom Cover Tamper Detection
Boot Sequence ControlYes

Operating Environment

Operating – Air TemperatureAt altitudes up to 2438 m (8000 ft)

– Operating: 5°C to 35°C (41°F to 95°F)

Non Operating – Air TemperatureAt altitudes up to 2438 m (8000 ft)

– Storage: 5°C to 43°C (41°F to 109°F)

HumidityOperating: 8% to 95% at wet-bulb temperature 23°C (73°F) Storage: 5% to 95% at wet-bulb temperature 27°C (81°F)
Corrosive GasG1
ParticulatesP1

SECTION II: Platform Detail

Supported Components

ProcessorIntel® Core™ i5-1240P (4+8C) Intel® Core™ i5-1250P (4+8C), vPro Intel® Core™ i7-1260P (4+8C)

Intel® Core™ i7-1270P (4+8C), vPro Intel® Core™ i7-1280P (6+8C), vPro

Memory SupportDDR4 3200MHz SO-DIMM
Chipset (PCH)Integrated Soc
Size of BIOS Flash16 MB
Super I/ON/A
ClockCrystal
AudioRealtek High Definition Audio
EthernetNon-vPro model: Intel® Ethernet Connection I219-V (Jacksonville) vPro model: Intel® Ethernet Connection I219-LM (Jacksonville)

Memory

System Capacity Optionsi5 non-vPro & vPro: 8/16GB soldered-down + 8/16/32GB i7 non-vPro & vPro: 8/16GB soldered-down + 8/16/32GB
non-ECC8GB DDR4 3200 SDRAM/SoDIMM

16GB DDR4 3200 SDRAM/SoDIMM

32GB DDR4 3200 SoDIMM

Brand of non-ECC MemorySamsung SK Hynix Micron Ramaxel
ECCNone
Brand of ECC MemoryN/A
Memory clock frequency(MHz)3200 MHz

Storage

2.5 SAS Hard Disk Drive (HDD)None
2.5 SATA Hard Disk Drive (HDD)None
2.5SATA Solid State Drive (SSD)None
M.2 (NGFF) PCIe Solid State Drive (SSD)256GB Opal 2 PCIe G4 NVMe M.2 2280

512GB Opal 2 PCIe G4 NVMe M.2 2280

512GB Opal 2 PCIe G4 NVMe Performance M.2 2280 1TB Opal 2 PCIe G4 NVMe M.2 2280

1TB Opal 2 PCIe G4 NVMe Performance M.2 2280 2TB Opal 2 PCIe Gen4 Performance NVMe M.2 2280

2.5 PCIe Solid State Drive (SSD)None
Brand of DriveSamsung UnionMem WD

Hynix Kioxia SSSTC

Intel Optane Storage TechnologyYes
RAIDNot Supported

Removeable Media

Media Card Reader SpecificationsN/A

SECTION III: Supported Component Detail

CPU Specifications

CPUIntel® Core™ i5-1240P (4+8C)Intel® Core™ i5-1250P (4+8C)Intel® Core™ i7-1260P (4+8C)Intel® Core™ i7-1270P (4+8C)Intel® Core™ i7-1280P (4+8C)
Integrated GraphicsIntel Iris Xe GraphicsIntel iGPU Iris XeIntel iGPU Iris XeIntel iGPU Iris XeIntel iGPU Iris Xe
# of Cores4 P Core+8 E Core4 P Core+8 E Core4 P Core+8 E Core4 P Core+8 E Core6 P Core+8 E Core
# of Threads1616161620
Processor Base Frequency1.7GHz1.7GHz2.1GHz2.2GHz1.8GHz
Max Turbo Frequency4.4GHz4.4GHz4.7GHz4.8GHz4.8GHz
Cache12MB12MB18MB18MB20MB
TDP20W-28W20W-28W20W-28W20W-28W20W-28W
DisclaimersDual RAM channel requiredDual RAM channel requiredDual RAM channel requiredDual RAM channel requiredDual RAM channel required

Display Specifications

ModelWUXGAWUXGA

oncell touch

WUXGA

low power

WUXGA

ePrivacy

2.2KWQUXGA

+AOFT

Resolution1920 x

1200

1920 x

1200

1920 x

1200

1920 x

1200

2240 x

1400

3840 x

2400

Diagonal141414141414
Aspect RatioRatio 16:10Ratio 16:10Ratio 16:10Ratio 16:10Ratio 16:10Ratio 16:10
BacklightLEDLEDLEDLEDLEDLED
PPI162162162162189323
Active Area302 x 188302 x 188302 x 188302 x 188302 x 188302 x 188
Refresh Rate48 / 60

Hz

48 / 60

Hz

48 / 60

Hz

60Hz48 / 60

Hz

48 / 60

Hz

Contrast Ratio700:1 (TYP)700:1 (TYP)800:1 (TYP)1000:1 (TYP)1500:1 (TYP)1500:1 (TYP)
Viewing Angle85/85/85

/85 degree

85/85/85

/85 degree

85/85/85

/85 degree

85/85/85

/85 degree

85/85/85

/85 degree

85/85/85

/85 degree

Color gamut45% NTSC45% NTSC100% sRGB100% sRGB100% sRGB100% DCI- P3
Brightness300nit300nit400nit500nit300nit500nit, HDR 400
ContrastRatio 700:1Ratio 700:1Ratio 800:1Ratio 1000:1Ratio 1500:1Ratio 1500:1
Color Depth16M16M16M16M16M1B
InterfaceeDP 1.2eDP 1.2eDP 1.4eDP 1.4eDP 1.4eDP 1.4
Panel ID RecognitionEDID in BIOS

Table

EDID in BIOS

Table

EDID in BIOS

Table

EDID in BIOS

Table

EDID in BIOS

Table

EDID in BIOS

Table

Weight305g max310g max240g max312g max235g max265g max
Color CalibratorNoneNoneAdaptive ICC

profile

NoneICC

profile

X-Rite Factory Color Calibratio n, Dolvy Vision
Panel TechnologyIPS, Anti- GlareIPS, Anti- GlareIPS, Anti- Glare, LBL, TUVIPS, Anti- GlareIPS, Anti- Glare, LBL, TUVIPS, Anti- Glare, LBL, TUV
Touch PanelNoneYESNoneYESNoneYES
2.5SAS Hard Disk DriveN/A
(HDD)
2.5 SATA Hard Disk Drive (HDD)N/A
ConnectorN/A
Transfer Rate (Gb/sec)N/A
Spindle Speed(RPM)N/A
Power off to Spindle Stop(sec)N/A
DC Power to Drive Ready(sec)N/A
Receipt of Start Unit Command to Drive Ready(sec)N/A
Average Latency(msec)N/A
Input (VDC)N/A
Typical (Watts)N/A
Idle (Watts)N/A
Height (mm – Max)N/A
Width (mm)N/A
Depth (mm – Max)N/A
Weight (grams)N/A
Operating(C) AmbientN/A
Operating(C) Base CastingN/A
Non-Operating(C) AmbientN/A
Gradient(C per Hour)N/A
Operating(Gs @ 2ms)N/A
Non-Operating(Gs @ 2ms)N/A

SSD Specifications

2.5SATA Solid State Drive (SSD)N/A
M.2 (NGFF) PCIe Solid State Drive (SSD)1x M.2 2280 PCIe Gen4
2.5 PCIe Solid State Drive (SSD)N/A
Intel Optane Storage TechnologyN/A

Solid State Storage Devices

Supported TypesM.2
Dimensions inches/centimeters (W x D x H)22.0 (+-0.15) x 80.0 (+-0.15) x 2.3 (max)
SizeM.2 2280S3
Interface TypePCIe NVMe Gen4
Read/Write IOPS SpecificationsRead: 250K (2TB, 1TB, 512GB), 200K (256GB) Write: 240K (2TB, 1TB, 512GB), 190K (256GB)

Burst 4K Random IOPS , Measured by Crystal Disk Mark (QD32T1, Data size set 1GB)

Bandwidth PerformancePCIe Gen3x4 (8Gb/S) PCIe Gen4x4 (16Gb/S)
Power Consumption (Max)3.0A (duration for 10 us)
Active(AVG)5W
Idle5mW (L1.2)
Min MTBF2,000,000 (h)
Min Sequential Read3000MB/s (2TB, 1TB, 512GB), 2900MB/s (256GB)
Min Sequential Write1600MB/s (2TB, 1TB/512GB), 900MB/s (256GB)
Hardware EncryptionYes

Discrete Graphics Adapter




Discrete Graphics AdapterDiscrete Graphics Adapter



Discrete Graphics AdapterDiscrete Graphics Adapter



Discrete Graphics AdapterDiscrete Graphics Adapter



Discrete Graphics AdapterDiscrete Graphics Adapter




WLAN

ModelINTEL WIFI 6E_AX211 CNVi_2X2AX+BT5.2Qualcomm NFA-725A
Connector: Main, Aux/GNSS, GNSSANT1:AUX WiFi + BT; ANT2: Main WiFi
Antenna DiversitySupported
MIMOSupported
GNSS BianN/A
Radio ON/OFF ControlSupported
Connector interfaceCNVi
Operating Temperature (Adapter Shield)0c to +80c
Humidity Non-Operating50%~90% Rh non condensing (at temperatures of 25c to 35c)
Operating SystemsMicrosoft Windows 7*, Microsoft Windows 8.1*, Microsoft Windows 10*, Linux* (limited feature support), Android
Wi-Fi AllianceWi-Fi CERTIFIED* a/b/g/n/ac, WMM*, WMM-PS*, WPA*, WPA2*, WPS2*, Protected Management Frames, Wi-Fi Direct* for peer to peer device connections, Wi-Fi Miracast* as Source.
IEEE WLAN StandardIEEE 802.11a/b/g/n/ac, 802.11d, 802.11e, 802.11h, 802.11i, 802.11w; 802.11r,

802.11k, 802.11v pending OS support; Fine Timing Measurement based on 802.11REVmc

RoamingSupport seamless roaming between access points
Bluetooth*Dual Mode Bluetooth® 5.0, BLE
AuthenticationWPA and WPA2, 802.1X (EAP-TLS, TTLS, PEAP, LEAP, EAP-FAST), EAP-SIM, EAP-AKA, EAP-AKA
Authentication ProtocolsPAP, CHAP, TLS, MS-CHAP*, MS-CHAPv2
Encryption64-bit and 128-bit WEP, 128-bit AES-CCMP
RegulatoryFor a list of country approvals, please contact your local Intel representatives.
US GovernmentFIPS10, FISMA
Product SafetyUL,C-UL,CB (IEC 60950-1)
Disclaimers6GHz channel of Wi-Fi 6E is only available with Windows 11

Battery

Dimension270 mm x 68.5 mm x 6.16 mm270 mm x 68.5 mm x 6.16 mm
Weight173g212g
Type (Chemistry and Cell)Li-ion PolymerLi-ion Polymer
Voltage11.58V ~ 11.61V15.44V ~ 15.48V

Battery LifeUp to 9.7hrs (MM18)Up to 9.7hrs (MM18)
Battery CapacityIntegrated 3-cell 39.3Wh batteryIntegrated 4-cell 52.5Wh battery
Charging Time0% to 100% 0% to 80%

Battery Charging Time (in- operation) 2.06 hr

Battery Charging Time (off) 1.89 hr

0.92 hr

0% to 100% 0% to 80%

Battery Charging Time (in- operation) 2.39hr

Battery Charging Time (off) 1.98 hr

0.99 hr

Operating Temperature Rangebetween 10°C (50°F) and 35°C (95°F)between 10°C (50°F) and 35°C (95°F)
Warranty1 Year / 3 Year Available1 Year / 3 Year Available
Coin Cell Battery (Model)CR2016CR2016

Environmental

BIOS Specifications

WMI SupportYes, if it is BIOS Setup change by WMI.
ROM-Based Setup Utility (F1)Yes
Bootblock RecoveryN/A
Replicated SetupYes, it supported with SRSETUP tool.
Boot ControlYes, it means Boot order change.
Memory Change AlertN/A
Thermal AlertN/A
Asset TagYes
System/Emergency ROM Flash Recovery with VideoN/A
Remote Wakeup/Remote ShutdownYes, if Remote wakeup is Wake on LAN from S4/S5.
Keyboard-less OperationN/A
Per-port ControlYes, if it is I/O port enable/disable by BIOS Setup.
Adaptive CoolingYes, if it is thermal & fan control.
SecurityYes, BIOS password / Hard disk password / Finger print
Intel(R) AMT (includes ASF 2.0)Yes. If you select vPro model
Intel(R) TXTYes. If you select vPro model
Memory ModesN/A

EMC & Safety

EMCPublished, Certified Existing Reports EMC – Australia

EMC – Belarus EMC – Canada EMC – China EMC – EU/EFTA

EMC – Japan

EMC – Kazakhstan EMC – New Zealand EMC – Russia

EMC – South Korea EMC – Taiwan

EMC – USA/Territories

Not Applicable / Not Required EMC – Israel

EMC – Moldova EMC – Serbia EMC – Turkey EMC – Uzbekistan EMC – Vietnam

SafetyTo access the latest User Guide and Safety and Warranty Guide, go to: https: /support.lenovo.com

Low Halogen Declaration of Conformance TNOT-2017-0040

Section 9 – Low Halogen Scorecard Izod Test – EPEAT Compliant Homologation PCRB Compliant

In the following countries: Albania, Algeria, Andorra, Angola, Antigua and Barbuda, Argentina, Armenia, Aruba, Australia, Azerbaijan, Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belize, Benin, Bermuda, Bolivia, Botswana, Burkina Faso, Burundi, Cambodia, Cameroon, Canada, Cape Verde, Cayman Islands, Central African Republic, Chad, China, Colombia, Comoros, Congo, Costa Rica, Dijbouti, Dominican Republic, Egypt, El Salvador, Eritrea, Ethiopia, EU/EFTA, Fiji, Gabon, Gambia, Georgia, Ghana, Grenada, Guatemala, Guinea, Haiti, Honduras, Hong Kong, India, Indonesia, Israel, Jamaica, Japan, Jordan, Kazakhstan, Kenya, Kuwait, Laos, Lebanon, Liberia, Macau, Madagascar, Malawi, Malaysia, Mali, Mauritania, Mauritius, Mexico, Moldova, Mongolia, Morocco, Mozambique, Namibia, Nepal, New Zealand, Nicaragua, Niger, Nigeria, Oman, Pakistan, Panama, Papua New Guinea, Paraguay, Peru, Philippines, Qatar, Russia, Saudi Arabia, Senegal, Serbia, Seychelles, Sierra Leone, Singapore, South Africa, South Korea, Sri Lanka, Swaziland, Taiwan, Tajikistan, Tanzania, Thailand, Togo, Tunisia, Turkey, Turkmenistan, Uganda, Ukraine, United Arab Emirates, Uruguay, USA/Territories, Uzbekistan, Venezuela, Vietnam, Zambia, Zimbabwe, Brazil – Inmetro 170 Govt Bids, Guinea-Bissau, Lesotho

Environmentals

Energy StarENERGY STAR® Version 8.0

For more information about ENERGY STAR, go to: https: /www.energystar.gov

EPEATEPEAT Declaration of Conformance For Machine Types: 20S4, 20S5
IT ECO declarationThe latest environmental information about Lenovo products is available at:

https: /www.lenovo.com/ecodeclaration

Hazardous SubstancesThe latest environmental information about Lenovo products is available at:

https: /www.lenovo.com/ecodeclaration European Union RoHS

This Lenovo product, with included parts (cables, cords, and so on) meets the requirements of Directive

 2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic

equipment (“RoHS recast” or “RoHS 2”).

For more information about Lenovo worldwide compliance on RoHS, go to:

https: /www.lenovo.com/rohs-communication

Manageability

Industry Standard SpecificationsThis product meets the following industry standard specifications for manageability functionality:

Intel LAN with AMT

Remote Manageability Software SolutionsLenovo ThinkManagement Console

Microsoft System Center Configuration Manager

LANDesk Management Suite for ThinkVantage Technologies (www.landesk.com/lenovo)

System Software ManagerLenovo ThinkPad supports software management tools from the Lenovo Vantage System Update suite:

System Update Update Retriever

Service, Support, and WarrantyOn-site Warranty and Service: Three-years, limited warranty and service offering delivers on-site, next business-day service for parts and labor and includes free telephone support 8am to 5pm. Global coverage ensures that any product purchased in one country and transferred to another, non-restricted country will remain fully covered under the original warranty and service offering.

Environmentals

Energy StarENERGY STAR® 8.0
EPEATEPEAT® Gold
RoHS CompliantRoHS Compliant
TCOTCO 9.0
Sustainability97% PCC recycled plastic: Speaker enclosure 97% recycled plastic: 52.5WHr Battery

95% PCC recycled plastic: 65W PSU 90% recycled/sustainable packaging Low-temperature solder

DisclaimersProduct packaging shall contain, on average, a minimum total percentage of 90% by weight of any combination of the following materials: Recycled content, biobased plastic, non-wood biobased fiber material, and/or sustainably forested material.

References

Documents / Resouces

Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.


Related Manuals
