Puretec 110MM Brick FilterWall Instruction Manual
Dimensions

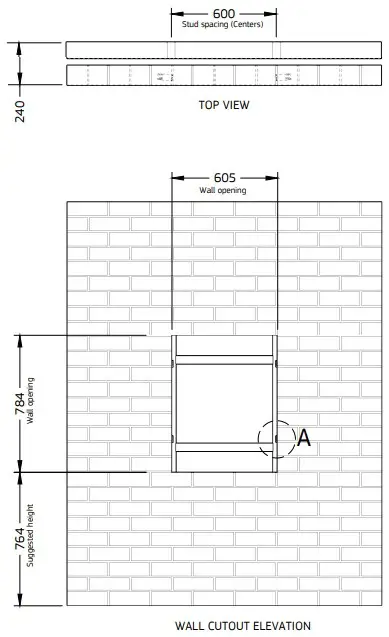

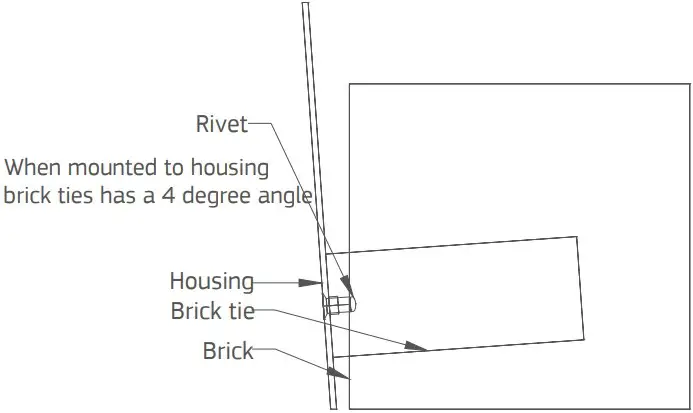

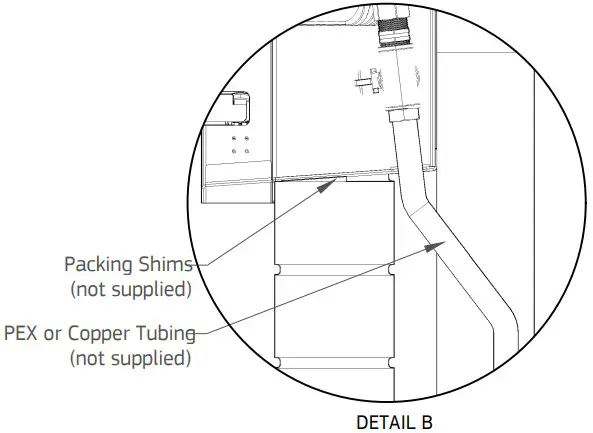

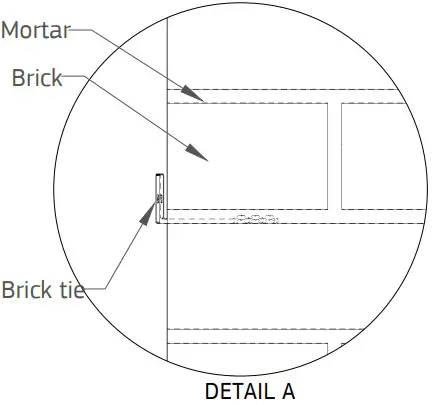

BRICK TIE MOUNTING TO HOUSING (TOP VIEW)
Note: All dimensions are in millimeters
Disclaimer:
Example installation shown. Ensure Australian building standard are met during installation.
- DRAWN BY
- A.L.
- DATE
- 08/03/2023
- APPROVED BY
- S.M.
- EMAIL ADDRESS
[email protected] - SCALE
- NTS
- 3RD ANGLE
- PROJECTION
- NAME
- FILTERWALL INSTALLATION
- DESCRIPTION
- 110MM BRICK WALL (Option 1)
- REV
- SHEET
- 1 / 1
