QUICK REFERENCE GUIDE > E522BLXFD4
Freestanding Refrigerator
Freezer, 79cm, 494L
Series 5 | Contemporary
Stainless Steel | Left hinge

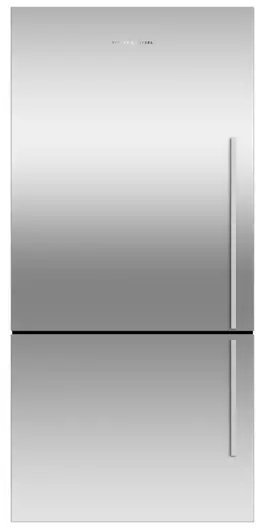

E522BLXFD4 79cm 494L Freestanding Refrigerator Freezer
Large capacity in stylish stainless steel, you’ll have plenty of room for your chilled and frozen food.
- ActiveSmart technology helps keep food fresher for longer by constantly maintaining the ideal temperature.
- Spacious bottom freezer with full extension drawer gives easy access to frozen goods.
- Choose which side you’d like your door hinge on to suit your kitchen layout

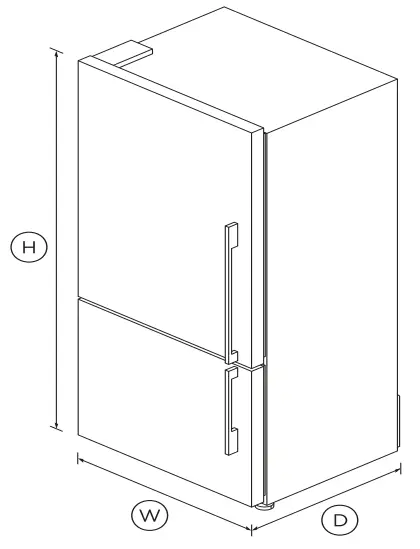

DIMENSIONS
| Height | 1715mm |
| Width | 790mm |
| Depth | 695mm |
FEATURES & BENEFITS
ACTIVESMART FOODCARE
Every time you open your refrigerator, the temperature around your food changes. ActiveSmart foodcare adjusts airflow to create a stable temperature, helping your food stay fresher for longer.
EASY CLEANING
No more permanent dirty marks with our EZKleen feature for stainless steel refrigerators. Anti-fingerprint coating means you simply wipe clean any marks. Spill-safe secure glass shelves easily capture any drips or leaks.
DESIGN QUALITY
Our refrigerators are designed and built using quality materials. We use real stainless steel, and solid glass for shelving as well as in our wine cabinet doors.
CLEVER ENERGY
Your refrigerator adapts to daily use by cooling and defrosting only when needed. This means it uses the energy it needs without compromising on food care.
HUMIDITY CONTROL
Your fruit and veges need different environments. The humidity control slides in each storage bin create a microclimate that helps keep food fresher for longer.
SPECIFICATIONS
Capacity
| Total net volume | 494L |
| Volume freezer | 146L |
| Volume refrigerator | 348L |
Consumption
| Energy consumption | 1.08kWh/24h |
| Energy rating | Grade 2 |
Features
| Adjustable door shelves | 4 |
| Adjustable glass shelves | 4 |
| Covered door shelves | 2 |
| Door alarm | • |
| Front levelling feet | • |
| Fruit and vegetable bins | 2 |
| Full extension runners | • |
| Full width door shelves | 2 |
| LED lighting | • |
| Rear rollers | • |
| Single bottle holders | 4 |
| SmartTouch control panel | • |
| Stackable bottle holders | 4 |
Freezer Features
| Bottle chill | • |
| Door alarm | • |
| Fast freeze | • |
| Large plastic bins | • |
Performance
| ActiveSmart Foodcare | • |
| Adaptive defrost | • |
| Frost free | • |
| Frost free freezer | • |
| Humidity control system | • |
| Sabbath mode | • |
Power requirements
| Connection power | 240W |
| Supply voltage | 220 – 240V |
Product dimensions
| Depth | 695mm |
| Height | 1715mm |
| Width | 790mm |
Warranty
| Parts and labour | 1 year |
| Sealed system parts only | 3 years |
| SKU | 25403 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
