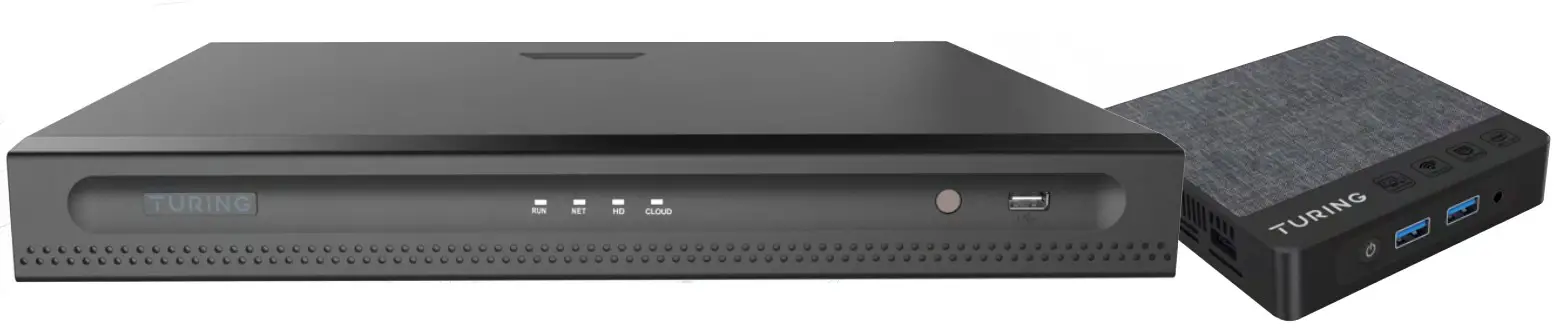

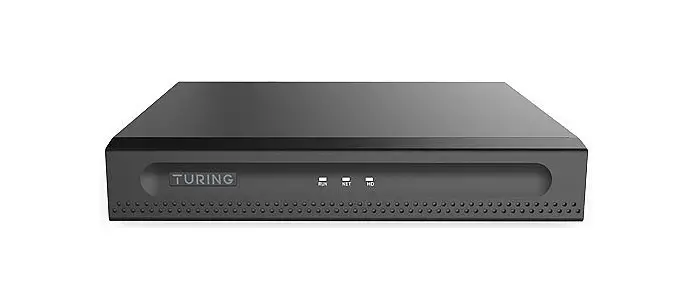

SMART Series Network Video Recorder w/ Bridge
TP-MRP042T-B
TP-MRP082T-B
TP-MRP164T-B
*Turing Vision bridge received may vary
TP-MRP042T-B SMART Series 8-Channel Network Video Recorder
 | Enables Turing Smart VSaaS for Turing and third-party IP cameras |  | Plug-and-Play POE for all cameras |
 | Up to 8MP input resolution |  | Supports H.265 & H.264 |
 | Up to 2 SATA HDD slots |  | NDAA Compliant |
Fast & Easy Security Workflow with CORE AI License Attached to Cameras
 |  |  |

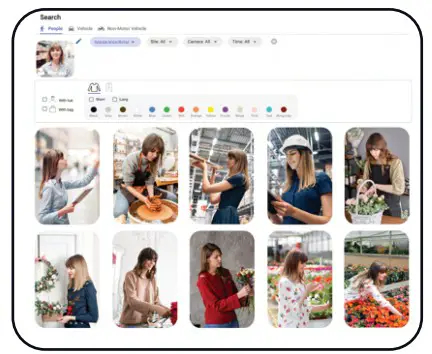

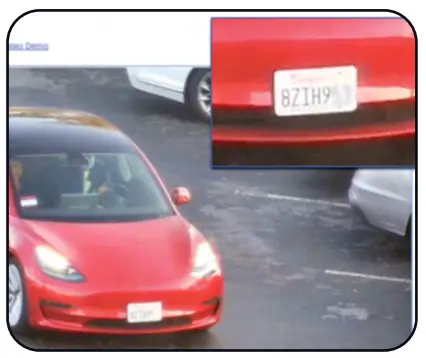

| People* & vehicle attribute search | License plate recognition with black- and whitelists | Customized smart alerts anywhere using Vision apps |
SPECIFICATIONS
| Model Number | TR-MRP042T-B | TR-MRP082T-B / TR-MRP08-B | TR-MRP164T-B |
| Video Inputs | 4 | 8 | 16 |
| Input Resolution | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/ D1/2CIF/CIF | ||
| HDMI/VGA Output | HDMI: 1920X1080@60, 1920X1080@50, 1600X1200@60, 1280X1024@60, 1280X720@60, 1024X768@60 VGA: 1920X1080@60, 1920X1080@50, 1280X1024@60, 1280X720@60, 1024X768@60 | ||
| Output Type | Simultaneous (identical between HDMI and VGA outputs) | ||
| Decoding Capability | Up to 1x4K, 4x1080P video streams, or 8x720P | ||
| Decoding Format | Ultra 265, H.265, H.264, MJPEG | ||
| Audio I/O | Audio In: 1-ch, RCA; Audio Out: 1-ch, RCA | ||
| Hard Disk Slots | 1 SATA | 2 SATA | 2 SATA |
| Max HDD Size | 6TB | 14 TB | 14 TB |
| Included HDD | 2 TB | TR-MRP082T-B: 2 TB x1 TR-MRP08-B: None | 4 TB |
| LAN Interface | 1 RJ45 10M/100M/1000M self-adaptive Ethernet Interface | ||
| PoE Plug and Play | 4 Ports; IEEE 802.3af/ at; 54W Max Total | 8 Ports; IEEE 802.3af/at; 130W Max Total | 16 Ports; IEEE 802.3af/at ; 240W Max Totalo |
| USB Interface | Rear panel: 1 x USB2.0, 1 x USB3.0 | Front panel: 1 x USB2.0, Rear panel: 1 x USB3.0 | |
| Alarm I/O | N/A | Alarm In: 4 Ch; Alarm Out: 1 Ch | |
| Software Clients | Turing Vision mobile & desktop Apps; SMART Station | ||
| ONVIF Compatibility | Profiles S, G, T | ||
| VSaaS Compatibility | Turing Vision with included bridge device | ||
| Power Consumption | 9W Max without HDD & cameras | 10W Max without HDD & cameras | |
| Working Environment | -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) | ||
| Dimensions & Weight | 260mm × 240mm × 47mm (10.2″×9.4″×1.9 “); 1kg (2.20 lb) | 380mm ×315mm × 53mm (14.9″ × 12.4″ ×2.1″); ≤2.6kg (5.73lb) | |
DIMENSIONS

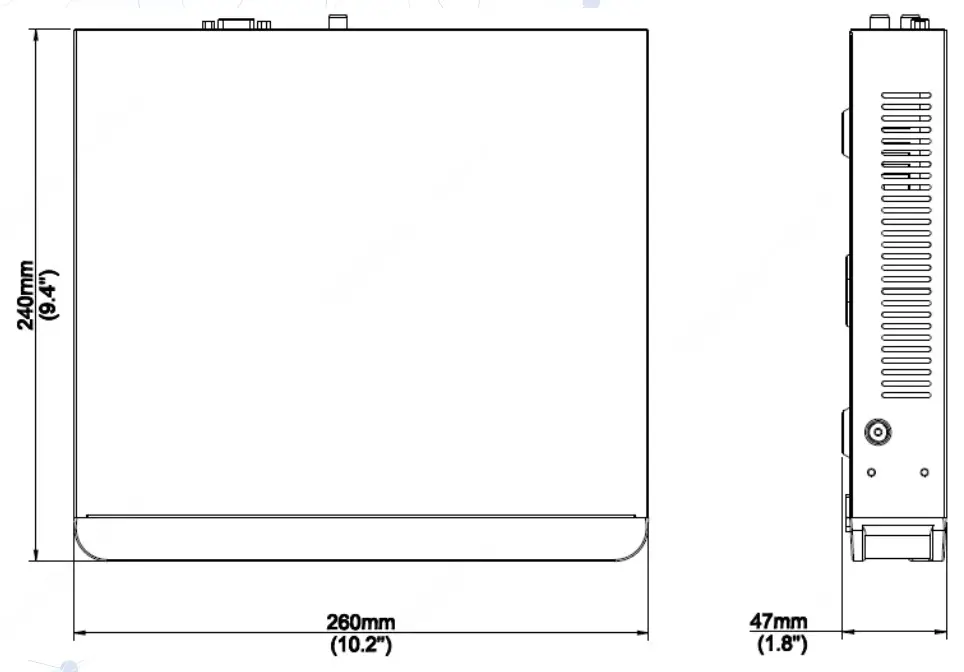

TP-MRP042T-B

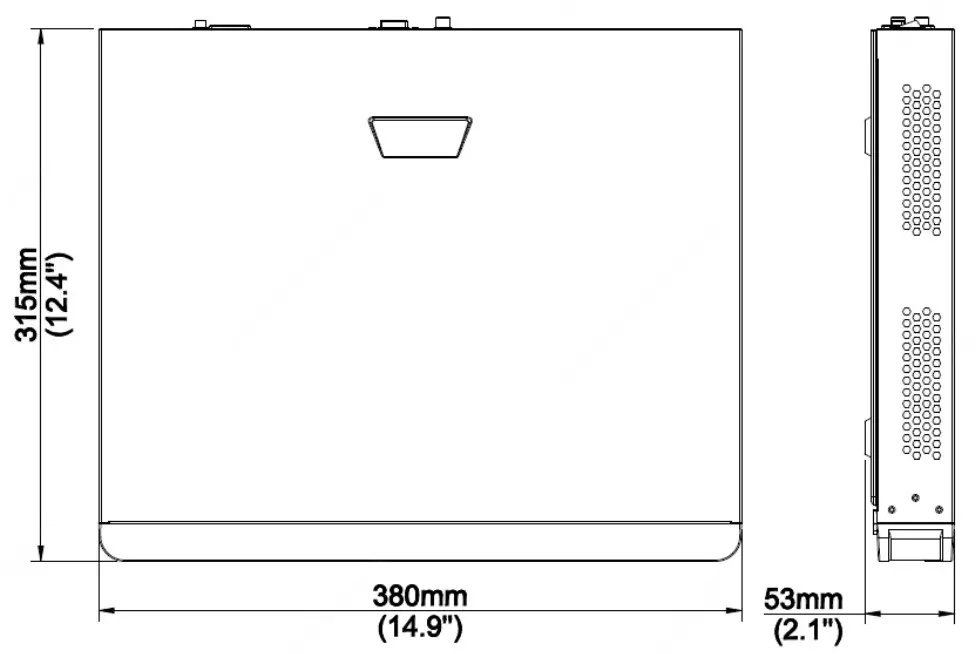

TP-MRP082T-B / TP-MRP164T-B
Visit turing.ai/get-core to know more about CORE AI
*Activation depends on state regulations and the compliance with
Biometric Information Protection Act (BIPA). Please refer to our privacy policy.

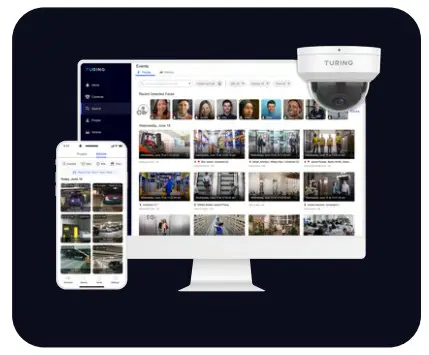

Turing Vision: AI-Powered Video Surveillance Platform
