Aikela Ap031-2 Wireless Microphone User Manual

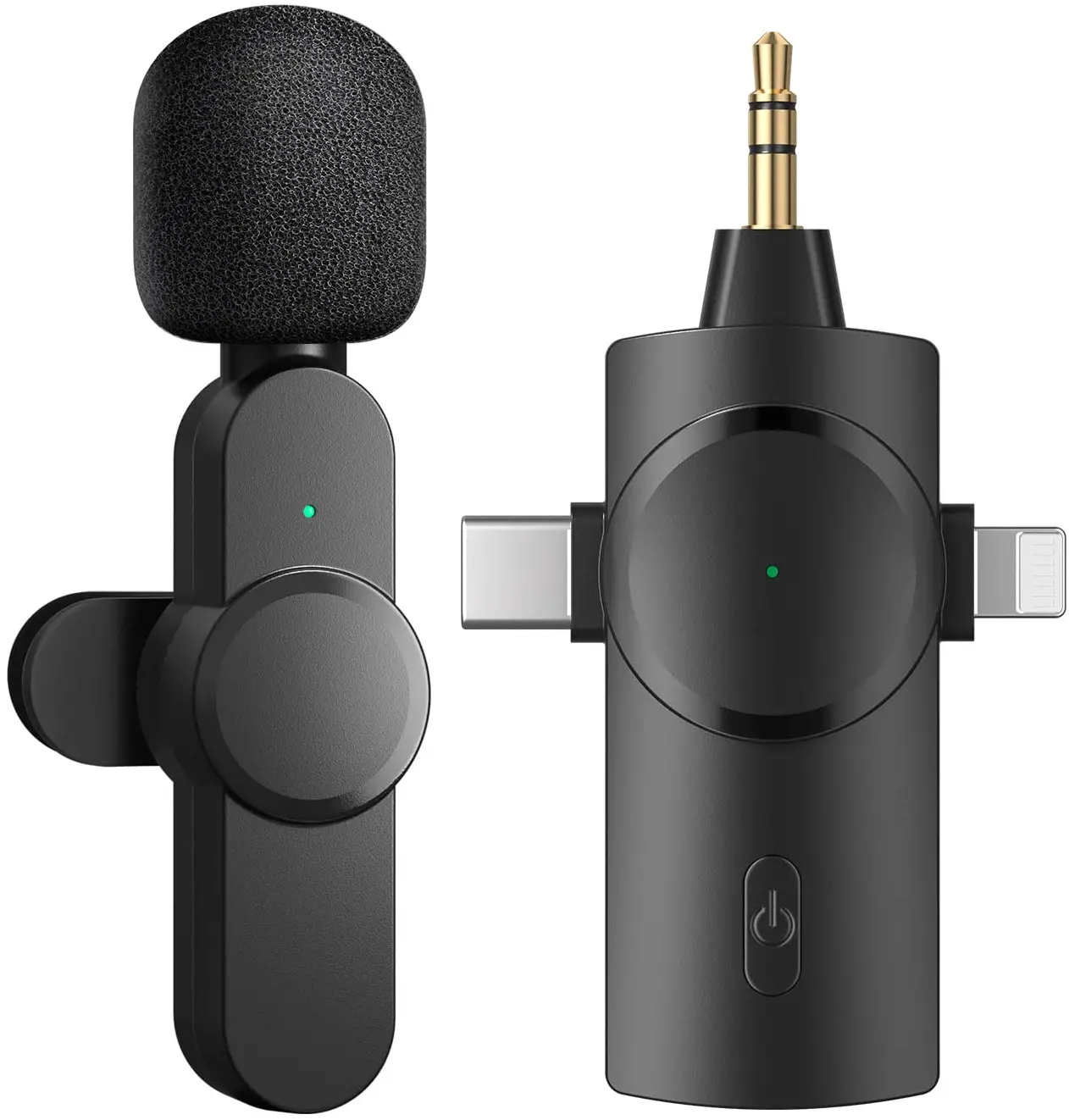

AIKELA AP031-2 Wireless Microphone

Introduction

Thanks for choosing our product

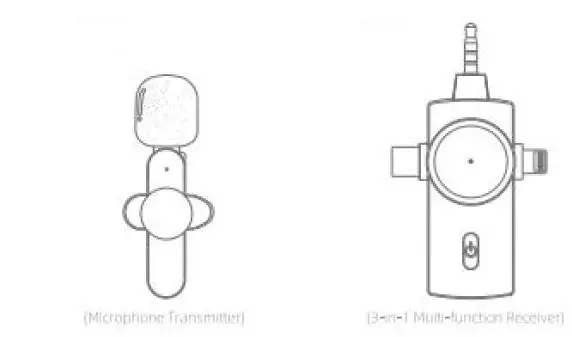

This product is a smart wireless microphone that provides professional-grade recording output. Plug and play, no app required. It can be used in different scenes such as Live streaming, Video Recording, Interviewing, Online Teaching, and others. The wireless Microphone consists of two parts, one is a Microphone transmitter, and the other one is a 3-in-1 multi-function receiver. (see as below picture).

ID Diagram

1. Windproof sponge
2. The indicator light of the microphone
3. The type-c charging port of the microphone
4. MicDphane cip
5. The power button of the microphone
6. Reset the key of the microphone
7. Type-C reviewer
8. 3.5 mm receiver
9. Lightning receiver
10. The indicator light of the receiver
11. The power button of the receiver
12. Type-C charging part of the receiver
13. 3.5mm audio transfer interface

The function of the above will be specifically explained later.

How to use Lightning/Type-C receiver

First:
Plug the Lightning or Type-C receiver into the Lightning or Type-C port of the mobile phone, and the green light of the receiver flashes quickly.

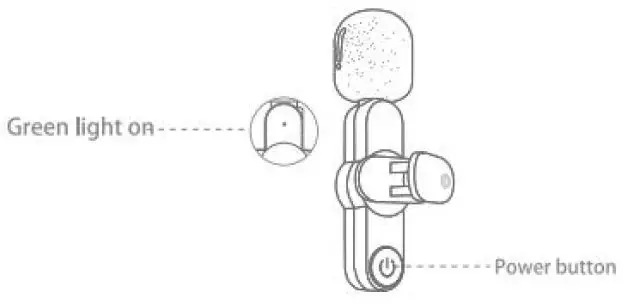

Second:
Single press the power button of the mic, and it is turned on successfully when the green light is on.

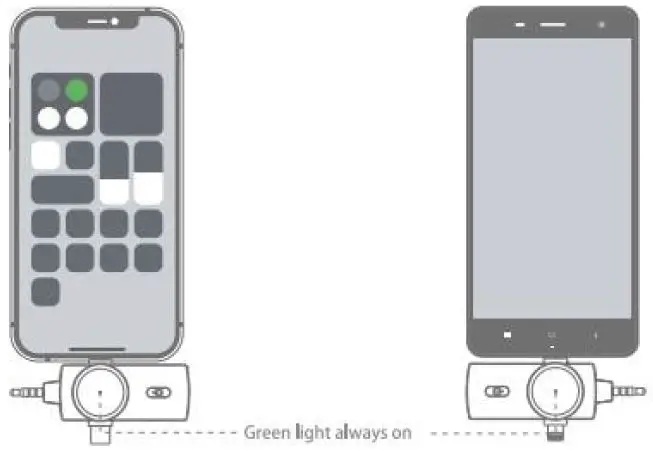

Last:
The green light of the receiver keeps always on, and then the microphone works when opening the phone camera to make a video recording or opening live streaming Apps to make a Live show.

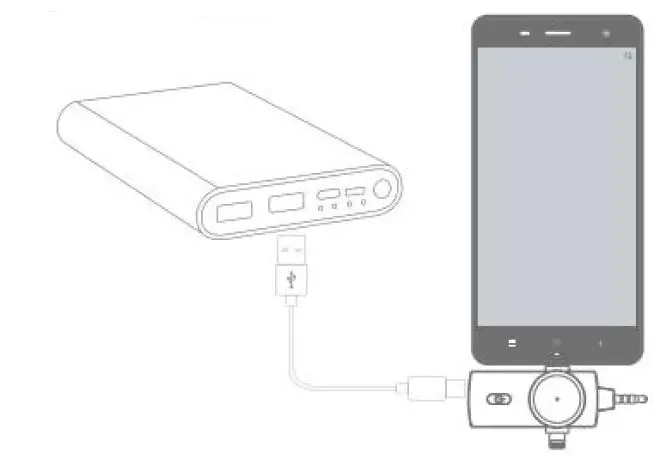

Special Notes:
For number If the mobile phone is in a low battery during live streaming, the external power supply directly charges the mobile phone through the Type-C port of the receiver.

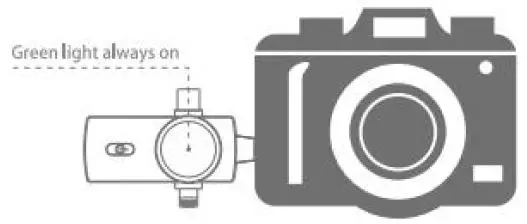

How to use a 3.5mm receiver

Step 1:
Plug the 3.5mm receiver into the 3.5mm port device, and the green light is always on.

Step 2:
Press the power button of the mic and receiver, it is turned on successfully when the green light is on.

Step 3:
Turn on the device, the microphone will work directly.

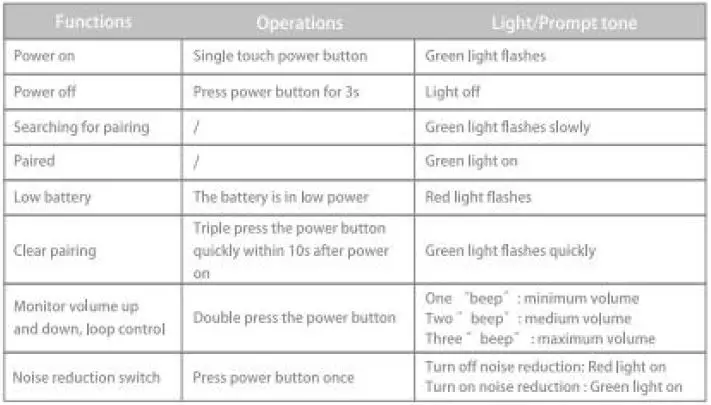

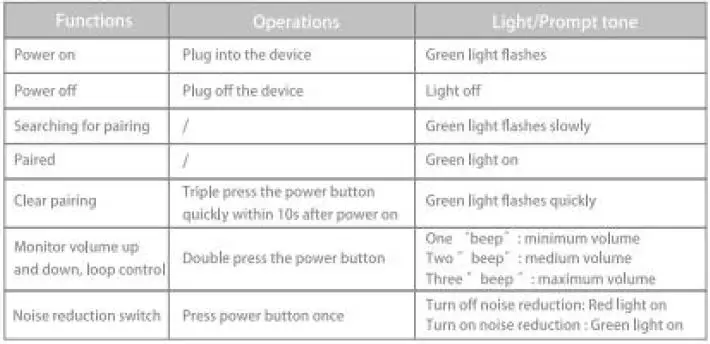

About UI

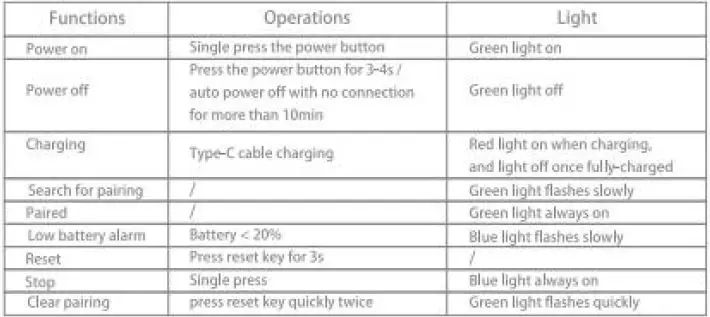

Microphone Transmitter

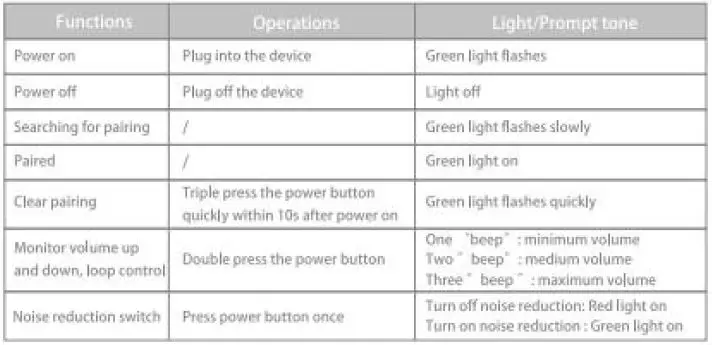

Lightning Receiver

Type-C Receiver

3.5mm Receiver

Note:
You can listen to the video or recording only after the receiver is unplugged from the device.

Packing List

1. Microphone transmitter (Dual-Channel version with 2 mics)
2. 3-in-1 multi-function receiver
3. Type-C charging cable (Dual-Channel Version with 2 mics)
4. User manual
5. 3.5mm TRS TO TRRS Patch Cable
6. 3.5 mm single wired earphone

Some Android phones may have incompatibility issues due to the operating system please consult your dealer for details.
