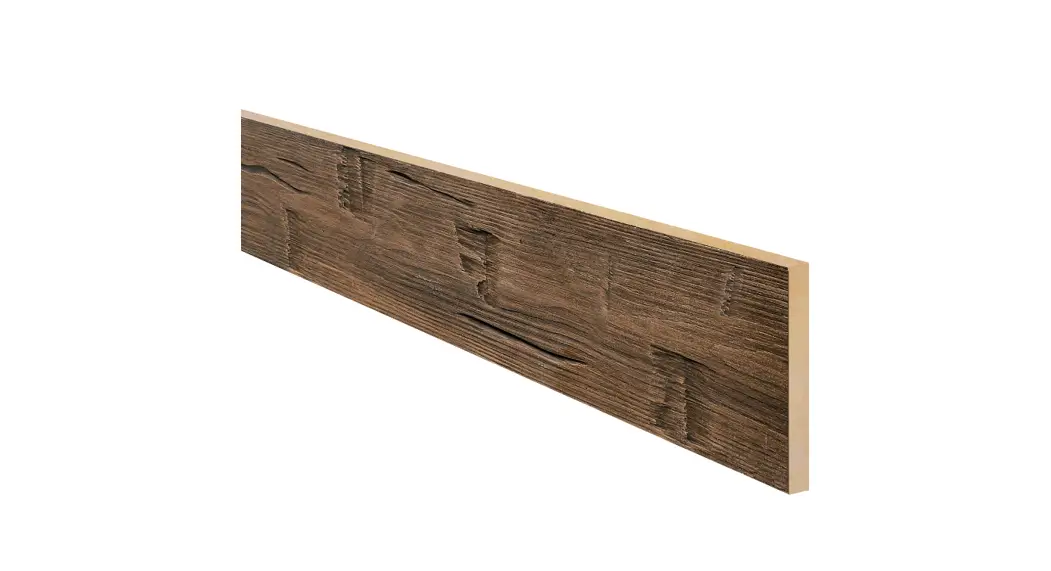

Barron Designs Babwm Traditional Hewn Wood Mantel User Manual

BABWM Traditional Hewn Wood Mantel

Mantel Installation Instructions24 Hours Before Starting

• Ensure the surface is structurally sound and in good condition.
• Acclimate all materials by storing them flat in the installation location (but away from moisture and direct sunlight or other heat sources) for at least 24 hours.
• Gather all tools and materials. e

Mantel Installation

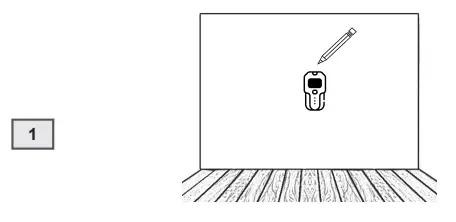

1.  Using a stud finder mark each stud with a pencil.

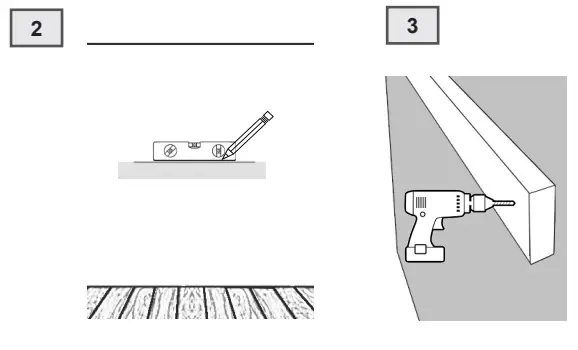

2. Create a level line one inch below where you want the top of the installed mantel.
3. Attach the lumber to the wall at the level line by screwing the deck screws through the lumber and into the studs. Use mollies/anchors if there are no studs.

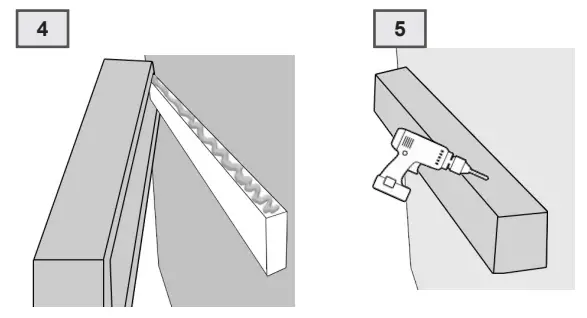

4. Apply Loctite PL Premium Advanced 3X Construction Adhesive to the top of the mounted lumber. Slide the mantel over the mounted lumber.
5. At the top of the mantel, use the deck screws and toe screw the mantel to the lumber. Recess the screws about 1/8”. Be careful not to over-tighten.

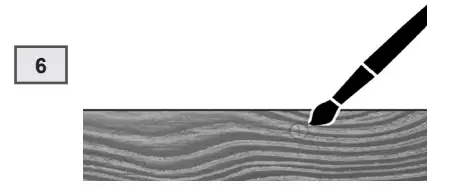

6. Apply color complimenting textured caulk to fill screw holes. Blendcaulk into adjacent surfaces while it is still wet. Use paint from the touch-up kit to paint over the caulk
   or wood filler. Do not sand the mantel. Sanding will ruin the finish and the grain.’

WARNINGS:

• Be sure to obey all safety rules and recommendations set forth by tool manufacturers.
• Always follow any, and all, local, state, and federal building codes.
• Always comply with clearances set forth by the manufacturer of stoves, fireplaces, furnaces, and any other heat source.
• Our faux mantels are durable but are for decorative use only. Mantels are not intended to support heavy weight.
• Wear safety glasses during the entire installation process.

Consult a full, project-specific installation guide before starting:

https://www.barrondesigns.com/beams-installation/mantel-installation-instructions/
