J R Closeouts 89025 Red Elephant Heavy-duty Mobility Scooter User Manual

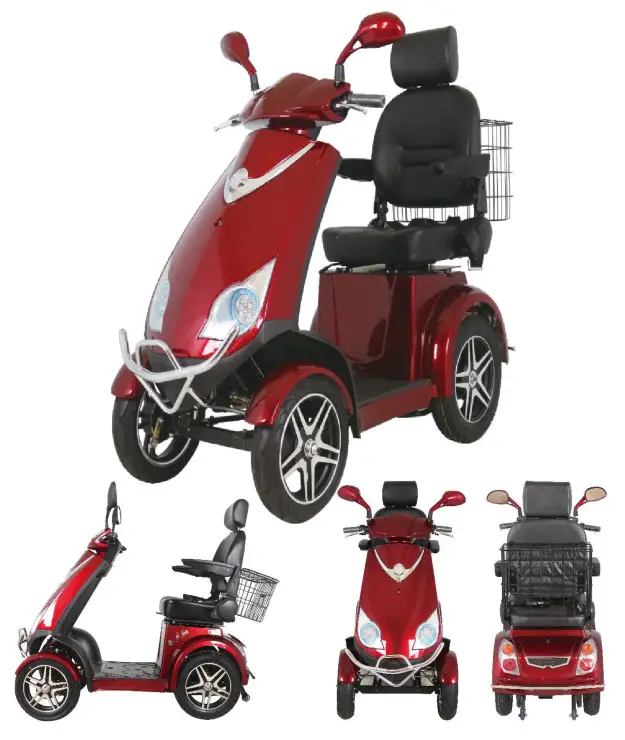

MOBILITY SCOOTER

ATTENTION

• The Driver and Passenger
  This vehicle is designed only for one driver and one passenger. (Children under 12 are not allowed). Never exceed to the Max load capacity of the vehicle.
• Road surface
  This kind of vehicle can drive on the flat road and the slope shall not be greater than 12 degree.
• Please read the user manual carefully
  You must pay attention to the sentence or paragraph with caution banner.
  Warning: Not following the operation instruction in this manual may cause great damage to you.
  Attention: Not following the operation instruction in this manual may cause injury to both you and vehicle. Regard this manual as a permanent parts, even when transfer the vehicle to other people, transfer the manual at the same time.

♦ WARNING:

• The electronics especially the controller need to be kept away from water, so be careful when you clean the vehicle.
• Make slow acceleration when at start.
• When the battery charger monitor shows under the yellow level, you must charge, or else it will bring damage to the battery.
• Keep away from the charge socket, above 72v voltage will bring damage to your body.

♦ 1. If you drive it at first time, please take training.
Avoid blinding lights at night, you must drive on guard and pay attention to the road situation.
♦ 2. Non-fatigue driving vehicle.
♦ 3. Non-use of mobile phone during driving.
♦ 4. Please adjust the seat before driving to reach the correct driving position.
♦ 5. Be careful at road crossings, parking lot, and driveway entrance.
♦ 6. Speeding easily lead to an accident, it should comply with the speed regulations, never exceed the speed limit.
♦ 7. Avoid driving through rugged road, because the road may lead to operation failure or damage to body structures.
♦ 8. Before driving electric scooter, the driver must first make inspections before.
♦ 9. Keep away from other vehicles during driving, strictly abide by local traffic regulations.
♦ 10. Please do not overload.

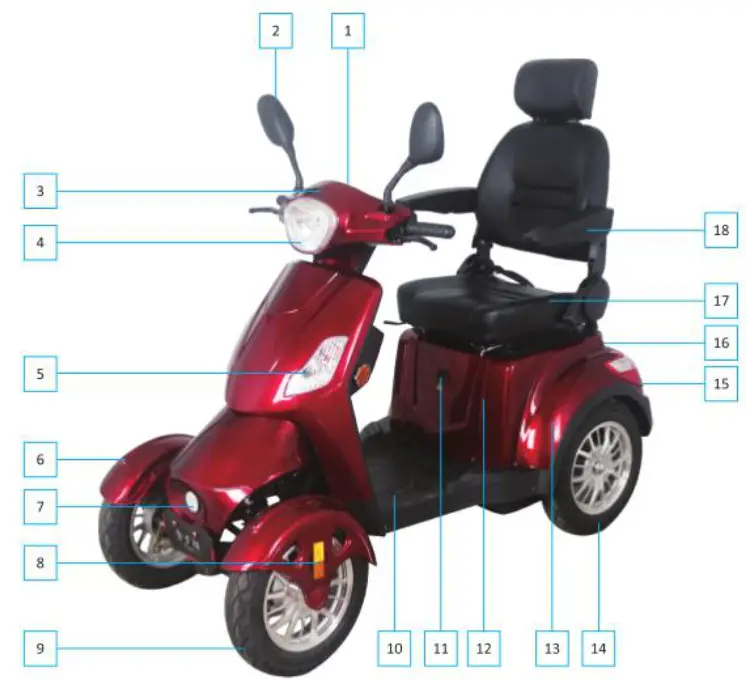

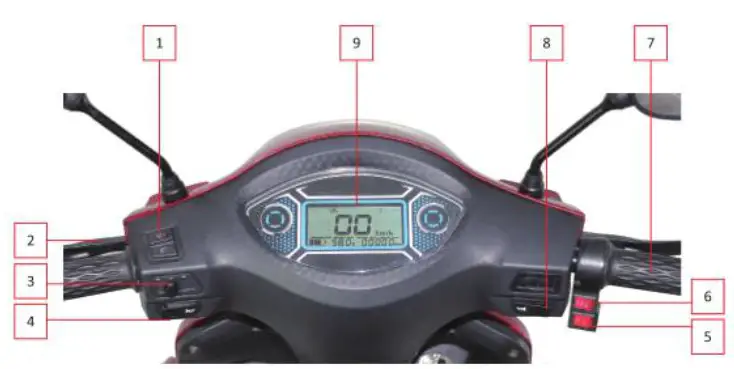

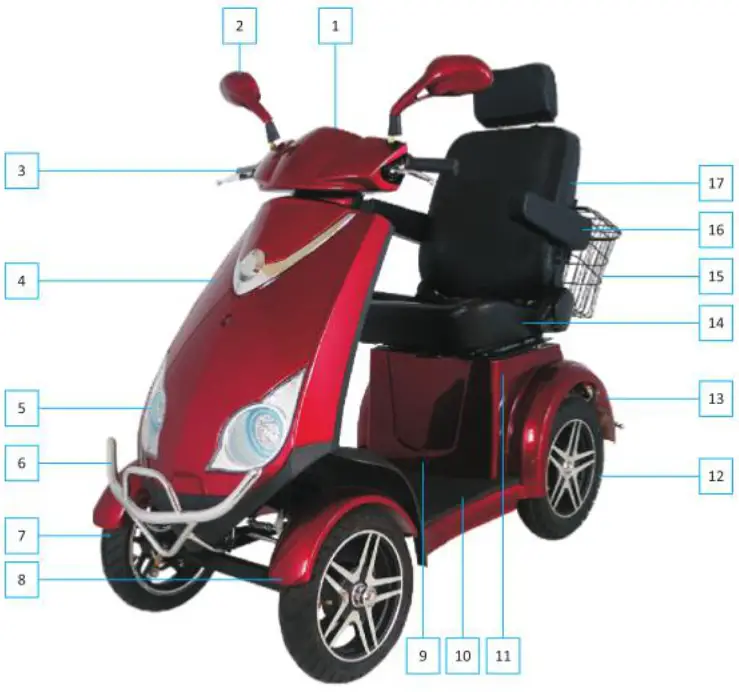

Parts diagrams

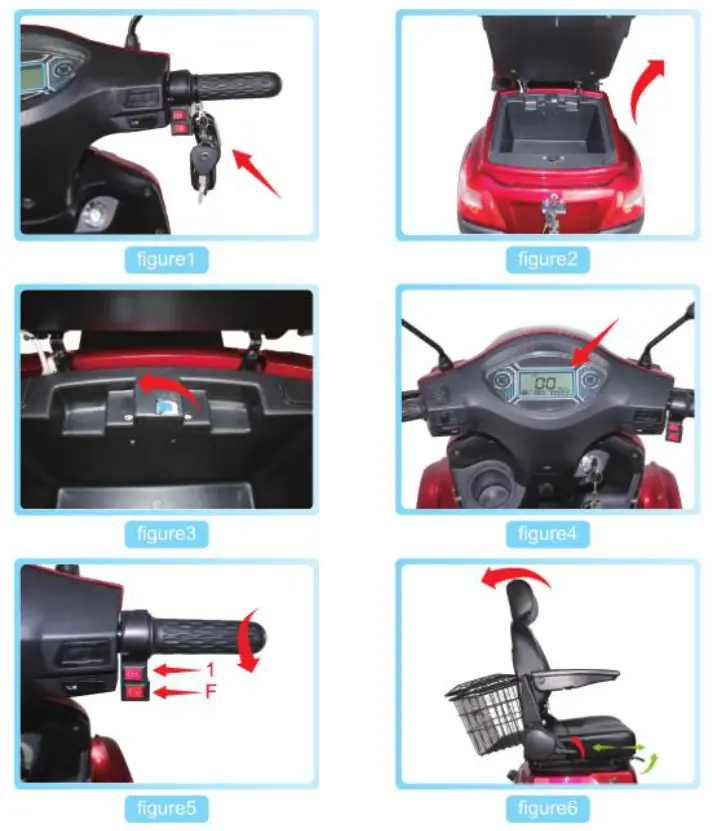

Instructions

♦ 1.0pen the packing
♦ 2. Take out the key(See figure1 )
♦ 3.0pen the rear seat lock (See figure2)
♦ 4. Turn on the power off switch (See figure3)
♦ 5. Open the electric door lock (See figure4)
♦ 6. Check whether the meter light is on (See figure4)
♦ 7. Turn the speed gears switch back to gears 1, and FR switch back to F, which is slow forward. (See figure5)
♦ 8. Adjust point 1, the lazyback will change angle. Adjust point 2, the seat cushion will move front or back. (See figure6)

You are welcome to officially embark on a pleasant electric car journey!

Operation guide

Check before riding
Please check before riding to assure safety driving.
Battery power
Turn on the switch, watch battery meter indicator, when it approaches the red mark position, vehicle should be charged.
♦ Warning:
You should regularly check the tires and adjust tire pressure.

• Check after the tire cooled.
• You should regularly check whether there is a puncture on the tire, especially tires leakage phenomenon which should repair immediately.
• Check whether the tread cuts, whether embedded nails or other sharp objects. Check whether the rim indentation, dent or deformation phenomena.
• When the tire tread wear to the tread wear limit mark, it should be replaced with new tires

♦ Warning:

• If the tire pressure sub-standard, it will make the tire surface subjected to excessive wear and tear could cause a car accident. Tire pressure which is too low will cause tire slip or prolapsed wheels.
• It is dangerous to use great wear tire, it will affect the adhesion between the tires and the road surface, resulting in difficult driving on the accident or occurrence.

1. Riding operation

• Preparation before driving: open the parking lock; put the key into the switch, turn it.
• Slowly accelerate the throttle when at start, no throttle when decelerate.

♦ Warning:
No operate throttle on-off rapidly, otherwise the vehicle will rush out without control.

2. Brake operation
• Control the throttle If you want to slow down, please close the throttle, and more important is to use two brake systems.
♦ Warning:
Drive on wet or loose surface road or in rainy days, please be careful, especially for operation of braking, accelerating or turning.
• Simultaneous operation for front and rear brakes
Attention: When driving down a steep slope, please close the throttle completely, and use two brake systems to reduce the speed.
♦ Warning:
Don’t use single brake at high speed, especially when you are on slippery road or turning corners. Use double brakes to avoid accident. 3.Stop operation Turn the switch to stop the vehicle. and lock the parking lock.
♦ Warning:
Electric scooter should be parked on solidity, flat ground; otherwise it may cause injury or vehicle consequences of dumping.
Security highlights

• Lock the parking lock, take away the key.
• Power-off when leave.
• Select high-quality alarm system.

Maintenance

The maintenance is important to electric scooter, if drive at high speed in a bad situation for a long time, must add the times of maintenance; If electric scooter have a big failure or have an accident, must check for mainly spare parts. For example: frame, indicator parts and so on. Repair or change the worn parts to make sure safety.
Notice:
To ensure the electric vehicle safety and reliability, do not allow the electric vehicles are modified. Use original parts or equivalent parts of similar quality during maintenance and replacement. If you use other parts of poor quality, it will affect the performance of electric vehicles and operating functions.
Warning:
To ensure the safety of personnel, from harm, regardless of any program of maintenance work, be sure to turn the power off, parked the car on a flat hard surface.
Attention:
If you store your vehicle more than a month’s time, or to stop using in the winter period, it is required to make maintenance work to bad tires, batteries, etc., aging and corrosion. Often driving on uneven roads, in order to hold the good performance of your vehicle, it must be maintained.
Maintenance for battery
If the vehicle will not use for a long time, please take out the battery, full charge and store it in a cool, well ventilated and dry place. If the head of battery was corroded, please take out the battery and clean it. Turn off the ignition switch before take out the battery, take apart the negative pole first. When you assemble the battery, fix the positive pole first, then the negative pole, don’t mix.

Troubleshooting

Vehicle storage

Storage

For long-term storage of the electric scooter, for example, in the winter time, some steps need to be taken to prevent malfunction and damage. Besides, before preparing storage also need to do part of the maintenance work, otherwise, once use the electric scooter, they tend to forget to carry out the maintenance.

• Replace rear axle gear oil
• Cover the electric scooter

Reuse the electric scooter

• Take off the electric scooter and clean it, please replace the rear axle gear oil if the storage period is over 4 months.
• If necessary, charge at time and put on the battery.
• Check all items before drive. Try at low speed around free traffic area.

Specifications
