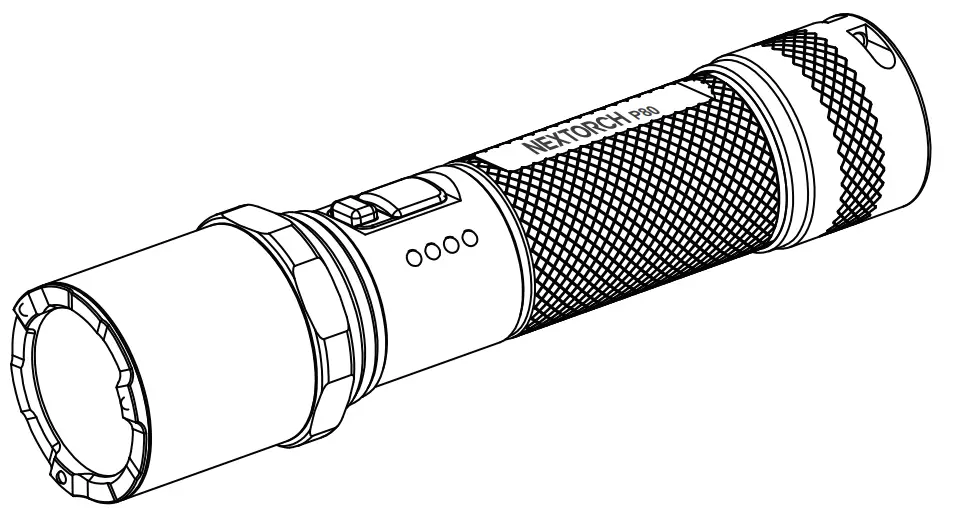

P80 One-step Strobe Duty Flashlight
User Manual
Learn More on www.nextorch.com
P80
SPECIFICATIONS
| ANSI / PLATO-FL1 | Strobe | Mid | Low | High |
 Light Output | 1300 lm | 350 lm | 25 lm | 1300 lm |
 Run Time | ― | 4 h 30 min | 60 h | 2 h |
 Beam Distance | ― | 140 m | 35 m | 280 m |
 Impact Resistance | 2 m | |||
 Waterproof | IPX7, 1 m | |||
| Weight and Dimensions | Weight: 177 g / 6.24 oz (Without Battery) Size: 150 mm (Length) × 35 mm (Head Diameter) × 28.5 mm (Body Diameter) | |||
| Body Material | Light Source: OSRAM P9 | |||
| Aerospace grade aluminum 6061-T6 with anodizing | ||||
The above tested specifications are strictly based on the standard of ANSI / PLATO-FL1. We tested P80 with 1 × 18650 (2600mAh) Lithium battery in 22°C ± 3°C. The specifications might be different when using a different battery or testing in a different environment.
FEATURES
- OSRAM P9 LED, max output up to 1300 lumens.
- A specially hardened nano-ceramic breach bezel effectively breaks glasses.
- One-step strobe and mode selection dual side switch for one-hand operation.
- Preset 350 lumens medium mode as first light pattern, more suitable for daily use.
- Type-C direct charge design.

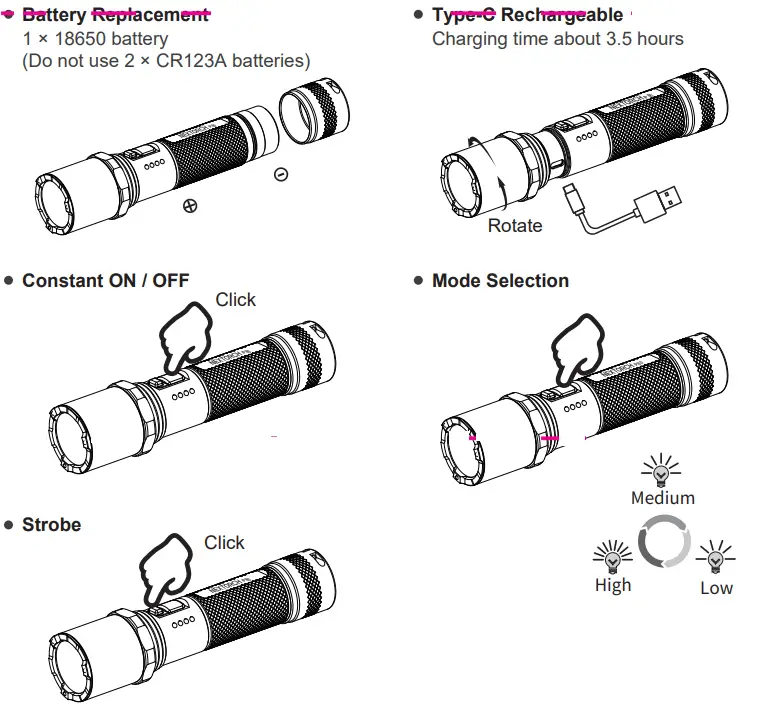

INSTRUCTION
MAINTENANCE
- Being infected with seawater or any corrosive chemicals, please rinse immediately with clean water.
- Please use high-quality batteries; Remove batteries when not working for a long time, and then store in a cool dry place.
- Replace waterproof O-ring immediately when considering the damage with use.
WARRANTY
- NEXTORCH warrants our products to be free from any defects in workmanship and/or materials for a period of 15-day from the date of purchase. We will replace it. NEXTORCH reserves the right to replace an obsolete product with current production, model.
- NEXTORCH warrants our products to be free of defects for 5 years of use. We will repair it.
- The warranty excludes other accessories, but rechargeable batteries are warranted for 1year from the date of purchase.
- In the event that any issue with a NEXTORCH product is not covered under this warranty, NEXTORCH can arrange to have the product repaired for a reasonable fee.
- You could access to NEXTORCH website (www.nextorch.com) to gain warranty service information by scanning the following QR code. You could also:
http://www.nextorch.com/en/index.php/aftersales
Email us at [email protected]
Call us: 0086-400-8300-799
OR contact your local dealer/distributor.
CONTACT WITH NEXTORCH DESIGNER
In order to improve NEXTORCH, we appreciate you could offer our designers your after-use feedback and creative suggestions by scanning the following QR code. Thank you!
https://www.facebook.com/nextorchlight
https://u.wechat.com/EGuBltiAPoaWrYHilfUcjnk
NEXTORCH, Professional's Edge
NEXTORCH Deutschland
