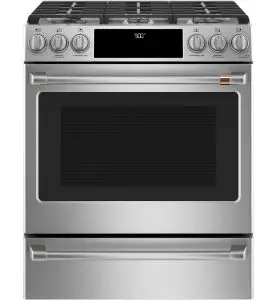

CAFE 30″ Slide-In Front Control Dual-Fuel Convection Range with Warming Drawer User Manual
FEATURES & BENEFITS
Expansive six-burner cooktop helps you entertain with ease – Entertaining for large groups is easy with the industry’s first six burner, edge-to-edge cooktop that can accommodate cookware of all sizes and a cast-iron integrated griddle that provides enough room to perfectly flip crab cakes, arepas and other crowd favorites.
An attractive appearance at all times – Every detail of your kitchen is designed to delight, thanks to a sleek backlit glass touch control panel that visually disappears when not in use and wakes up when prompted.
Share favorite creations with your favorite people – Create an unforgettable dinner, using a 21K tri-ring burner to do everything from searing scallops to simmering a lemon caper white wine sauce and a 15K power boil burner to boil water quickly for aldente angel hair pasta.
Treat yourself to the best of both worlds – Get the precision you need to pull off a multi-course dinner party with Dual Fuel, which boasts a gas-powered cooktop for precise heat control and electric True European Convection with Precise Air in the oven for even baking results.
Never scrub, smooth-glide racks – Easily remove heavy dishes with a roller rack that is specially designed to glide smoothly and stay in the oven during the self-clean cycle, so you never have to handle cumbersome racks again.
Create a look that matches your personal style – Select any combination of premium finishes and hardware options to create a stunning look customized to any owner’s taste.
Prepare foods to perfect doneness – Get roasts and meats just right with a temperature probe that lets you monitor progress without opening the oven door.
WIFI-ENABLED FEATURES
Built-In WiFi, Powered by SmartHQ App – Manage all aspects of your kitchen with the help of the SmartHQ™ App or your voice assistant.
Personalized Features + Upgrades – Usher in the latest features by downloading cooking upgrades right to your oven, putting Air Fry and more in your repertoire.
No-Preheat Air Fry – Cook healthier, crispier versions of your favorite foods in less time, thanks to an air fryer right in your oven that doesn’t require preheating, a basket or a special tray.
APPEARANCE
| Cooktop Burner Grate Colo | Matte Black |
| Installation | Power Cord Not Included |
| Oven Door Features | Big Clear View Oven Window |
| Handle | Professional Style; Customizable; Consumer Removable |
| Handle Design | Café |
FEATURES
| Configuration | Range with Warming Drawer |
| Cooking Technology | Convection |
| Cooking System | True European Precise Air Reversing |
| Oven Cleaning Type | Self-Clean with Steam Clean Option |
| Burner – Left Front | 21,000 BTU Tri-ring Burner |
| Burner – Left Rear | 5,000 BTU Precise Simmer |
| Burner – Right Front | 15,000 BTU |
| Burner – Right Rear | 12,000 BTU |
| Burner – Center | 9,500 BTU Front / 9,500 BTU Rear |
| Cooktop Burner Type | Sealed |
| Cooktop Surface | Deep Recessed Porcelain-Enamel Gray |
| Dishwasher Safe Knobs | Yes |
| Control Location | Front controls |
| Control Type | Backlit Glass Touch |
| Valves (Degree of Turn) | 270 |
| WiFi Enabled Features | No-Preheat Air Fry Voice Assistants (Google and Alexa) Scan-to-Cook Remote Control Remote Notifications Clock Sync |
| Oven Control Features | Audible Preheat Signal Automatic Oven Timer (Time Bake) Auto Oven Shut-Off Auto Self Clean Certified Sabbath Mode Chef Connect Control Lock Capability Delay Bake Option (Time Bake) Delay Clean Option Digipad Numeric Entry Electronic Clock and Timer Front Controls In-Oven Broiling Temperature Probe Self-Clean Cool Down Time Display |
| Oven Cooking Modes | Baked Goods Convection Bake Convection Roast Frozen Pizza Multi Rack Frozen Pizza Single Rack (No Preheat) Frozen Snacks Multi Rack Frozen Snacks Single Rack (No Preheat) Proof Warming 8-Pass Broil Element |
| Cooktop Burner Grate Features | Heavy-Cast Edge-to-Edge Grates |
| Cooktop Burner Grate Material | Cast-Iron |
| Cleaning Time | Variable with Delay Clean Option |
| Self-Clean Oven Door Lock | Automatic |
| Oven Rack Features | 2 Self-Clean Oven Racks 1 Roller Rack 6 Rack Positions |
| Fuel Type | 240V Electric and Natural Gas |
| Ignition System | Electronic w/Auto Reignition |
| Leveling System | 4 Leveling Legs |
| Style | Commercial |
| Oven Interior | 1 Incandescent Hidden Bake Black |
| Connected Capabilities | Amazon Alexa The Google Assistant IFTTT Nest Drop Innit DiGiorno |
CAPACITY
Total Capacity (cubic feet) : 5.7 cu ft
ACCESSORIES
| Grates | Included Center Grate |
| Grill | Optional; Integrated Cast Iron; JXCGRILL1 |
| LP Conversion Kit | Included |
| Trim Kit | Optional; JXFILLR1DD; JXFILLR1SS |
| Griddle | Included; Integrated Cast Iron |
WEIGHTS & DIMENSIONS
| Cabinet Opening | 30 in |
| Depth with Door Open | 47-1/2 in |
| Approximate Shipping Weight | 244 lb |
| Net Weight | 224 lb |
| Height to Top of Rear Vent Trim | 37-3/8 in |
| Overall Height | 37-3/8 in |
| Height to Cooking Surface (in.) | 36-1/4 +/- 1/4 |
| Overall Width | 29-7/8 in |
| Cabinet Width | 30 in |
| Overall Depth | 29-1/2 in |
| Depth Without Handle | 26-7/8 in |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19-7/8 x 20-5/8 |
POWER / RATINGS
| Amp Rating at 208V | 30 |
| Amp Rating at 240V | 30 |
| Bake/Broil Wattage – Main Oven | 2850/4000W |
| Convection Wattage | 2500W |
| Top Burner BTU Rating – LP (000’s BTU’s) | (1) 18.0 Tri-Ring; (1) 15.0; (1) 12.0; (2) 9.5; (1) 5.0 |
| Top Burner BTU Rating – Nat. Gas (000’s BTU’s) | (1) 21.0 Tri-Ring; (1) 15.0; (1) 12.0; (2) 9.5; (1) 5.0; |
| Volts/Hertz/Amps | 208/240V; 60Hz; 30A |
| Power Connection | Power Cord – Not Included |
WARRANTY
| Parts warranty | Limited 1-year entire appliance |
| Labor warranty | Limited 1-year entire appliance |

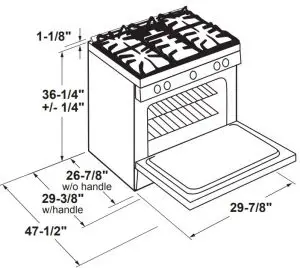

DIMENSIONS
Electrical Requirements: 240v/208v; 60Hz, 30A

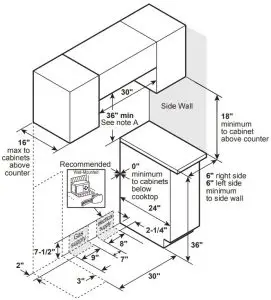

Installation information: Before installing, consult installation instructions packed with product for current dimensional data.
For all installations, install the required rear trim to back of range with 4 screws provided.
Note A: 36″ Minimum to bare cabinet, see installation instructions for heights less than 36″.
ADDITIONAL ACCESSORIES

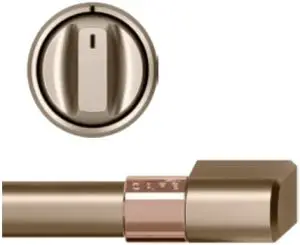

- CXFCGHKPMBZ Brushed Bronze 2 handles; 6 knobs

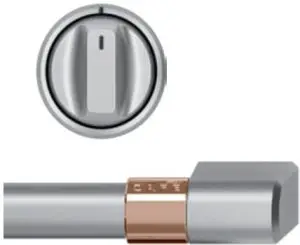

- CXFCGHKPMSS Brushed Stainless2 handles; 6 knobs

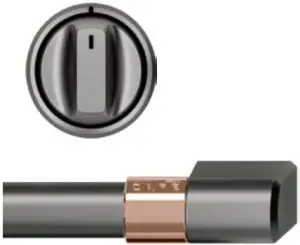

- CXFCGHKPMBT Brushed Black 2 handles; 6 knobs
- CXFCGHKPMCU Brushed Copper 2 handles; 6 knobs
For answers to your Café™ product questions, visit our website at cafeappliances.com.
