X6815C Smartphone
User Manual
Explosion diagram specification
| 1 | CTP+LCM 6.78FHD | 2 | F HSG ASM |
| 3 | PCBA MB | 4 | CAM FF 16M |
| 5 | REC | 6 | FPC SIDEKEY |
| 7 | FM | 8 | REC DECO PART |
| 9 | SHIELD FOIL B | 10 | LCM CON FOAM C |
| 11 | REC COP FOIL | 12 | GLA CAM LENS 50M |
| 13 | GIA CAM LENS 2M | 14 | HEAT CON COPPER PIPE |
| 15 | CAM AF 50M | 16 | CAM FF 2M |
| 17 | CAM FF 2M | 18 | FPC MAIN |
| 19 | RAD FILM MI HSG | 20 | RAD FILM FHSG |
| 21 | RAD FILM PCBA | 22 | R VICECAM CON FOAMS 2M |
| 23 | R CAM RUBBER 2M | 24 | WIFI GPS MYLAR |
| 25 | SHIELD FOIL A | 26 | MI HSG |
| 27 | MACHINE SCREW M1.4*L3.5 | 28 | MC SCREW M1.4*L2.5 |
| 29 | CP B-COV ASM | 30 | BAT |
| 31 | PCBA SUB | 32 | SPK |
| 33 | DOWN FRAME ASM | 34 | F HSG HEAT PIPE MYLAR |
| 35 | R CAM FOAM 50M | 36 | DN FRA SCREW MYLAR |
| 37 | R CAM FRAME ASM | 38 | C-HOLDER |
| 39 | MAIN WATERPROOF MYLAR | 40 | MOTOR CON FB |
| 41 | MAIN FPC WATERPROOF RUBBER | 42 | BAT CONN WATERPROOF RUBBER |
| 43 | LCM CONN WATERPROOF RUBBER | 44 | F CAM COP FOIL |
| 45 | DN SPK FRAME ADS | 46 | RUBBER AUDIO JACK |
| 47 | RUBBER USB | 48 | FE ANT NFC |
| 49 | COA CABLE I | 50 | COAXIAL CABLE ECT S |
| 51 | F CAM FRAME ASM |

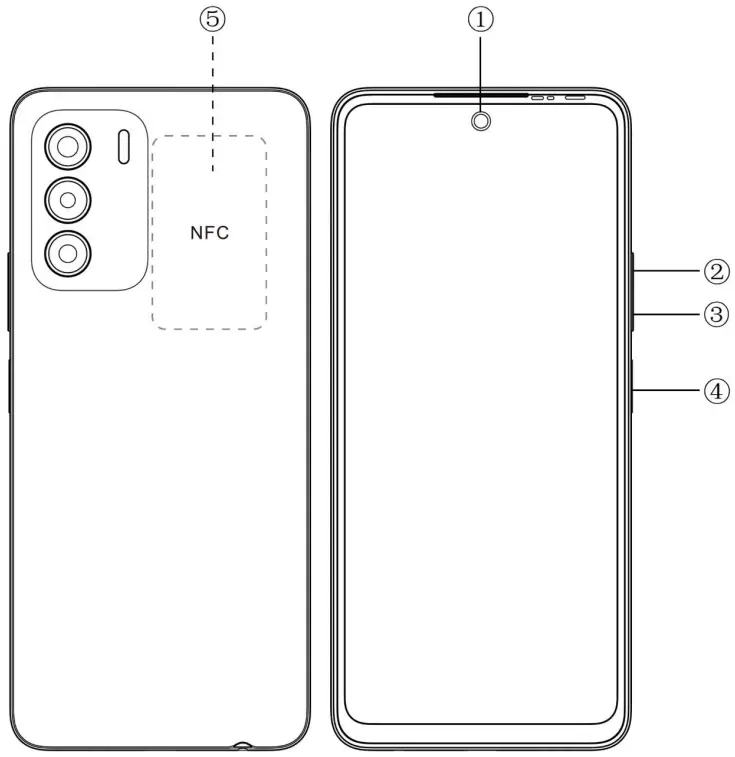

Know your phone
- Front camera
- Volume + key
- Volume – key
- Power key & side fingerprint sensor
- NFC

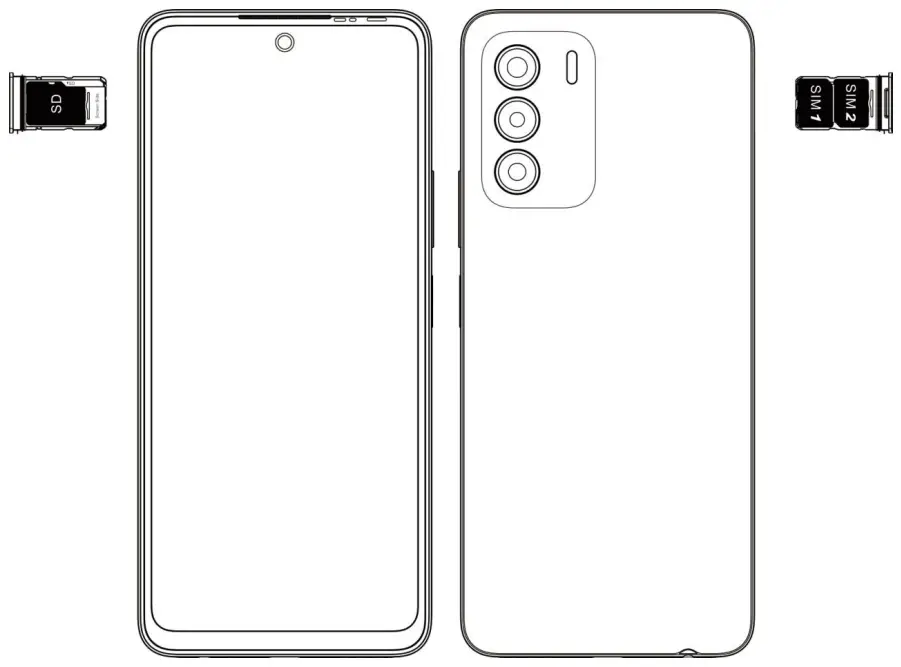

SIM/SD card installation
- Power off mobile.
- Refer to the following picture for SIM / SD card installation.

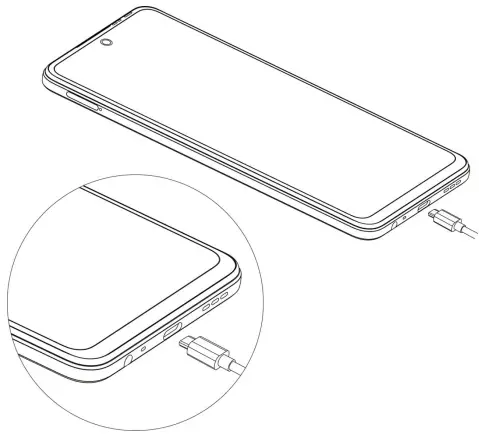

Charging the phone
You can charge your device using a charger or by connecting it to the computer using a USB cable (comes with the phone).
Use only INFINIX charger and cables. Other chargers or cables may damage the device. This will invalidate your phone warranty.
FCC Caution
Labelling requirements.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
- This device may not cause harmful interference.
- This device must accept any interference received, including interference that may cause undesired operation.
Information to user.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Information to the user.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Specific Absorption Rate (SAR) information:
This mobile phone meets the government’s requirements for exposure to radio waves. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons regardless of age or health.
FCC RF Exposure Information and Statement The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. Device types: X6815C (FCC ID: 2AIZN-X6815C) has also been tested against this SAR limit. The highest SAR value reported under this standard during product certification for use at the ear is 1.244 W/kg and when properly worn on the body is 0.850 W/kg. This device was tested for typical body-worn operations with the back of the handset kept 10 mm from the body. To maintain compliance with FCC RF exposure requirements, use accessories that maintain a 10 mm separation distance between the user’s body and the back of the handset. The use of belt clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that does not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided.
Body-worn Operation
This device was tested for typical body-worn operations. To comply with RF exposure requirements, a minimum separation distance of 1.0 cm must be maintained between the user’s body and the handset, including the antenna. Third-party belt-clips, holsters, and similar accessories used by this device should not contain any metallic components. Body-worn accessories that do not meet these requirements may not comply with RF exposure requirements and should be avoided. Use only the supplied or an approved antenna.
For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries.
© DTS, Inc. All Rights Reserved.
Operating System: Android ™
Android is a trademark of Google LLC.
