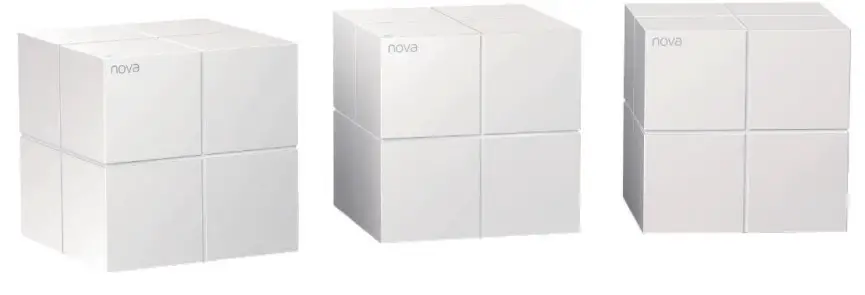

nova Whole Home Mesh WiFi System
Owner’s Manual
nova is powered with mesh technology, a set of three units that covers homes up to 6,000 square feet with strong Wi-Fi signals. Smart Auto-path Selection Technology to ensure a robust wireless network and maximize a faster home internet.

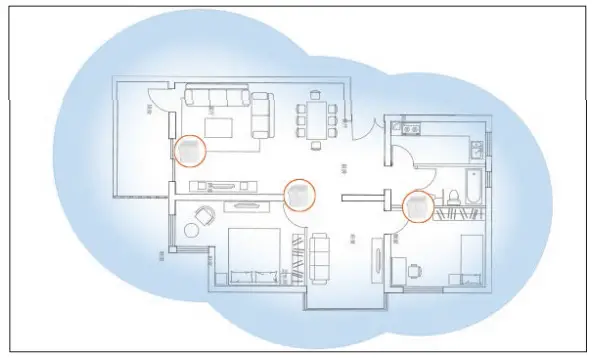

Reliable whole-home WiFi
A single nova covers up to 2000ft², while a pack of three can reach up to 6000ft². nova’s mesh technology provides a lag-free experience by navigating your connection through the optimal band
Plug n Play
Straight out of the box, nova units arrive paired to each other. Just plug in the cables and leave everything else to nova

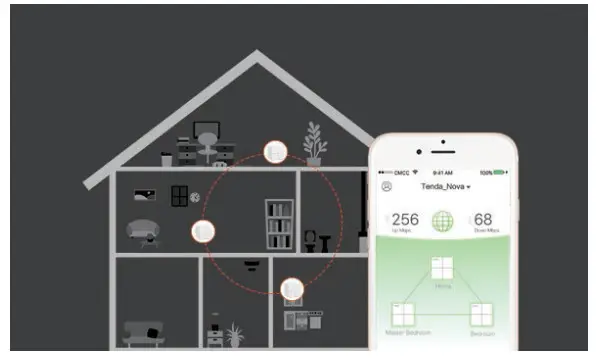

Network assistant at your fingertips
The Tenda App helps you customize and manage your network and come with features such as password management, network access control and parental control
The center of your smart home
nova can handle simultaneous connections from multiple devices and also works with Alexa to control your compatible devices.
Features:
- Based on mesh technology
- Supports seamless WiFi roaming
- Plug & play
- Support Amazon Alexa
nova MW6 Specifications
| Hardware Specification | |
| Standards | IEEE802.3, IEEE802.3u |
| Interface | 2 Gigabit Ethernet ports per mesh point; WAN and LAN on primary mesh point both act as LAN ports on additional mesh points |
| Antenna | 2*3dBi dual band antennas |
| Button | 1 reset button |
| Power | Input: 100-24W-50/60Hz, 0.6A Output: DC 12V==1A |
| Dimensions | 100 x 100 x 100mm(3.1 x 3.1 x 3.1in.) |
| Wireless Features | |
| Wireless Standards | IEEE 802.11 ac/a/n 5GHz IEEE 802.11b/g/n 2.4GHz |
| Data Rate | 5GHz: Up to 867Mbps 2.4GHz: Up to 300Mbps |
| Frequency | Simultaneous dual-band 2.4GHz & 5Gliz |
| Basic Features | SSID Broadcast Beamforming Support MU-MIMO |
| wireless Security | WPA2-PSK(default) |
| Wireless roaming | Comply with IEEE802.11v/r |
| Software Features | |
| Internet Connection Type | PPPoE, Dynamic IP, Static IP, Bridge Mode |
| DHCP Server | DHCP Server DHCP Client List |
| Virtual Server | Port Forwarding UPnP |
| Firewall | Forbid UDP flood attack Forbid TCP flood attack Forbid ICMP flood attack |
| DNS | Support manually setting the DNS server |
| VPN | IPsec pass-through PPTP pass-through L2TP pass-through |
| Others | Parental Control Guest Network Firmware upgrade online Reset to factory settings |
| Setup Requirements | A mobile device running Android 4.0+ or iOS 8+ |
| Others | |
| Temperature | Operating Temperature: 0℃ ~ 40℃; Storage Temperature: -40℃ ~ 70℃ |
| Humidity | Operating Humidity:10% ~ 90% RH non-condensing; Storage Humidity: 5% ~ 90%RH non-condensing |
| Certificates | FCC, CE, RoHS, EAC, IC |
| Package Contents (3-pack) | 3 identical mesh points 3 power adapters Quick install guide 1-gigabit ethernet cable |
| Product weight(1 unit) | 410g/unit |
| Package weight(3-pack) | 2.05kg/kit |
| Package dimension(3-pack) | 357*175*115mm |
| Carton dimension(3-pack) | 445*380*365mm |
