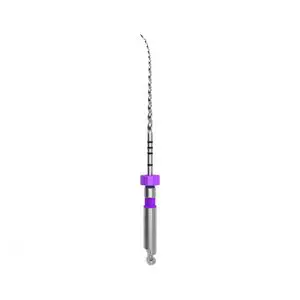

FANTA AF CL Instructions

Instructions for use

[Cleaning, Disinfection and Sterilization]:

The product is provided in a non-sterile state; it is single use device.
It is required to be processed before each use by following Step-by-Step instructions, with steam
sterilization at 126℃ for 30 minutes.
Step-by-Step instructions:

Steam sterilization at 126℃ for 30 minutes;
Rinsethe device with Normal saline (0.9% NaCl) for 10 seconds;
Dry the device with a dental air gun;

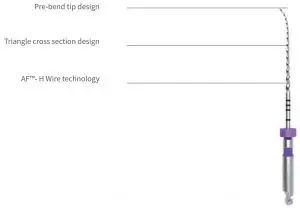

1st special file system for correcting ledges.

1st special file system for correcting ledges.
The concept AFT” CL system is to remove the ledge progressively into a straight pathway; this is done by inserting the pre-bend files manually to cross the ledge, then attach the Endomotor to thefile.
The movement of Endomotor is reciprocation:
CW90-150.
CCW30.

Insert file #10/0.06 manually until crossing the ledge.
Attach the Endomotor to the file while the file is in the cana
Set the Endomotor on reciprocating movement with the followings angles (CW 90-150, CCW 30).
With the reciprocating motion, move the file I pecking motion (in and out motion) for 2-3 mm.
Irrigate the canal.

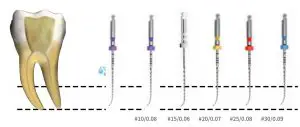

Repeat the steps (1-5) respectively for other files in order (10/0.08, 15/0.06, 20/0.07, 25/0.08 then 30/0,09).
Insert K file to working length to ensure the patency of the canal.

SHANGHAI FANTA DENTAL MATERIALS CO.,LTD
Room 1302,Building 2,N o.6965 Pu Xing Rd.,Qingcun
Town,Fengxian Di st,201414 Shanghai Chin a
+0086-2164033133
WWW.FANTA-DENTAL.COM
