3-IN-1 Wireless Charger ( Foldable)
User Manual

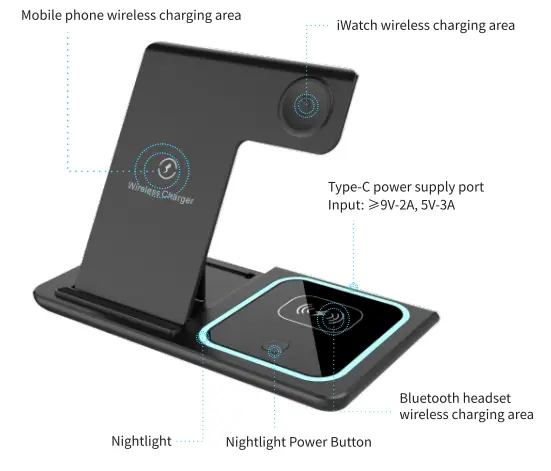

Product Description
This device is a 3-IN-1 fast wireless charger which can support power charging for QI compatible mobile phone/iWatch/TWS bluetooth headset. Also nightlight design is special and more practical. Foldable design make it more convenience to carry Fast wireless charging is available for both of folded and open situation, and you just need to put the device to be charged on the charging area. Mobile phone could be placed in both of vertical position and horizontal position, and you could make video chatting or watch your favorite movie as you want while charging.
Specifications
| Name | 3 in 1 Wireless Charger |
| Using Type | Foldable |
| Material | Plastic +Acrylic |
| Colour | Black |
| Charging Port | Type-C |
| Input Current | >9V-2A,5V-3A |
| Phone Output | 15W/10W/7.5W/5W |
| Watch Output | 2.5W |
| Headphone Output | 3W |
| Adapter | 9V-2A, 5A-3A |
| Inch | 165’141.3*13mm |
| Compatibility | Support Qi compatible mobile phones, Bluetooth headsets, Apple Watch |
| Product List | Wireless charger xl, charging cable xl, manual xl |
Operation Steps
- Please firstly power on the device by our provided power cable.
- Turn on / off nightlight by the nightlight power button.
- When charging devices such as mobile phone, iWatch or bluetooth headsets, just place these devices on the charging area and they will be charged only after 0.1 seconds. When the devices are full charged or you want to terminate charging, just take them away from charging area.

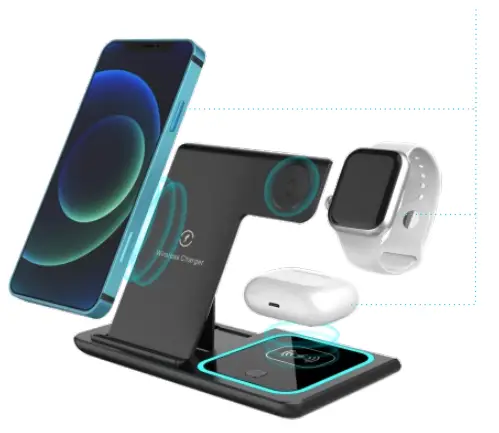

Wireless charging for mobile phone, iWatch and TWS bluetooth headsets

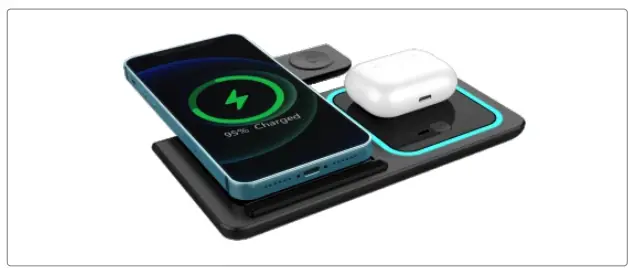

Wireless charging for mobile phone and TWS bluetooth headsets when the device is folded

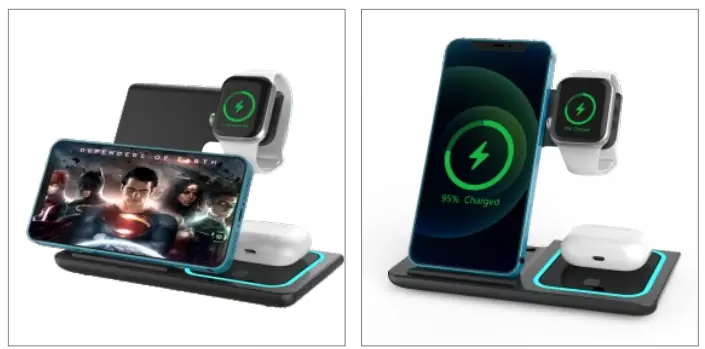

- When the device is open, the mobile phone could be charged in horizontal or vertical direction.
Precautions
- It is forbidden to immerse the device in water to avoid short circuit of the internal circuit.
- It is forbidden to disassemble or beat the device by yourself to avoid to damage the device.
- Please place the device away from flammable and explosive liquids, gases or explosives.
- Do not place magnetic cards, magnetic stripe media and precision machinery too close to the device.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Radiation Exposure Statement
This device complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co‐ ocated or operating in conjunction with any other antenna or transmitter. During the operation of device a distance of 15 cm surrounding the device and 20 cm above the top surface of the device must be respected.
