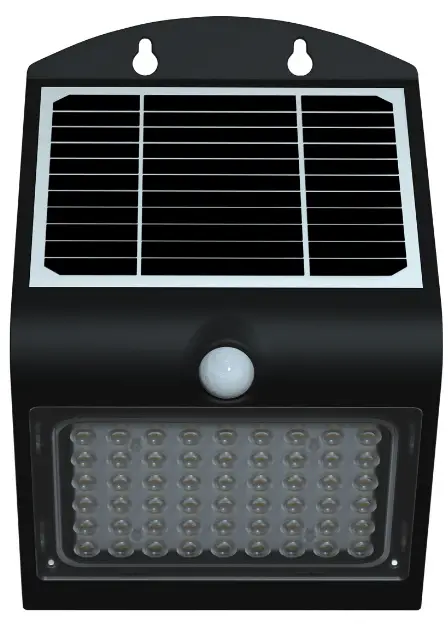

FLINQ 8720168686787 Solar Lamp Atalanta
Specifications
| Product Name | FlinQ Solar Lamp Atalanta |
| Power | 4W |
| Brightness | 500lm |
| LED | SMD2835*56 PCS (Front 54 PCS + Back 2 PCS) |
| Li-ion Battery | 1200 mAh/3.7V (replaceable) |
| Solar Panel | 2.4W, DC5.5V, Mono with tempered glass |
| Working Modes | Two Optional Working Modes |
| Charging time | 12-15 hours to fully charge |
| Lighting time | Sensor Mode: 35 hrs+ (based on 300 times of detec- tions) Keep Lighting Mode: 30 hrs+ (based on 200 times of detections) |
| PIR Detection Angle/ Distance | 120/2-6meters |
| IP Degree | IP65 Waterproof |
| Housing Material | ABS+PC, anti-UV |
| Installation Height | 2-4 meters |
| Working temperature | 20C-+50C |
| Storage temperature | 0-45C |
| Warranty | 24 months (battery 12 months warranty) |
| Packing | Color Box (1x Solar Light, 1x Accessory bag, 1x User manual, 1x Measure card) |

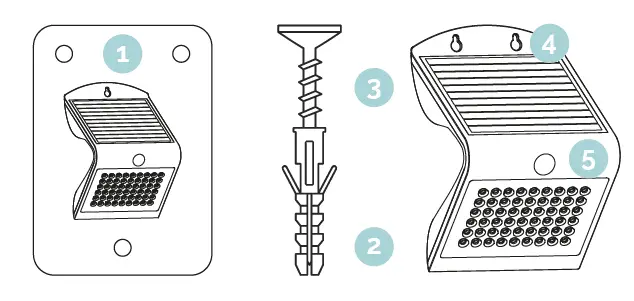

Installation
- Hole
- Expansion Plug
- Screw
- Mounting Holes
- Button (back of the device)

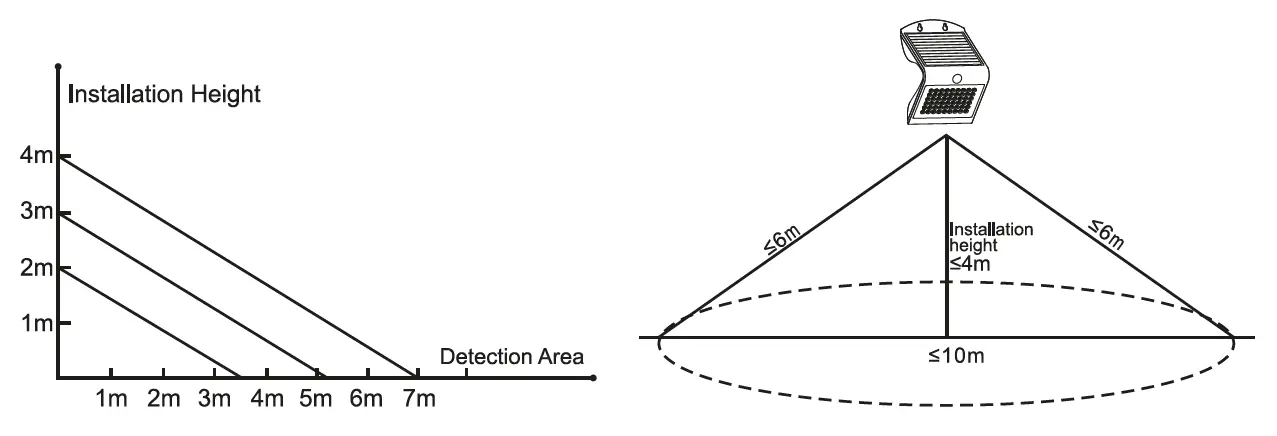

- The recommended installation height is 2-4 meters.
- Please use the measuring card to mark holding positions and drill 3 holes of 6 mm.
- Install 3 expansion plugs into the holes.
- Install 3 screws in the expansion plugs, and allow the screws to protrude slightly.
- Align the lower notch on the back of the light with the lower screw and align the holes at the top of the light with the upper screws to fix the light well.
- Press the button on the back of the light to turn on the light and select the desired working mode.
Two Optional Working Mode
Mode A: Sensor mode
Press the button first time, the back light flashes once to enter sensor mode
When battery power is greater than 30%:
Lamp automatically lights up at night and turns to full brightness when motion is detected within the range of <6 meters, then dims to lower brightness (front light and back light both on) after 20 seconds of no motion.
When battery power is less than 30%:
Lamp automatically lights up at night and turns to full brightness when motion is detected within the range of <6 meters, then dims to lower brightness (front light off, only back light on) after 20 seconds of no motion.

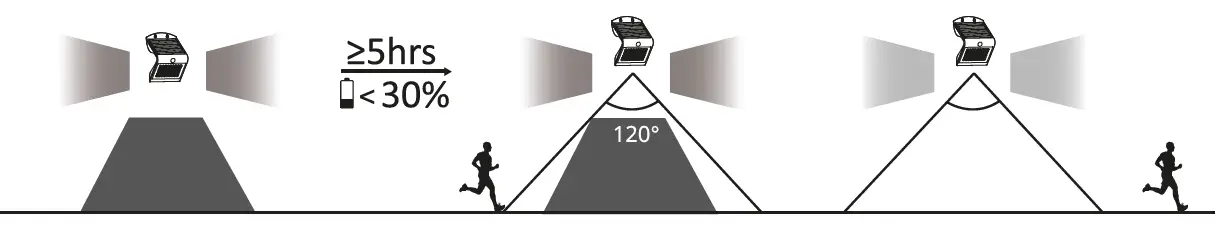

Mode B: Keep Lighting Mode
Press the button for the second time, the back light flashes twice. It’s keep lighting mode.
Lamp automatically lights up at dusk and remains 50% brightness. After 5 hours or when the battery power is less than 30% it turns to energy saving mode, which is lamp automatically turns to 50% brightness when motion is detected within the range of <6 meters, then dims to lower brightness (front light off, only back light on) after 20 seconds of no motion.
Mode C: Off
Press the button for a third time and the lamp will turn off.
How to replace battery

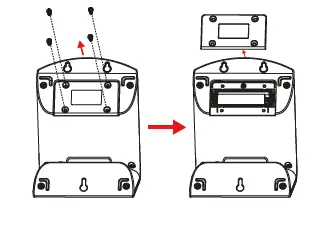

- Loosen the screws, open battery cover.

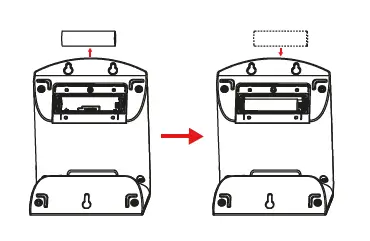

- Remove old battery, change new battery and connect positive and negative electrode correctly (18650, 3.7V, 2000mAh, 7.4Wh)

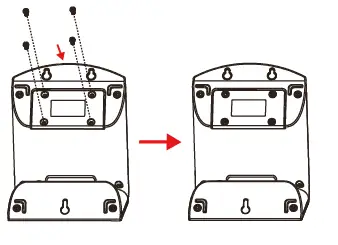

- Then install back the cover, lock the screws.
Warnings
- This is a solar-powered lamp, please install it in a location where there is enough sunlight.
- Please note the lighting time depends on sunshine duration & weather & working mode.
- The lamp will automatically light up in the dark.
- Built-in intelligent IC is equipped with over-charge, over-discharge and over-voltage protection, safe and durable.
- The lamp is equipped with an internal Li-ion battery, which is replaceable. If any need, please contact seller for new battery(18650, 3.7V, 2000mAh, 7.4Wh).
- If the battery is taken out and put back in or replaced with new ones, please place the solar panel towards the sunlight to activate the lamp.
- Non-professionals please do not disassemble the lamp.
- Please do not dispose the battery with household garbage to avoid explosion
