MULTI-BEND LED STRIP LIGHT
Model: FA60S28-5M-12V-X (X = COLOR R:Red, B: Blue)

IMPORTANT INSTRUCTIONS

Never Nail or use Staples	The only power with 12VDC Class 2 Power Source	Never apply weights or walk on strips	Apply to the surface at room temperature. Keep away from flammable materials. Surface temperature MAX 40°C (104°F). Don’t install under, above, or near heat sources (i.e. stoves, fireplaces

SAFETY & WARNINGS

Please read the instructions before using the product and SAVE THESE INSTRUCTIONS. Before using this product make sure you have the right color, product (item number), and voltage (printed on the product). Check for the possibility of damage during shipping. If damaged, or wrong product, do not use. Disconnect power before installing or using.
Use only with Class 2 Type power supply. Using any other type of power supply will void the limited warranty.

Use only with LED World’s Class 2 Type power supply.
Indoor use, Dry locations. Do not expose LED Flex Strip to moisture.
Disconnect power before installing or servicing (at breaker point).
This product is intended to be installed and serviced by a qualified licensed electrician. Install in accordance with the National Electric Code, and local regulations. Only power with a (listed) constant voltage Class 2 power supply (12V DC).
Never plug into 120V AC. The product requires an optional class 2 Transformer (Power Supply).

• Do not power when rolled. Lighting must be installed in a straight line on a flat surface. Do not curl or twist and roll out completely straight before applying power.
• Only install on smooth flat surfaces free of burrows that are fire retardant.
• The product has adhesive tape on the back. Adhesion can only be made once and the LED strip must fully adhere to the surface (flush). Failure to do this step will damage the product. Rigidly support wires with wire clamps.
• During installation, do not damage the printed circuit. Exposed wires can cause short circuits to damaged products and create a serious hazard. Do not mount in a manner or support LED Strip light in a manner that can damage the outer jacket or cord insulation. Do not install this lighting system where the exposed bare conductors can be shorted or contact any conductive materials. Carefully check that there is no wire cross-over or possibility in the future in the area of installation.
• To reduce the risk of fire and overheating, make sure all connections are tight.
• The product is sold in the maximum length. Do not exceed or extend the length of the roll.
• Only qualified electricians or engineers can perform installation familiar with low voltage wiring techniques. Correct polarity is imperative (+/- is marked on the printed circuit). Parallel connection only.
• DO NOT install on flammable material or possibility of in the future. Do not install any luminaire closer than 6 inches (15.25 cm) from any curtain, or similar combustible
  materials.
• The light and all its components cannot be mechanically pressed. Never apply to surfaces above 40c (104F).
• Voltage must not exceed 12VDC and must be regulated. The Voltage is printed every 3 LEDs. Check that it is the correct voltage before applying power.
• This is not a toy. Keep out of children’s reach.
• Keep Flex-strip spaced ¾” apart if placed next to each other.
• LED Flex Strip is bendable on one flat widest plane. The maximum bend radius is 4 inches (100mm) on one plane (flat).
• Not for use in mission-critical, aircraft, emergency signs, or lifesaving equipment.
• Static electricity can damage LED(s). Handle with care.
• Inspect installation after one hour and thereafter regularly.
• For stationary use only and not subject to possible pressure or movement (or in the future).
• Not for in-wall use.
• Max. The soldering temperature cannot exceed 250°C (482°F) for a max of 4 seconds. Use 22~20 AWG wire to connect.
• Use correct wiring as required by the local electrical code. Use a 20 gauge wire to attach to the strip by solder (2464 type of wire). Connection to a power source may use Wago™ 222-413 in hardwire applications.
• Cable lighting systems not be installed in bathrooms.
• Conductors of extra-low-voltage circuits are rigidly supported.
•  Conductors not be installed in contact with combustible materials and not run through walls, ceilings, floors, or partitions, and; Uninsulated conductors not be installed less than 2.2 m (86”) from the floor.
• Do not stare directly into the LED Light. Install LED lighting out of direct sight.

THREE-YEAR LIMITED LIGHTING WARRANTY
LED WORLD INC. warranties this product for three years (some exceptions may apply) from the date of shipping unless otherwise noted in writing. This warranty is expressly in lieu of all other warranties expressed or implied. Under this Limited Warranty, the obligation of the company is limited to replacing on a prorated basis, at its option, any component found to be defective. This Limited Warranty does not apply to damage caused by the buyer or alteration to the product or incorrect power supply. Factory warranties are covered by the original manufacturer and claims must be submitted to them. This product must be used with LED World’s class 2 power supply. Failure to do so will void the limited warranty.
LED World Inc. And its providers will never be liable to you or any other person for any indirect, incidental, consequential, special, punitive, or exemplary loss or damage arising from, connected with, the purchase of products, including but not limited to loss of data, business, markets, cost of labor, savings, income, profits, use, production, reputation or goodwill, anticipated or otherwise, or economic loss, under any theory of liability (whether in contract, tort, strict liability, or any other theory or law or equity), regardless of any negligence or other fault or wrongdoing (including without limitation gross negligence and fundamental breach) by led world inc or any person for whom led world inc is responsible, and even if led world inc has been advised of the possibility of such loss or damage being incurred.
If a product is defective, we will replace the product with a similar or identical product or at our option a credit towards a future purchase. To make a claim under this warranty, obtain a return authorization number.

INSTALLATION PLANNING

LED Flex-strip is a versatile lighting product that can provide a superior lighting solution in a variety of applications.
Recommend design steps before starting the installation process:
General questions based on lighting requirements:

• Where will your power supply be located
• How will you switch your LED lighting ON and OFF?
• What is the best layout configuration for your installation with wiring consideration?
• How will you run your wiring to your LED strip lighting?

FLEX STRIP CONNECTION

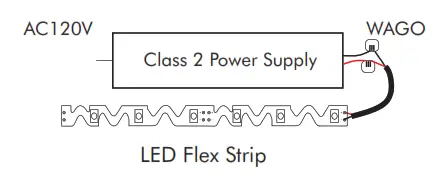

Wire connection using WAGO block connectors

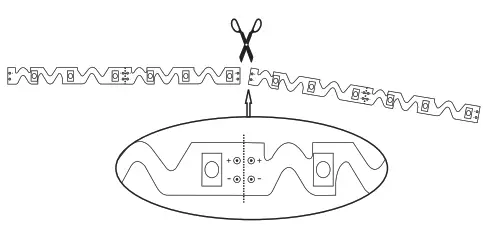

Cut instructions

Note Polarity Marks Polarity marks must match ((+) to(+) and (-) to (-)) otherwise, the strip will not work

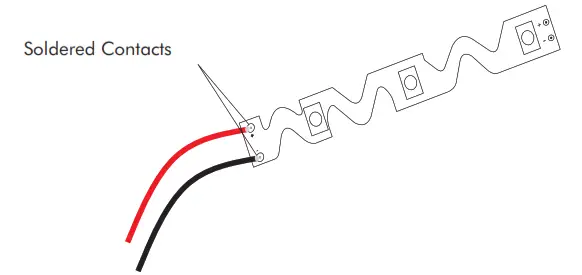

Solder Connection Points

Solder connection points are at marked intervals.

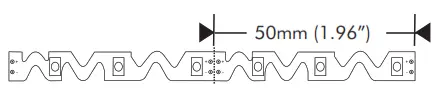

Cut points are at every 3 LEDs (12VDC)

MOUNTING NOTE
LED Strip is equipped with 3M self-adhesive tape. Mount strips on a clean (no wax/oil), dry, smooth, burrow-free surface. Adhesion can be made once and the LED Strip must fully adhere to the surface.

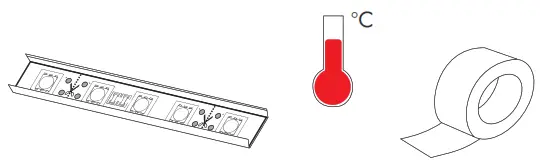

Use Aluminum profile or aluminum heat sink tape to avoid overheating, ensure proper heat dissipation and extend the life of the LED

WIRING FOR VOLTAGE DROP
Voltage drop is a normal loss of voltage that occurs as power flows along a wire connection in a low voltage system, and increases as the length of a wire connection are increased. Wire length and thickness as well as total light wattage influence the amount of voltage drop.

Recommended maximum wire lengths – 12VDC

https://play.google.com/store/apps/details?id=com.magntiudeinc.magnigauge&hl=en\nQR-Code:
https://itunes.apple.com/app/magnigauge/id697974788?mt=8\nEAN-13:0067198000069
Download the Magnitude app for voltage drop calculations:

WATTAGE CALCULATION

The LED Flex Strips have a label on each roll that indicates the voltage and wattage. You must have the correct Class 2 Power Supply (Transformer)  for the LED Strip model. To calculate the wattage, measure the total length of the LED Strip in your run multiplied by the wattage of the LED Strip. Remember that a power source should only operate at a maximum of 80% of its rated capacity.
For example : 10 feet of FA60S28-5M-12V-W x 1.8W = 18 Watts
Never Extend the Length of rolls. Rolls are sold in their max length.

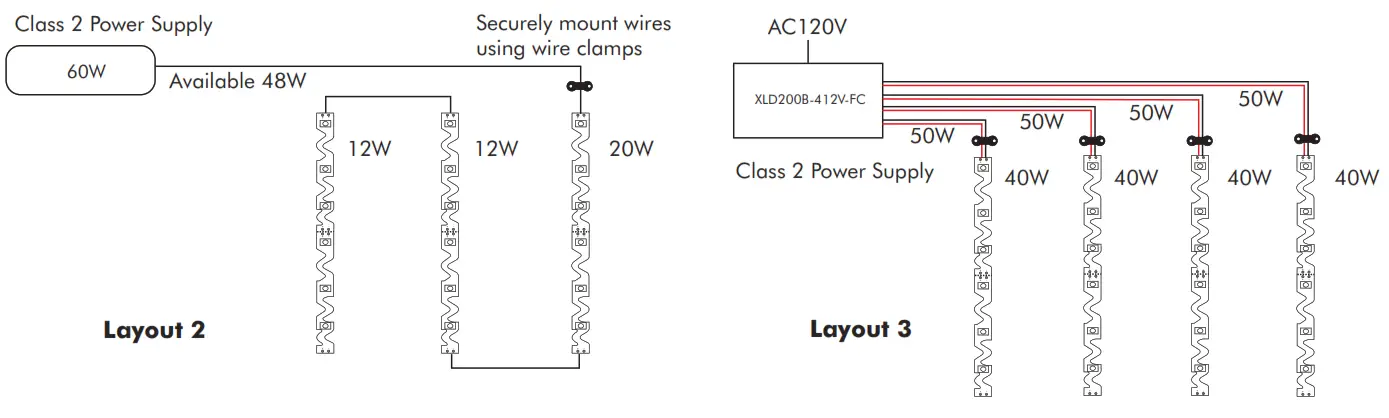

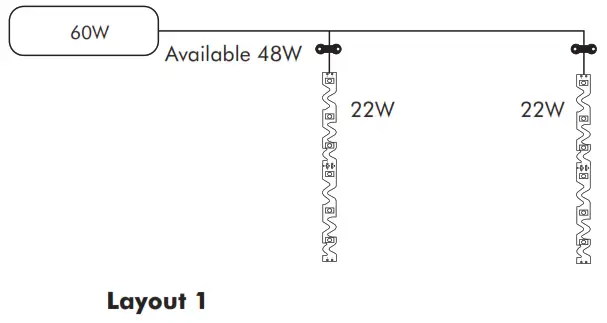

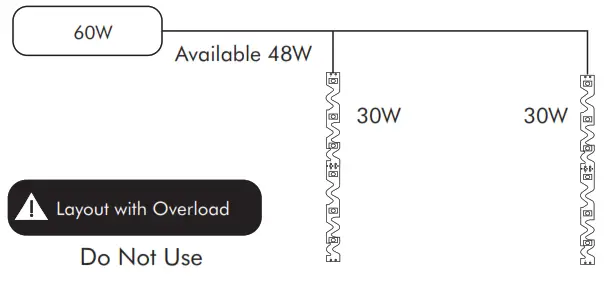

LAYOUT OPTIONS
Note: Always check the Wattage of your LED Strip or Fixture.
Power Supply Wattage x 0.8 = Available Wattage

Class 2 Power Supply	Class 2 Power Supply

POWERING OPTION

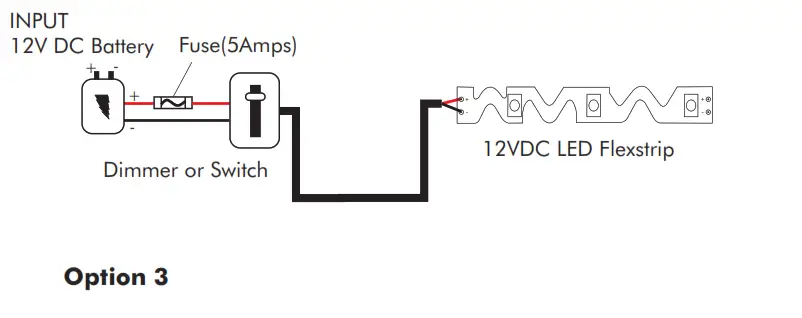

If powered directly by a 12V DC Battery Source, a 5amp-listed fuse is required on the positive wire (+) near the battery source and before the switch or dimmer.

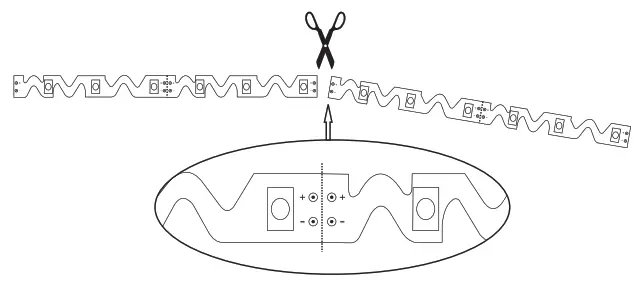

CONNECTION OPTION	LED STRIP CUTTING
Connect LED light strips with our optional strip connectors. Please refer to our quick connector instruction sheet included with the connector bag. However, it is strongly recommended to solder the connection.	Our strips come with a cut mark sign. Strips are cuttable at every 3 LEDs. Cut marks lying between a set of soldering points.

TROUBLESHOOTING

The tape light strip does not light

•  Make sure your power supply is turned on and has the correct voltage.
• Confirm you have the correct polarity (+ to + and – and -) throughout the run of LED Lighting.
• Have an electrician check all connections and any switch or dimmer connections from the power supply to the LED Light Strips.
• Consider testing with a multimeter to ensure the light strip is receiving 12V power.
  LED Flex Strip lights to blink on, then go off
• The power supply is not adequate for the length of LED Light Strips you are powering. Install an adequate Class 2 power supply.
  LEDs farthest from the power supply are noticeably dimmer
• This is the result of a voltage drop. Decrease the length of the 12V power feed or use thicker power feed wires between the 12V power supply and the lighting strips.

IMPORTANT!

Apply 1 ½” long electrical heat shrink over all connection points. Secure connection wire with a wire clamp.

MAXIMUM FLEX STRIP LENGTH SUPPORTED BY LED WORLD’s CLASS 2 POWER SUPPLY

Power Supply	Max Feet of LED Flexstrips	Power Supply	Max Feet of LED Flexstrips
MD-012-030VTDHV2	13.3 Feet (Continuous 24 Watts)	MD-012-060VTDHV2	26.6 Feet (Continuous 48 Watts)
MD-012-180VTD52JV2	3 X 26.6 Feet (Continuous 48 Watts each channel)	MD-012-300VTD52JV2	5 X 26.6 Feet (Continuous 48 Watts each channel)

LED World Inc. | #130 10615 48 ST SE | CALGARY, AB T2C 2B7 | CANADA | Version 4.2 – 10/04/21
Copyright © 2021 LED WORLD INC™.
All Rights Reserved. We are not responsible for errors or omissions.
Product and specifications are subject to change without notice.
Registered trademarks are owned by their respective registers, or licensee(s).
