OM60NDBB1 60cm Combination Microwave Oven
User Guide
Series 9 | Minimal
Black
A flexible appliance that pairs the speed of microwave cooking with oven technology, which can crisp and brown as it cooks.

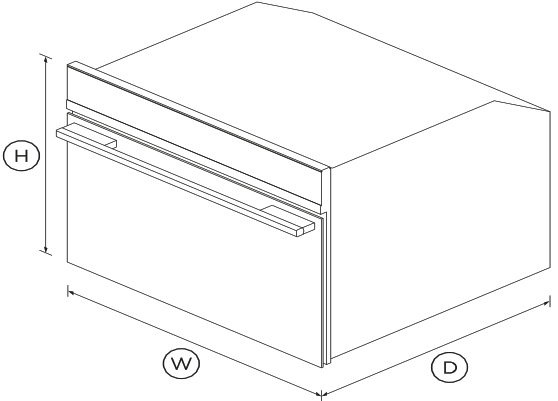

DIMENSIONS
| Height | 458mm |
| Width | 596mm |
| Depth | 562mm |
FEATURES & BENEFITS
Sized to suit
A compact 46cm height means this Combination Microwave The oven can be placed almost anywhere. The companion products share the same dimensions and can be installed in multiple configurations to suit your kitchen design and preference.
Cooking flexibility
Choice of nine cooking modes including Fan Forced and Grill giving you the best of microwave and convection oven technology.
Easy to use
The intuitive touch display shows you all the information you need, allowing you to easily program in your desired cooking mode and duration.
Beauty of choice
With the choice of stylish stainless steel or elegant black trim, our companion products help you achieve a coherent kitchen aesthetic that suits your design style.
Easy cleaning
This Combination Microwave Oven has formed side racks and a stainless steel interior that are easy to clean.
Safe and sound
The CoolTouch door is safe to touch from the outside, protecting your hands and the surrounding cabinetry.
SPECIFICATIONS
Accessories
| Baking pan | 1 |
| Glass turntable | 1 |
| Optional lower trim kit | Part 81622 (478mm) |
| Wire shelf | 1 |
Capacity
| Shelf positions | 3 |
Cleaning
| Easy clean stainless steel | • |
| Easy to clean formed side | • |
Consumption
| Microwave energy | 1.65kWh |
Controls
| Audio feedback | • |
| Automatic cooking/minute | • |
| Celsius/Fahrenheit | • |
| Electronic capacitive touch | • |
| High-resolution touch display | • |
| Intuitive information display | • |
| Multi-language display | UK English, US English, |
| Precise electronic temperature | • |
Functions
| Defrost by time | • |
| Defrost by weight | • |
| Fan forced | • |
| Fan grill | • |
| Grill | • |
| Microwave + grill | • |
| Microwave + ring | • |
| Microwave cooking | • |
| Number of functions | 9 |
| Ring + grill | • |
Performance
| Fan Element Power | 1500W |
| Grill power | 1500W |
| Microwave power | 900W |
| Microwave power levels | 6 |
Power requirements
| Supply frequency | 50Hz |
| Supply voltage | 230V |
Product dimensions
| Depth | 562mm |
| Height | 458mm |
| Width | 596mm |
Safety
| Control panel key lock | • |
| CoolTouch door | • |
| SKU | 81946 |
The product dimensions and specifications on this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
