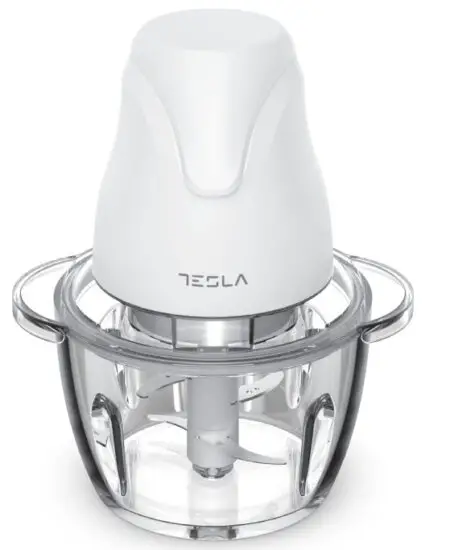

FC302W Food Chopper
User Manual
IMPORTANT SAFETY INSTRUCTION
When using electrical appliances, basic safety precautions should always be followed including the following:
- Read all instructions before using.
- To protect against risk of electrical shock, do not put main body (motor) in water or any liquid.
- Children should be supervised to ensure that they to do not play with the appliance.
- Make sure that the cutter stand is properly equipped and operating normally.
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- Unplug from outlet when not in use, before assembling or taking off parts and before cleaning.
- Avoid contact of moving parts.
- Do not use attachments not recommended or sold by the manufacturer may as it may lead to fire, electric shock or injury.
- Always ensure your switch the device to the off position and the motor has stopped completely before disassembling.
- Do not your fingers or foreign into the device while it is in operation. If food becomes lodged in the inlet, turn juicer off and wait for motor to completely stop, then disassemble the device to remove food.
- Do not use outdoors, Household use only. Do not put any parts into the dishwasher
- Do not use appliance for other than intended purpose.
- Lift appliance with the handle only.
- Do not use appliance for more than 1 minute continuously as the motor may burn out; use it again until the appliance is cool.
- Do not use the appliance to device hard materials, including pips, ice, frozen fruit, large seeds.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.
- In order to avoid a hazard due to inadvertent resetting of the thermal cutout, this appliance must not be supplied through an external switching device, such as timer, or connected to a circuit that is regularly switched on and off by the utility.

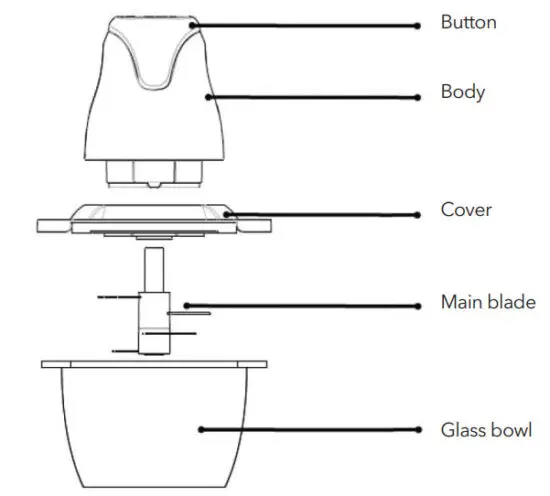

PARTS AND ACCESSORIES
Component identification & content check list:
INSTRUCTION
| Food | Quantity | Time | Mark |
| Meat | About 1/3 bowl | 10 second | Remove skin, tendons, bones and cut it into every 5 to 10 grams and about size 2X2cm |
| Cabbage, celery | About 4/5 bowl | 5-10 second batch use | about size 2X2cm |
| Carrot, garlic | About 1/2 bowl | 5-10 second batch use | about size 2X2cm |
| Dry red pepper | About 1/3 bowl | 5-10 second batch use | about size 2X2cm |
OPERATION INSTRUCTION
Before using
- Remove all packaging materials, from your chopper
- Clean your chopper thoroughly before using for the first time.
WARNING!
Do not immerse the Main body(Motor section) in water or any liquids. This may cause electric shock or damage the appliance.
Chopping
- Place the bowl on a clean, dry, level surface.
- Plug the power cord into the electrical outlet.
- To start the appliance, press on the switch, in order to obtain a better quality of chopping, operate the appliance by using the pulse method. If the ingredients stick to the side of the small jar, stop the appliance, remove the main body and the Splash cover of bowl. Use a spatula to dislodge the pieces and then replace the Splash cover of small jar and the main body. Continue processing.
- For more efficient chopping it is recommended that the bowl should not be filled with more than 600ml.
- Hold the bowl while depressing the switch button to ensure the unit stays in place.
- Make sure that the blades have stopped completely before removing the Splash cover of bowl
TROUBLE SHOOTING
BEFORE YOU CALL FOR SERVICE REVIEW THE TROUBLE SHOOTING TIPS FIRST.
| Problem | Possible Causes | What To Do |
| Motor doesn’t start or blade don’t rotate | Machine not plugged in | Check the machine is plugged in |
| Incorrect assembly | Reassemble the machine according to the instructions | |
| Food is unevenly chopped | Either you are chopping too much food at one time or the pieces are not small enough. | Try cutting the food into small pieces of even size and processing smaller amounts per batch |
| Food is chopped too fine or is too watery | The food has been over processed | Use brief pulses or process for shorter time. Let blades stop completely between pulses |
| Food collects on Splash cover, lid or on the sides of the jar | You may be processing too much food | Turn the machine off. When the blades stop rotating, remove the main body and connect of the jar. Remove some of the food being processed. |
TECHNICAL SPECIFICATION
Voltage: AC 220V-240V~
Frequency: 50Hz-60Hz
Power: 400W
Correct Disposal of this product:
This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased, they can take this product for environmental safe recycling
