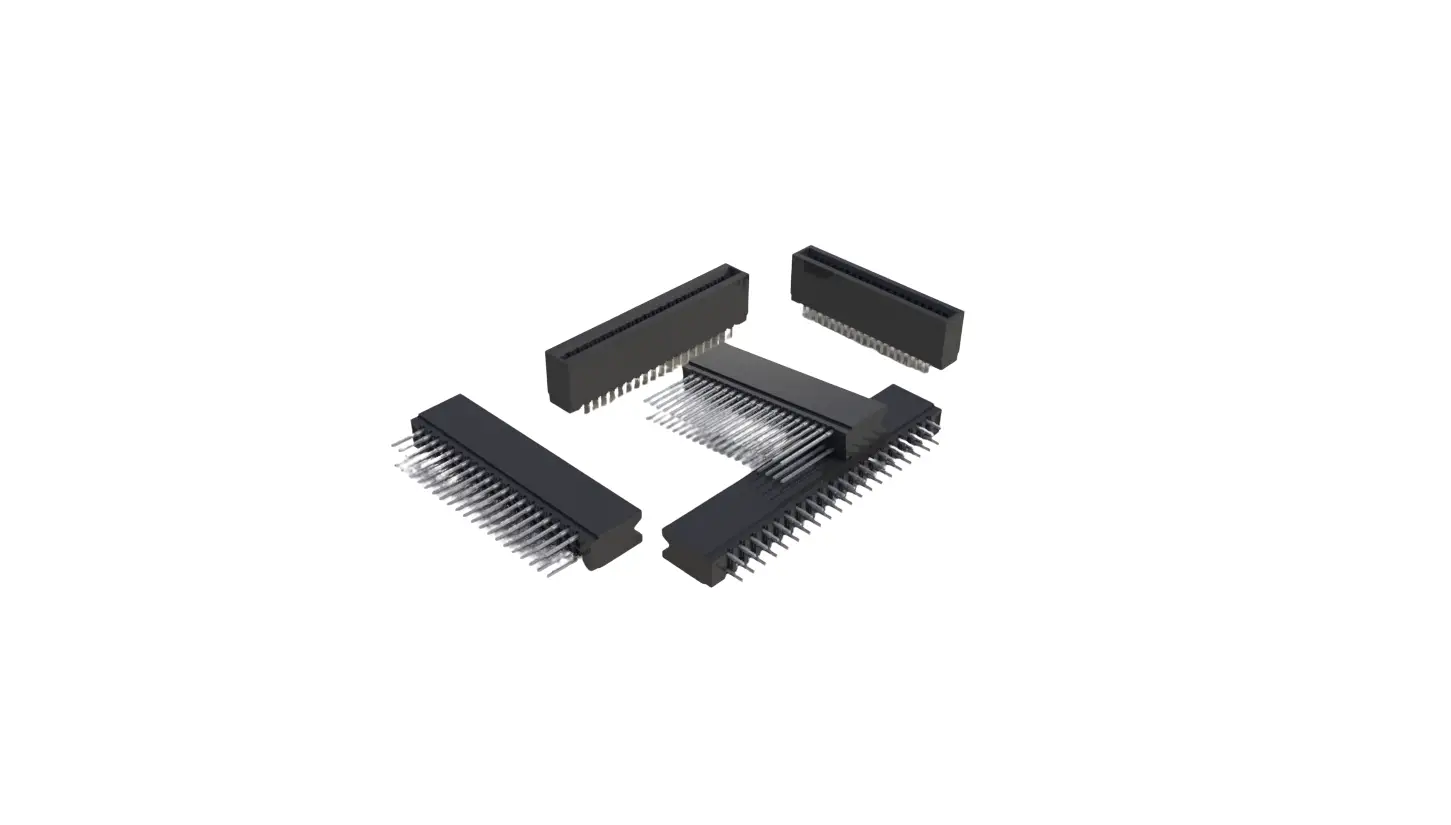

EDAC 725 Series Mouser Singapore

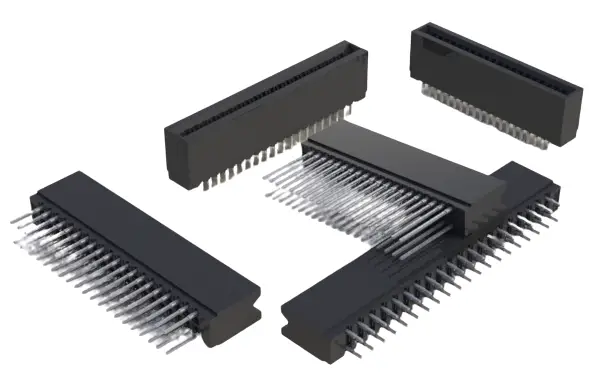

Product Information

The product is a connector with series number 725
The connector is CSA-approved and UL recognized
Contact termination options include P.C. Tail and .025(0.64) Square Wire Wrap
The insulator body has a high profile of .645(16.38) with an end-notch option
The compliant section for gas-tight reliable connection in plated through holes eliminates soldering operation
The connector accepts between-contact and in-contact polarizing keys (special features, if requested)

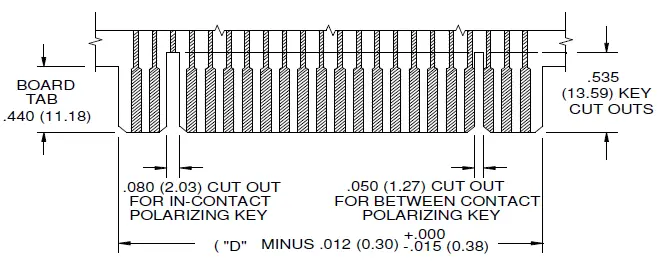

The recommended daughter board has a board tab of .440 (11.18), key cutouts of .080 (2.03) for the in-contact polarizing key and .050 (1.27) for between contact polarizing key, and row spacing of .200 (5.08)

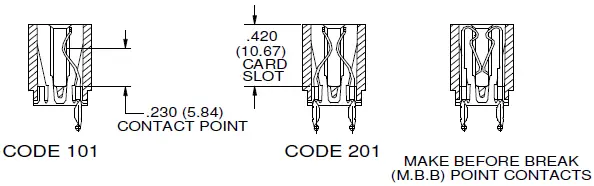

The recommended motherboard hole pattern has a diameter of .008 (0.20) and code 101 for single-row versions and code 201 for make-before-break (M.B.B) point contacts
Single-row versions may require backup springs depending upon the application

Product Usage Instructions

Select the appropriate contact termination option based on the application – P.C. Tail or .025(0.64) Square Wire Wrap
Select the appropriate contact code based on the tail length requirement – 520, 522, 525 for P.C. Tail and 540, 541, 545 for .025(0.64) Square Wire Wrap
Select the appropriate contact rows based on the requirement – Single Row or Double Row
Select the appropriate insulator option based on the requirement – .645(16.38) Full Height Ends or .550(13.97) Notched Ends

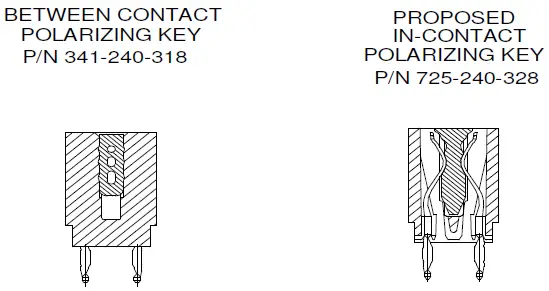

Select the appropriate polarizing feature based on the requirement – Between Contact Polarizing Key P/N 341-240-318 or Proposed In-Contact Polarizing Key P/N 725-240-328
Use the recommended daughter board with the connector and ensure that it has a board tab of .440 (11.18), key cutouts of .080 (2.03) for the in-contact polarizing key and .050 (1.27) for between contact polarizing key, and row spacing of .200 (5.08)

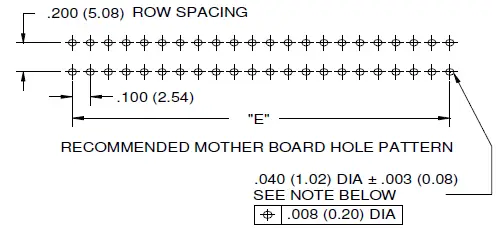

Use the recommended motherboard hole pattern with a diameter of .008 (0.20) and code 101 for single-row versions and code 201 for make-before-break (M.B.B) point contacts
In case of single-row versions, backup springs may be required depending upon the application

SPECIFICATIONS

Insulator Material: UL 94V-0 Thermoplastic Polyester
Color: Black
Contact Material: Copper, Nickel, Tin Alloy CA-725
Contact Plating: 30μIN of Gold on the Mating Area, Tin Plating on the Compliant Section and Contact Tails, and Nickel underplate. Other Plating Options also available upon Request
Current Rating: 2 Amperes Continuous
Contact Resistance: 10 Milli Ohms Maximum
Dielectric Withstanding Voltage: 1200 V AC RMS at Sea Level between Adjacent Contacts
Insulation Resistance: 5000 MOhms Minimum
Operating Temperature: -65⁰C to +125⁰C
Daughter Board Insertion Force: 16 Oz (4.45N) Maximum per Contact Pair, when tested with a .054″(1.37) thick gauge
Contact Insertion Into Hole: 20 Lbs (89N) Maximum
Contact Retention Into Hole: 10 Lbs (44N) Minimum
Reinsertability of Hole: 3 times Minimum

FEATURES

CSA Approved and UL Recognized
Contact Termination Options include P.C. Tail and .025″(0.64) Square Wire Wrap
High Profile Insulator Body .645″(16.38) with End Notch Option
Compliant Section for Gas Tight reliable connection in plated through holes eliminates soldering operation
Accept between Contact and In-Contact Polarizing Keys (Special Features, if requested)

Polarizing Features

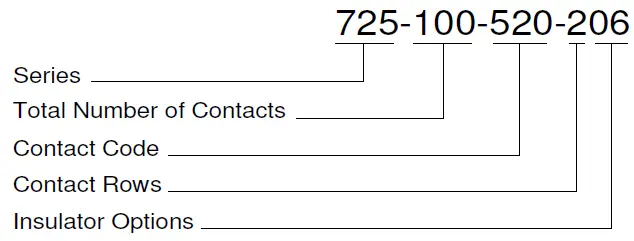

Example Part Number:

Series: 725

Total Number of Contacts/Contact Rows

005, 006, . . . . 075 Single Row
010, 012, . . . . 150 Double Row

Dimension And Parts

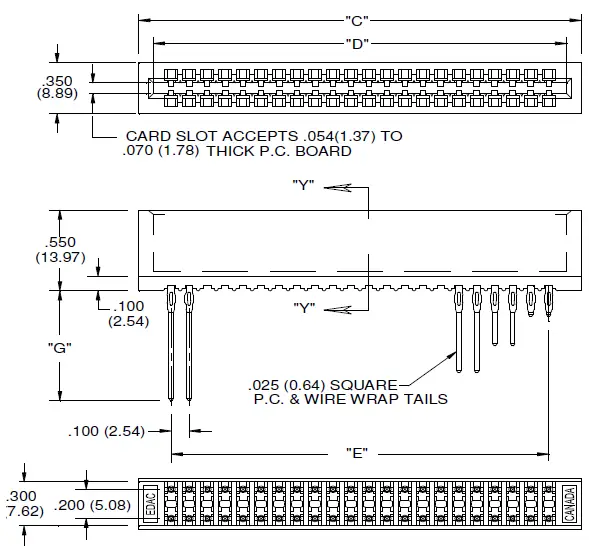

Contact Code/Description/Tail Length “G”

520 P.C. TAIL REGULAR POINT .175″(4.45)
522 P.C. TAIL REGULAR POINT .375″(9.53)
525 P.C. TAIL HIGH POINT .175″(4.45)
540 WIRE WRAP REGULAR POINT .560″(14.22)
541 WIRE WRAP REGULAR POINT .750″(19.05)
545 WIRE WRAP HIGH POINT .560″(14.22)
560 MAKE BEFORE BREAK (MBB) CONTACT

Contact Rows/Description

1 Single Row
2 Double Row

Insulator Options/Description

01 .645″(16.38) Full Height Ends
06 .550″(13.97) Notched Ends

Ordering Notes:
All connectors sizes up to 75 contacts in single row or 150 contacts in double row are available upon request.

Recommended Daughter Board

TO OBTAIN OPTIMUM COMPLIANT SECTION PERFORMANCE, DRILL HOLES .0453 ± .001 (1.15 ± 0.03) DIAMETER COPPER PLATE, .001 (25.4 MICRONS) MINIMUM THICKNESS, FOLLOWED BY TIN-LEAD PLATE TO PROVIDE FINISHED HOLES .040 ± .003 (1.02 ± 0.08) DIAMETER.

Single Row Versions May Require
Backup Springs Depending upon the Application.

41	82	4.360 (110.74)	4.200 (106.68)	4.000 (101.60)	40
40	80	4.260 (108.20)	4.100 (104.14)	3.900 (99.06)	39
39	78	4.160 (105.66)	4.000 (101.60)	3.800 (96.52)	38
38	76	4.060 (103.12)	3.900 (99.06)	3.700 (93.98)	37	75	150	7.760 (197.10)	7.600 (193.04)	7.400 (187.96)	74
37	74	3.960 (100.58)	3.800 (96.52)	3.600 (91.44)	36	74	148	7.660 (194.56)	7.500 (190.50)	7.300 (185.42)	73
36	72	3.860 (98.04)	3.700 (93.98)	3.500 (8.900	35	73	146	7.560 (192.02)	7.400 (187.96)	7.200 (182.88)	72
35	70	3.760 (95.50)	3.600 (91.44)	3.400 (86.36)	34	72	144	7.460 (189.94)	7.300 (185.42)	7.100 (180.34)	71
34	68	3.660 (92.96)	3.500 (8.900	3.300 (83.82)	33	71	142	7.360 (186.94)	7.200 (182.88)	7.000 (177.80)	70
33	66	3.560 (90.42)	3.400 (86.36)	3.200 (81.28)	32	70	140	7.260 (184.40)	7.100 (180.34)	6.900 (175.26)	69
32	64	3.460 (87.88)	3.300 (83.82)	3.100 (78.74)	31	69	138	7.160 (181.86)	7.000 (177.80)	6.800 (172.72)	68
31	62	3.360 (85.34)	3.200 (81.28)	3.000 (76.20)	30	68	136	7.060 (179.32)	6.900 (175.26)	6.700 (170.18)	67
30	60	3.260 (82.80)	3.100 (78.74)	2.900 (73.66)	29	67	134	6.960 (176.78)	6.800 (172.72)	6.600 (167.64)	66
29	56	3.160 (80.26)	3.000 (76.20)	2.800 (71.12)	28	66	132	6.860 (174.24)	6.700 (170.18)	6.500 (165.10)	65
28	56	3.060 (77.72)	2.900 (73.66)	2.700 (68.58)	27	65	130	6.760 (171.70)	6.600 (167.64)	6.400 (162.56)	64
27	54	2.960 (75.18)	2.800 (71.12)	2.600 (66.04)	26	64	128	6.660 (169.16)	6.500 (165.10)	6.300 (160.02)	63
26	52	2.860 (72.64)	2.700 (68.58)	2.500 (63.50)	25	63	126	6.560 166.62)	6.400 (162.56)	6.200 (157.48)	62
25	50	2.760 (70.10)	2.600 (66.04)	2.400 (60.96)	24	62	124	6.460 (164.08)	6.300 (160.02)	6.100 (154.94)	61
24	48	2.660 (67.56)	2.500 (63.50)	2.300 (58.42)	23	61	122	6.360 (161.54)	6.200 (157.48)	6.000 (152.40)	60
23	46	2.560 (65.02)	2.400 (60.96)	2.200 (55.88)	22	60	120	6.260 (148.84)	6.100 (154.94)	5.900 (149.86)	59
22	44	2.460 (62.48)	2.300 (58.42)	2.100 (53.34)	21	59	118	6.160 (156.46)	6.000 (152.40)	5.800 (147.32)	58
21	42	2.360 (59.94)	2.200 (55.88)	2.000 (50.80)	20	58	116	6.060 (153.92)	5.900 (149.86)	5.700 (144.78)	57
20	40	2.260 (57.40)	2.100 (53.34)	1.900 (48.26)	19	57	114	5.960 (151.38)	5.800 (147.32)	5.600 (142.24)	56
19	38	2.160 (54.86)	2.000 (50.80)	1.800 (54.72)	18	56	112	5.860 (148.84)	5.700 (144.78)	5.500 (139.70)	55
18	36	2.060 (52.32)	1.900 (48.26)	1.700 (43.18)	17	55	110	5.760 (146.30)	5.600 (142.24)	5.400 (137.16)	54
17	34	1.960 (49.78)	1.800 (54.72)	1.600 (40.64)	16	54	108	5.660 (143.76)	5.500 (139.70)	5.300 (134.62)	53
16	32	1.860 (47.24)	1.700 (43.18)	1.500 (38.10)	15	53	106	5.560 (141.22)	5.400 (137.16)	5.200 (132,08)	52
15	30	1.760 (44.70)	1.600 (40.64)	1.400 (35.56)	14	52	104	5.460 (138.68)	5.300 (134.62)	5.100 (129.54)	51
14	28	1.660 (42.16)	1.500 (38.10)	1.300 (33.02)	13	51	102	5.360 (136.14)	5.200 (132,08)	5.000 (127.00)	50
13	26	1.560 (39.62)	1.400 (35.56)	1.200 (30.48)	12	50	100	5.260 (133.60)	5.100 (129.54)	4.900 (124.46)	49
12	24	1.460 (37.08)	1.300 (33.02)	1.100 (27.94)	11	49	98	5.160 (131.06)	5.000 (127.00)	4.800 (121.92)	48
11	22	1.360 (34.54)	1.200 (30.48)	1.000 (25.40)	10	48	96	5.060 (128.52)	4.900 (124.46)	4.700 (119.38)	47
10	20	1.260 (32.00)	1.100 (27.94)	.900 (22.86)	9	47	94	4.960 (125.98)	4.800 (121.92)	4.600 (116.84)	46
9	18	1.160 (29.46)	1.000 (25.40)	.800 (20.32)	8	46	92	4.860 (123.44)	4.700 (119.38)	4.500 (114.30)	45
8	16	1.060 (26.92)	.900 (22.86)	.700 (17.78)	7	45	90	4.760 (120.90)	4.600 (116.84)	4.400 (111.76)	44
7	14	.960 (24.38)	.800 (20.32)	.600 (15.24)	6	44	88	4.660 (118.36)	4.500 (114.30)	4.300 (109.22)	43
6	12	.860 (21.84)	.700 (17.78)	.500 (12.70)	5	43	86	4.560 (115.82)	4.400 (111.76)	4.200 (106.68)	42
5	10	.760 (19.30)	.600 (15.24)	.400 (10.16)	4	42	84	4.460 (113.28)	4.300 (109.22)	4.100 (104.14)	41
NO OF CONTACTS (SINGLE ROW)	NO OF CONTACTS (DUAL ROW)	Inch mm C ±.015 (±0.38)	Inch mm +.010 (+0.25) D -.006 (-0.15)	Inch mm E ±.005 (±0.13)	NO OF SPACES	NO OF CONTACTS (SINGLE ROW)	NO OF CONTACTS (DUAL ROW)	Inch mm C ±.015 (±0.38)	Inch mm +.010 (+0.25) D -.006 (-0.15)	Inch mm E ±.005 (±0.13)	NO OF SPACES
