PE-DV10 PRO Docking Station
The PE-DV10 PRO-DS is the docking station for the PE-DV10 PRO camera, which can connect up to 10 cameras, via a USB 3.0 port. In addition to the total power of docking reaching 120W, each port can provide up to 2.0A of self-contained current, according to the connected devices. Users only need an office computer without unnecessary wiring. It features multi-devices
data collection and charging.
Features:
- All-metal structure, durable and tough.
- Fully compatible with USB 1.1, USB2.0 and USB3.0, plug&play.
- With overload voltage and instantaneous current protection. Each port provides up to 2.0A current.
- 10 docks specially designed for DV10 PRO.
- 4 pads to support docking station.
- 7 air vents and a fan for the motherboard. Effective control from overheat.
- With the main switch to power on/off, direct control of the 10 docks.
- Support Windows 98/ME/2000/XP/Vista/7/8/10.

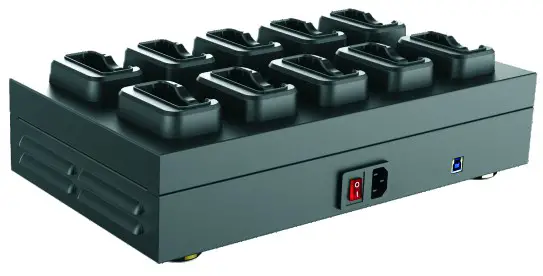

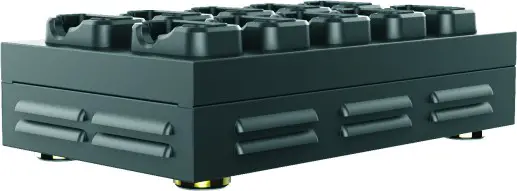

Pictures:
Accessories:
- Power cable
- USE data cable
Specifications:
- Power input:110V or 220V AC/2.5AMP
- Power output: DC12V/10AMP
- dimensions :39x23x11cm
- Weight : 9.25lb / 4.2KG

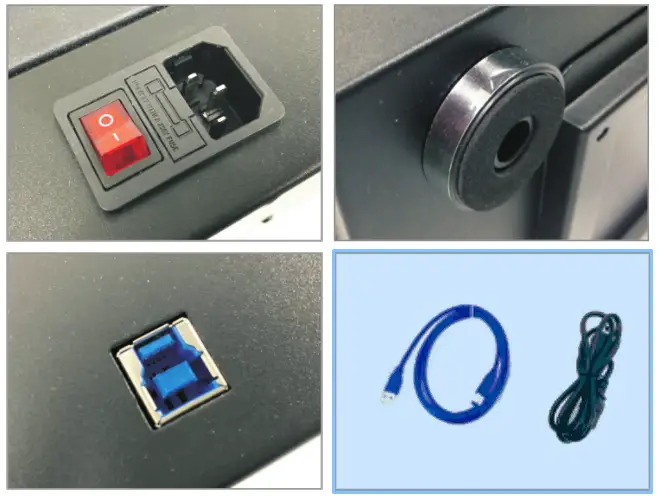

Detailed Pictures:

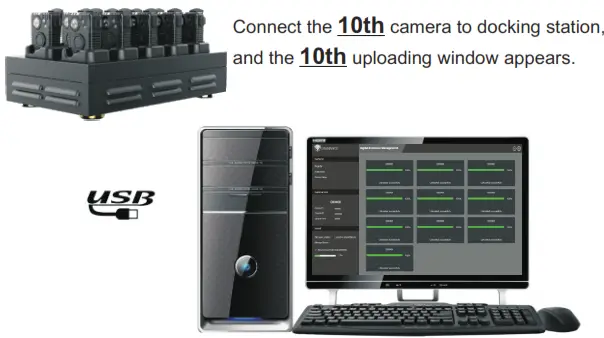

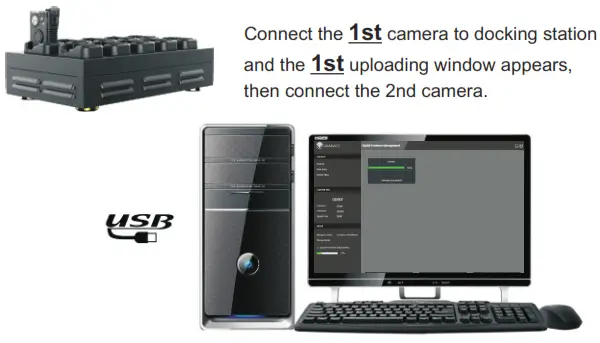

When Uploading Data:
2nd, 3rd, 4th, 5th, 6th, 7th, 8th, 9th
