hama 087635 Supreme 20HD 20000mAh Power Pack

Thank you for choosing a Hama product. Take your time and read the following instructions and information completely. Please keep these instructions in a safe place for future reference. If you sell the device, please pass these operating instructions on to the new owner.

Explanation of warning symbols and notes

Warning This symbol is used to indicate safety instructions or to draw your attention to specific hazards and risks

Note This symbol is used to indicate additional information or important notes.

Package contents

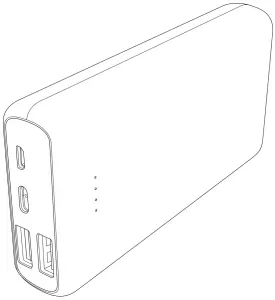

• “Supreme 20HD” Power Pack, 20000 mAh
• USB-A to USB-C cable
• These operating instructions

Safety instructions

• The product is intended for private, non-commercial use only.
• Use the product only for the intended purpose.
• Protect the product from dirt, moisture and overheating and use it in dry environments only.
• Do not use the product in the immediate vicinity of heaters, other heat sources or in direct sunlight.
• As with all electrical products, this device should be kept out of the reach of children.
• Do not drop the product and do not expose it to any major shocks.
• Do not operate the product outside the power limits specified in the technical data.
• Do not open the device or continue to operate it if it becomes damaged. · Dispose of packaging material immediately in accordance with the locally applicable regulations.
• The battery is permanently installed and cannot be removed; dispose of the product as a whole in accordance with the statutory regulations.
• Do not modify the product in any way. Doing so voids the warranty.
• Do not use the product in areas in which electronic products are not permitted.
• Do not attempt to service or repair the product yourself. Leave any and all service work to qualified experts.
• Do not incinerate the battery or the product.
• Do not tamper with or damage/heat/disassemble the batteries/rechargeable batteries.

Operation

Charging the power pack

Warning – rechargeable battery Do not charge the power pack via your PC or notebook. The charging currents can damage the USB port on the PC or notebook. Only use suitable charging devices or USB connections to charge the product. Do not use defective chargers or USB ports and do not attempt to repair them. Do not overcharge the product or allow the battery to completely discharge. Avoid storing, charging and using in extreme temperatures and at extremely low atmospheric pressures (such as at high altitudes). Charge regularly (at least quarterly) during periods of prolonged storage.

• Start the power pack charging process by connecting the enclosed USB-A to USB-C cable to the USB-C input on the power pack (IN 5V/2A) and to a suitable USB charger. To do this, consult the operating instructions for the USB charger you are using. Alternatively, the power pack can also be charged via the micro-USB port (IN 5V/2A).
• The charging process begins and ends automatically.
• Fully charge the power pack once before using it for the first time.

Note – capacity During the power pack charging process, the capacity is displayed constantly. Each status LED corresponds to 25% of the capacity. The permanent illumination of an LED indicates that the capacity has already been reached. If three LEDs light up and the fourth one flashes, the power pack is at least 75% charged. If all four status LEDs light up, the full capacity is available. Press the button on the power pack to switch this on and to determine the power pack’s current capacity. Press the button twice until the status LEDs go out to switch the power pack off.

Charging devices

Warning – Connection of devices Before connecting a device, check whether it can be adequately supplied with the power pack’s current delivery. Ensure that the total current consumption of the connected device does not exceed 3000 mA. Note the instructions in your device’s operating manual. You must obey the instructions and safety notes contained therein regarding the supply of power to your devices. The power pack must not be charged and discharged at the same time! Please do not charge simultaneously at the two USB and USB-C outputs since this significantly reduces the charging current. The charging period increases significantly as a result and the power pack may, in certain circumstances, become overloaded.

Warning Never connect the power pack’s charging cable to its input and output simultaneously. This can damage the battery. Do not connect any devices during the power pack charging process. Doing so can damage the power pack and connected devices.

• Connect the enclosed USB-A to USB-C cable to the power pack’s USB port (OUT 5V/3A) and the USB-C port on your device (mobile phone, smartphone, etc.).
• In certain circumstances, the enclosed charging / connecting cable may not match the USB port on your device. In this case, use the USB cable that came with your device.
• When using the USB-C output (OUT 5V/3A) for the charging process, connect a suitable USB-C charging cable to the USB-C output on the power pack and the port on your device.
• The charging process begins automatically. During the charging process, the status LEDs indicate the power pack’s remaining available capacity.
• The current battery charge status of your device is indicated on this.
• Terminate the charging process and switch the power pack off by pressing the button on the power pack twice. The status LEDs go out. · In the event that no device is connected, the power pack switches itself off automatically.

Note – optimised charging Optimised charging means that the power pack recognises the connected device, supplies it with the ideal current strength and therefore reduces the charging time to a minimum. Note that the power pack’s maximum current delivery is 3000 mA.

Care and maintenance

Only clean this product with a slightly damp, lint-free cloth and do not use aggressive cleaning agents.

Warranty Disclaimer

Hama GmbH & Co KG assumes no liability and provides no warranty for damage resulting from improper installation/mounting, improper use of the product or from failure to observe the operating instructions and/or safety notes.

Technical data

* The usable capacity is the capacity that can be drawn from the output sockets, measured at 5V output voltage and a draw current of 2A.

Recycling information

Note on environmental protection:
Following the implementation of European Directive 2012/19/EU and 2006/66/EU into national law, the following applies: Electrical and electronic devices as well as batteries must not be disposed of with household waste. Consumers are obliged by law to return electrical and electronic devices as well as batteries to the designated public collection points or to the point of sale at the end of their service lives. Detailed information on this topic is defined in the national laws of the respective country. This presence of the above symbol on the product, operating instructions or package indicates that the product is subject to these regulations. By recycling, reusing the materials or other forms of utilising old devices/batteries, you are making an important contribution to protecting our environment.

Hama GmbH & Co KG
86652 Monheim/ Germany

Service & Support

www.hama.com
+49 9091 502-0

All listed brands are trademarks of the corresponding companies.
Errors and omissions excepted, and subject to technical changes. Our general terms of delivery and payment are applied.
