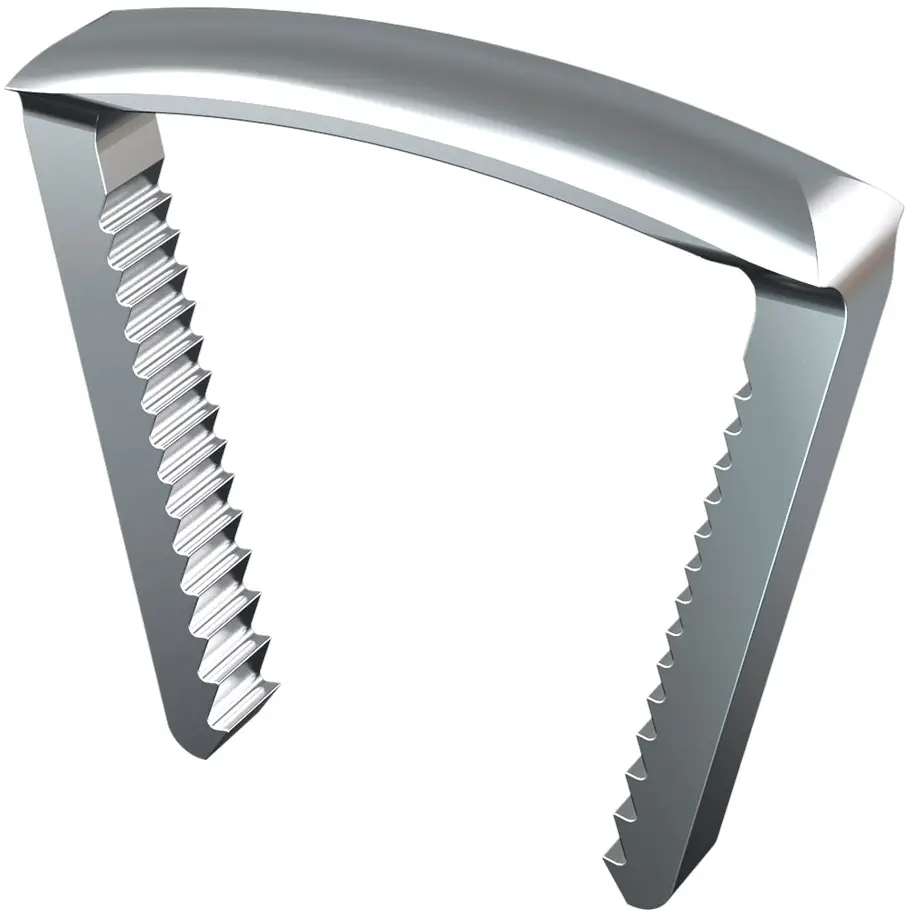

DJO DynaClip

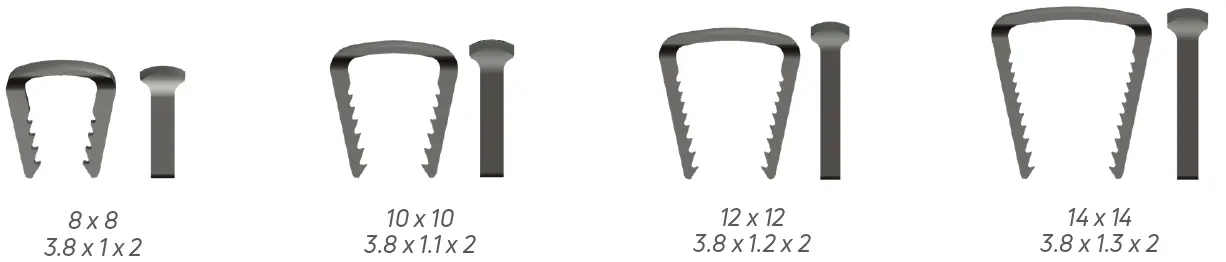

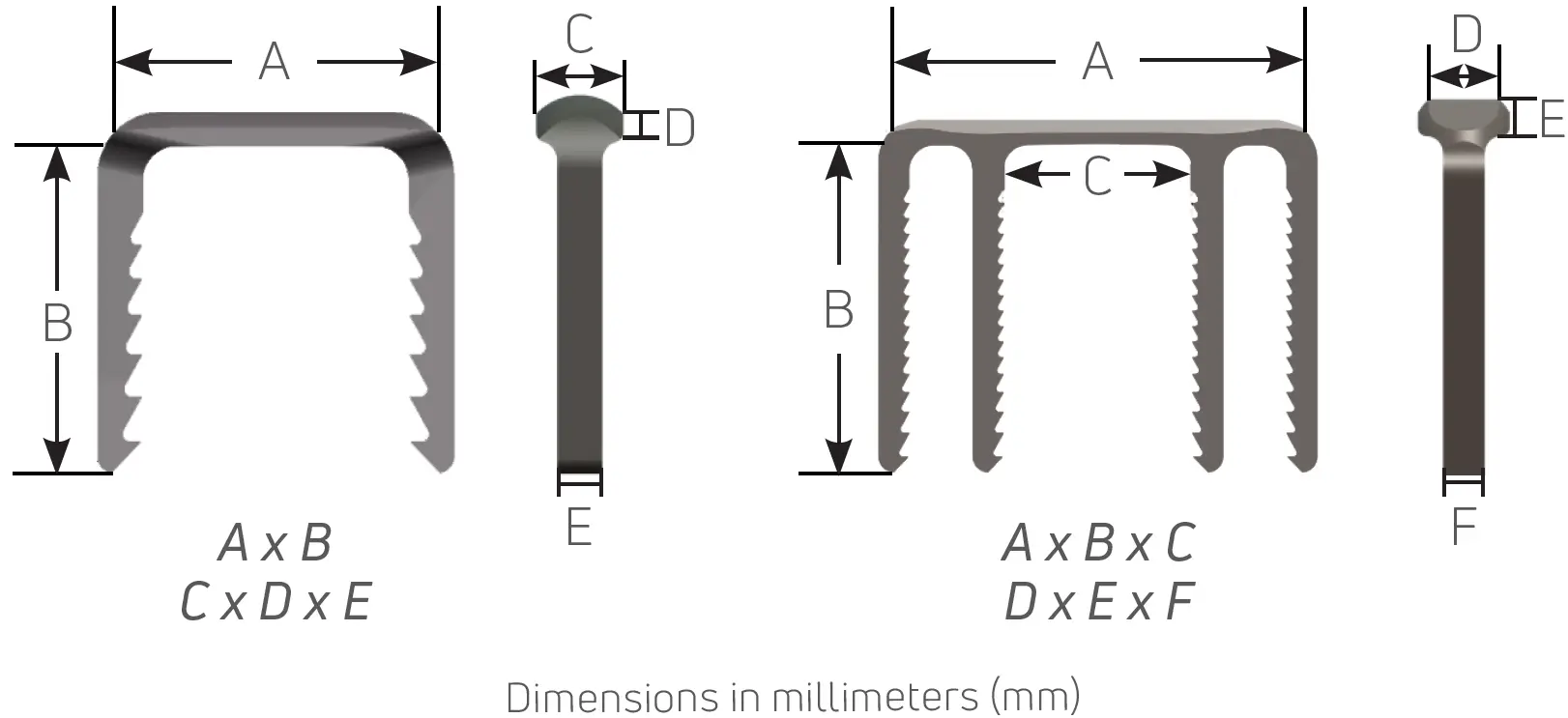

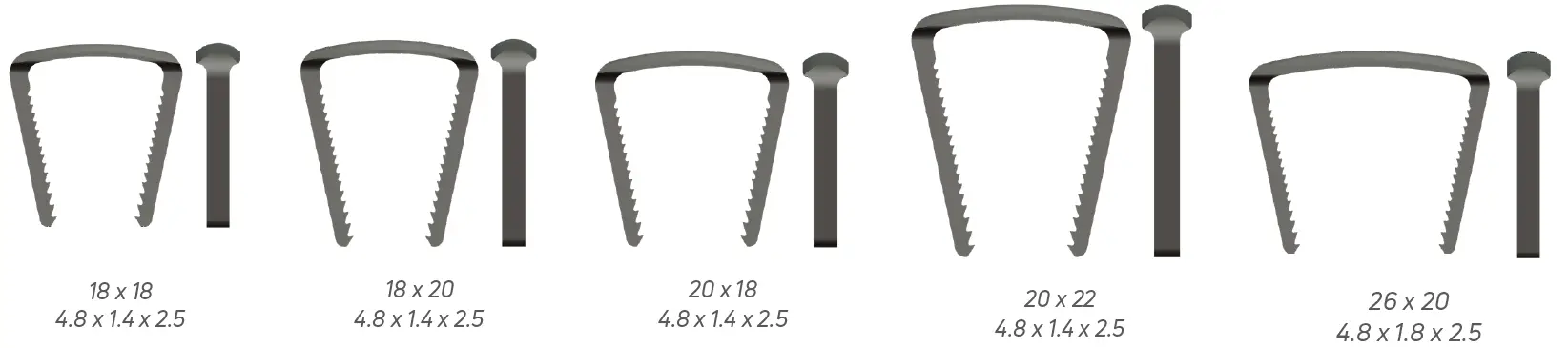

SIZE OFFERINGS & DIMENSIONS
The DynaClip’s versatile design, multiple configurations and numerous size offerings allow for dependable durability and dynamic compression across a variety of surgical applications.¹
¹ Data on file. MedShape, Inc. 2018.
Individual results may vary. DJO, LLC is a manufacturer of orthopedic implants and does not practice medicine. Only an orthopedic surgeon can determine what treatment is appropriate. The contents of this document do not constitute medical, legal, or any other type of professional advice. This material is intended for the sole use and benefit of the DJO, LLC sales force and physicians. It is not to be redistributed, duplicated, or disclosed without the express written consent of DJO, LLC. For more information on risks, warnings, and possible adverse side effects refer to the Instructions for Use provided with the device.
DYNACLIP®

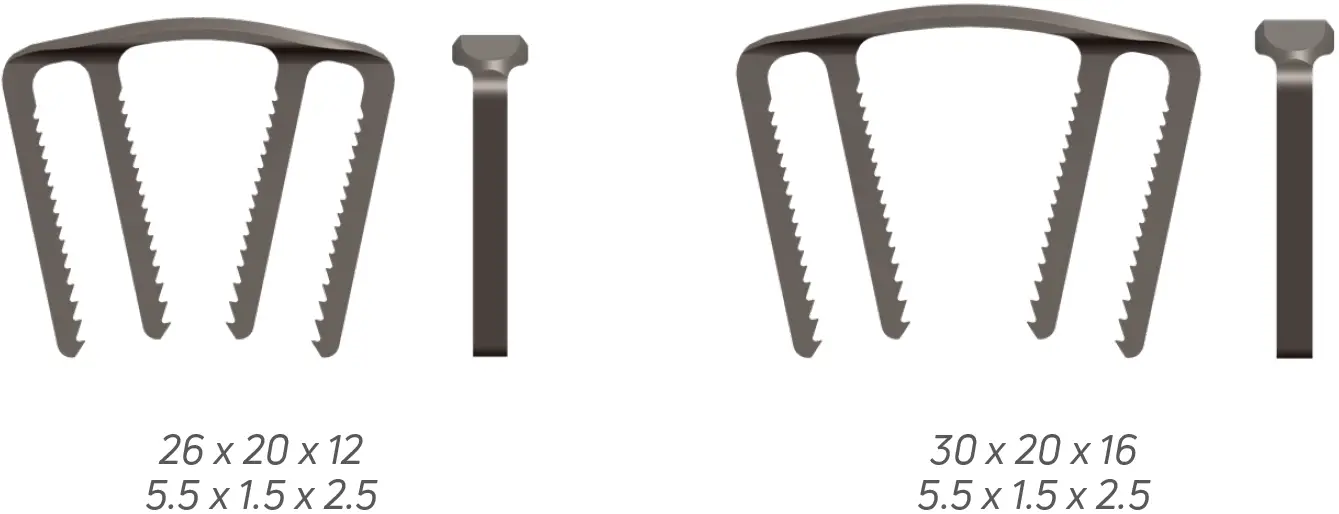

DYNACLIP FORTE®

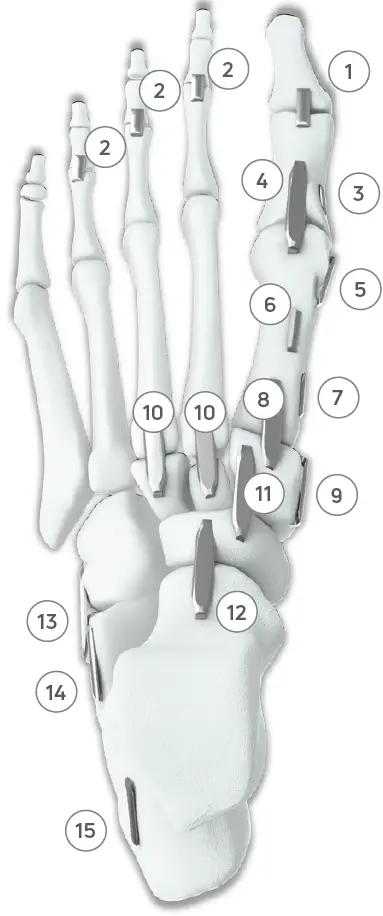

PROCEDURE GUIDE
| INDICATION | BRIDGE LENGTH X LEG LENGTH | |
| 1 | HALLUX IPJ FUSION | 8 x 8, 10 x 10, 12 x 12 |
| 2 | LESSER PIPJ FUSION | 8 x 8, 10 x 10 |
| 3 | AKIN OSTEOTOMY | 8 x 8, 10 x 10 |
| 4 | MTPJ FUSION | 10 x 10, 12 x 12, 14 x 14, 18 x 18 |
| 5 | CHEVRON OSTEOTOMY | 14 x 14, 18 x 18 |
| 6 | GENERAL MT OSTEOTOMY | 12 x 12, 14 x 14, 18 x 18 |
| 7 | BASE WEDGE OSTEOTOMY | 10 x 10, 12 x 12, 14 x 14, 18 x 18 |
| 8 | 1ST TMT (LAPIDUS) FUSION | 12 x 12, 14 x 14, 18 x 18, 20 x 18 |
| 9 | COTTON OSTEOTOMY | 18 x 18, 18 x 20, 20 x 18, 20 x 22 |
| 10 | 2ND/3RD TMT (LISFRANC) FUSION | 18 x 18, 18 x 20, 20 x 18, 20 x 22 |
11 | NAVICULOCUNEIFORM FUSION | 14 x 14, 18 x 18, 18 x 20 |
| 12 | TALONAVICULAR FUSION | 20 x 18, 20 x 22, 26 x 20 |
| 13 | CALCANEOCUBOID FUSION | 20 x 18, 20 x 22, 26 x 20 |
| 14 | EVANS OSTEOTOMY | 20 x 18, 20 x 22, 26 x 20 |
| 15 | DYER OSTEOTOMY | 20 x 18, 20 x 22, 26 x 20 |

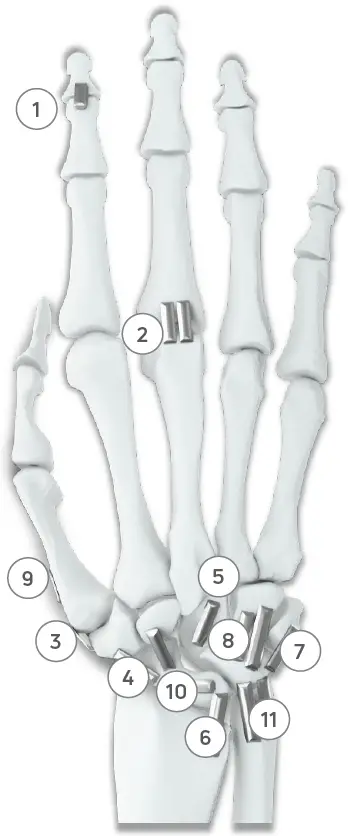

INDICATION | BRIDGE LENGTH X LEG LENGTH | |
1 | DIP ARTHRODESIS | 8 x 8, 10 x 10 |
2 | METACARPOPHALANGEAL (MCP) ARTHRODESIS | 8 x 8, 10 x 10, 12 x 12, 14 x 14 |
3 | CARPOMETACARPAL (CMC) ARTHRODESIS | 10 x 10, 12 x 12, 14 x 14 |
4 | SCAPHOTRAPEZIOTRAPEZOID ARTHRODESIS (STT) | 10 x 10, 12 x 12, 14 x 14 |
5 | CAPITATE SHORTENING | 10 X 10, 12 X 12, 14 X 14 |
6 | RADIOSCHAPHOLUNATE (RSL) ARTHRODESIS | 12 x 12, 14 x 14, 18 x 18, 20 x 18 |
7 | LUNOTRIQUETRAL (LT) JOINT ARTHRODESIS | 10 x 10, 12 x 12, 14 x 14 |
8 | RADIOLUNATE ARTHRODESIS | 12 x 12, 14 x 14, 18 x 18, 20 x 18 |
9 | THUMB METACARPAL EXTENSION OSTEOTOMY | 10 x 10, 12 x 12, 14 x 14 |
10 | SCAPHOID FRACTURE REPAIR PRIMARY/REVISION | 10 x 10, 12 x 12, 14 x 14 |
11 | LIMITED INTERCARPAL JOINT ARTHRODESIS (INCLUDING 4-CORNER ARTHRODESIS) | 10 x 10, 12 x 12, 14 x 14 |
1575 Northside Dr NW I Suite 440 I Atlanta, GA 30318 I U.S.A.
djoglobal.com/foot-and-ankle
