acer XB323U LCD Monitor
Safety Notice
Any person attempting to service this chassis must familiarize with the chassis and be aware of the necessary safety precautions to be used when serving electronic equipment containing high voltage
Important Safety Notice
Product Announcement:
This product is certificated to meet RoHS Directive and Lead-Free produced definition. Using approved critical components only is recommended when the situation to replace defective parts. Vender assumes no liability express or implied, arising out of any unauthorized modification of design or replacing non-RoHS parts. Service providers assume all liability.
Qualified Repairability:
Proper service and repair is important to the safe, reliable operation of all series products. The service providers recommended by vender should being aware of notices listed in this service manual in order to minimize the risk of personal injury when perform service procedures. Furthermore, the possible existed improper repairing method may damage equipment or products. It is recommended that service engineers should have repairing knowledge, experience, as well as appropriate product training per new model before performing the service procedures.
NOTICE:
- To avoid electrical shocks, the products should be connect to an authorized power cord, and turn off the master power switch each time before removing the AC power cord.
- To prevent the product away from water or explosed in extremely high humility environment.
- To ensure the continued reliability of this product, use only original manufacturer’s specified parts.
- To ensure following safety repairing behavior, put the replaced part on the components side of PWBA, not solder side.
- To ensure using a proper screwdriver, follow the torque and force listed in assembly and disassembly procedures to screw and unscrew screws.
- Using Lead-Free solder to well mounted the parts.
- The fusion point of Lead-Free solder requested in the degree of 220°C.

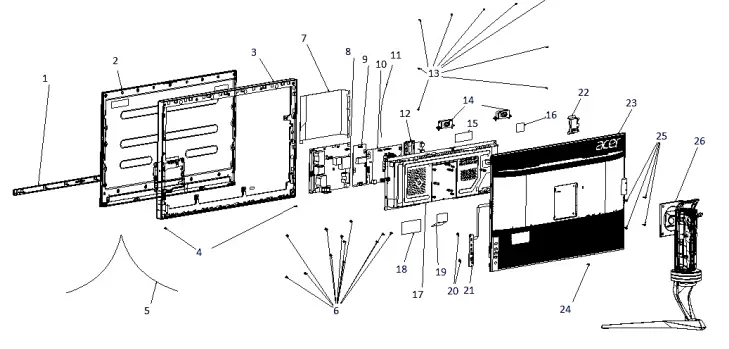

Exploded Diagram
Product Exploded Diagram
| Item | ODM DESCRIPTION | Item | ODM DESCRIPTION | |
| 1 | ASSY BZL | 14 | SPK | |
| 2 | LCDM | 15 | TAPE | |
| 3 | MID-FRAME | 16 | TAPE | |
| 4 | SCRW | 17 | ASSY SHD | |
| 5 | WIRE | 18 | TAPE | |
| 6 | SCRW | 19 | MYLAR | |
| 7 | MYLAR | 20 | SCRW | |
| 8 | PCBA SPS BD | 21 | PCBA CTRL BD | |
| 9 | PCBA-LED DRIVER BD | 22 | ASSY USB SHD | |
| 10 | PCBA IF BD | 23 | ASSY RC | |
| 11 | WIRE | 24 | SCRW | |
| 12 | PCBA USB BD | 25 | SCRW | |
| 13 | SCRW | 26 | ASSY STAND |

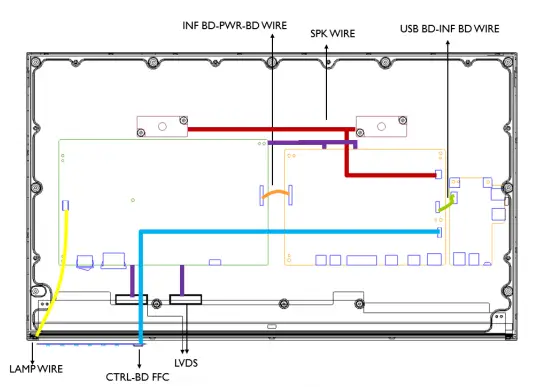

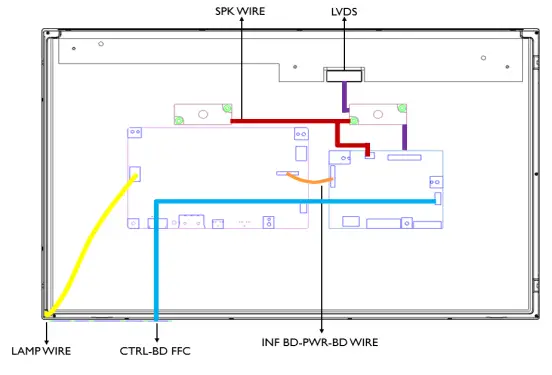

Wiring connectivity diagram
There are four types of wiring diagrams for model XB323U. The wiring connectivity position will be different according to the ACTUAL PCBA connector position. Please base on different SKUs refer to the below diagram.
NOTE: INF BD= Interface Board, PWR BD=Power Board, CTRL BD= Control Board
- SKU with USB
- SKU without USB
Mechanical Instruction
Tools Required
- List the type and size of the tools that would typically can be used to disassemble the product to a point
- where components and materials requiring selective treatment can be removed.
Tool Description:
- working table
- Screw-driver: Philips-head screwdriver, Hex-head screwdriver
- Knife
- glove
- cleaning cloth
- ESD protection
Disassembly and Assembly SOP XB323U
| 4.1 Disassembly Procedures | |
| Preparation before disassemble 1.Clean the room for disassemble 2.Identify the area for monitor 3. Check the position that the monitors be placed and the quantity of the monitor ;prepare the area for material flow; according to the actual condition plan the disassemble layout 4. Prepare the implement, equipment, materials as bellow: 1) working table 2) Screw-driver: Philips-head screwdriver, Hex-head screwdriver 3) knife 4) glove 5) cleaning cloth 6) ESD protection After unplugging the power cord, the power board still have power energe. Please pay attention when disassembling/assembling Power BD. | |

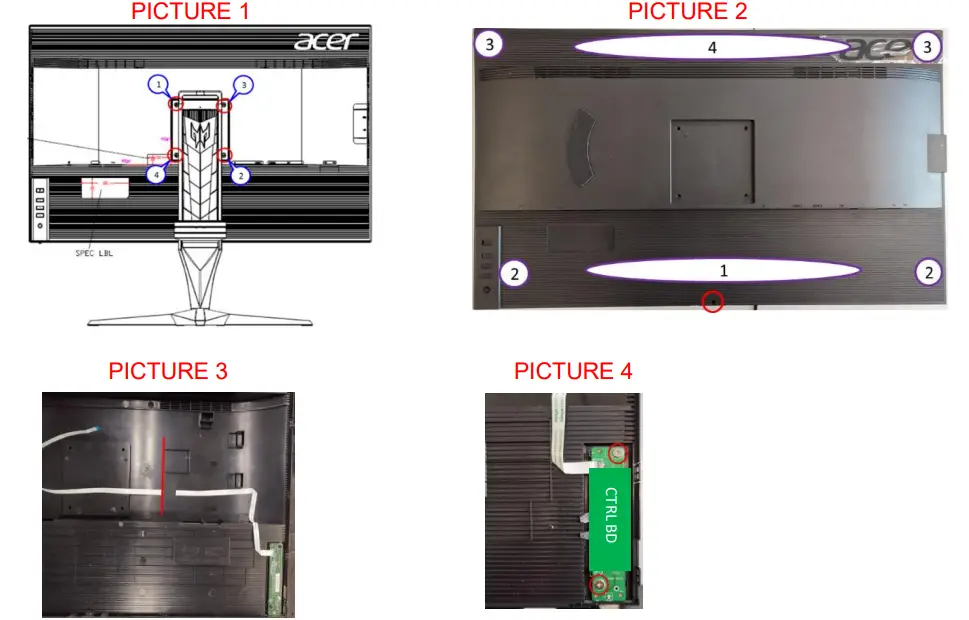

| S1 Disassemble the RC(Rear Case), stand and base | Before Disassembling & Assembling, monitor need to be put on the sponge and the Insulation glove must be wore during the process. Unlock 4 RC screws and disassemble stand from RC as picture 1. Unlock RC center and disassemble RC from MF as picture 2. Tear off adhesive tape and CTRL FFC from RC as picture 3. Unlock 2 CTRL BD screws and disassemble CTRL BD from RC as picture 4. |
 | |
| S2 Disassemble Lamp wire | Disassemble Mylar from SHD as picture 1. Tear off 6 pieces of adhesive tapes from lamp wire as picture 2 Extract lamp wire from SHD as picture 3. |
 | |

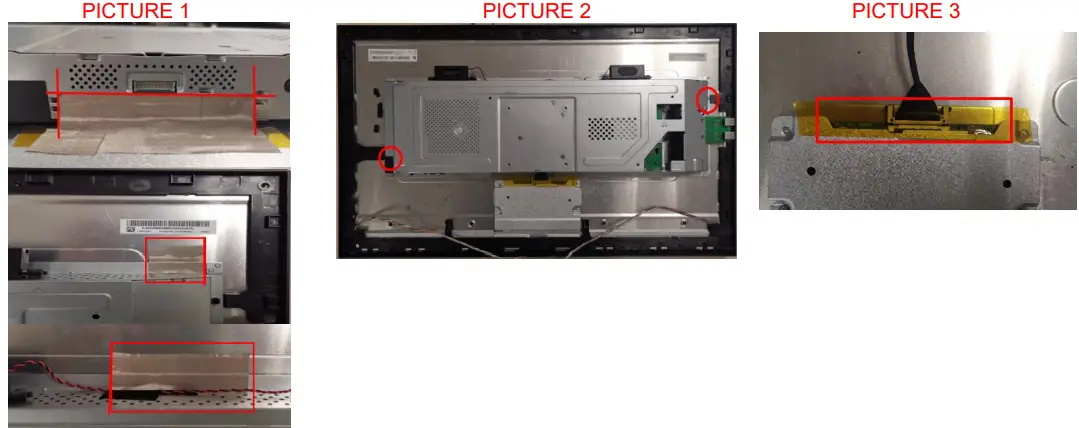

| S3 Disassemble SHD | Tear off 3 pieces of conductive tapes from SHD as picture 1 Disassemble SHD from MF as picture 2. Tear off yellow tape and extract LVDS wire from panel as picture 3. |
 | |
| S4 Disassemble the TRlM and MF. | Unlock 2 TRIM screws and disassemble TRIM from MF as picture 1. Unlock 9 MF screws, disassemble MF from panel and tear off 2 pieces of adhesive tapes as picture 2. Extract lamp wire from panel as picture 3. |
 | |

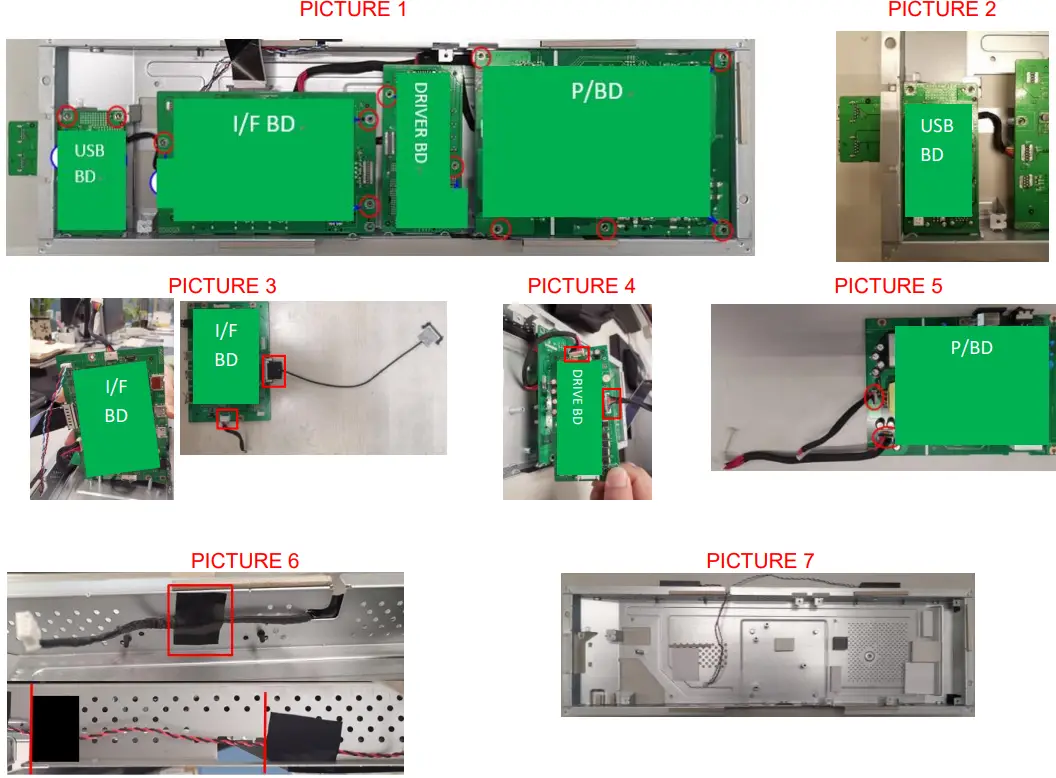

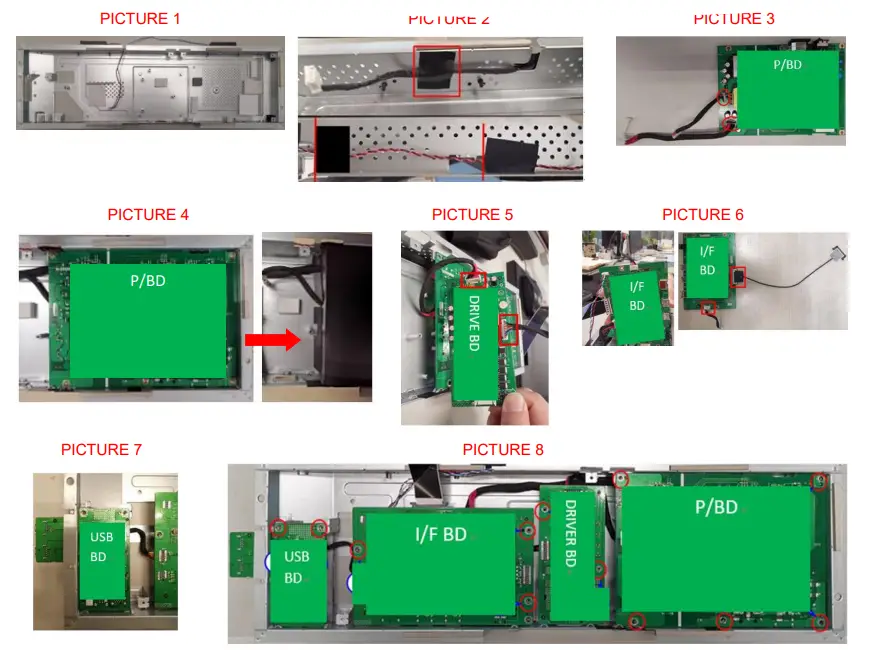

| S5 Disassemble PCBAs from SHD | Unlock 12 PCBA screws as picture 1. Disassemble USB BD from SHD and extract USB wire from USB BD as picture 2. Disassemble I/F BD from SHD, extract P/BD wire and SPK wire from I/F BD, then extract LVDS wire and USB wire from I/F BD as picture 3. Disassemble DRV BD and extract DRV wire and DRV BD wire from DRV BD as picture 4. Disassemble P/BD from SHD as picture 5. Tear off 3 pieces of adhesive tapes as picture 6. Disassemble SPK from SHD as picture 7. | ||||
 | |||||
| NOTE: Circuit boards >10 cm² has been highlighted with the yellow rectangle as above image shows. Please detach the Circuit boards and follow local regulations for disposal. | |||||
| 4.2 Assembly Procedures | |
| Preparation before assemble: 1.Clean the room for work 2.Identify the area for material 3. Prepare the implement, equipment, materials as bellow： 1) working table 2) Screw-driver 3) Knife 4) glove 5) cleaning cloth 6) ESD protection After unplugging the power cord, the power board still have power energe. Please pay attention when disassembling/assembling Power BD. | |
| S1 Assemble PCBAs into SHD | Before Disassembling & Assembling, monitor need to be put on the sponge and the Insulation glove must be wore during the process. Assemble SPK to SHD as picture 1. Paste 3 pieces of adhesive tapes to fix SPK wire as picture 2. Insert P/BD wire and DRV BD wire to P/BD as picture 3. Assemble P/BD to SHD and assemble P/BD Mylar as picture 4. Insert DRV wire and DRV BD wire to DRV BD, assemble DRV BD to SHD as picture 5 Insert LVDS wire, USB wire,P/BD wire and SPK wire to IF BD and assemble IF BD to SHD as picture 6. Insert USB wire to USB BD and assemble USB BD to SHD as picture 7. Lock 12 PCBA screws as picture 8. |
 | |

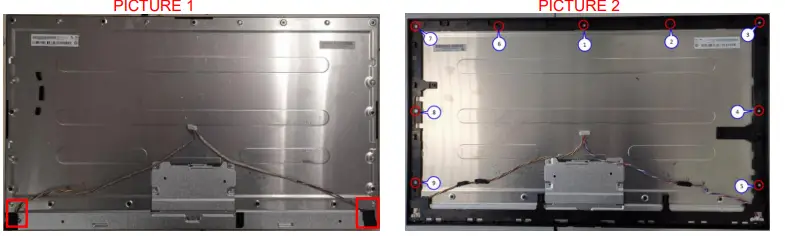

| S2 Assemble Panel to MF | Insert lamp wire to panel as picture 1. Paste 2 pieces of adhesive tapes to panel and assemble MF to panel and lock 9 MF screws as in picture 2. | |

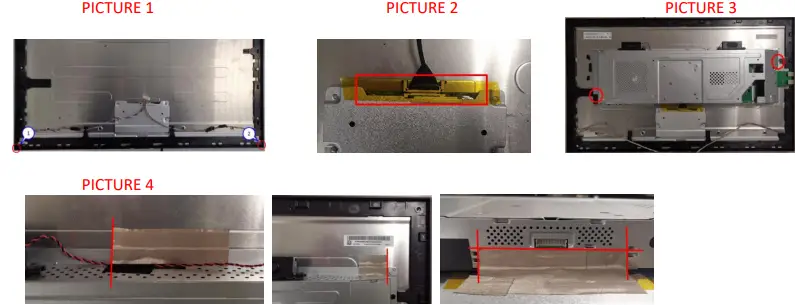

| S3 Assemble Trim and SHD | Assemble TRIM to MF and lock 2 TRIM screws as picture 1. Insert LVDS wire to panel and paste yellow tape to LVDS wire as picture 2. Locate SHD to MF as picture 3. Paste 3 pieces of conductive tapes to SHD as picture 4 | |

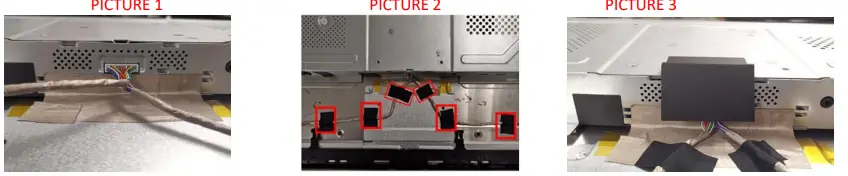

| S4 Assemble Lamp wire | Insert lamp wire to SHD as picture 1. Paste 6 pieces of adhesive tapes to fix lamp wire as picture 2. Assemble Mylar to SHD as picture3. | |

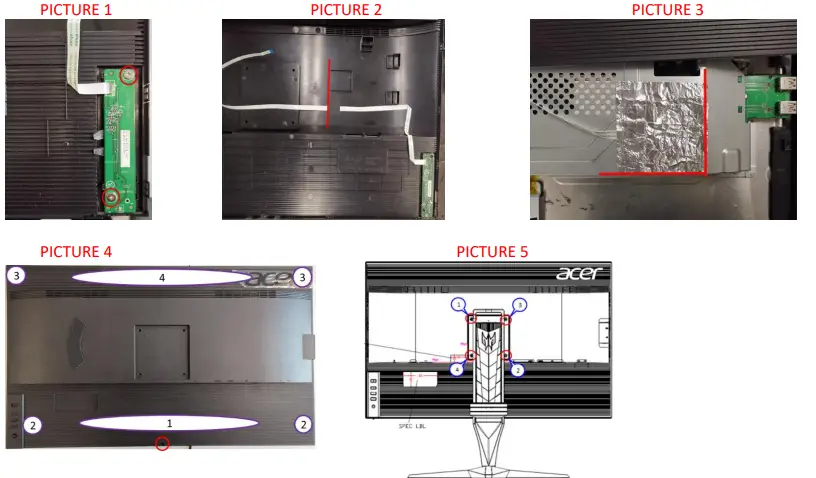

| S5 Assemble CTRL BD, RC and ASSY Stand. | Assemble CTRL BD to RC and lock 2 CTRL BD screws as picture 1. Arrange CTRL BD FFC on RC and paste adhesive as picture 2. Insert CTRL FFC to IF BD and paste AL foil on SHD as picture 4. Assemble RC to MF and lock RC center screw as picture 5. Assemble stand to RC and lock 4 RC screws as picture 6. | |
 | ||
| NOTE: Circuit boards >10 cm² has been highlighted with the yellow rectangle as above image shows. Please detach the Circuit boards and follow local regulations for disposal. | ||
Troubleshooting
Before sending your LCD monitor for servicing, please check the troubleshooting list below to see if you can self-diagnose the problem. (VGA Mode)
| Problems | Current Status | Remedy |
|
No Picture | LED ON | ˜ Using OSD, adjust brightness and contrast to maximum or reset to their default settings. |
| LED OFF | ˜ Check the power switch. | |
| ˜ Check if AC power cord is properly connected to the monitor. | ||
| LED displays amber color | ˜ Check if video signal cable is properly connected at the back of monitor. | |
| ˜ Check if the power of computer system is ON. | ||
|
Abnormal Picture | Unstable Picture | ˜ Check if the specification of graphics adapter and monitor is in compliance which may be causing the input signal frequency mismatch. |
|
Display is missing, center shift, or too small or too large in display size | ˜ Using OSD, adjust RESOLUTION, CLOCK, CLOCK-PHASE, H-POSITION and V-POSITION with non-standard signals. | |
| ˜ Using OSD, in case of missing full-screen image, please select other resolution or other vertical refresh timing. ˜ Using OSD, in case of missing full-screen image, please select other resolution or other vertical refresh timing. ˜ Wait for a few seconds after adjusting the size of the image before changing or disconnecting the signal cable or powering OFF the monitor. | ||
| Abnormal Sound (Only Audio-Input model) (Optional) |
No sound, or sound level is too low | ˜ Check the audio cable with the host PC is connected. |
| ˜ Check if the volume setup of the host PC is in minimum position and try to raise the volume level. |
(HDMI/DP Mode)
| Problems | Current Status | Remedy |
|
No Picture | LED ON | ˜ Using OSD, adjust brightness and contrast to maximum or reset to their default settings. |
| LED OFF | ˜ Check the power switch. | |
| ˜ Check if AC power cord is properly connected to the monitor. | ||
| LED displays amber color | ˜ Check if video signal cable is properly connected at the back of monitor. | |
| ˜ Check if the power of computer system is ON. | ||
| Abnormal Sound (Only Audio-Input model) (Optional) | No sound, or sound level is too low | ˜ Check the audio cable with the host PC is connected. |
| ˜ Check if the volume setup of the host PC is in minimum position and try to raise the volume level. |
FRU List
This chapter gives you the FRU (Field Replaceable Unit) listing in global configurations of ACER XB323U. Refer to this chapter whenever ordering for parts to repair or for RMA
(Return Merchandise Authorization).
Please note that WHEN ORDERING FRU PARTS, you should c heck the most up-to-date information available on your regional web or channel. For whatever reasons a part number change is made, it will not be noted on the printed Service Guide. For AUTHORIZED SERVICE PROVIDERS, your office may have a DIFFERENT part number code from those given in the FRU list of this printed Service Guide. You MUST use the local FRU list provided by your regional office to order FRU parts for repair and service of customer machines
NOTE: To scrap or to return the defective parts, you should follow the local government ordinance or regulations on how to dispose it properly, or follow the rules set by your regional office on how to return it.
| Category | ACER DESCRIPTION | Description | PART NO. |
| LCD | |||
 |
LED LCD Panel AUO 32W QHD M320DAN02.2 400nit 5ms 1000:1 |
LCM 32W M320DAN02.2 |
KL.32005.012 |
| BOARD | |||
 |
MAIN BOARD 2H1DP+S+U AUO | PCBA IF BD MI S XB323U 170 L5 |
55.TKWM3.007 |
|
| POWER BOARD 2H1DP+S+U AUO | PCBA SPS BD MI XB323U |
55.TKWM3.002 |
 | FUNCTION KEY BOARD WITH WIRE | PCBA CTRL BD MI XB323U | 55.TKWM3.003 |
|
| USB BOARD | PCBA USB BD MI XB323U |
55.TKWM3.004 |
 |
LED DRIVER BOARD AUO |
PCBA LED DRV BD MI XB323U |
55.TKWM3.005 |
